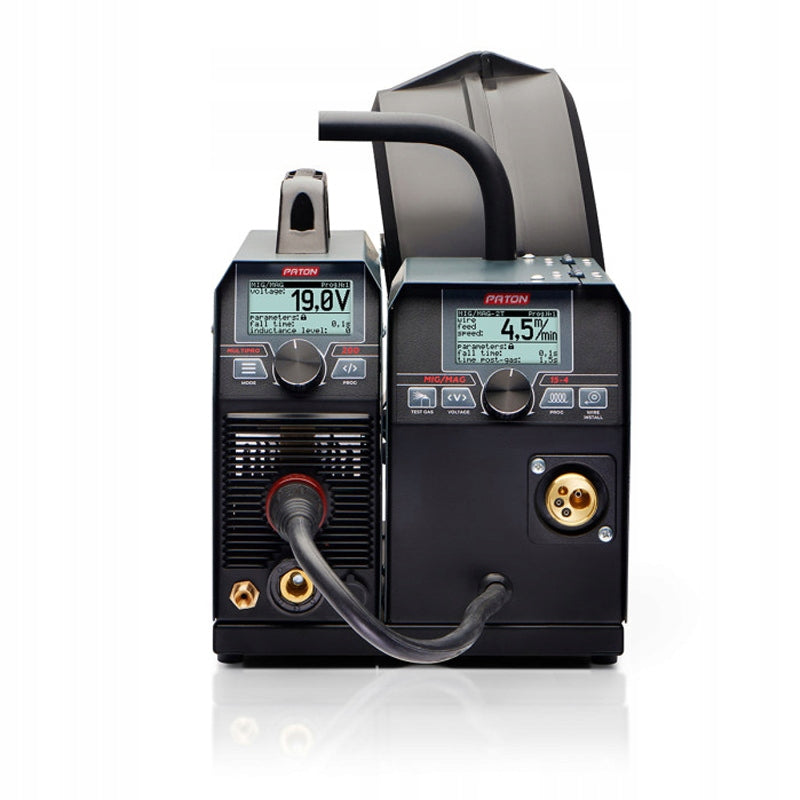

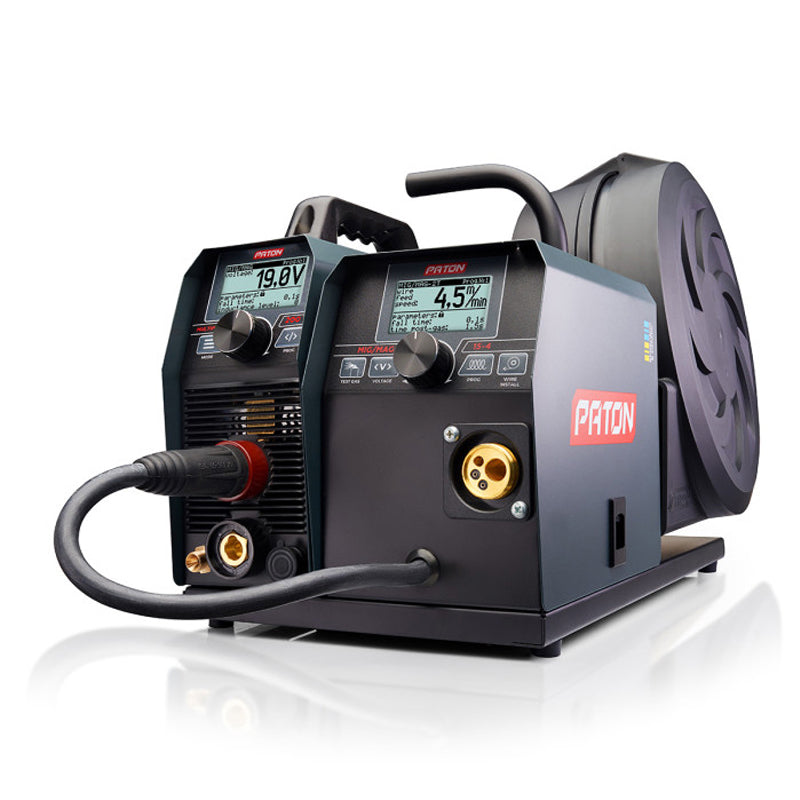

Suvirinimo aparatas PATON MultiPRO 200A 15-4 MIG/MAG/MMA/TIG HF

Trumpai apie prekę

Prekė: Suvirinimo aparatas PATON MultiPRO 200A 15-4 MIG/MAG/MMA/TIG HF. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Paton
• Modelis: MultiPRO-200-15-4
• Ilgis: 360 mm
• Plotis: 260 mm
• Aukštis: 270 mm

⭐ Paton brand equipment is the No. 1 for customers who are not professionals, but want to weld like the best welders.

⭐ The Paton plant has its own production of welding machines, which, unlike most welding equipment on the Polish market, does not take place in China, but in its own factory, which is located in Ukraine in Kiev.

⭐ 3 years of DOOR-to-DOOR service period, also for companies.

⭐ You don’t have to be a professional to weld like a professional!

⭐ Migomat Paton MultiPRO-200 is a welding machine made on the basis of the latest inverter technology, which ensures the highest quality of welding in every method: MMA, MIG-MAG and TIG with contactless glow.

✔ MANUFACTURER: PATON

✔ WELDING METHODS: MIG/ MAG (gas shielded wire and gas-free wire) / MMA (wrapped electrode) / TIG (HF) DC

✔ TECHNOLOGY: INVERTER IGBT

✔ POWER SUPPLY: 230 V

✔ WELDING CURRENT OF THE DEVICE: 200 A

✔ WIRE SPOOL SIZE: 5kg/15kg/18kg

✔ CONTACTLESS ARC GLOW (HF)

Are you still using your welding machine and worried about its durability? With PATON you do not have to worry about anything - whether you buy a device for yourself or for the needs of the company, PATON gives you 3 years of free DOOR-to-DOOR service period.

What does this mean?

After buying a welding machine, you can be sure for 36 months that no matter what happens to the device - we will pick up the welding machine from you and repair it within 3 years from the date of purchase.

The Paton MultiPRO-200 device was made on the basis of the latest inverter technology, from components made in Europe. The device uses general protections such as protection against excessive voltage, excessive current, overheating of the device, etc.

MultiPro series devices have a contactless arc ignition module (oscillator), with a built-in gas supply valve

The welding machine can be successfully used for welding carbon steel, stainless, alloy, iron, black steel and aluminium using the following methods:

• MIG/MAG in protective gas shielding
• MIG/MAG without gas shield (self-shielded wire)
• MMA wrapped electrode
• TIG DC (HF)

✅ reliability confirmed by the longest service period DOOR-to-DOOR

✅ easy settings of the welding machine

✅ digital setting method

✅ ability to remember 16 memory programs

✅ application from amateur to professional

✅ possibility of separating the wire feeder from the source in MMA and TIG welding methods

✅ welding without gas self-shielded wire

✅ contactless arc ignition (HF)

✅ equipment of the highest quality - handles included are German manufacturer ABICOR BINZEL

⭐ Convenience for all

Do you use MMA or TIG? Separate the source from the feeder and take it with you wherever you want. Additional safety will provide you with the degree of protection of the interior of the IP33 welding machine - that is:

• Protection against solids: Protection against penetration of objects with a diameter greater than 2,5 mm, i.e. larger than fingers or tools
• Protection against water: Protection against water falling at an angle of up to 60° from the vertical. This means that the welding machine is resistant to minor rainfall or water drops falling from a certain angle

⭐ Professional wire feeder

The feeder has its own control system. Its characteristic feature is a very powerful and high-quality additionally sealed metal wire feeding mechanism, as well as an integrated EURO connector, which has become a standard all over the world.

Few novice welders are aware of the fact that the right power and speed of wire feeding is one of the factors determining the quality of our welding in the MIG MAG method. With the highest quality Paton feeder, the wire will be fed perfectly, exactly as you set it.

⭐ Features that will make you do everything

Paton MIGOMATES have the possibility of soldering, thanks to the function of changing the inductance in three degrees. Inductance control allows you to optimize the characteristics of the arc depending on the thickness of the welded element.

PULSE FUNCTION

– PULS in TIG method – gives the welder full control of the heat introduced into the material – a great function for welding stainless steel and acid-resistant steel,

– PULS in MMA method – thanks to this it is easier to transfer the material from the electrode to the welding lake, better quality of the welded joint,

- PULS in MIG/MAG method - easier detachment of metal droplets from the end of the electrode wire, the ability to adjust pulsating current parameters. MIG welding with pulsation is useful for welding stainless steels, acid-resistant steels and aluminum alloys. In addition, pulse welding provides better parameters when soldering CuSi3

❓ FAQ - Frequently Asked Questions

❓ What welding methods does this welding machine support?

The PATON MultiPRO-200 welder is a professional, multifunctional inverter device for workshop, construction and service applications.

It supports all the most popular welding methods:

• MIG/MAG – welding with gas shielded wire (steel, stainless steel, aluminium),
• MIG/MAG without gas (FCAW) – self-shielding wire welding, ideal for field work,
• MMA – welding with a wrapped electrode,
• TIG HF – TIG welding with non-contact arc ignition (HF module).

Thanks to the use of the HF module, TIG in MultiPRO-200 ensures a clean arc start, no electrode contamination and professional weld quality.

It is a universal welding machine that replaces several devices in one.

❓ What is the maximum welding current and what materials can be welded?

The MultiPRO-200 offers welding current up to 200 A and smooth adjustment in the range of 10 to 200 A.

Allows welding:

• structural steel up to approx. 8 mm,
• stainless steel up to approx. 6 mm,
• aluminium up to approx. 4 mm (after using the appropriate wire and gas).

The welder has a duty cycle of 70% at 200 A, which ensures the possibility of long-term operation without overheating. It is an ideal choice for workshop work, repairs, steel and bodywork structures. At lower currents (e.g. 120 – 150 A) welding machine can work practically continuously.

❓ What wires can be used in this migraine?

The welder supports wires:

• steel, stainless and aluminium,
• with a diameter of 0,6 to 1,0 mm,
• for 5 kg (⌀ 200 mm) and 15 kg (⌀ 300 mm) spools

If necessary, self-shielding wire (FCAW) can be used without the use of gas – just change the polarity in the device. The precise 4-roll wire feeder ensures even and stable feeding of even soft aluminum wires.

❓ Does the welding machine have a pulse function?

Yes — PATON MultiPRO-200 has a pulse welding function.

Pulse mode works in all methods:

• MIG/MAG,
• MMA,
• TIG.

The pulse function allows for cleaner, more precise and aesthetic welds, especially when welding thin materials, aluminum and stainless steel. In addition, it reduces the amount of chipping and reduces the heating of the material, which protects the elements from deformation.

❓ What is the service and warranty?

PATON welding machines are manufactured in Europe and not in China, which guarantees high quality, durability and reliability. The MultiPRO-200 model is covered by 3-year service care, implemented in Poland – in an authorized service center in Rzeszów. This is a guarantee of fast and professional technical support.

❓ What power will the unit power the migomat? How long can the extension cord be used?

The MultiPRO-200 welder can be powered from a generator set, provided that:

• the unit has voltage stabilization (AVR),
• its continuous power is a minimum of 6,5-7 kW,
• The recommended power is 7 kW with AVR if you plan to weld at full power (200 A).

The 5,5-6 kW unit with AVR is sufficient for typical workshop work with currents up to 160-180 A.

The welder can work with longer extension cords:

• up to 75 meters with a cross-section of 2,5 mm²,
• up to 185 meters with a cross-section of 6 mm².

Detailed technical data:

• Power supply voltage: 230V
• Nominal mains current required: 23...27A
• Nominal welding current: 200A
• Maximum welding current: 270A
• Work Cycle: 70% at 200A 100% at 167A
• Power supply voltage change intervals: 160 – 260V
• Welding current adjustment intervals: 10 – 200A
• Diameter of wrapped electrode: 1,6 – 5,0 mm
• Number of pressure rollers: 4 with drive on all rollers
• Diameter of solid wire: 0,6 – 1,0
• Hot-Start function in MMA method: Adjustable
• Arc-Force function in MMA method: Adjustable
• Anti-Stick function in MMA method: Adjustable
• Contactless electric arc (HF): Yes
• Maximum spool weight: 15kg
• Pulse current welding modes: MMA, TIG, MIG/MAG
• Idle current voltage: 12 / 75 V
• Arc current voltage: 110 V
• Nominal power consumption: 5,1 ... 6,1 kVA
• Maximum power consumption: 7,5 kVA
• Energy efficiencý: 90%
• Cooling: Automatic
• Working temperature range: –25 ... +45 ºС
• Dimensions (length, width, height): 360x260x270
• Weight without spool and accessories: 13,3kg
• Degree of protection: IP33

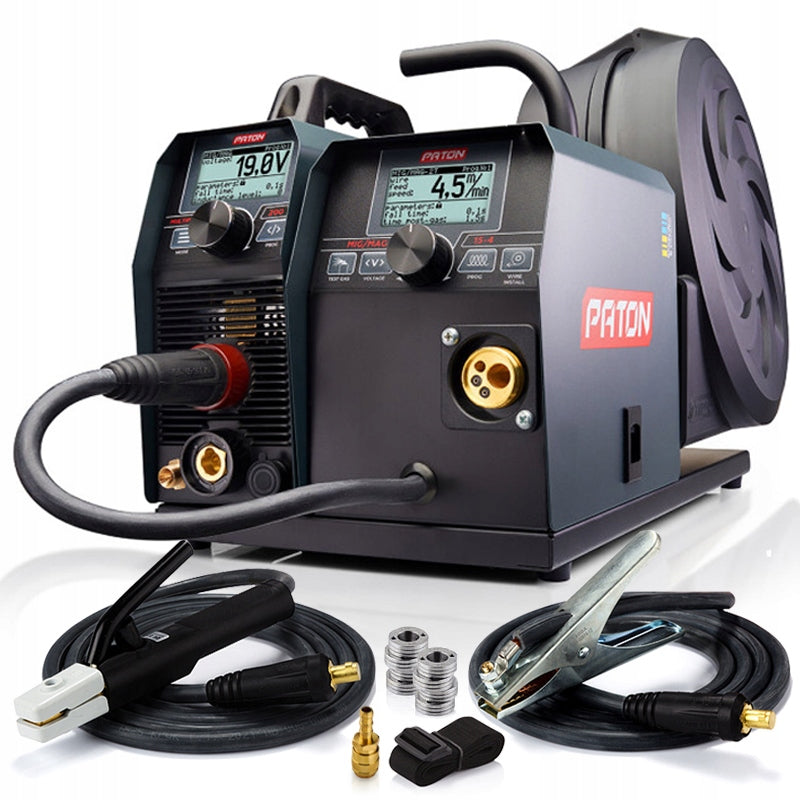

⭐ The purchased set includes:

• Welding machine PATON™ MultiPRO 200 230V
• Feeder PATON™ Feeder 15-4 (spool 15 kilograms – feeder 4 rolls)
• Electrode holder ABICOR BINZEL DE2300 3m
• Mass holder ABICOR BINZEL MK300 3m
• Wire feeder rollers 4x (0,8 – 1,0),4x (1,2 – 1,6) V + 4x (0,8 – 1,0) U
• Quick coupler for gas
• Spool cover with wire
• Cardboard packaging
• Carrying strap
• User manual
