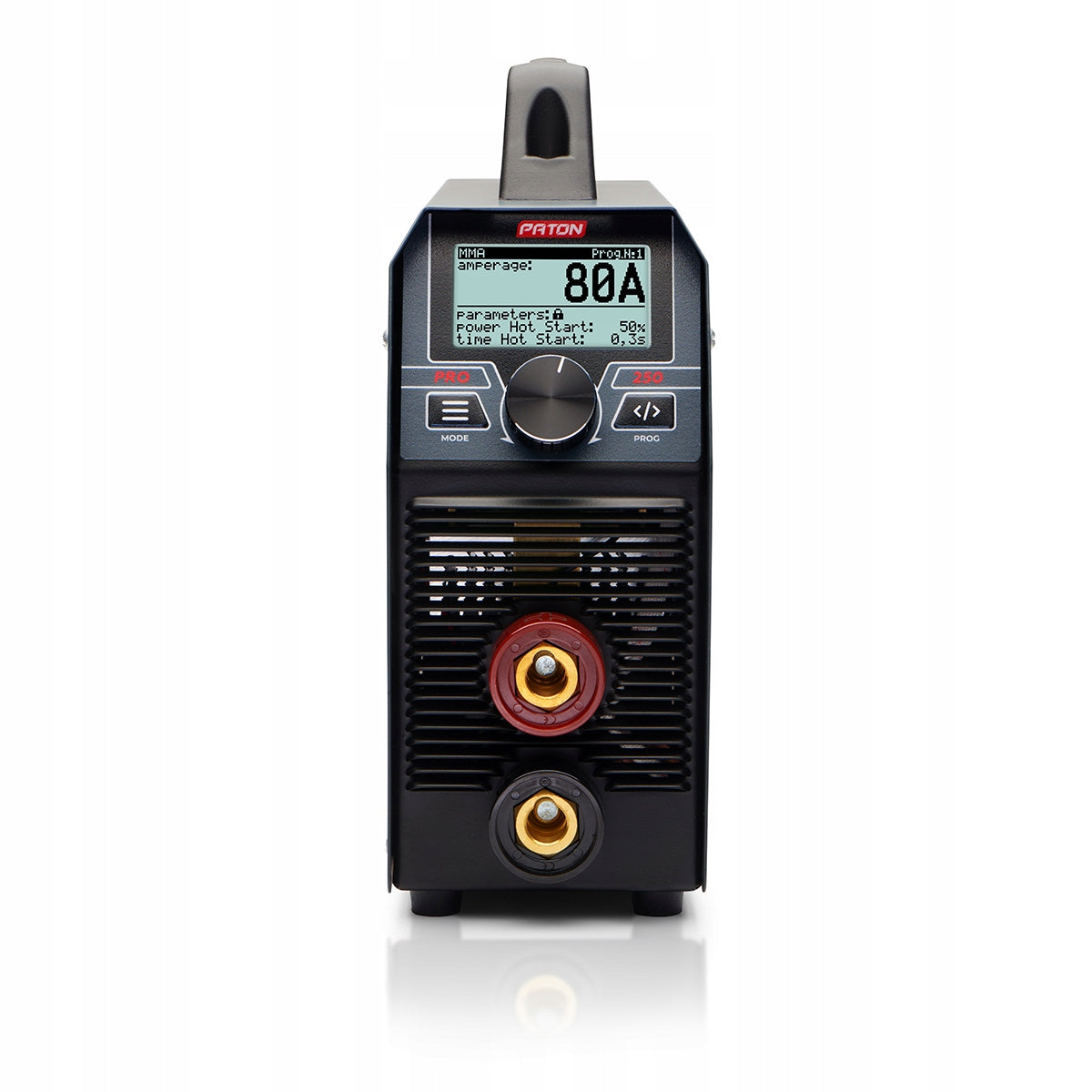

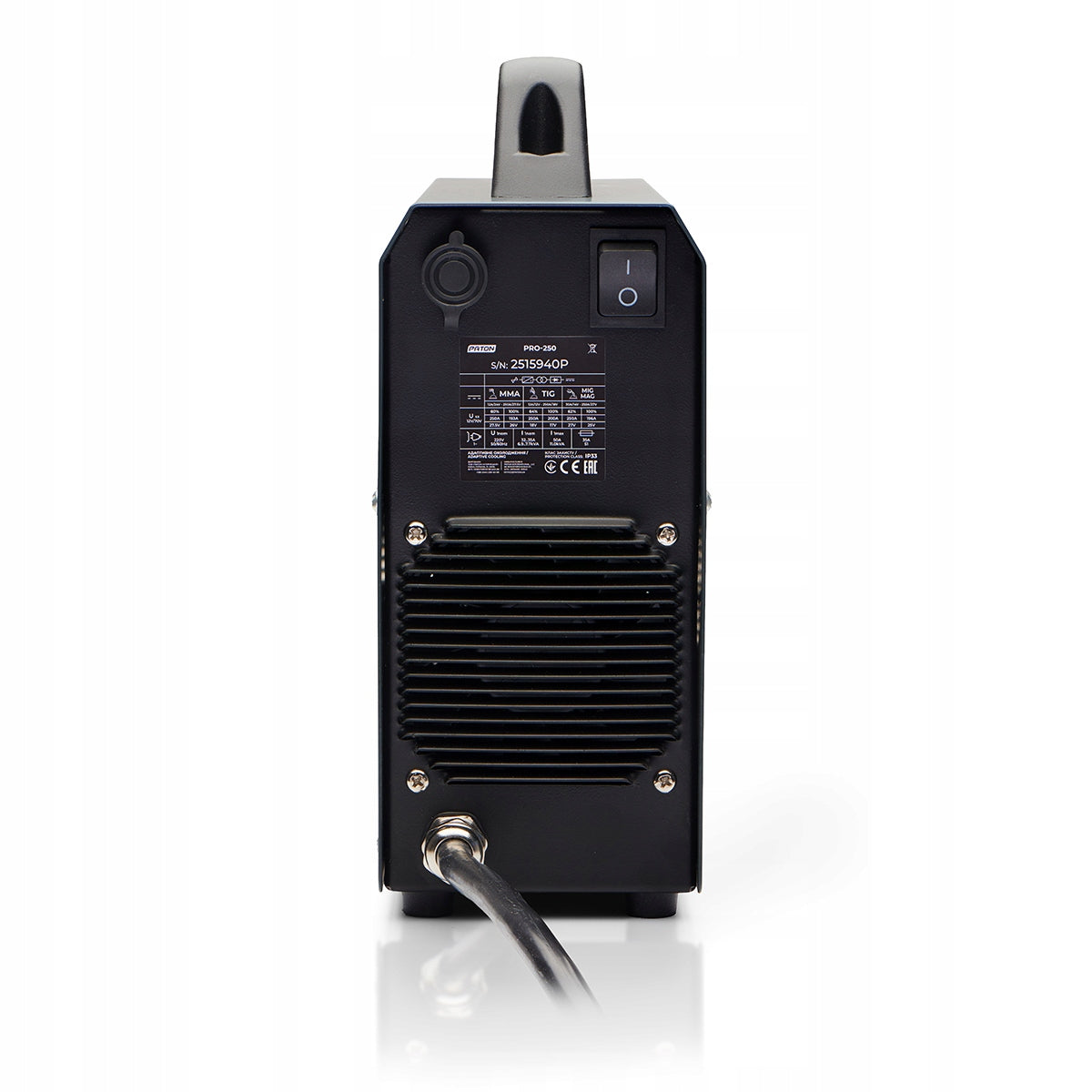

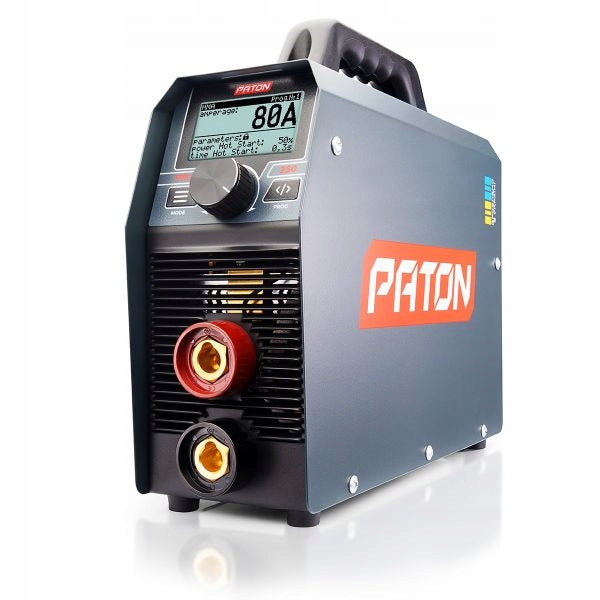

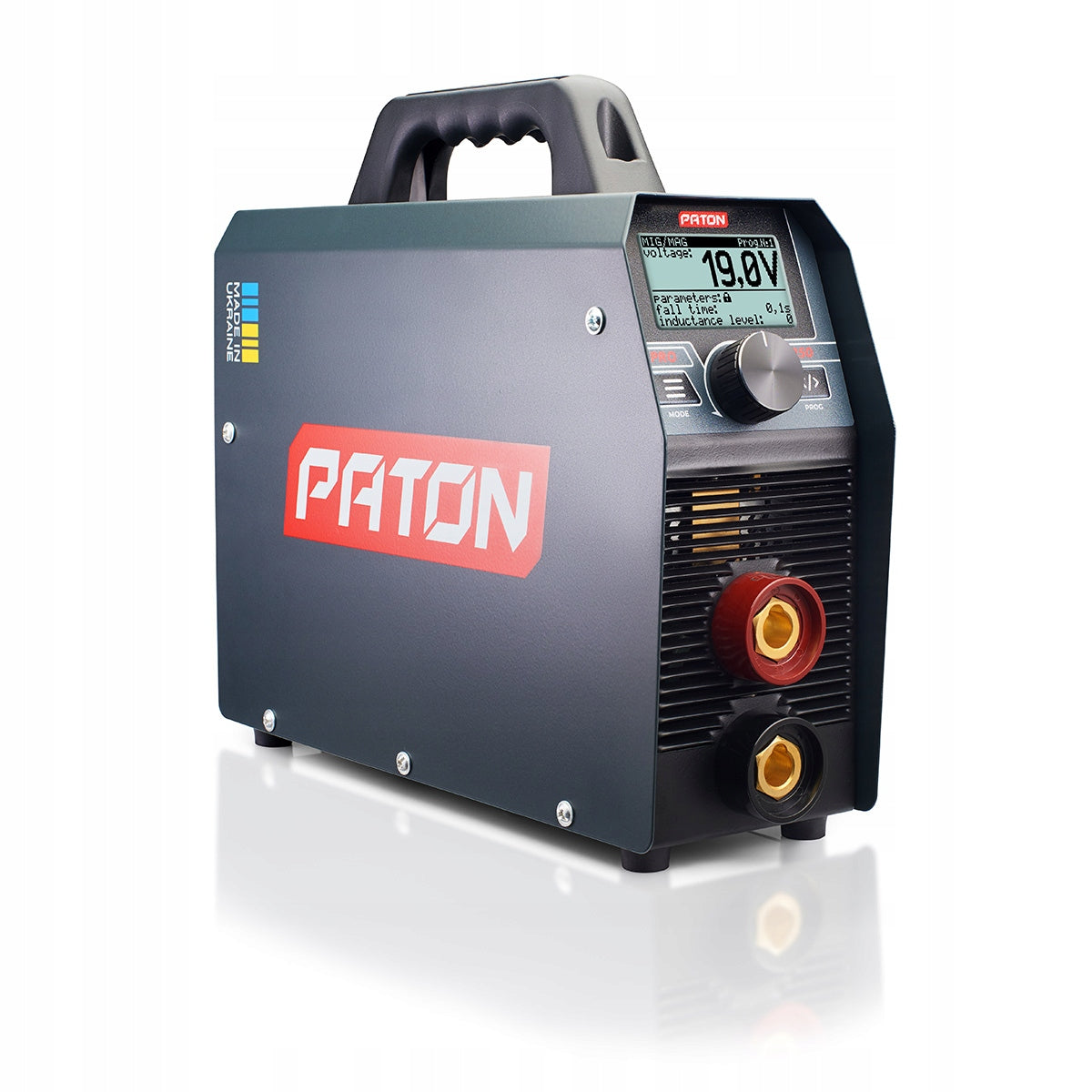

Suvirinimo aparatas PATON PRO-250 MMA/TIG LIFT/MIG

Trumpai apie prekę

Prekė: Suvirinimo aparatas PATON PRO-250 MMA/TIG LIFT/MIG. Kategorija: Invertoriniai suvirinimo aparatai.

• Gamintojas: Paton
• Modelis: PRO-250

CONTENTS OF THE SET:

• WELDING MACHINE PATON VDI 200 PRO DC
• HANDLE ELECTRODE ABICOR BINZEL DE 2300 3M
• HANDLE MASS ABICOR BINZEL MK 300 3M
• PROFESSIONAL TRANSPORT CASE
• WELDING MACHINE CARRYING STRAP
• USER MANUAL AND WARRANTY CARD.

Universal inverter welding machine PATON™ VDI 200 PRO DC is designed for manual arc welding by MMA method, arc welding in the argon version by TIG method with direct current and semi-automatic welding by MIG/MAG method in the protection of gases and protective mixtures.

The device is set to optimal values for most use cases. Demanding users can choose each of the parameters individually.

The VDI PRO series offers full electronic control, which allows for greater control of the welding process for each of the selected methods, as well as allows maximum use of the potential of the devices. Welding inverters from the PRO series are dedicated for industrial use as well as for the most demanding home users.

The main advantages of the PATON™ inverter welding machine:

• Wide possibilities of adjusting welding parameters:

  – method MMA – 1 (basic) + 10 (additional)

  – method TIG – 1 (basic) + 4 (additional)

  – method MIG/MAG – 1 (basic) + 5 (additional)

• The function of welding with pulsing current, which is additionally programmable – in all welding modes.
• Voltage surge protection system.
• Installed additional operation stabilization system with greater long-term voltage differences in the single-phase power grid from 160 V to 260 V.
• Adapted to standard electricity grid. Thanks to its high efficiency, the source provides twice less electricity demand compared to traditional sources.
• The adaptive fan speed, which increases at the beginning of welding, increases even more when the welding machine is heated and decreases when it is cool, this saves fan wear and reduces the amount of dust in the welding machine.
• Convenience of work thanks to good load life at nominal current, which allows welding practically without interruption with electrodes at nominal current.
• Thermal protection system protecting all elements generating heat of the welding unit from overheating.
• Increased durability thanks to impregnation of the electronic system with two layers of high-quality varnish, which ensures the reliability of the product during the entire service life.
• Improved stability of electric arc glow.
• Efficiency through the use of the latest advanced IGBT technology.
• European production of welding machines

5 years of after-sales service for consumersnts and companies

The highest quality of workmanship confirmed by 5 years of service after sales of the manufacturer DOOR-to-DOOR. The models of the ECO series are characterized by a compact design, which uses a number of innovative solutions to increase the reliability of devices. The use of a proceeding inverter block at frequencies of the order of kHz affects the dimensions of the transformer in the power block, which significantly reduces the weight and dimensions of the device itself.

High quality welds and source safety are ensured by additional functions operating in automatic mode:

• Hot-Start function (hot start) – ensures the highest quality of welding start, first-class ignition – at the moment of arcing, during a short time, the working welding current increases from the set working level to the optimal level. In some cases (when working with a weak network or generator), this level can be set manually if there is a suitable switch (as in the “Professional” series). Lowering the “Hot-Start” to reduce power consumption from a weak grid or increasing it in a strong grid makes it much easier to ignite.
• Arc-Force function (electric arc force) – is used to improve the stability of combustion in the short arc and prevent the electrode from “sticking”. When a drop of metal is separated from the electrode, the current is automatically raised to a certain level if there is a suitable switch (as in the “Professional” series). By lowering the “Electric arc force” to reduce power consumption from a weak grid or increasing it in a strong grid, the stability of arc combustion is even more improved.
• Anti-Stick function (anti-stick) – allows the welder to easily separate the electrode from the product. In the case of a short circuit (if it occurs), after a short break, the welding current is reduced automatically. After separating the electrode from the element, the source automatically restores its operation.

The Welding Equipment Plant PATON is the leading industrial base of the Institute of Electrical Welding. E. O. Paton. PATON manufactures a full range of professional welding equipment. It is a leader on the market of welding equipment in the territory of the Commonwealth of Independent States.

ADVANTAGES OF WELDING EQUIPMENT PATON™:

• Up to 5 years g under DOOR-to-DOOR for equipment
• Use only high-quality components and components
• Full compliance of declared parameters with reality
• Low power consumption and small size
• Exceptional multifunctionality, efficiency and ease of use
• High quality accessories included

TECHNICAL DATA:

• Power supply 50/60 Hz, V: 230
• Nominal mains current required, A: 25-28
• Nominal welding current, A: 200
• Maximum welding current, A: 270
• Working cycle, %: 70 % at 200 А 100 % at 167 A
• Power supply voltage change intervals, V: 160 – 260
• Welding current adjustment intervals, A: 10 – 200
• Welding voltage adjustment compartments, V: 12 – 26
• Diameter of wrapped electrode, mm: 1,6 – 5,0
• Diameter of core wire, mm: 0,6 – 1,0
• Pulsing current welding methods: MMA: 0,2-500 Hz / TIG: 0,2-500 Hz / MIG/MAG: 5-500 Hz

• Hot-Start function in MMA method: Regulation
• Arc-Force arc pressure function in MMA method: Adjustment
• Anti-Stick in MMA method: Automatic
• Idle voltage reduction system: On/Off
• Idle voltage, V: 12 / 75
• Arc glow voltage, V: 110
• Nominal power consumption, kVA: 5,5-6,1
• Maximum power consumption, kVA: 8,0
• Energy efficiencý, %: 92
• Cooling: Forced
• Working temperature range: –25 - +45 ºС
• Dimensions (length, width, height), mm: 330 х 110 х 250
• Weight, kg: 5,6
• Degree of protection*: IP33

• WELDING MACHINE PATON VDI 200 PRO DC
• HANDLE ELECTRODE ABICOR BINZEL DE 2300 3M
• HANDLE MASS ABICOR BINZEL MK 300 3M
• PROFESSIONAL TRANSPORT CASE
• WELDING MACHINE CARRYING STRAP
• USER MANUAL AND WARRANTY CARD.
