Suvirinimo aparatas REDATS SM-160, MIG, 160A

Trumpai apie prekę

Prekė: Suvirinimo aparatas REDATS SM-160, MIG, 160A. Kategorija: Invertoriniai suvirinimo aparatai.

• Gamintojas: Redats
• Modelis: 19-00-51

• Producer: REDATS
• Welding methods: MIG/MAG, Lift TIG, MMA, Flux wire welding
• Input power: 6.4 kW
• L1MAX: 29.0A
• MIG/MAG: 30-160A
• MMA: 20 - 160A
• Working cycle: MIG/MAG - 60%, MMA -60%
• Electrode diameter: 0.8 - 1.0 mm
• Thickness of welded material: 1.0 - 6.0 mm
• Package contents: Hand mask, Wire brush with hammer

Universal device for a variety of welding tasks

The REDATS SM-160 welding machine is the perfect solution for those looking for a compact yet efficient welding device. Suitable for use with a wide range of materials, such as carbon steel, stainless steel, aluminum or copper, it offers versatility thanks to the support of four popular welding methods – MIG/MAG, Lift TIG and MMA, FLUX.

The most important technical parameters

• Model: SM-160
• Power supply: 230 V / 50 Hz – easy access to power in most workshops.
• Input power: 6,4 kW – sufficient for a wide range of applications.
• Welding Current Range:
• MIG/MAG: 30–160 A.
• MMA: 20-160A
• Initial voltage: 60 V – guarantees smooth arc ignition.
• Operating cycle: 60% – stable performance with regular use.
• Welding wire diameter: 0,8 – 1,0 mm – ideal for working with materials from 1,0 mm to 6,0 mm thick.
• Efficiency: ≥ 85% – energy efficiency and efficiency.
• Degree of protection: IP21S
• Degree of insulation: H
• Cooling method: Air – effectively prevents overheating of the device.
• Net weight: 7,2 kg – lightweight construction ensures ease of transport.

Welding methods – versatility and precision

1. MIG/MAG – efficiency in every task

With its automatic wire feeder, the welding machine allows for fast and efficient welding of various materials, ensuring smooth operation and even weld.

• Examples of applications: Body repair, steel structures, small mounting elements.

2. Lift TIG – precise and aesthetic connections

This method allows you to weld delicate materials with the utmost precision, making it an ideal choice for more demanding projects.

Benefits:

• No chipping, which ensures cleanliness of work.
• Ideal for thin sheets and elements where the aesthetics of the weld count.

3. MMA – reliability in harsh environments

Welding with a wrapped electrode is a universal method that will work even in the most demanding field conditions.

Benefits:

• Possibility to work without shielding gas.
• Efficient welding of various surfaces.

3. FLUX

The method uses a wire filled with flux (or chemical) that creates protective gases during welding, eliminating the need for external gas.

Benefits:

• High Efficiency
• Possibility of welding in various conditions

Functionalities that will make your work easier

Intuitive operation

REDATS SM-160 is equipped with clear knobs and buttons that allow you to quickly set welding parameters, allowing you to focus on work instead of configuring the device.

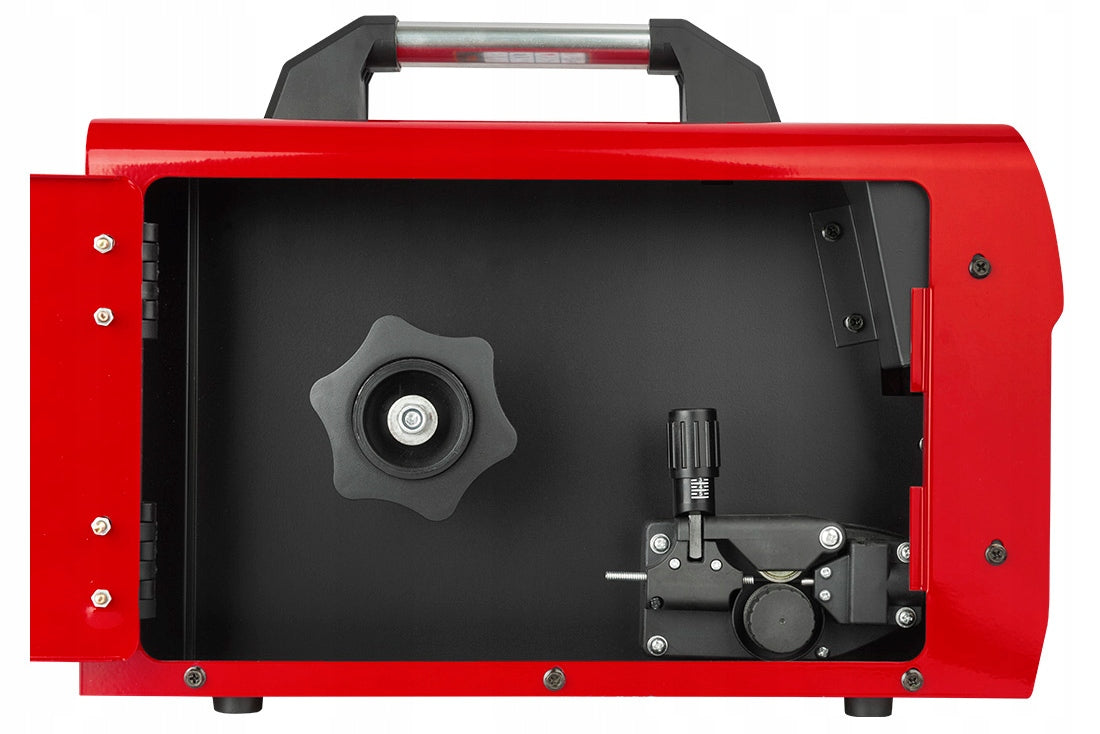

Wire feeding

The precision wire feeder ensures even and stable feeding, which affects the quality and aesthetics of the weld.

Efficient cooling

The advanced air cooling system effectively protects the device from overheating, which extends its lifespan and ensures stable operation even on longer cycles.

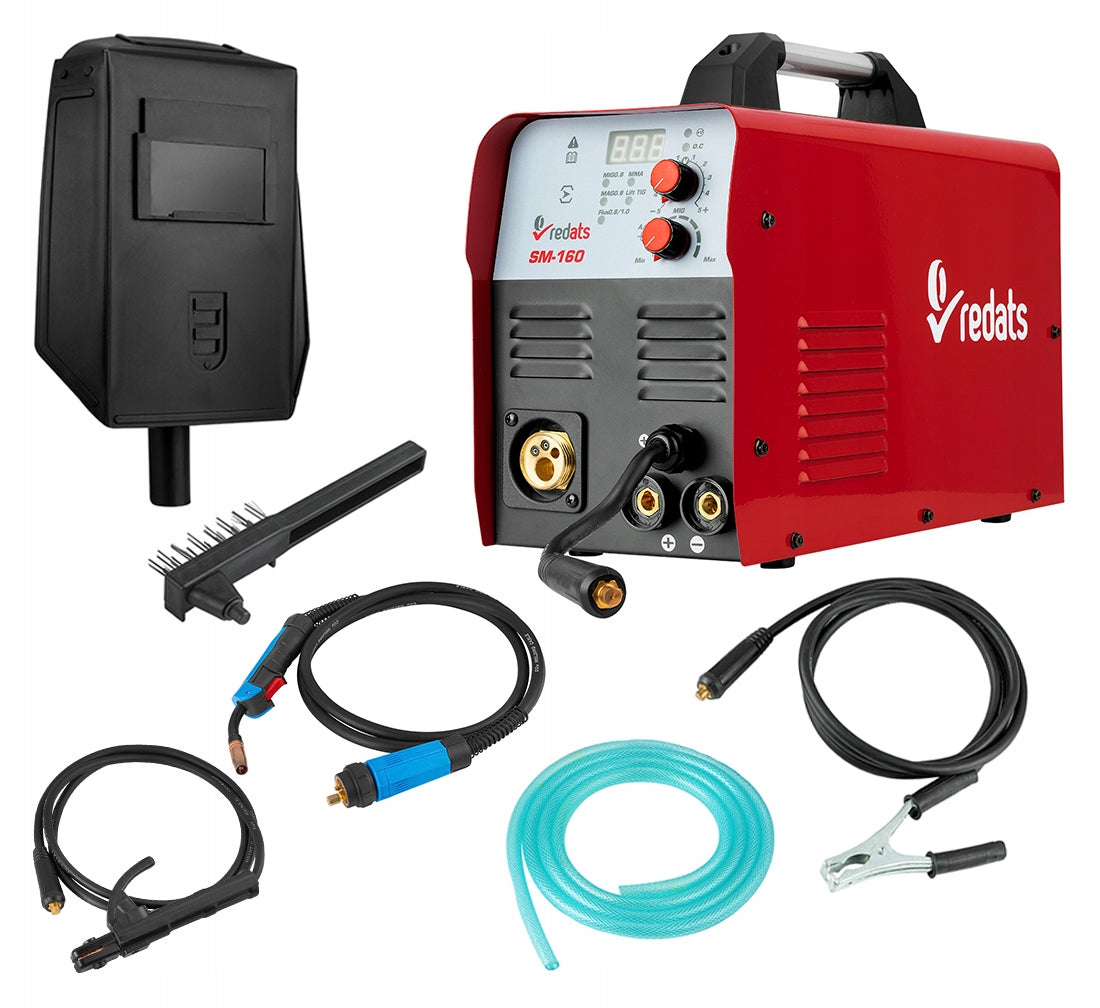

What will you find in the set?

• welding machine REDATS SM-160
• instruction
• clamp band x2
• hammer/brush
• current terminal 0,8-1,0
• MIG/MAG welding torch
• gas line
• visor
• mass handle
• MMA welding torch

Who is REDATS SM-160 for?

• Automotive and flashing workshops – ideal for repairing bodywork and steel structures.
• Fieldwork – thanks to the MMA method, it will be perfect for difficult conditions.

Why choose REDATS SM-160?

REDATS SM-160 is a versatile, compact welding machine that combines reliability, efficiency and ease of use. With support for three welding methods – MIG/MAG, Lift TIG and MMA – it will work in any task, from simple repairs to more demanding projects.

Quality REDATS!

By choosing REDATS you buy from the official distributor of devices of this brand in Poland and Europe. REDATS devices are manufactured in leading factories of this type of equipment, so you do not have to worry about the standards of workmanship or used parts.

Distributor of tools and machines REDATS is a company operating successfully on the Polish and international market since 2006. It is a recognized entity that has already gained the trust of over 500 000 recipients. When buying REDATS machines, you can count on professional and comprehensive support at every stage of the purchase or use of equipment.

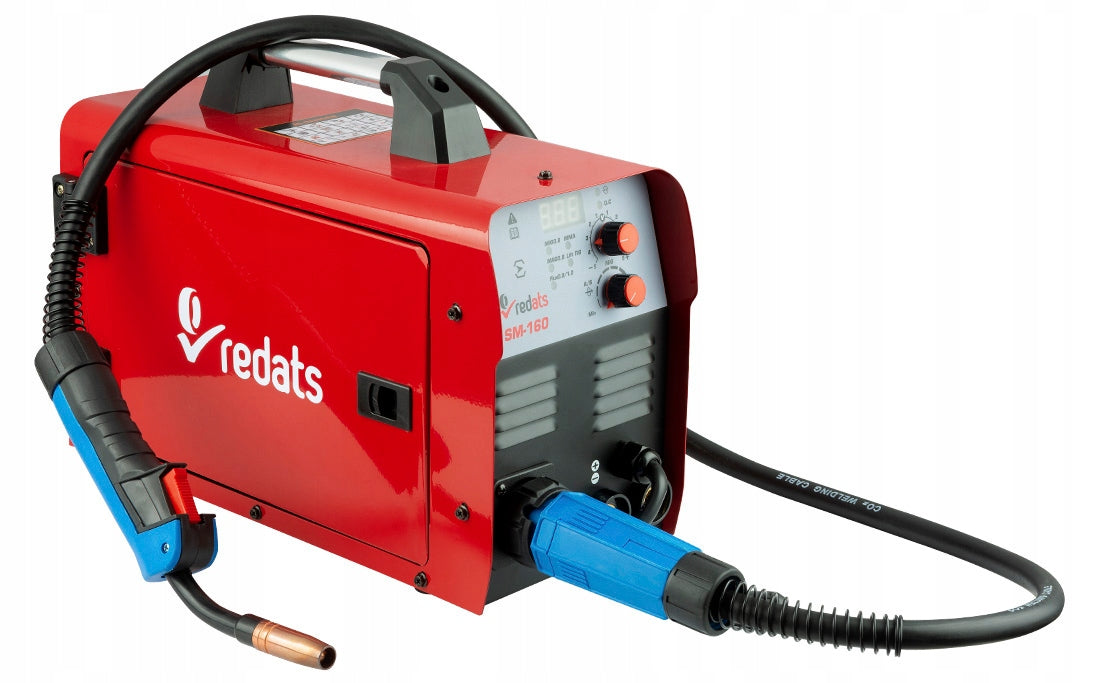

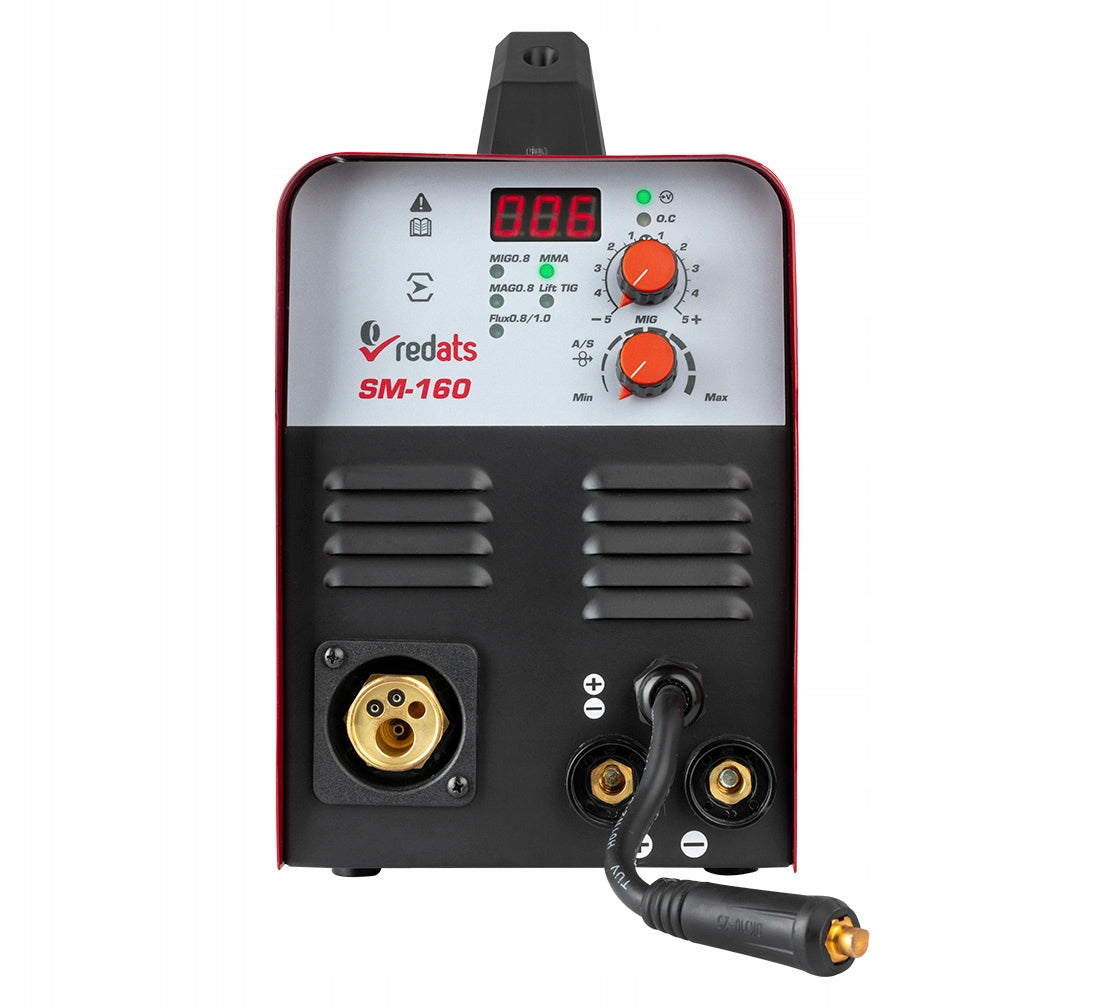

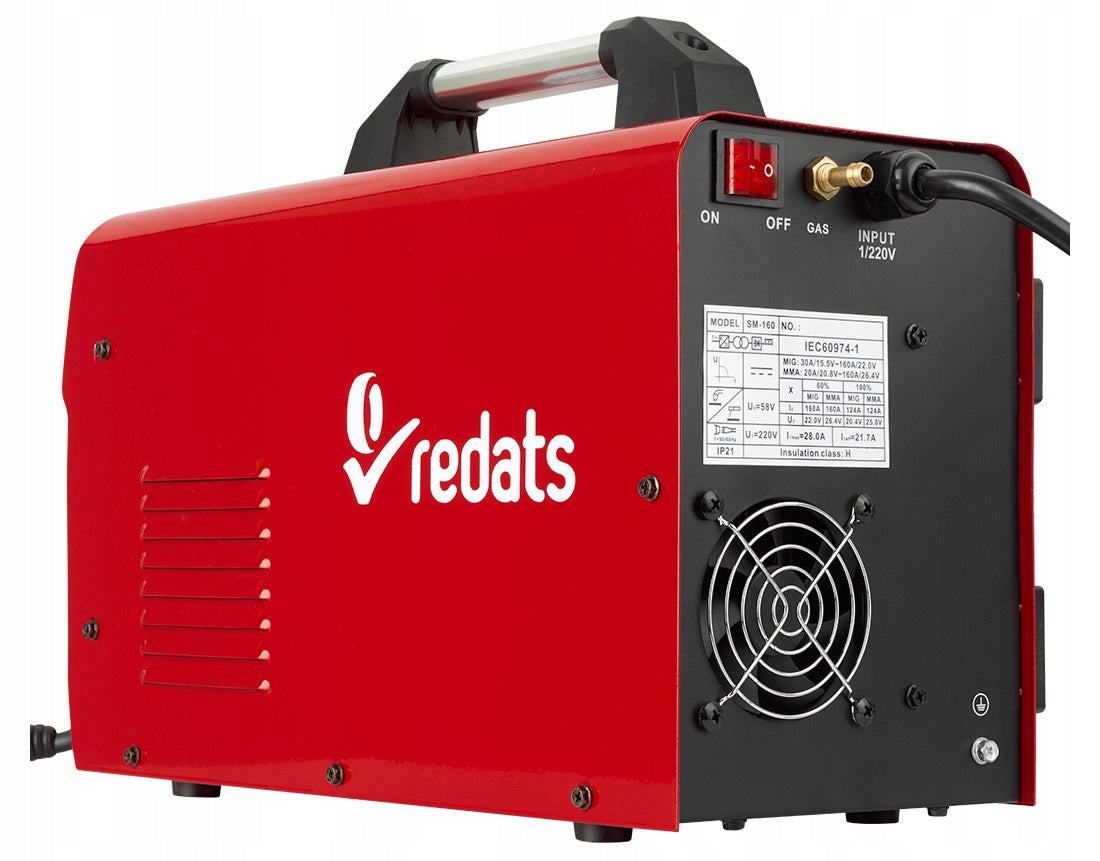

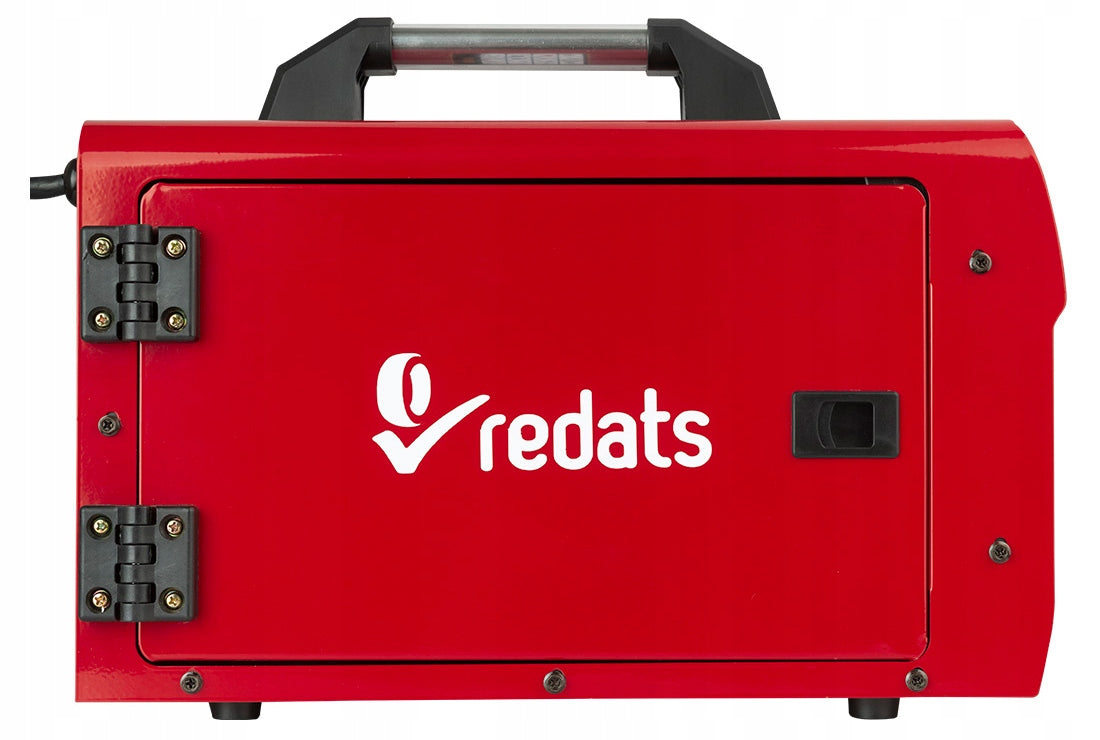

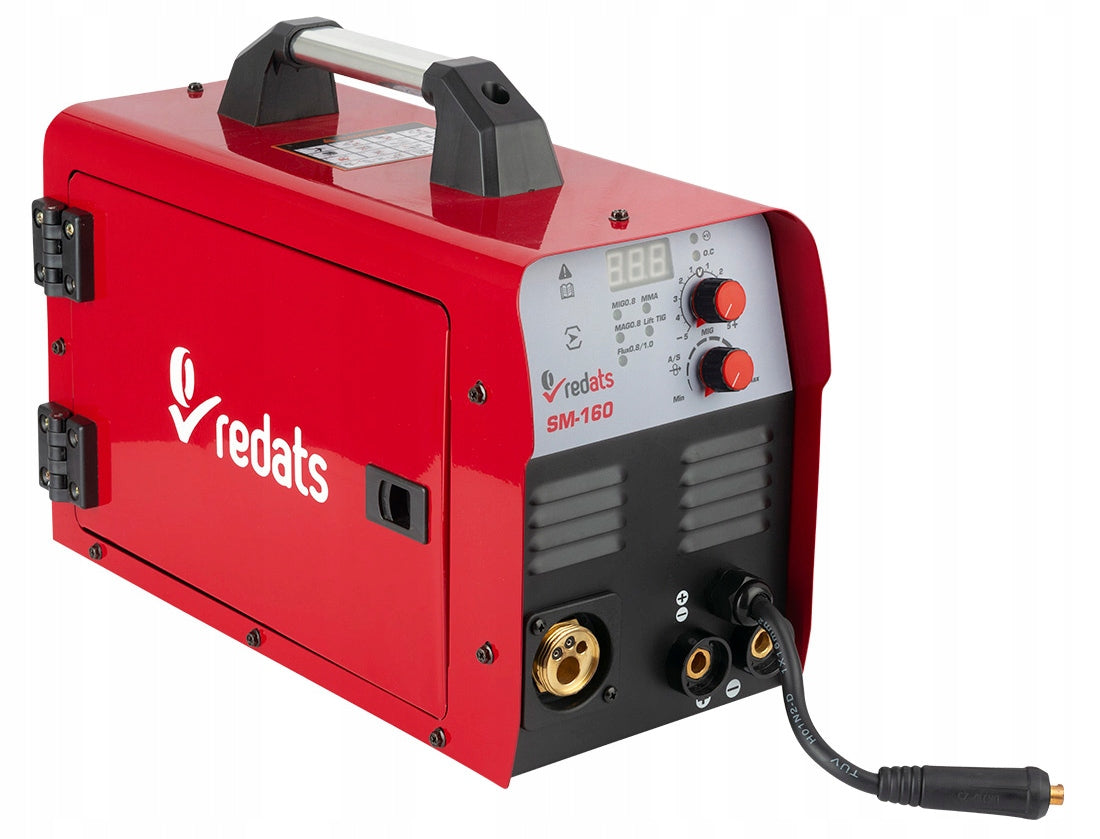

Product gallery:

Specifications
