Suvirinimo aparatas Sherman Digimig 141 Core 3in1 MIG/TIG/MMA be dujų

Trumpai apie prekę

Prekė: Suvirinimo aparatas Sherman Digimig 141 Core 3in1 MIG/TIG/MMA be dujų. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Sherman
• Modelis: DIGIMIG 141 Core

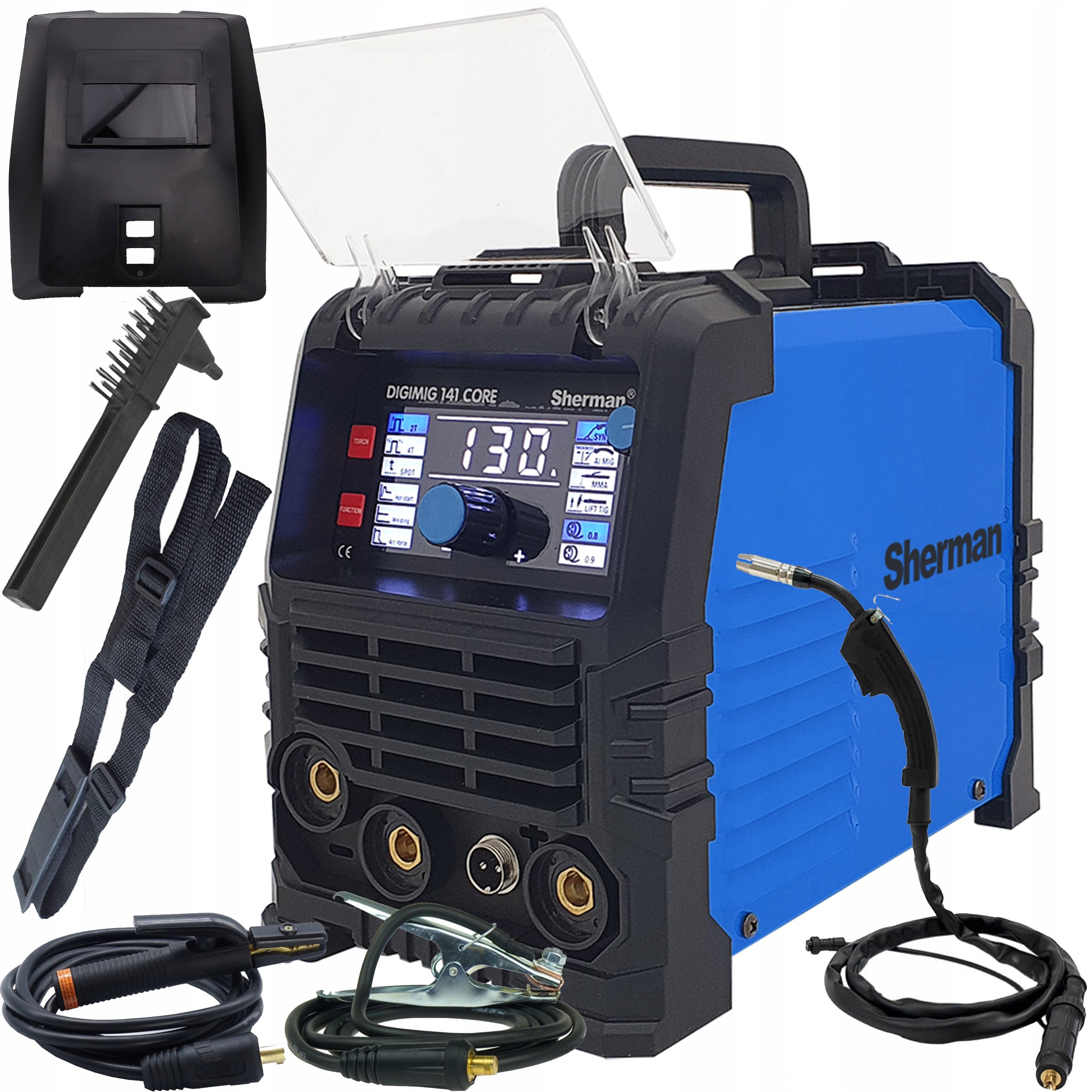

• MIG-14 holder dedicated to the DIGIMIG 141 CORE model,
• Electrode cable,
• Mass cable,
• Welding mask,
• strap on the frame.

DIGIMIG 141 CORE is the ideal solution for those who are looking for a mobile, lightweight and easy-to-use welding machine for fast everyday tasks.

DIGIMIG 141 CORE synergistic welding machine – compact and versatile solution for 3in1 welding work

The DIGIMIG 141 CORE welding machine is a modern, synergistic welding device designed for hobby users and for light and occasional workshop work. With a wide range of welding functions and methods, it offers flexibility and ease of use – even for less experienced users.

Three welding methods in one device

DIGIMIG 141 CORE enables welding in three popular methods:

• MIG/MAG using steel powder self-shielding wire – without the need for protective gas,
• MMA (wrapped electrode) – ideal for welding in more difficult conditions,
• TIG Lift DC (with glow by rubbing) – for precise work on thin materials.

IGBT technology – efficiency and mobility

Thanks to the use of advanced IGBT technology, the device is characterized by high efficiency, and at the same time it is compact and lightweight (only 4 kg), which significantly facilitates its transport and storage. At the same time, it allows you to reduce electricity consumption, which makes them more economical in everyday use.

Synergic service – simplicity and convenience

Synergistic functions in MIG mode automatically adjust welding parameters to selected settings, which significantly simplifies the configuration of the device and makes it an ideal choice for beginners and users looking for a convenient tool for quick implementation of simple work.

Advanced welding support functions

• 2T/4T – two modes of operation for continuous and impulse welding,
• Hot Start – facilitates arcing with MMA method,
• Arc Force – stabilizes the welding arc and improves the quality of the weld,
• VRD – increases work safety by lowering idle voltage,
• MIG spot welding (1 to 20 s) – ideal for time connections and precision work.

• Dimensions: 28 × 16,5 × 22,7 cm

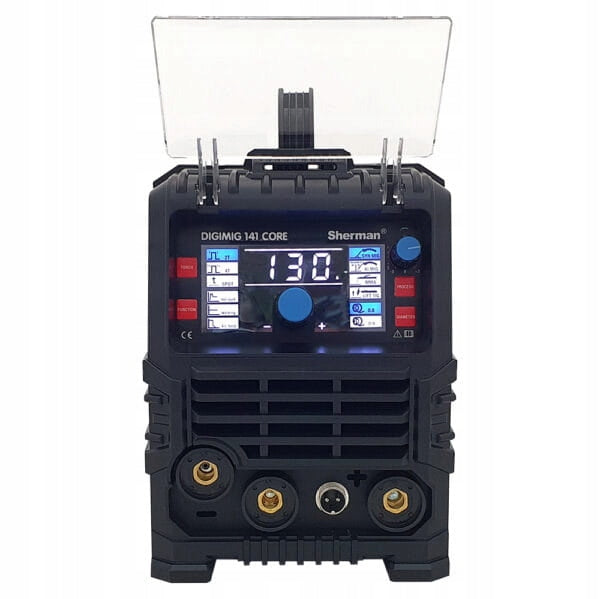

• The easy-to-read LED display and digital control provide intuitive operation.
• Support for spools D100 and 2-roll wire feeder guarantees stable and even feeding of welding material.

Technical specification:

• Catalog number: 7813094
• EAN code: 5903686619137
• Welding/cutting/other methods: MIG/MAG, MMA DC, TIG Lift (by rubbing) DC
• Power supply voltage [V]: AC 230
• Execution technology: IGBT
• Max MMA welding current [A]: 130
• Max welding current TIG DC [A]: 130
• Max MIG/MAG welding current [A]: 130
• MMA duty cycle [%]: 60
• TIG duty cycle [%]: 60
• MIG/MAG duty cycle [%]: 60
• Voltage without load [V]: 63
• Welding voltage MIG [V]: 15,5 – 20,5
• Max MMA current consumption [A]: 26,8
• Maximum current consumption TIG [A]: 18,3
• Max MIG/MAG current consumption [A]: 25,5
• Spot welding time MIG [s]: 1 – 20
• Wed. wire spades ø [mm]: 100
• Roller dimensions [mm]: 25×8 (7×7)
• Main method: MIG/MAG
• Functions: 2T/4T, Arc Force, Hot Start, 2-Roll Feeder, Gas Free Welding, MIG Spot Welding, Digital Control, VRD, LED Display, Synergy Self-shielding Wire
• Network security [A]: 16
• Warranty period for companies [years]: 1
• Weight [kg]: 4
