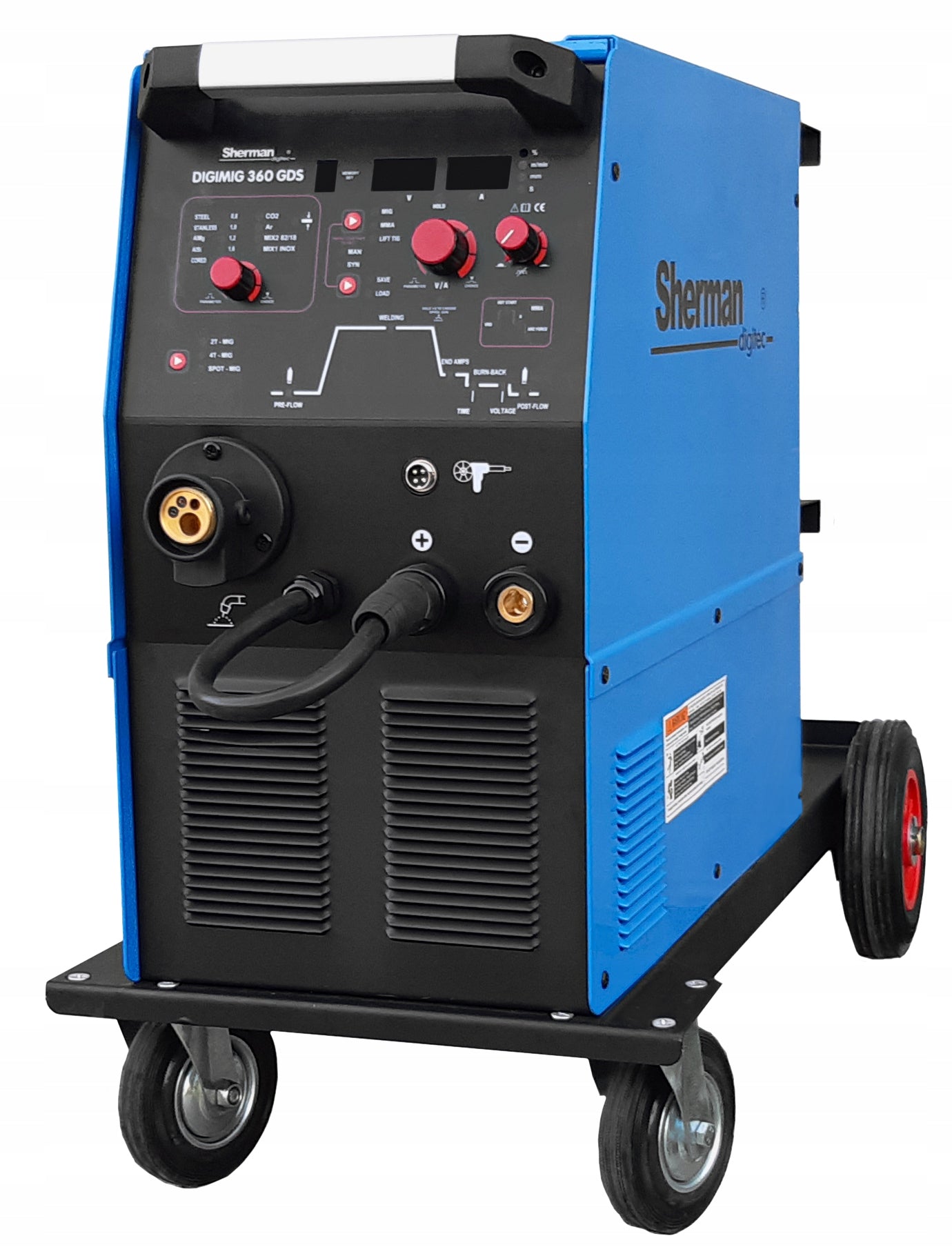

Suvirinimo aparatas Sherman DIGIMIG 360 4x4 MAG SYN

Trumpai apie prekę

Prekė: Suvirinimo aparatas Sherman DIGIMIG 360 4x4 MAG SYN. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Sherman
• Modelis: 7812431 ZESTAW#1
• Ilgis: 928 mm
• Plotis: 427 mm
• Aukštis: 712 mm

MANUFACTURER: SHERMAN || WELDING METHODS: MIG, MAG, MMA, FLUX, TIG Lift || SELECTED ADVANTAGES: Gas cylinder chassis, MIG/MAG synergy, 2T/4T || POWER SUPPLY: 400V 3ph

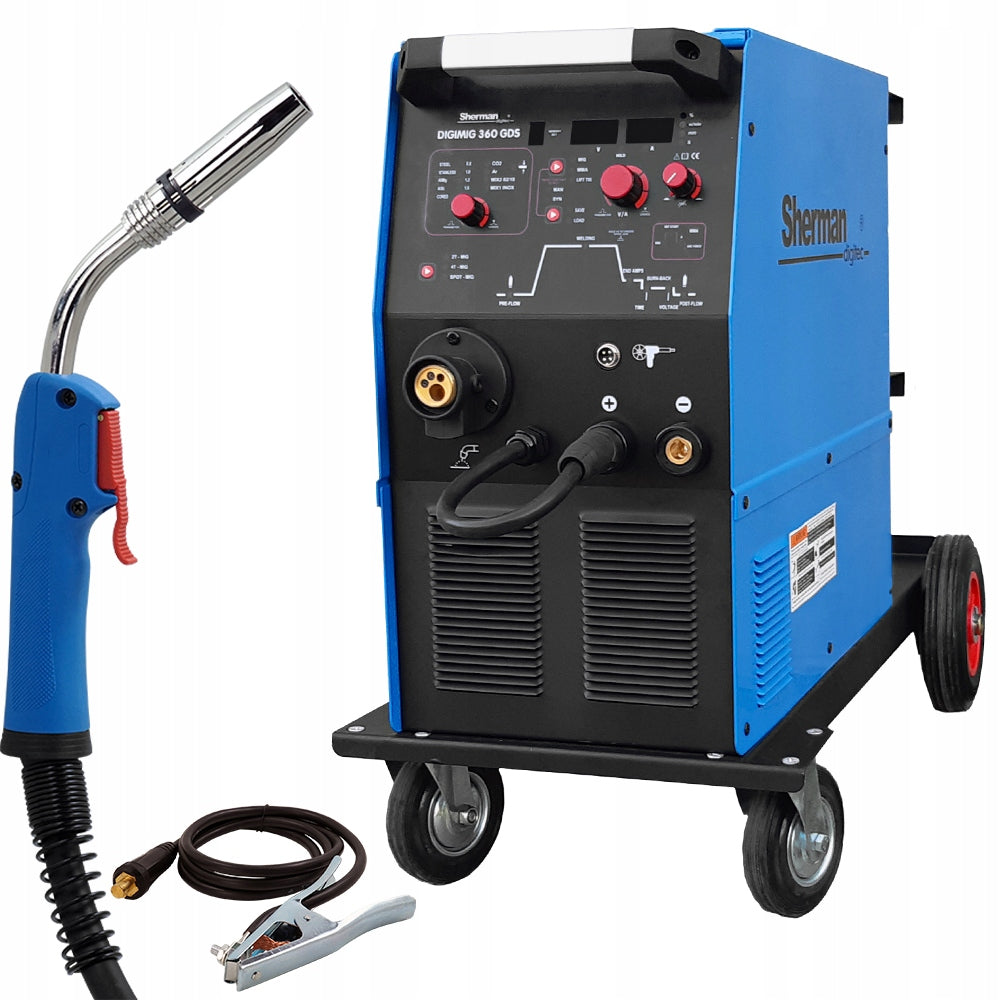

• SHERMAN DIGIMIG 360 GDS user manual
• MIG MB-36/4m welding torch
• Bulk cable
• User manual in Polish

Synergistic welding machine DIGIMIG 360GDS is used for manual welding of steel and non-ferrous metals. It enables welding using MMA (wrapped electrode), TIG Lift and MIG/MAG methods. The MIG/MAG method can be used in manual and synergistic mode, simplifying its operation and allowing the use of the welding machine by people with less experience and hobbyists. Thanks to the change of polarity, the device allows MIG/MAG welding using both standard wires in protective gas shielding and self-shielding powder wires.

ADVANTAGES OF DIGIMIG 360 GDS WELDING MACHINE

☑ SYNERGY with correction option and MANUAL setting!

☑ Welding point - SPOT

☑ Synergy for: black steel, stainless steel, aluminium, flux.

☑ Adjustable inductance - lutowelding CUSi3

☑ Readable and easy-to-use soft control panel

☑ 36 V socket for gas heater

☑ 4-roller feeder

☑ Working mode 2T/4T

☑ Efficient fan

☑ Option to connect the SPOOL GUN handle

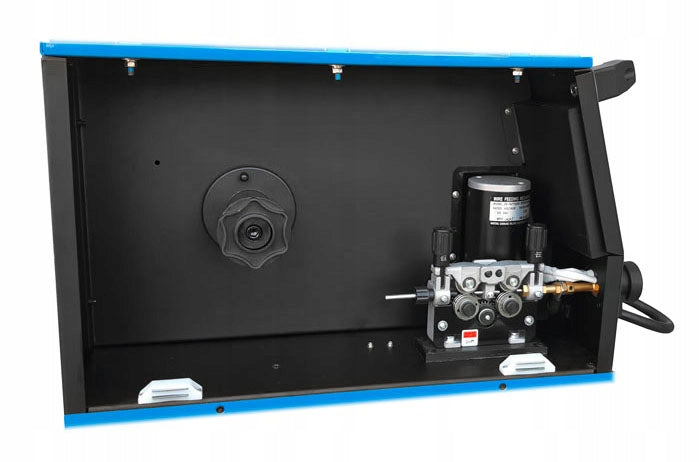

PROFESSIONAL 4x4 FEEDER

Professional 4R feeder - reliable wire feeding regardless of spool weight, handle length and welding wire type. Proven mechanism.

Made in accordance with applicable standards - available for sale different types of feeder rollers.

GAS CYLINDER CHASSIS

Place the gas cylinder on the chassis and enjoy the mobility of this flashing. No more tangled gas lines between the wheels. The gas cylinder is now where the machine is with you.

SHERMAN MIG 360GDS - TECHNOLOGICALLY ADVANCED MIG FOR WELDING DEMANDING ALLOYS

If you are looking for something more than a standard MIG, you care about welding aluminum and stainless steel, you would like to get a high quality weld and high welding efficiency - this can be the perfect semi-automatic welding machine for you.

The welding machine enables the lutowelding process, thanks to which galvanized sheets can be freely combined, which are often used in car bodies. The main advantage of MIG MAG solder welding is the maintenance of a protective zinc coating at the solder-zinc interface.

Working with SPOOL GUN handles

DIGIMIG 360 GDS is designed to work with SPOOL GUN handles. You can arm the device simultaneously for welding two different materials, e.g. The device is armed with steel wire, and the SPOOL GUN handle for welding aluminum.

SHERMAN - PROVEN BRAND AND QUALITY

Over the years, Sherman devices have managed to develop an appropriate reputation among satisfied customers. These welding machines are addressed to hobbyists and professionals. The devices are characterized by high quality and simplicity of workmanship, which translate into reliable operation of the device and convenient operation.

• Power Supply: 400V 3ph
• Welding methods: MIG/MAG, Soldering, MMA, TIG DC Lift
• Maximum welding current: 360A
• Rated duty cycle: 60%
• Maximum current consumption: 20,2A (MIG) / 21,7A (MMA) / 15,4A (TIG)
• Maximum power consumption: 14 kVA (MIG) / 15,1 kVA (MMA) / 10,6 kVA (TIG)
• Dimensions: 928x427x712
• Degree of protection: IP21
• Net weight: 80kg

MIG/MAG welding parameters:

• Welding Current: 40 - 360A
• Welding Voltage: 12,5 - 40V
• Wire feed speed: 1,5 - 24 m/min
• Welding inductance: YES with smooth adjustment
• Spot welding: YES
• Spot welding time: 0-5s
• Gas before, gas after: YES 0-5s
• MIG/MAG synergy: steel, stainless steel, aluminium alloys, self-shielding
• Manual Settings Mode: YES
• 2T/4T: YES

• Wire Feeder: Professional 4R
• Wire spool diameter: D200, D300
• Weight of spool with wire: up to 15kg
• Working with SPOOLGUN handle: YES

TIG welding parameters:

• Welding Current: 10 - 360A
• Output Current: DC
• Arch glow: contact Lift

MMA welding parameters:

• Welding Current: 20 - 360A
• Voltage without load: 70V
• VRD: YES
• Arc Force: YES with regulation
• Hot Start: YES with regulation
