Suvirinimo aparatas SKANDI KRAFT ITECH MIG 220 ALU CUSI, 200 A, 230 V, 3 viename

Trumpai apie prekę

Prekė: Suvirinimo aparatas SKANDI KRAFT ITECH MIG 220 ALU CUSI, 200 A, 230 V, 3 viename. Kategorija: Invertoriniai suvirinimo aparatai.

• Gamintojas: SKANDI KRAFT
• Modelis: iTech MIG 220 ALU CUSI SYNERGIA

Manufacturer: SKANDI KRAFT ║ Welding methods: MIG/MAG, MMA, FLUX, TIG LIFT, SOLDERING, SPOT (Spot welding) ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 60% at 40℃

────────────────────────────────────────────────────────────────────

When You Buy From Us, You Get ⭐ ENGINEER SUPPORT ⭐ That Our Competition Can Only Envy!

Buying a welding machine from us is just the beginning! We know that a smart choice isn't just about the lowest price, but also about confidence and support after the transaction. This is a comprehensive solution with invaluable after-sales support that you won't find anywhere else.

🧠 CHOOSE WISELY 🧠

⏬ See the details below ⏬

────────────────────────────────────────────────────────────────────

• 3-in-1 equipment: MIG-MAG, MMA, TIG DC
• Welding with self-shielding wire (FLUX) - no need to use gas
• IGBT inverter technology – high efficiency and lower power consumption
• Advanced synergistic programs - automatic selection of parameters for various materials:
• • CS / SS (CO₂ 100%) - black and stainless steel
• • Al-Si (Ar 100%) - aluminum with silicon (the most commonly used alloy)
• • Al-Mg (Ar 100%) - aluminum with magnesium (rims, harder alloys)
• • Cu-Si (Ar 100%) - brazing, welding of galvanized steel and cast iron
• • CS / SS (Ar 82% + CO₂ 18%) - black and stainless steel in a mixed shield
• High-contrast LCD display - readable even in bright light
• AC 36V gas heater connector - enables trouble-free welding in 100% CO2 shielding
• Possibility to connect a spoolgun holder

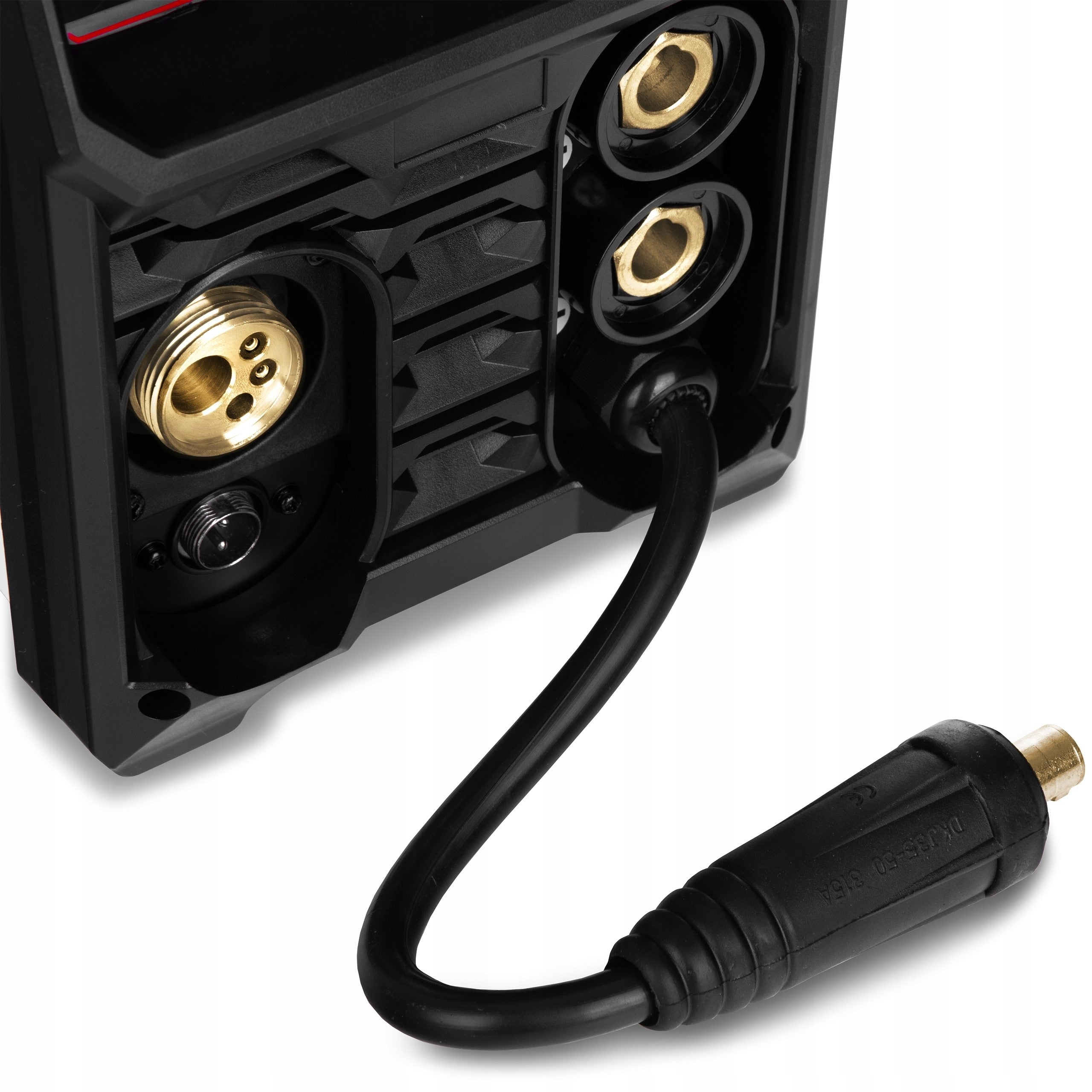

• EURO CONNECTOR – compatibility with a wide range of holders
• Protection against overload and overheating – greater safety of use
• Universal use - from farm repairs to workshop work

🔶 Two efficient fans with the FAN STOP system

Many welding machines break down due to metal filings being sucked in by the fans - this leads to short circuits and damage. SKANDI KRAFT iTech MIG 220 4R model has an intelligent FAN STOP system that turns on the fans only during welding and for a short time after it has finished. This limits the suction of filings into the interior of the device. Additionally, typical fans in welding machines can generate noise of up to 90 dB . The FAN STOP system not only protects the interior of the welding machine from contamination, but also ensures quieter and more comfortable operation.

• Manual mode for experienced welders who prefer full control over the welding process. Allows independent selection of all parameters
• Ability to adjust the inductance, with which we can control the amount of splatter, the appearance and quality of the weld, as well as the stability of the arc.
• Fan Stop – an adaptive fan that automatically increases the speed at start-up and heating, and turns off or slows down when cooled down, which significantly extends its service life and reduces dust deposition inside the device.
• 18 memory channels store predefined configurations, speeding up work on repetitive processes and eliminating the need to re-set parameters for typical applications.
• EURO socket – a universal connector compliant with the European standard, enabling quick and trouble-free connection of any MIG/MAG holder. Thanks to this, it eliminates the need for adapters and accelerates the replacement of accessories at the workplace.
• VRD (Voltage Reduction Device) – automatically reduces the idle voltage on the electrode to a safe level, protecting the welder from electric shock.
• Connection for quick connection of gas hose (TYPE 21)
• Gas heater connector 36V

Are you looking for a welding machine that combines professional capabilities, ease of use, and mobility while offering innovative technological solutions? SKANDI KRAFT iTECH MIG 220 Alu CuSi Synergy is a premium synergistic welding machine that automates the setup process, guaranteeing perfect results without the need for tedious parameter tuning.

🔸 MIG/MAG AUTO system

Thanks to the advanced MIG/MAG AUTO system, it is enough to specify type and thickness of material and wire diameter, and the welding machine will automatically select the optimal welding parameters.

It is an ideal solution for both novice MIG/MAG users and professionals who value speed, precision and comfort.

🔸 Comfortable operation and versatility

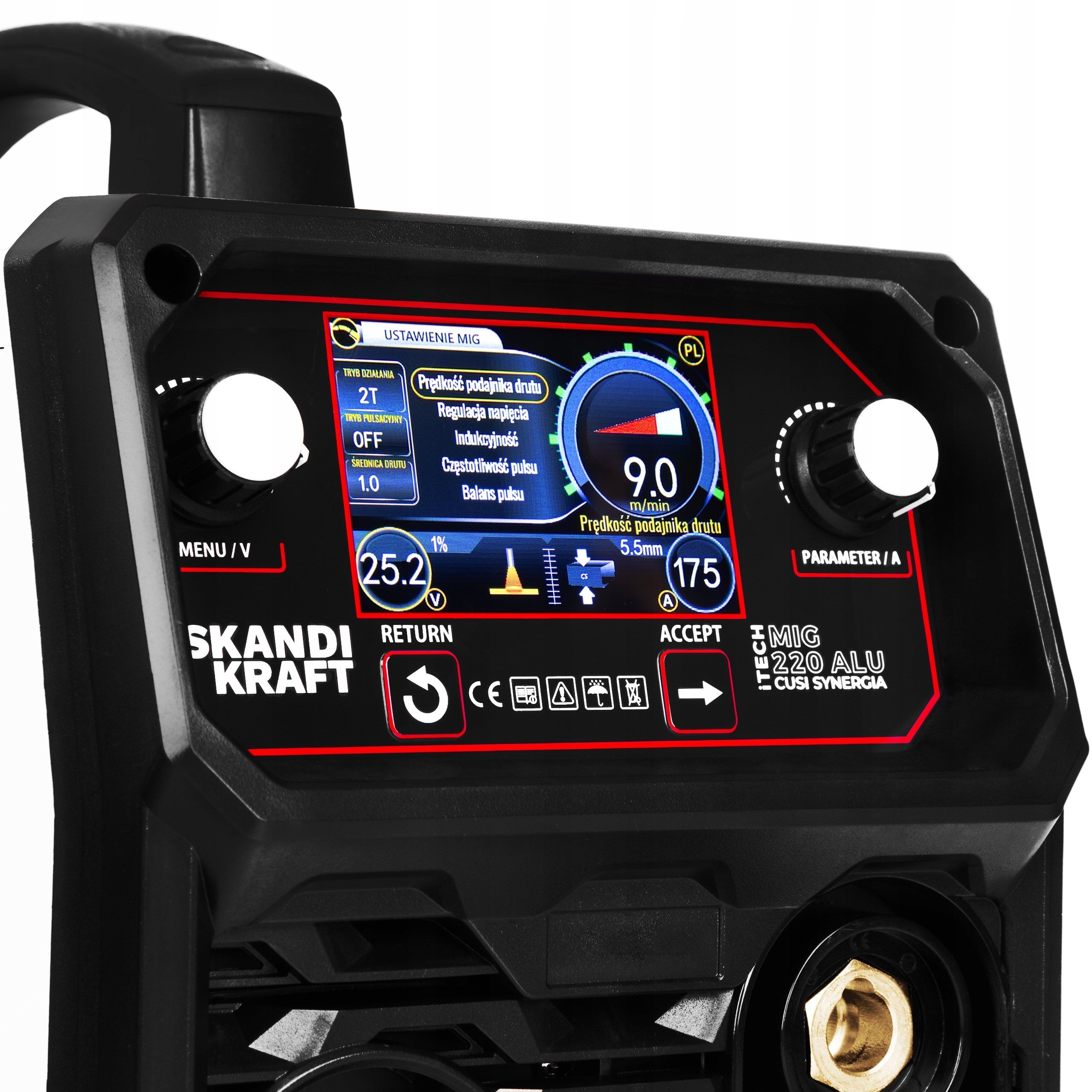

• 3,5-inch LCD display allows intuitive selection of settings,
• FAN STOP mode guarantees quiet and energy-saving operation, turning on the fan only during welding,
• Weldable by: MIG/MAG (with gas), FLUX (without gas), MMA and LIFT-TIG,
• 3-meter power cable (3 m x 2,5 mm²) and mass holder (3 m x 25 mm²) made of copper,

iTECH MIG 220 Alu CuSi Synergy is ideal for welding materials with thicknesses ranging from 0.5 [mm] to 12 [mm]:

• in workshop work (repair / reconstruction of vehicles, assembly work)
• in the company (height work and vaccination of steel structure elements)

SKANDI KRAFT iTECH MIG 220 Alu CuSi Synergy combines mobility, advanced technology and intuitive operation, guaranteeing efficiency and comfort during every welding task.

The SKANDI KRAFT iTech MIG 220 ALU CUS I welding machine is equipped with a fully copper power cable and ground cable, which is the basis of its high quality and reliable operation. Unlike cheaper solutions used by some manufacturers that only use aluminum wires with a thin layer of copper on the surface, the use of pure copper along the entire length of the wire provides much better electrical conductivity . Thanks to this, the welding current is stable throughout the welding process, and the weld is cleaner, stronger and more aesthetic.

An additional advantage of three-meter copper wires is their exceptional resistance to corrosion and oxidation. While aluminum wires lose their conductive properties over time, copper remains fully functional even in difficult, humid or dusty conditions . As a result, the device works longer, more reliably and without loss of quality, which translates into real savings and comfort of use.

🔶 List of synergistic programmes

The device offers advanced, predefined synergistic programs that optimize welding parameters based on material selection and shielding gas. This makes the process fast, efficient and safe even for less experienced users

• CS: CO₂ 100% - carbon steel (black steel)
• SS: CO₂ 100% - stainless steel
• Al-Si: Ar 100% - aluminium alloy with silicon (most commonly used)
• Al-Mg: Ar 100% - aluminium alloy with magnesium (harder alloys, alloy wheels)
• Cu-Si: Ar 100% - copper-silicon alloy (solder welding, zinc and cast iron welding)
• CS: Ar 82% + CO₂ 18% - carbon steel (black steel)
• SS: Ar 82% + CO₂ 18% - stainless steel

The system automatically selects current parameters, voltage and wire feed speed, adapting them to the material and gas, which translates into high quality and repeatability of the weld and full convenience of use.

────────────────────────────────────────────────────────────────────

Kuba J. ⭐⭐⭐⭐⭐

"Great MIG welder for the price! Amps are amps :) Synergic mode works, and the SPOT mode makes tack welding thin parts easier. It handles thin sheet metal and thick steel! 🔧"

Przemysław W. ⭐⭐⭐⭐⭐

"Welds beautifully! Thin sheets and thick material are no problem. ✨ For an amateur - highly recommend! Easy to use and solid construction. 🤟"

Paweł P. ⭐⭐⭐⭐⭐

"I'm a welder, and this welder wins on price and quality! 🏆 It handles great in a home workshop, even with 6/8mm plates. Recommend 100%! ✅"

────────────────────────────────────────────────────────────────────

In our store, buying a welding machine is just the beginning! We want you to fully use its potential, which is why each customer after purchase, giving the number of their order, receives access to an individual consultation with our experienced welding engineer!

How to use the dedicated support of the Engineer?

1. 📞 Contact us!
2. # Enter your order number: This is the key that will open the door for you to talk to our expert.
3. 🧯 Prepare questions: Think about what you need help with – whether it is the first start-up, selection of parameters for a specific project or advanced welding techniques.
4. 💬 Talk directly to the Engineer: Our specialist will take the time to answer your questions, help you set up your welding machine and share practical tips.

Why is our Engineer Support MORE than just a phone call to the store?

• ✅ Expert on the other side: After verifying your order number, you can be sure that you are talking to a experienced welding engineer, not just general customer service. This is a practitioner with in-depth technical knowledge.
• ⌚ Focused attention on your needs: This is not a rushed answer. Our engineer will take the necessary time to understand your problem or question and provide comprehensive assistance.
• 🔍 Tailor-made consulting: The assistance is tailored to your level of advancement and specific applications of the welding machine in your projects – from minor repairs to more complex structures.
• 🚀 Faster results, fewer errors: Instead of long searches and trial and error methods, you get professional tips that will allow you to achieve the intended results faster and avoid costly mistakes.
• 💡 Solutions to unusual challenges: The general hotline may not be enough for more complex issues. Our engineer will help you with unusual problems or advise you on advanced welding techniques.

With us you can be sure that your investment in a welding machine will bring the best results, and you will gain a partner ready to support you at every stage of work! 🏅😎

🔸 POWER SUPPLY PARAMETERS:

• Power supply: 230 V
• Frequency: 50/60 Hz
• Idle Voltage: 74 V
• Network security: 20 A

🔸 TECHNICAL PARAMETERS:

MIG efficiency (for temp. 40°C):

• 30 % / 200 A / 24 V
• 60 % / 142 A / 21.1 V
• 100 % / 110 A /19.5 V

• MIG welding current: 35 - 200 A
• MIG welding voltage: 10 - 28 V

TIG efficiency (for temp. 40°C):

• 30 % / 160 A / 16.4 V
• 60 % / 114 A / 14.6 V
• 100 % / 88 A / 13.5 V

• TIG welding current: 20 - 160 A
• TIG welding voltage: 10.8 - 16.4 V

MMA efficiency (for temp. 40°C):

• 30 % / 160 A / 26.4 V
• 60 % / 114 A / 24.6 V
• 100 % / 88 A / 23.5 V
• MMA welding voltage: 21.2 - 26.4 V
• MMA welding current: 30 - 160 A

🔸 PHYSICAL PARAMETERS

• Housing protection: IP21S
• Cooling: Fan
• Weight: 9,2 kg
• Dimensions: 375 x 270 x 375 mm

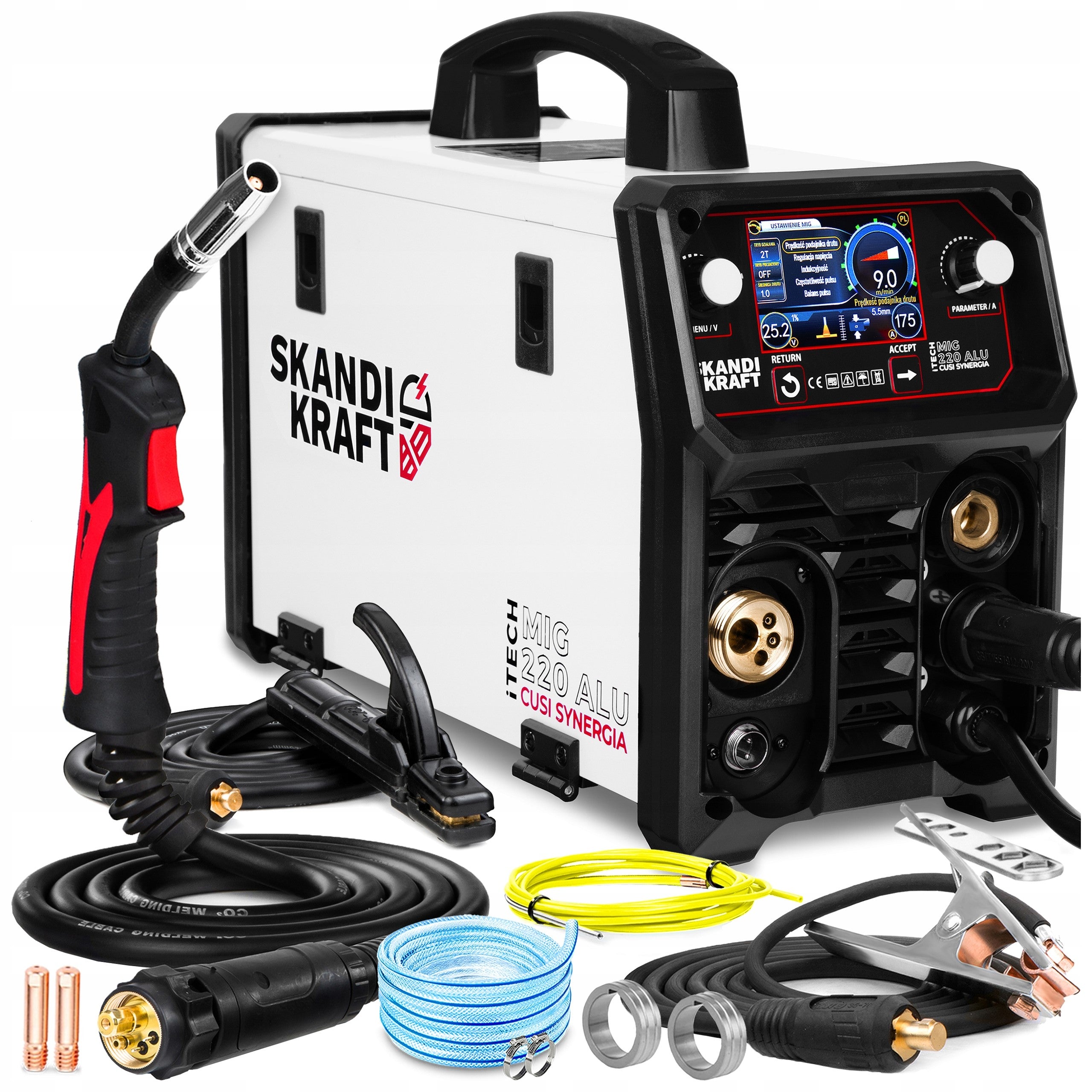

• Welding machine SKANDI KRAFT iTECH MIG 220 Alu CuSi Synergy with integrated power cable with a length of 3 meters and a cross-section of 3x2.5 [mm^2],
• MIG welding torch, KD15 type MB15 3 meters 16 [mm^2] with Teflon insert
• Additional steel insert 3 meters for handle KD15, for wire welding with a diameter of 0.6-1.0 [mm],
• Bulk holder in full copper 3 meters, cross section 25 [mm^2],
• Copper electrode holder 3 meters, cross section 25 [mm^2],
• Wire rollers: for steel 1x 0.8-1.0 V, for aluminium 1x 1.0-1.2 U. Wire feeder rollers size: 22/10/30 [mm],
• Gas cylinder mounting elements: 2 x gas reducer mounting band, 2-meter gas hose, key,
• Current terminals for KD15, MB15 - 2 pcs. (1x 0.8;1x1.0 AL; 1x1.2 AL)
• Instructions.

All components included in the kit are compatible with your device.
