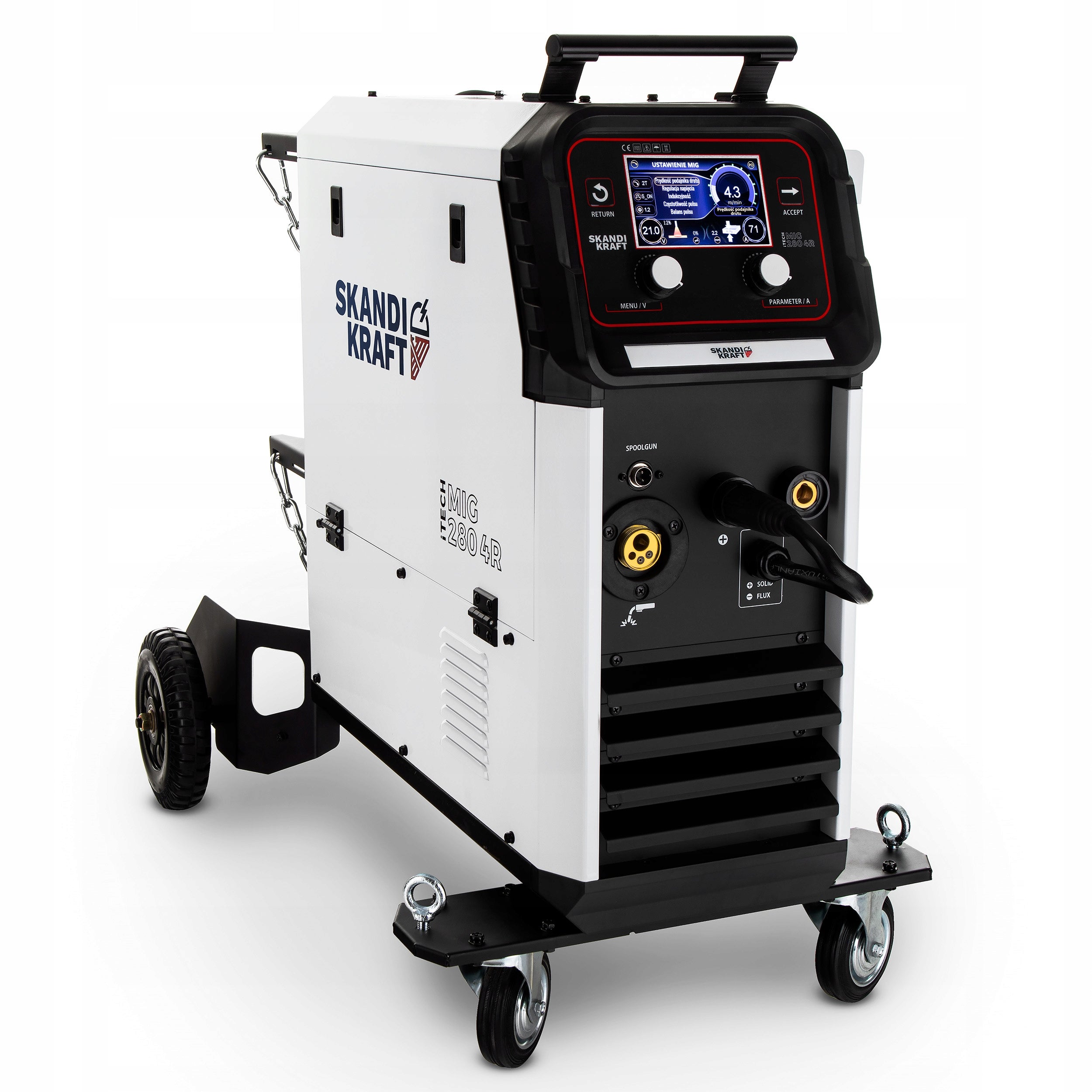

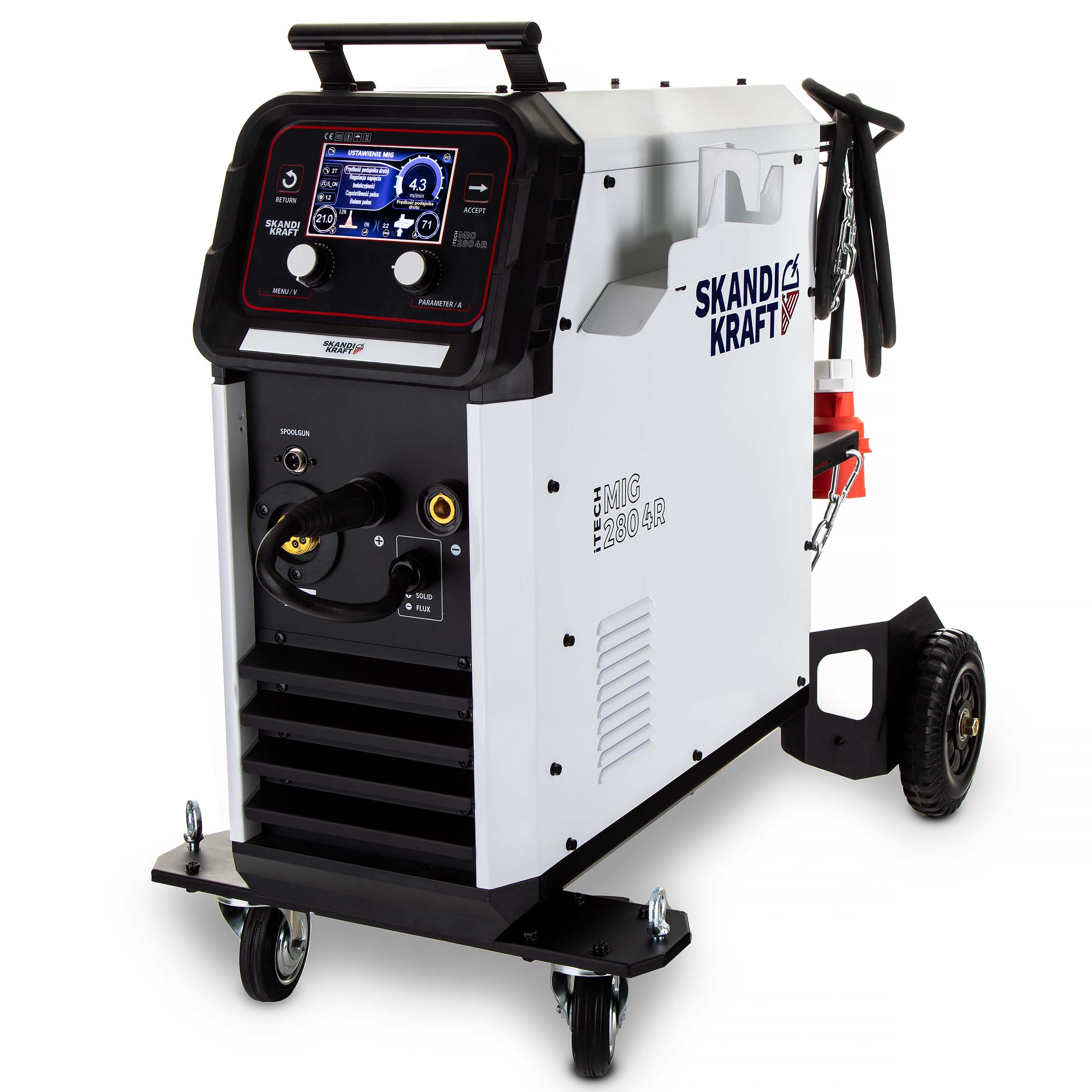

Suvirinimo aparatas SKANDI KRAFT iTECH MIG 280 4R, 280A, 230V/400V

Trumpai apie prekę

Prekė: Suvirinimo aparatas SKANDI KRAFT iTECH MIG 280 4R, 280A, 230V/400V. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: SKANDI KRAFT
• Modelis: TCMIG2804R
• Ilgis: 740 mm
• Plotis: 430 mm
• Aukštis: 900 mm

THE SKANDI KRAFT iTECH MIG 280 4R 3in1 welding machine is a technologically advanced semi-automatic welding machine designed for arc welding using the following method:

➡ MIG MAG

• MIG SYN - MIG-MAG welding with synergistic settings,
• MIG PULS - synergistic settings with single pulse,
• MIG 2-PULS - synergistic settings with double pulse,
• FLUX / FCAW - welding with self-shielding wire.

➡ TIG

• TIG LIFT - welding with a special handle with a valve, arc ignition is then carried out by lightly rubbing the non-melting electrode against the welded material,

➡ MMA

• MMA - welding with wrapped electrodes (rutile, alkaline, acidic).

☀ iTECH MIG 280 4R 3in1 is ideal for welding materials with thickness from 0.5 mm to 23 mm ☀

THE SKANDI KRAFT iTECH MIG 280 4R 3in1 welding machine is used for welding:

✔ low alloy steels,

✔ low carbon steel,

✔ high alloy steels,

✔ stainless,

✔ acid-resistant,

✔ aluminium and its alloys,

✔ copper.

The device has been designed for all kinds of welding work in automotive, locksmith, repair, industrial workshops, etc.

⭐ SYNERGY - is a very helpful feature available in professional welding equipment of PREMIUM class. By setting the appropriate program or entering parameters, the device will independently select most welding settings, such as wire feed speed or appropriate voltage, according to the programmed data.

⭐ PULS - pulsed current welding, in which high and low current is alternately used. This reduces overall heat supply and splatter while providing greater resistance to non-melting. This method can be used to weld both metals with high thermal conductivity and thinner metals without burning them. Additionally, you can get narrower and more penetrating welds on thicker metals.

⭐ DOUBLE PULSE - ensures better transfer of the binder into the welded material, which fundamentally improves control over the welding process and the quality of the weld itself. It allows you to work in all positions and is especially useful for forced positions. It provides less heat impact, works well in the case of thinner materials or those with increased thermal conductivity, such as: aluminium alloys. Reduces the amount of chipping. The most advanced welding method, in which current pulses occur in two ranges, thanks to which we obtain the optimal aesthetics of the weld face, the so-called. husk effect.

⭐ SOLDERING - is a method that is quite similar to MIG/MAG welding, but the energy supplied in this case is much less. This means that soldering is used to join thin sheets covered with a layer of zinc. The described method is a bonding process during which solder melts, not the material we work with.

⭐ INVERTER TECHNOLOGY IGBT-ang. Insulated Gate Bipolar Transistor - is a modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has the effect of significantly extending the reliable operation of welding equipment.

⭐ POSSIBILITY OF CONNECTING THE SPOOL GUN HOLDER - is a lightweight and durable welding handle, with a built-in wire feeder and a spool in the handle, for MIG/MAG welding - The holder is not included in the set.

⭐ TWO-BAR 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow.

⭐ FOUR-BAR 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow.

⭐ VERY HIGH EFFICIENCY thanks to the IGBT - technology, lower energy consumption and high switching frequency ensure rapid adjustment of the current to changes in parameters during welding.

⭐ FAN STOP - so that the welding machine with power on and full functionality does not emit noise, reduces power consumption and does not draw dust. The fan automatically turns on when we start welding.

⭐ PROFESSIONAL 4 ROLL WIRE FEEDER - enables precise extension of the welding wire excluding its slippage, guarantees stability and continuity of operation of the device.

⭐ EUROCONNECTOR - allows you to quickly change the handle and allows you to change the polarity for welding with self-shielding wire.

⭐ MEMORY - The welding machine has 18 memory channels.

⭐ CONNECTOR FOR QUICK CONNECTION OF GAS HOSE (TYPE 21)

IN ADDITION, THE DEVICE HAS THE FOLLOWING FUNCTIONS TO SUPPORT WELDING:

✅VRD - (Voltage Reduction Device) - reduces the resting voltage of the idle state on the electrode to a safe value. Provides shock safety when working in humid environments.

✅ ARC FORCE - "arch dynamics" - shortening the arc length is accompanied by an increase in welding current, which stabilizes the arc, regardless of its length. Reducing the value of the function gives a soft arc and a smaller depth of melt, while increasing the value of the function causes deeper melting and the possibility of welding with a short arc.

✅ ANTI STICK - short-circuit function - reduces the welding current to a minimum value when the welder makes a mistake and the electrode is glued to the welded material. This makes it easier to detach the electrode from the welded material and protects the electrode holder from damage.

✅ HOT START - facilitates the ignition of the electrode by providing more welding current with each arc.

➡ The device is equipped with overload protection, which increases its reliability.

❄ The device has a fan cooling system which significantly increases its efficiency.

✅Drive chassis with space for placing cylinders up to 50L. Comes with a cylinder safety chain and hooks designed to transport the device.

The device has a chassis with 4 wheels, 2 front wheels are torsional so that the welding machine is very mobile.

✴ The welder has a 3-meter fully copper 3x2.5 [mm2] power cable and a 3-meter fully copper 25 [mm2] mass holder.

✴ Set includes 3-meter electrode holder and 4-meter KD24 handle type MB 24, cross section 25 [mm2]

Welding machine with easy-to-read 5” LCD display, five languages to choose from and 18 memory channels with the ability to save settings. Convenient knobs and clear panel for easy quick setting welding machine, even in welding gloves.

1. Return button to previous menu.

• Pressing and holding the button for 5[s] and then letting go will return to factory settings. It can solve problems related to the device system.

2. Accept button of the selected option from the menu.

3. Knob selection of device function parameters. Pressing the knob turns on/off the option to quickly adjust the inductance. Additional function, in AUTO mode pressing the button by 5 [s] then letting go allows us to quickly switch between the 2T/4T function. In MIG mode, by pressing 5 [s] opens the memory of the saved settings.

4. Knob selection of device function parameters. Pressing the knob moves to the next setting in MENU. Additional function, in AUTO mode pressing the button by 5 [s] then letting go allows us to quickly turn on PULSE and turn it off. In MIG mode, by pressing 5 [s] opens the memory to save settings. In MODE SELECTION, pressing 5 [s] turns the SPOOL GUN module on/off.

5. LCD display

The device has been equipped with a flap protecting the display, which provides additional protection of the control panel against mechanical damage and dirt in workshop conditions.

✔ REPAIR WORKSHOPS,

✔ LOCKSMITH WORKSHOPS,

✔ OF ALL BODYWORK REPAIRS,

✔ ASSEMBLY SERVICES,

✔ FOR HOMEWORK,

✔ AGRICULTURAL WORK.

EFFICIENT OPERATION THANKS TO PROFESSIONAL WIRE FEEDER

Welding machine with 4 roller wire feeder, thanks to which the wire is fed smoothly and uniformly depending on the needs. The advantage of the extended feeder is the possibility of connecting long MIG handles. The lamp inside of the welding machine allows easy wire exchange in the feeder. Button (INCHING) allowing fast extension of the wire. Possibility to set wire feed speed [m/min].

Feeder with the possibility of mounting a spool of wire D200 or D300. In use for garage work where mobility of the device counts. D300 for mounting the spool 15kg, when we know that the device will work in long work cycles where long welds will be made.

The set includes rollers:

✔ For steel wire 0.8 / 1.0mm V- 1 pc.

✔ For aluminium wire 1.0 / 1.2mm U - 1 pc.

HANDLE WITH EURO CONNECTOR

The welder has a EURO socket for MIG welding wire. The socket allows you to quickly change the handle to the same standard.

Inductance adjustment allows optimization of arc characteristics depending on the thickness of the welded element and the welding method and conditions.

The function is useful during MIG/MAG welding of thin elements, preventing them from burning out and soldering galvanized elements.

The thinner the MIG/MAG welded element, the higher the inductance (soft arc - less melting), for thick elements vice versa (hard arch - greater melting).

The standard neutral inductance setting is in the middle of the scale.

Changing the inductance value also reduces the amount of welding chips during CO2 shielded welding.

The optimal setting of the inductance value depends on several factors and may differ from the standard recommendations, it should be selected during welding tests by manipulating the potentiometer knob.

☀ VERSATILITY OF THE DEVICE ☀

Migomat company SKANDI KRAFT, is a device with a wide range of applications, designed as an inverter power source enabling welding with hot melt wire in gas shield MIG/MAG or FCAW self-shielding wire (after changing polarity), welding with buffer electrode MMA, as well as the TIG Lift method.

✔ MIG/MAG welding

Arc welding in gas shields is one of the most commonly used processes for the manufacture of welded structures. The semi-automatic welding process involves melting the edges of the welded object and the material of the hot melt electrode with the heat of an electric arc glowing between the electrode in the form of a solid wire and the welded detail, in an inert or active gas shield.

✔ Welding MMA

In the MMA method, a wrapped electrode is used, consisting of a metal core covered with a sheath. An electric arc is produced between the end of the electrode and the welded material. Arching is created by touching the end of the electrode to the welded material.

✔ Welding TIG LIFT DC

In the TIG (Tungsten Inert Gas) method, the electric arc is ignitioned in an inert gas (argon) shield between the welded element and the non-melting electrode, made of pure tungsten or tungsten with additives. In TIG DC Lift mode, the arc glow occurs when the electrode comes into contact with the welded element. In TIG DC mode, the current is constant.

❗❗ TIG method can be welded after connecting an additional handle, available at our auctions ❗❗

✔ Self-shielding wire welding FCAW

Thanks to the polarity change function, it is possible to weld without shielding gas, with FCAW self-shielding wire. The wire is designed for general production work, also in field conditions, and for welding structures that are not subject to impact requirements. Welding current DC(-).

Self-shielding powder wire fi 1,0mm/5kg E71T-GS is designed for welding ordinary carbon steels and increased strength not exceeding 510 MPa.

It is used in prefabrication, construction, tank production, agricultural equipment, etc. Used in both production and repair of equipment.

SELF-SHIELDED WIRE IS AVAILABLE SEPARATELY AT OUR AUCTIONS AND IN OTHER SETS

POWER SUPPLY PARAMETERS:

• Power supply: 400 V
• Frequency: 50/60 Hz
• Idle Voltage: 74 V
• Network security: 16 A

TECHNICAL PARAMETERS

MIG efficiency (for temp. 40°C):

• 30%/280 A/28 V
• 60%/198 A/23.9 V
• 100%/153 A/21.7 V

• MIG welding current: 40*-280 A
• MIG welding voltage: 16-28 V

TIG efficiency (for temp. 40°C):

• 30%/280 A/21.2 V
• 60%/198 A/17.9 V
• 100%/153 A/16.1 V

• TIG welding current: 10-250 A
• TIG welding voltage: 10.4- 20 V

MMA efficiency (for temp. 40°C):

• 30%/280 A/31.2 V
• 60%/198 A/27.9 V
• 100%/153 A/26.1 V

• MMA welding voltage: 21.2-32 V
• MMA welding current: 30 - 280 A

*average parameter min. current 19 [A]

SPOT:

• Gas before ignition: 0-2 [s]
• Spot welding ON: 0.1-20 [s]
• Spot welding OFF: 0.1-20 [s]
• Gas after expiration: 0.5-10 [s]

S_2T/S_4T:

• Gas before ignition: 0-2 [s]
• Starting current: 1.5-15 [m/min]
• Rising time: 0.1-15 [s]
• Falling time: 0.1-25 [s]
• Final current: 1.5-5.4 [s]
• Gas after expiration: 0.5-10 [s]

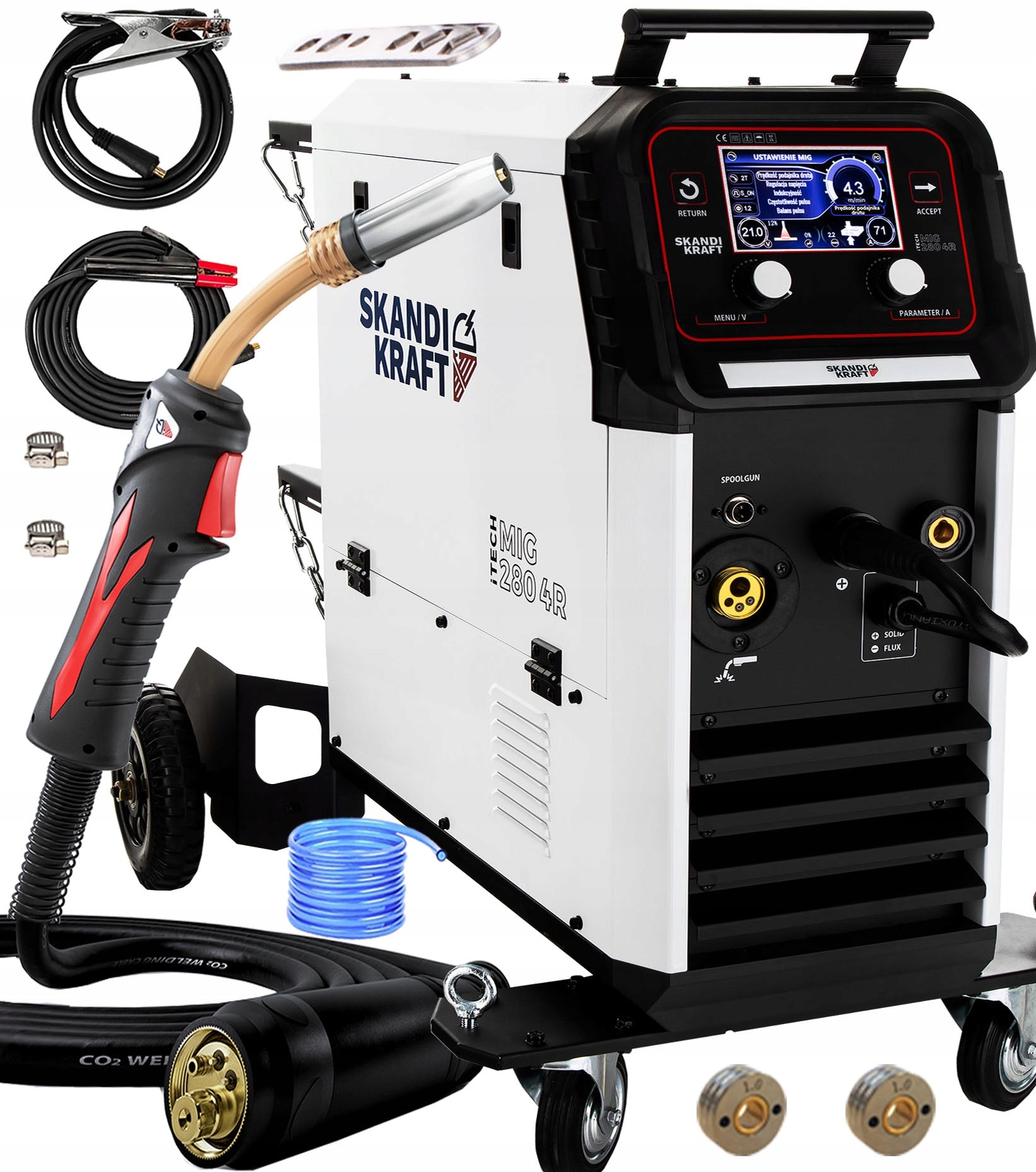

WHEN YOU BUY FROM US, YOU GET:

• Welding machine SKANDI KRAFT iTECH MIG 280 4R with integrated power cable length
• MIG KD24 welding torch type MB24 4 meter with Teflon-graphite insert
• Bulk holder 3 meter section 25 [mm2]
• Electrode holder 3 meter section 25 [mm2]
• Wire rollers: for steel 0.8-1.0 V, for aluminium 1.0-1.2 U
• Components for mounting a gas cylinder
• Instructions

SET OF 1
