Suvirinimo aparatas Skandi Kraft iTech MIG 350 4R, 3in1, 350A, inverterinis

Trumpai apie prekę

Prekė: Suvirinimo aparatas Skandi Kraft iTech MIG 350 4R, 3in1, 350A, inverterinis. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: SKANDI KRAFT
• Modelis: iTECH MIG 350
• Ilgis: 740 mm
• Plotis: 430 mm
• Aukštis: 900 mm

BRAND: SKANDI KRAFT | MODEL: iTECH MIG 350 4R | WELDING METHODS: MIG/MAG, MMA, TIG LIFT | MAX. MIG/MAG CURRENT: 350 A | POWER SUPPLY: 400 V | FEEDER: 4-roll

EFFICIENT 400V WELDING MACHINE WITH 4-ROLL FEEDER, DESIGNED FOR INTENSIVE WORKSHOP AND PROFESSIONAL WORK

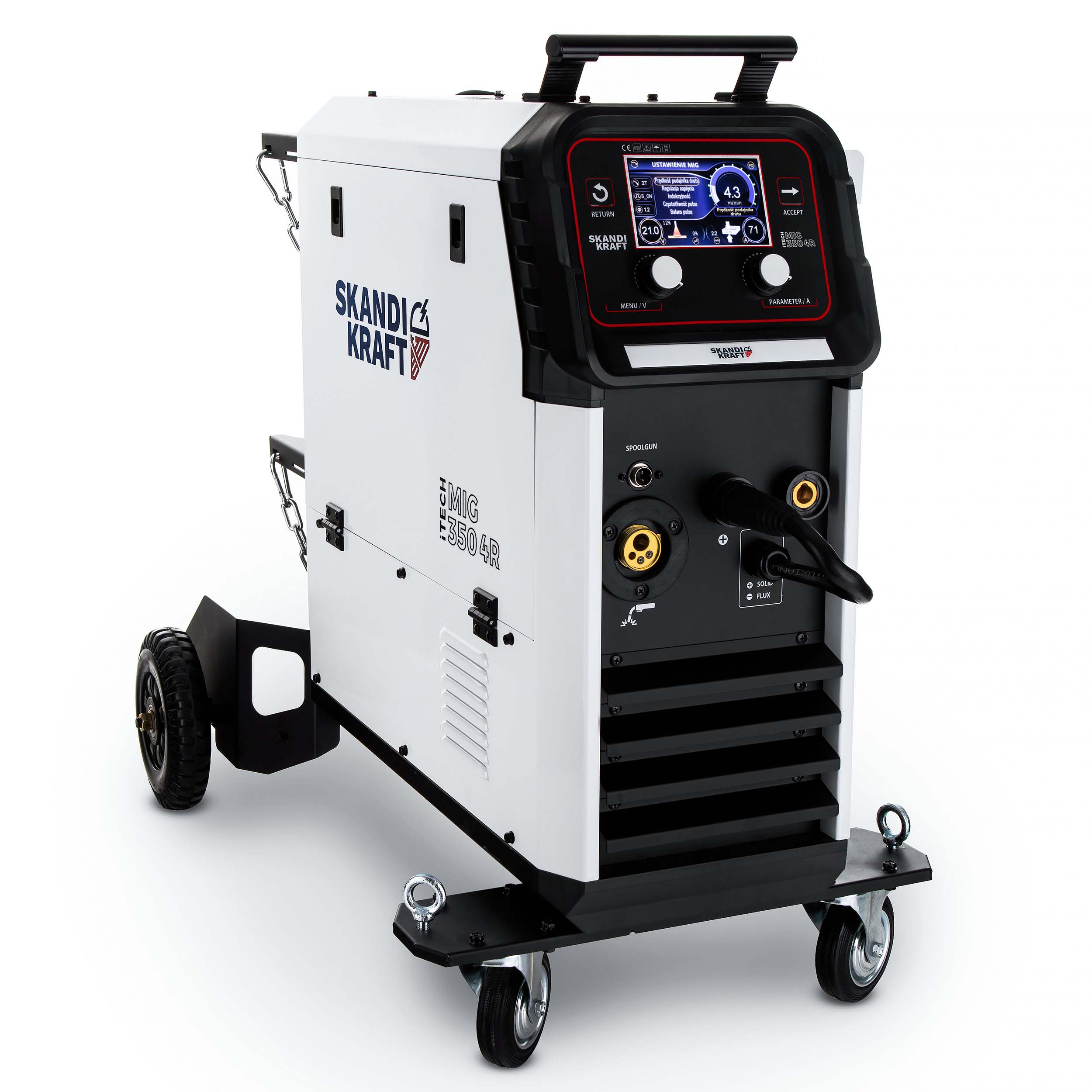

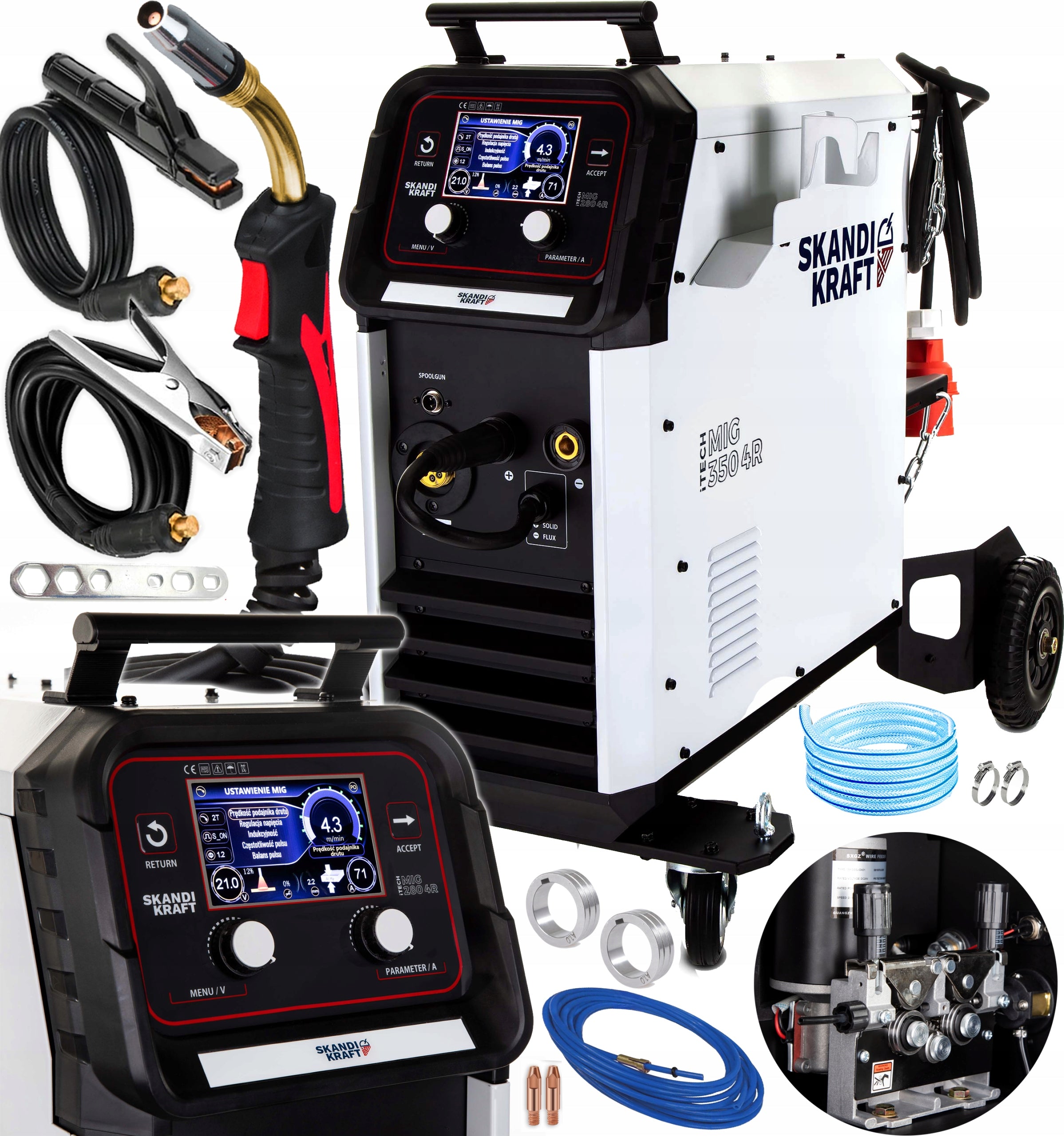

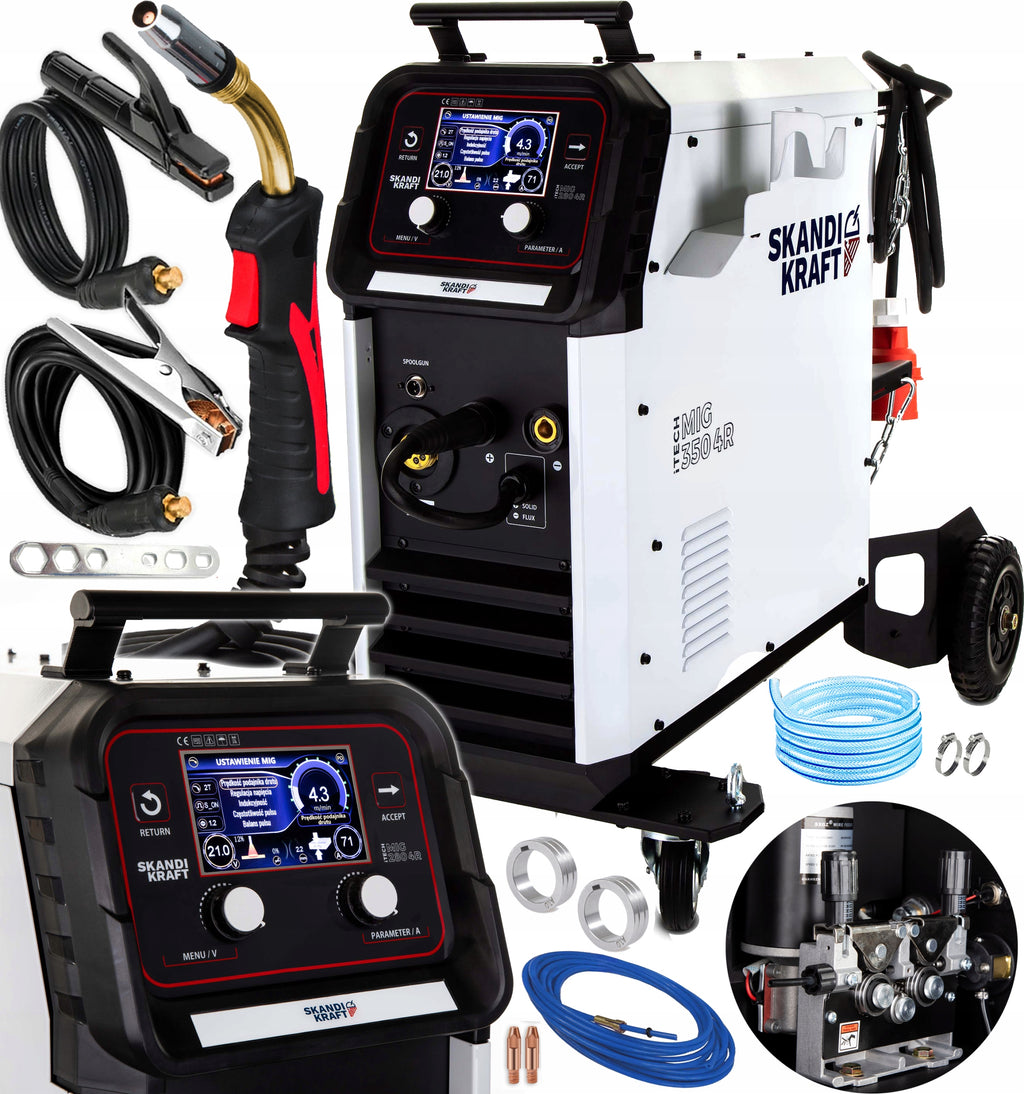

The SKANDI KRAFT iTECH 350 4R welding machine is designed for the most demanding industrial and workshop applications. Powered by 400 V voltage, equipped with a 4-roll wire feeder, it guarantees stable operation and perfect wire routing, even with long-term welding with large currents.

Thanks to its powerful power, the device can easily cope with welding sheets up to 30 mm thick, offering the ability to work in pulse and dual pulse mode, which allows you to achieve aesthetic, strong and chipping-free welds.

The maximum welding current is 350 A, achieved with an efficiency of 30%, which makes the welding machine extremely efficient in its class. The manufacturer has equipped the device with an even thicker power cable with a cross section of 4 mm², which ensures safe and reliable operation even in the most demanding conditions.

Despite its robust and massive construction, the welding machine is designed with the user's comfort in mind. Stable chassis and dedicated space for a gas cylinder make it easy to move around the workshop. An additional convenience is the practical button for automatic wire feeding placed inside the device – it greatly facilitates the preparation of equipment for work.

Operation of the welding machine is intuitive and comfortable thanks to the modern control panel with LCD display, which is available in up to 5 languages. This allows you to adjust the settings to the individual needs of the user, while increasing the precision and repeatability of welding parameters.

⚡ Welding by 3 methods: MIG/MAG with gas, MIG/MAG without gas using self-shielding wire, MMA using electrode, TIG LIFT using non-melting electrode

⚡ Welder powered by 400 V, so it can weld sheets up to 30 mm thick

⚡ Welding with pulse and double pulse, enabling a durable, quality and nice weld

⚡ Lamp inside the welding machine for easy wire change in the feeder

⚡ Button for automatic wire feeding (inching)

⚡ Adjustable frequency in double pulse

⚡ Welding machine with LCD and 5 languages to choose from

⚡ MIG 350 on chassis with space for placing gas cylinder with safety handle and transport hooks for crane

⚡ Quick Use mode function - automatic setting of welding parameters in the MIG/MAG method type and thickness of wire and thickness of welded material, welding machine automatically selects amperage and voltage, wire feed speed and electric arc

⚡ Suggestion of electrode type and thickness to be used for TIG LIFT and MMA welding depending on material thickness

⚡ Option to connect the SPOOL GUN handle, which ensures wire feeding without interruptions from the external feeder

⚡ FAN STOP system that turns off the fan at rest of the welding machine, so that the welding machine is quiet and its sound does not interfere with operation

⚡ Automatically adjusted wire feed speed depending on welding current

⚡ Built with transistors in the best IGBT technology, which allows for high duty cycles

⚡ Possibility of self-shielding wire welding (FLUX)

⚡ Efficient cooling method devices with fan, longer and more efficient operation

⚡ Gas heater connector (36 V) - by using a socket you can connect the reducer with the heater or the heater itself and heat the gas to a positive temperature

⚡ Quick coupler for quick connection of the hose from the reducer

⚡ 18 channels of memory

⚡ Welding MIG/MAG auto mode

⚡ Automatic setting of the welding machine after specifying the thickness of the material, diameter and type of wire, facilitates the work of the user. The system selects in addition to current, also feeder speed and arc voltage

⚡ Pulse welding to improve weld quality

⚡ More comfortable working with the handle, thanks to the 2T/4T option

MIG/MAG FUNCTIONS

⚡ PULS/DUAL PULS - an option enabling qualitative welding of both thin and thick elements,

⚡ PULS for aluminium and CuSi alloys

⚡ DUAL PULSE - you can easily get a much nicer weld (fish scale)

⚡ 2T/4T allows you to operate the feeding of wire from the MIG handle

⚡ 2T - After pressing and holding the button, welding occurs, after releasing the welding shutdown

⚡ 4T - After pressing the torch and releasing, welding occurs, after pressing again and releasing the welding stop. Function useful for long welding

⚡ SPOT spot welding functions, and support for spot welding by welding torch S_2T and S_4T

⚡ Choice of wire diameter and welding material

⚡ Possibility to set wire feed speed [m/min], maximum and minimum feeder speed

⚡ Voltage regulation corresponding to the thickness of the welded material [V]

⚡ Inductance setting, which allows you to reduce chipping during welding and shorten and extend the arc length

⚡ Pulse frequency control [Hz]

⚡ Possibility to set the work cycle pulse [%]

⚡ Dual pulse MIG/MAG welding

⚡ Possibility to set the work cycle of double pulse [%]

⚡ Maximum wire feed speed [m/min]

⚡ Minimum wire feed speed [m/min]

⚡ Dual pulse frequency control [Hz]

⚡ Possibility to set double cycle of pulse operation [%]

FUNCTIONS OF MMA

⚡ Hot Start - facilitates the start of welding, by temporarily increasing the welding current at its beginning

⚡ Arc Force - adjustable welding arc, this function allows you to reduce or increase the depth of the melt

⚡ VRD - voltage reduction, switching off the power supply after welding as soon as possible, helps to maintain safety

⚡ Anti Stick - easier detachment of the electrode if it is glued

TIG LIFT FUNCTIONS

⚡ Possibility to adjust the welding current, after setting it, the welding machine suggests the thickness of the sheet

ADDITIONAL INFORMATION

⚡ FLUX - gas-free welding, shielding wire

⚡ Welding machine powered by 400 V using a thick power cable with a length of 3 m and a cross-section of 4G x 4 [mm2]

⚡ Maximum welding current 350 A

⚡ The mechanism of simple wire change in the welding machine

POWER SUPPLY PARAMETERS

• Power supply: 400 V
• Frequency: 50/60 Hz
• Idle Voltage: 74 V

TECHNICAL PARAMETERS

• MIG welding current: 40-350 A
• MIG welding voltage: 16-31.5 V
• Efficiency (for temp. 40°C):

1. 30%/ 350 A / 31.5 V
2. 60%/ 248 A / 26.4 V
3. 100%/ 192 A/ 23.6 V

• TIG welding current: 10-300 A
• TIG welding voltage: 10.4-22 V
• TIG efficiency (for temp. 40°C):

1. 30%/ 300 A/ 22 V
2. 60%/ 212 A / 18.5 V
3. 100%/ 164 A / 16.6 V

• MMA welding current: 30-300 A
• MMA welding voltage: 21.1-32 V
• MMA efficiency (for temp. 40°C):

1. 30%/ 300 A / 32 V
2. 60%/ 212 A / 28.5 V
3. 100%/ 164 A / 26.6 V

• Feeder: 4 R
• Wire spool diameters: D200, D300
• Maximum spool size: 5 kg, 15 kg
• Wire diameter for use in welding machine: 0.8 / 1.0 / 1.2 [mm]

PHYSICAL PARAMETERS

• Length x width x height of the welding machine with chassis after folding the device: 89 × 51 × 81 [cm]
• Weight device: welding machine [net] 49 kg, in carton [gross] 62 kg
• Housing protection: IP21S
• Cooling: Patented air flow system

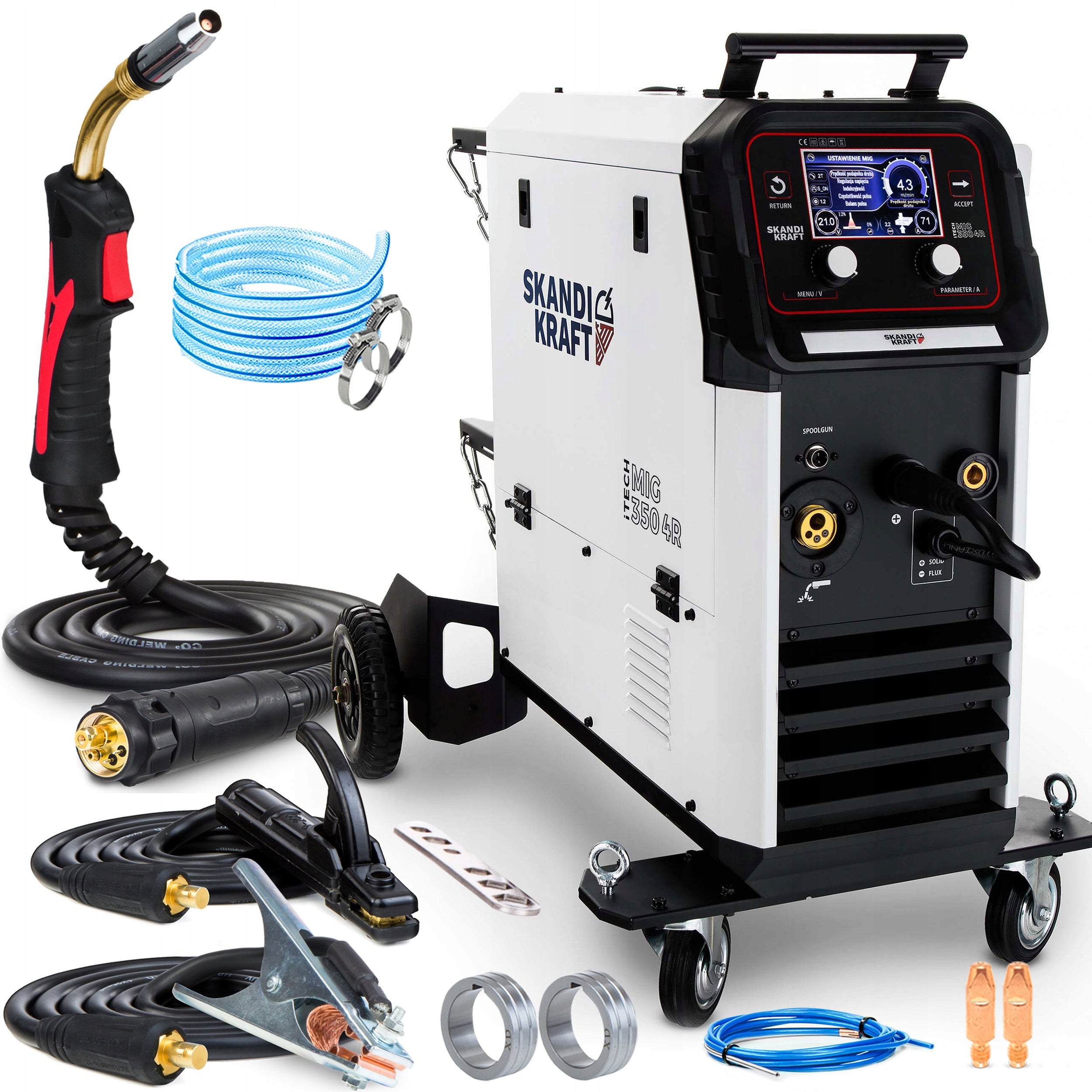

✔️ Welder SKANDIKRAFT  MIG iTECH 350 4R

✔️ MIG Welding Torch MB 24, 4 meters, with black Teflon-graphite liner

✔️ Additional Steel Liner blue, 4m, for MB 24 torch, for welding wire 0.8 -1.0 [mm]

✔️ Power Cable 3 meters long, 4G x 4 [mm2] cross-section

✔️ Ground Clamp fully copper, 3 meters, 25 [mm2] cross-section

✔️ Electrode Holder copper-plated, 3 meters, 25 [mm2] cross-section

✔️ Wire Feed Rollers: for aluminum 2 x 1.0-1.2U, for carbon steel 2 x 0.8-1.0V, wire feeder roller size 22/10/30 [mm]

✔️ Gas Cylinder Mounting Parts: 2 x gas regulator mounting straps; 2m gas hose; manual; wrench; hex key

✔️ Contact Tips for MB24 torch, MB25 (1x 0.8; 1x1.0; 1x1.0 ALU; 1x1.2 ALU)

✔️ Wire Guide Sleeve with Spring for the wire feeder

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	SKANDI KRAFT
Parametry	Supply voltage (V)	400
Parametry	Duty cycle time	60%
Parametry	Wire diameter (mm)	0,8-1,2
Parametry	Device weight	49 kg
Parametry	Welding range	10–350 A
Parametry	Height	900 mm
Parametry	Length	740 mm
Parametry	Width	430 mm
Parametry	Length of ground cable	300 cm
Parametry	Welding cable length	400 cm
Parametry	Product weight with unit packaging	62 kg
Parametry	Manufacturer code	iTECH MIG 350
Parametry	EAN (GTIN)	5905072442060
Parametry	Model	iTECH MIG 350
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	infinitely adjustable welding current,EURO handle,LCD display
