Suvirinimo aparatas Spartus Easy TIG 208P AC/DC, 200A, 230V, inverterinis

Trumpai apie prekę

Prekė: Suvirinimo aparatas Spartus Easy TIG 208P AC/DC, 200A, 230V, inverterinis. Kategorija: Invertoriniai suvirinimo aparatai.

• Gamintojas: Spartus
• Modelis: SET1-EASYTIG208PACDC-PAK-17-4

• full free post-purchase support
• You can call us at any time and we will help you set the parameters and operate the device

Function TIG DC and TIG DC PULS is used for welding stainless steel, carbon and low alloy steels, copper and titanium.

Function TIG AC and TIG AC PULS: allows welding of aluminium and its alloys and brass.

PULS - thanks to the regulation of TIG PULS pulsed welding parameters, we have an impact on the shape of the weld and the focus of the arc. Pulse welding also reduces the amount of heat supplied to the material and allows thin materials to be welded.

2T/4T - modes of source operation control. In two bars, pressing the TIG handle button starts welding, releasing the button ends welding. In four bars, pressing and releasing the button causes welding to start, to finish it you need to press and release the button again. Four bars are mainly used when making long welds, because it does not require holding the button on the handle all the time during operation.

PWM - (Pulse Width Modulation) – is a pulse width modulation, i.e. a method of adjusting a voltage or current signal with a constant frequency and amplitude. This technology allows you to deliver less energy to the device at a specific time.

POST GAS - regulation of gas outflow time after extinguishing the welding arc. This is a helpful feature to cover the welding lake. The lack of additional gas shielding may result in oxidation of the weld.

PRE GAS – gas outflow before arcing. Protects the lake from the harmful effects of atmospheric air. Regulation expressed in seconds.

IN ADDITION, THE WELDING MACHINE HAS MANY FUNCTIONS SUPPORTING MMA WELDING, SUCH AS:

ARC FORCE (short-circuit current adjustment) - facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from extinguishing when the drop of electrode contacts the welding lake.

HOT START (hot start adjustment) - facilitates the ignition of the electrode by providing more welding current with each arc.

ALSO COMES WITH:

Intelligent protection system – surge protection, overload protection, overheating protection. If the permissible conditions are exceeded – one of the above-mentioned systems will work, indicating its operation with a warning diode.

MCU control system – thanks to the technologically advanced processor, the welding machine reacts immediately to any user changes made to the control panel.

DOOR TO DOOR - SPARTUS MANUFACTURER'S WARRANTY

All products from the store offer are brand new and have a written manufacturer's warranty. We provide professional warranty and post-warranty service. By purchasing our products you have a guarantee of high quality and service support.

POWER SUPPLY PARAMETERS:

• Power supply voltage: ~1× 230V ± 10% 50 / 60 Hz
• Power factor (cosφ): 0.6
• Efficiency η: 85%
• Isolation class: H
• Degree of protection: IP21S

TECHNICAL PARAMETERS:

• TIG AC welding current: 10 – 200A
• TIG DC welding current: 10 – 170A
• TIG AC duty cycle: 35%
• TIG AC duty cycle: 40%
• Pre-gas: 0 – 2s
• Post-gas: 0 – 10s
• Power build-up time: 0 – 10s
• Power drop time: 0 – 10s
• TIG Pulse: yes
• AC pulse current: 10 – 200A
• AC pulse current: 10 – 170A
• Pulse width: 5 – 95%
• Pulse frequency: 0,5 – 200Hz
• AC current frequency: 60Hz
• AC Balance: 10 - 99%
• Working mode 2T/4T: yes
• Arc glow: HF
• Control options: control in UP&DOWN handle, control in potentiometer handle
• MMA AC welding current: 10 – 170A
• MMA DC welding current: 10 – 170A
• Arc Force: yes
• Hot Start: yes
• Idle voltage: 79V
• Power consumption: DC: TIG 28A / MMA 41A
• Power consumption: AC: TIG 33A / MMA 39A

PHYSICAL PARAMETERS:

• Weight: 8.7kg
• Dimensions: 450 x 135 x 230mm
• Connection: 9SPA

New Spartus Inverter Welding Machine

Easy TIG 208P AC/DC1

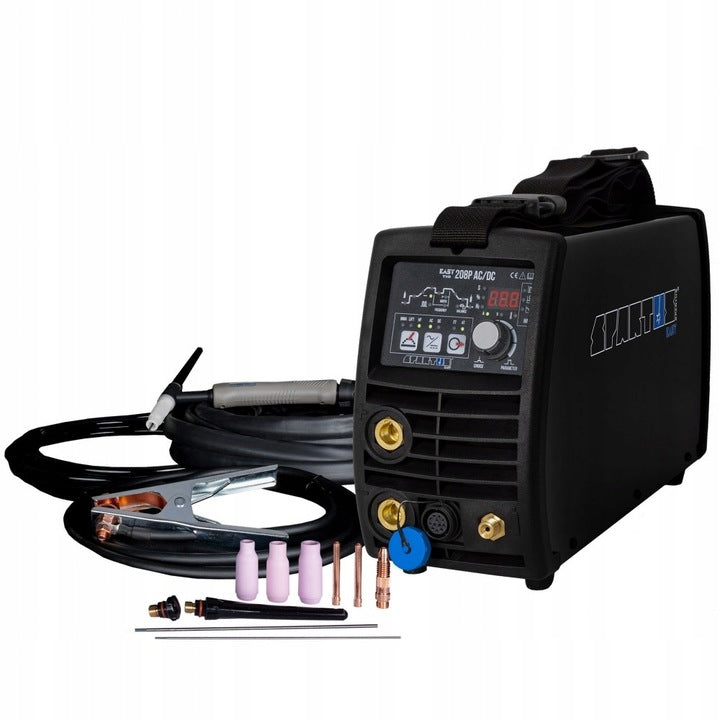

Package includes:

• EasyTIG 208P AC/DC
• TIG handle SPE 17 1B 4m
• set of consumable parts
• mass cable 3m
• gas hose
• instruction manual
