Aprašymas
Trumpai apie prekę
Prekė: Suvirinimo aparatas Spartus Easymig 210 LED, 200A, MMA/TIG Lift, 3 viename. Kategorija: Invertoriniai suvirinimo aparatai.
- Gamintojas: Spartus
- Modelis: EASYMIG210LED-PAK-15-3_pakiet6
Welding methods: TIG ,MIG/MAG, MMA | Power supply: ~1× 230V ± 10% 50 / 60 Hz | Maximum current: 200A | Working cycle: 60% |
EasyMIG 210LED – SMALL AND SIMPLE SYNERGISTIC INVERTER WELDER
SPARTUS® EasyMIG 210LED is a small semi-automatic welding machine based on IGBT transistors. It enables MIG/MAG, TIG Lift welding with current up to 200A and MMA up to 160A. It is powered from a single-phase 230V network.
SPARTUS® EasyMIG 210LED is made in accordance with the latest trends in the production of welding equipment. The compact size and simplicity make this welding machine an excellent device for minor repairs and overhauls. It will also be used in broadly understood hobby and workshop works.

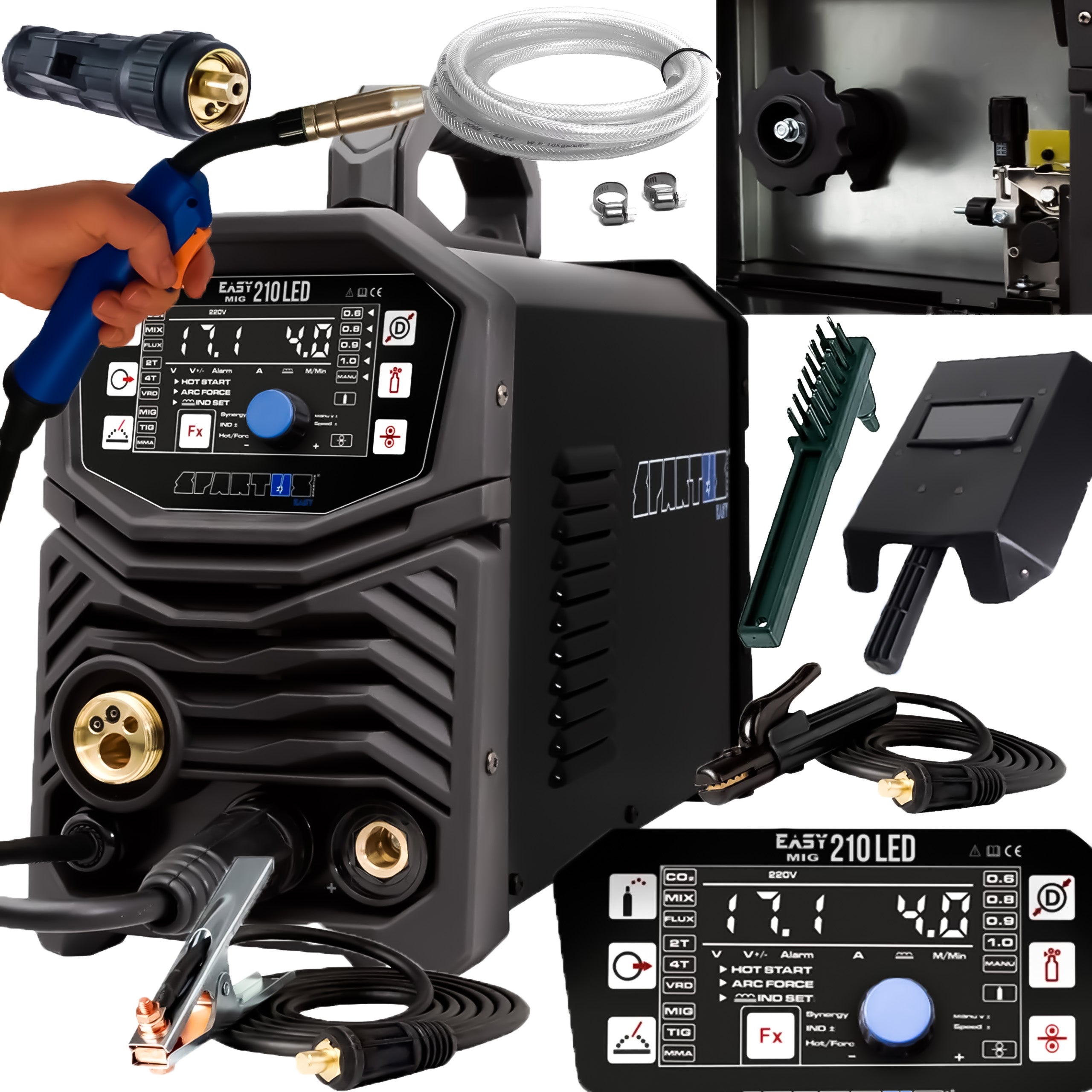

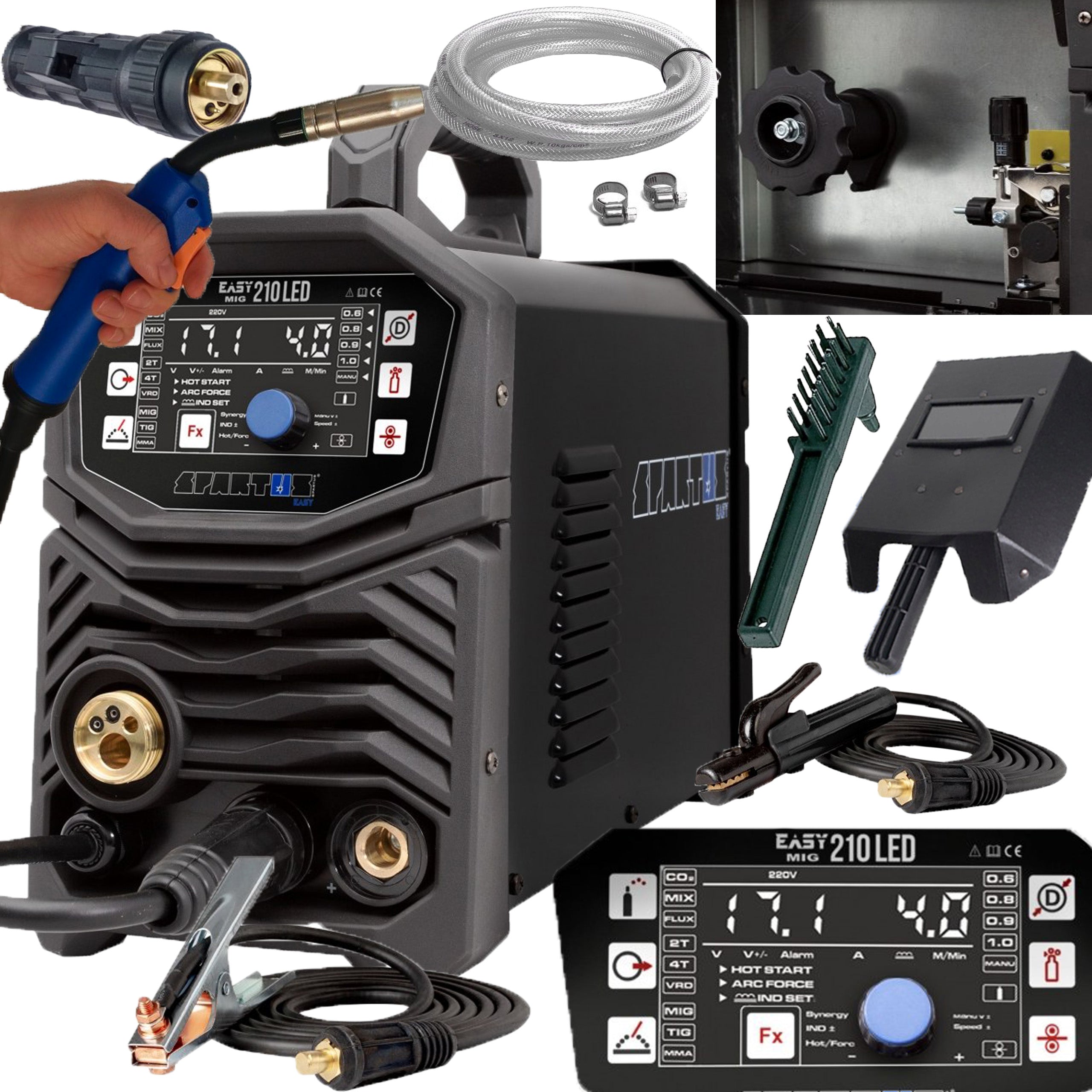

The set includes:
- SPARTUS® EasyMIG 210LED welder
- Handle SPARTUS® Easy 150 3m
- Electrode holder
- Bulk cable
- Gas hose
- User manual
PORTABLE INVERTER WELDER FOR EVERYONE
EasyMIG 210LED is an intuitive welding device characterized by simplicity, which will certainly be appreciated by novice welders. Thanks to its light weight and compact design, it is perfect as a portable semi-automatic welding machine. Any renovation work in the field is an ideal task for this machine.

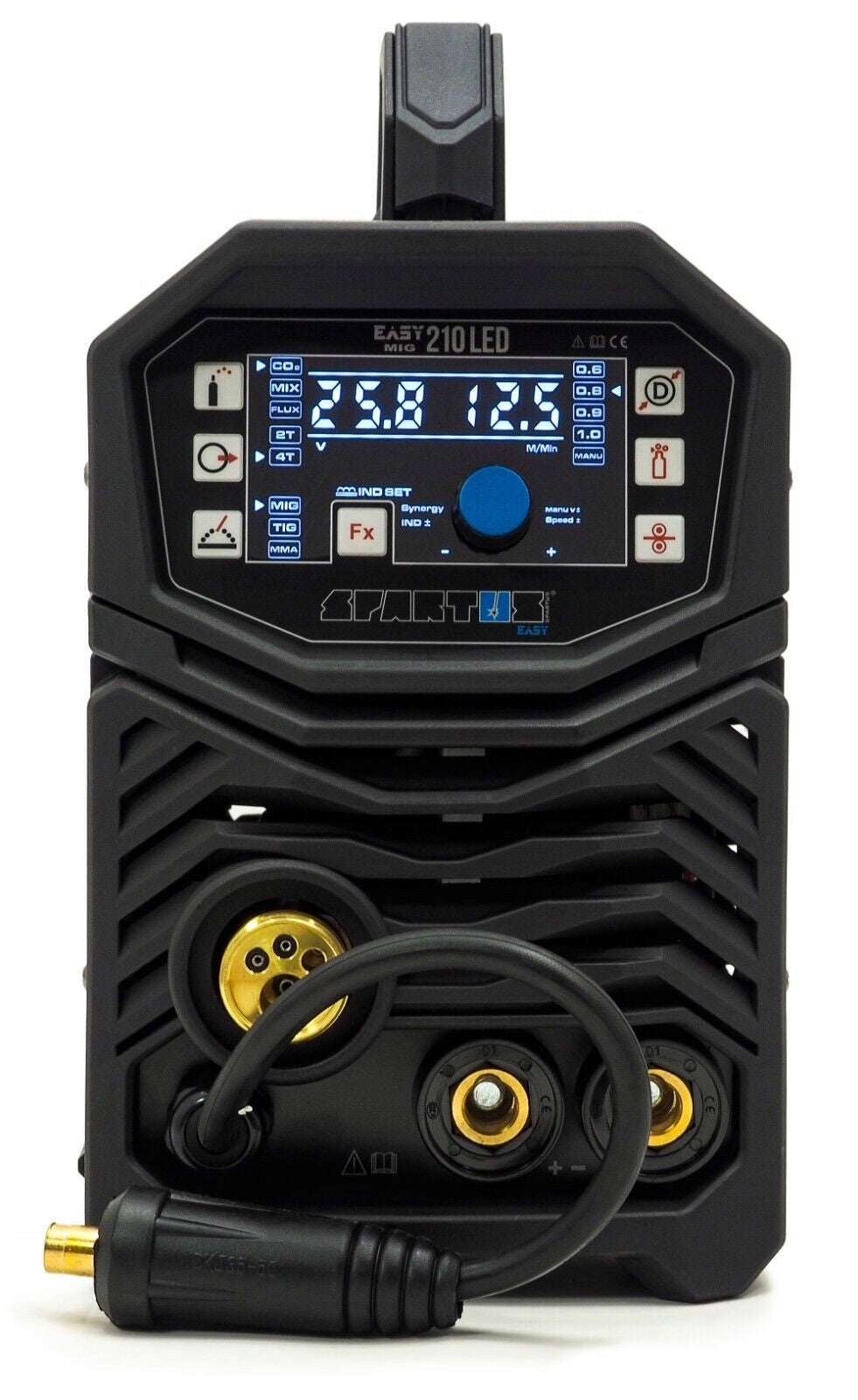

The simple and intuitive LED display allows for easy management of welding machine parameters.
3 WELDING METHODS IN ONE DEVICE!
WELDING MIG SYNERGY
EasyMIG 210LED is equipped with a simple synergy in which the user defines the type of gas and the diameter of the welding wire. The other parameters will be adjusted by the device automatically. .
The device also has functions supporting the welding process for MIG/MAG methods:
- Inductance – control of face width and depth of melting, reduces the number of welding chips
- Weldable in two modes: 2T/4T.
Manual mode
The device also works in manual mode, which allows you to set all welding parameters according to the individual requirements of the user.
Change of polarity
External polarity change of welding in EasyMIG 210LED, allows welding with self-shielding wires without gas.

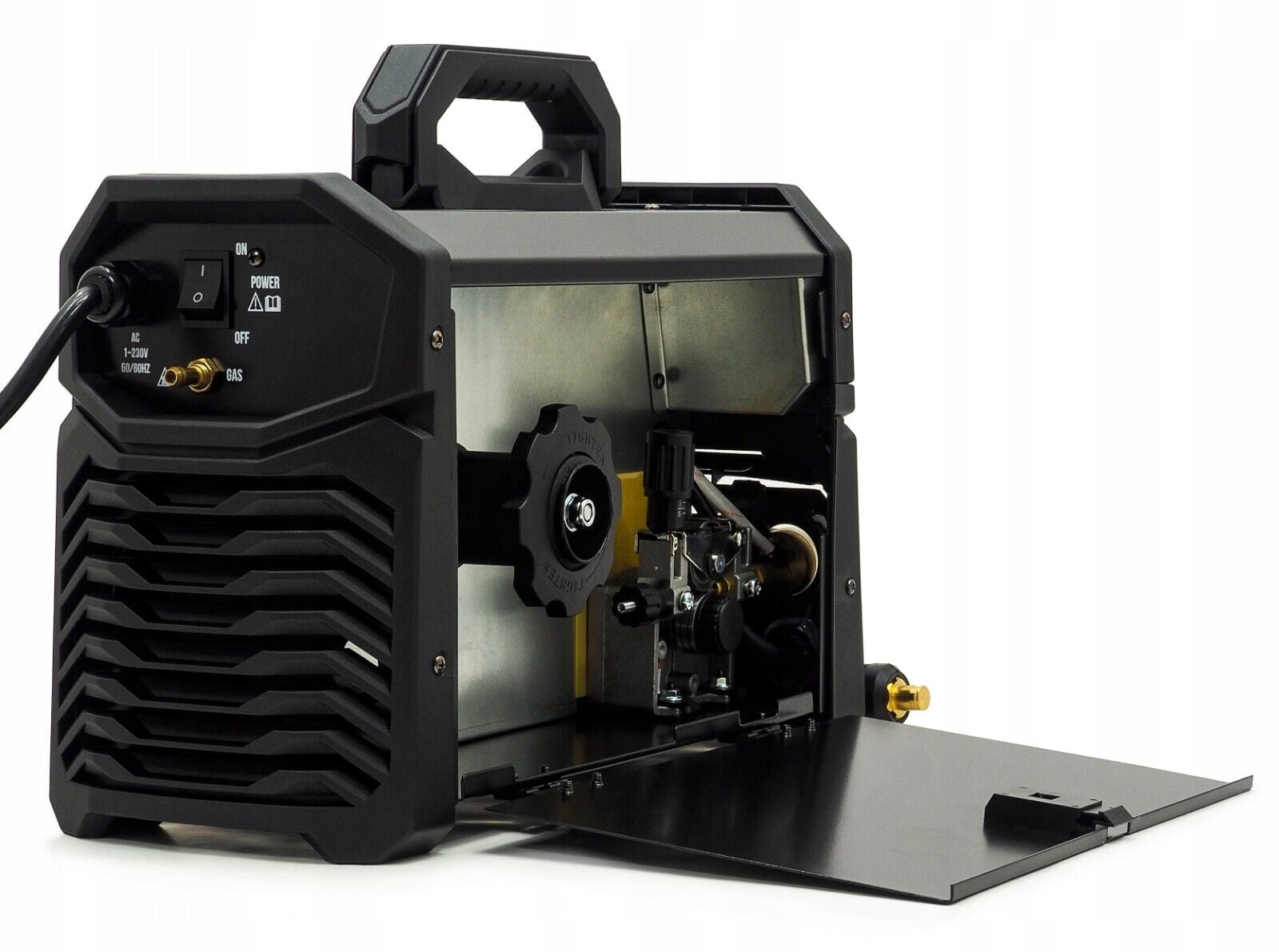

Wire feeder
Built-in, two-roll feeder ensures stable feeding of welding wire. A small spool significantly relieves the machine, which is an undoubted advantage during transport.
WELDING TIG Lift
EasyMIG 210LED enables TIG Lift 200A welding, with a high 60% duty cycle. The device works with TIG welding torch with valve (recommended SPE17V-4-H100-X-SK35)
WELDING MMA
The device also allows for basic MMA welding. Built-in functions to support this process are:
- Hot Start – so-called. hot start - facilitated glowing of the electrode
- Arc Force – arc dynamics adjustment – facilitated welding in forced positions
- VRD – reduced idle voltage, increased operational safety.
TECHNICAL DATA:
- Power supply voltage: ~1× 230V ± 10% 50 / 60 Hz
- Welding current MIG [A]: 50 – 200
- MIG duty cycle [%]: 60
MIG PARAMETERS
- Output voltage MIG [V]: 16,5 – 24
- Wire feed speed [m/min]: 2 – 12,5
- Type of feeder: built-in, 2 - roller
- Wire spool: ≤ 5[kg], Ø200
- Wire diameter Ø[mm]: 0.6 / 0.8 / 1.0
- Wire feed speed [m/min]: 2 - 12.5
- 2T/4T switch: YES
- Inductance regulation: YES
- Wire feeding test: YES
- Synergy: Easy
- Change of welding polarity: YES
TIG PARAMETERS
- Welding TIG: YES
- TIG welding current [A]: 10 – 200
- TIG duty cycle [%]: 60
PARAMETERS MMA
- Welding with MMA wrapped electrode: YES
- MMA welding current [A]: 10 – 160
- HotStart
- ArcForce
- VRD
- MMA duty cycle [%]: 60
THE REMAINING
- Power consumption [A]: MIG 39 / TIG 29 / MMA 34
- Power factor (cosφ): 0,73
- Efficiency η [%]: 77
- Isolation class: H
- Degree of protection: IP21S
- Weight [kg]: 10
- Dimensions [mm]: 470 × 190 × 330
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Spartus |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Device weight | 10 kg |
| Parametry | Welding range | 10–200 A |
| Parametry | Manufacturer code | EASYMIG210LED-PAK-15-3_pakiet6 |
| Parametry | EAN (GTIN) | 5905031029240 |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | infinitely adjustable welding current,EURO handle,LCD display |
