Suvirinimo aparatas SPARTUS EasyMIG 500 Dual Pulse, 400V, 500A, inverterinis

Trumpai apie prekę

Prekė: Suvirinimo aparatas SPARTUS EasyMIG 500 Dual Pulse, 400V, 500A, inverterinis. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: Spartus
• Modelis: EASYMIG500DP-PAK-51-3

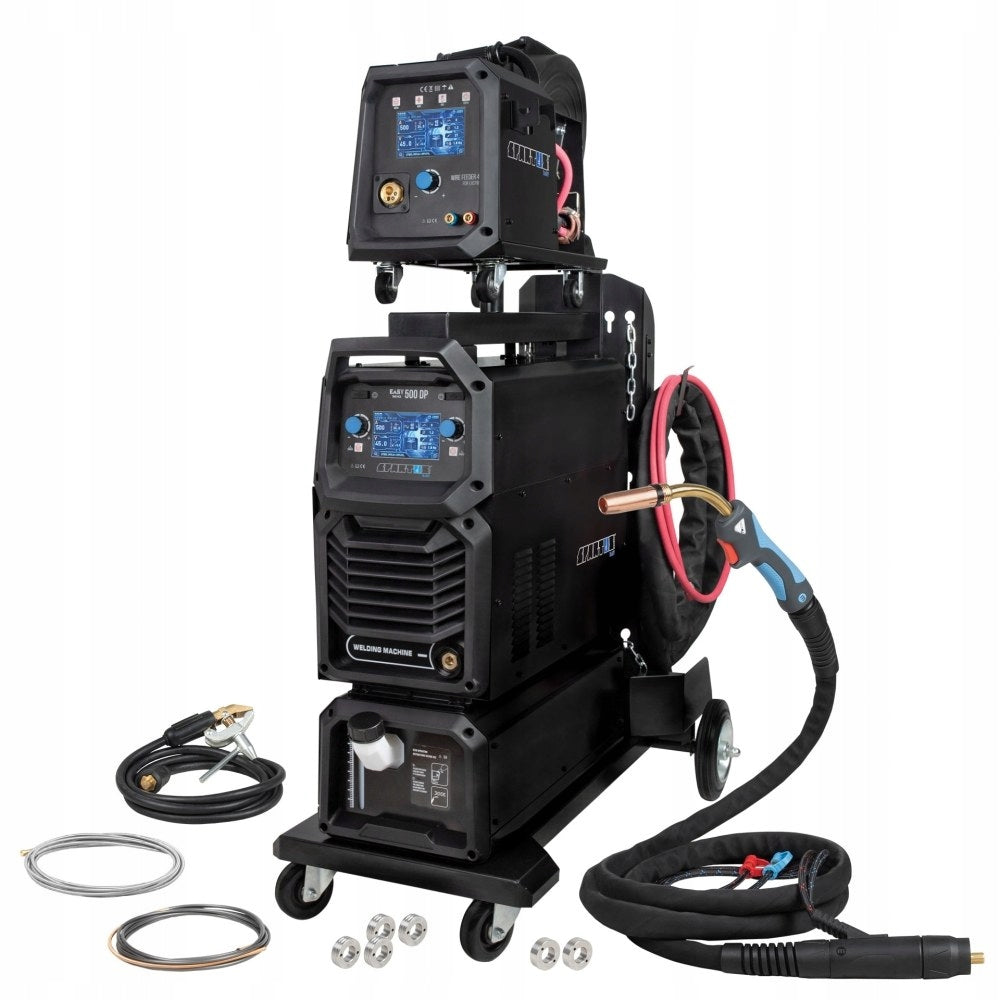

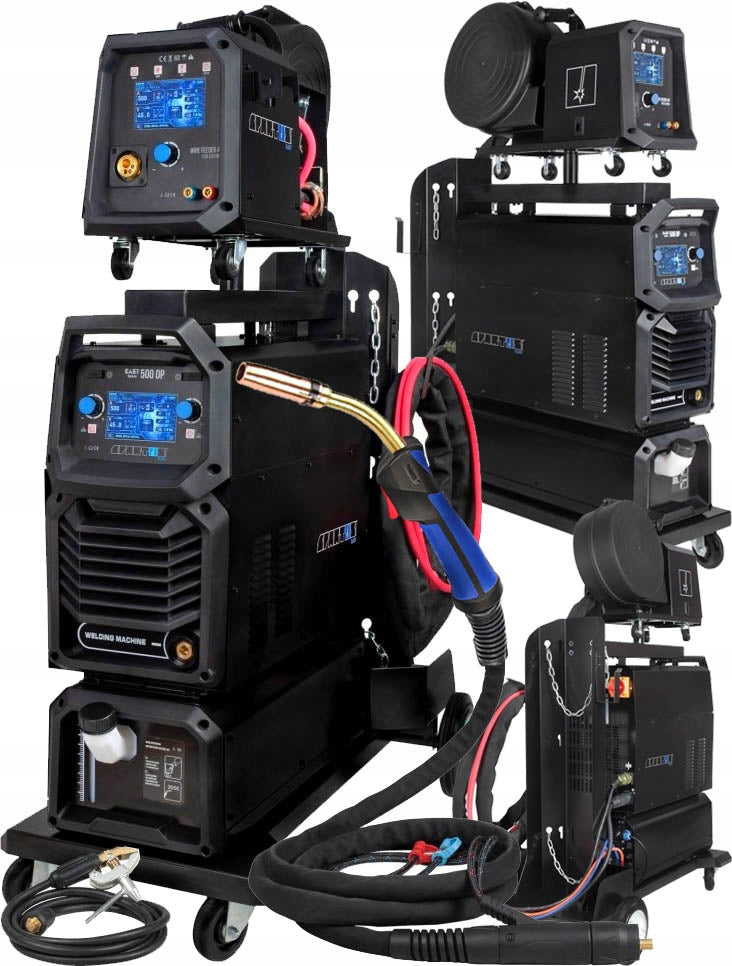

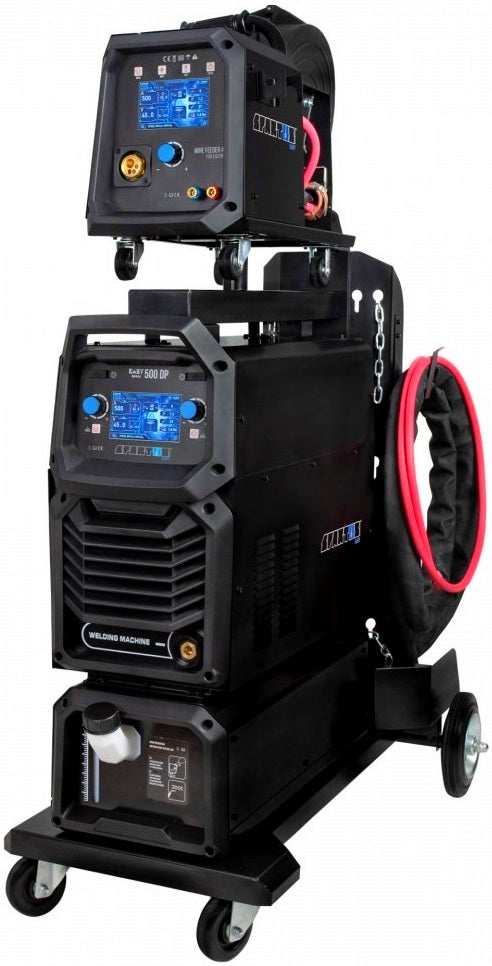

SPARTUS EASYMIG 500 DUAL PULSE WELDING MACHINE

it is a professional, technologically advanced semi-automatic welding machine designed for welding using the following methods:

➡ MIG/MAG:

Arc welding in gas shields (CO2 or Argon+CO2) is one of the most commonly used processes for the production of welded structures. The semi-automatic welding process involves melting the edges of the welded object and the welding material (welding wire on a roll) with an electric arc produced between the welding wire fed by the handle and the welded material.

Available Modes:

• MIG PULS - synergistic settings with single pulse,
• MIG 2-PULS - synergistic settings with double pulse,
• MIG SYN - MIG/MAG welding with synergistic settings,
• FLUX / FCAW - self-shielding wire welding. This is a similar welding process as MIG/MAG but does not require a gas cylinder. On the wire there is a thin layer of powder, which at the time of arc formation produces gas covering the working area.
• Possibility of manual parameter correction.

➡ TIG LIFT DC - welding with a non-melting electrode (tungsten) in an inert gas shield (Argon) using an additional handle. In the TIG DC Lift mode, the arc glow occurs when the electrode with the welded element is contacted (the button in the handle does not ignite the arc, the gas is connected directly from the reducer to the handle). In TIG Lift DC mode, the current is constant.

➡ MMA - classic welding with wrapped electrodes (rutile, alkaline, acidic).

The SPARTUS EASYMIG 500 DUAL PULSE welding machine is used for welding:

✔ low alloy steels (MMA, MIG/MAG, TIG Lift DC),

✔ low carbon steel (MMA, MIG/MAG, TIG Lift DC),

✔ alloy steels (MMA, MIG/MAG, TIG Lift DC),

✔ acid-resistant steels (MMA, MIG/MAG, TIG Lift DC),

✔ aluminium and its alloys (MIG),

✔ other weldable metals and alloys.

The device has been designed for all kinds of welding work in automotive, locksmith, repair, industrial workshops etc.

SPARTUS EASYMIG 500 DUAL PULSE has a clear and easy-to-use function panel, which has i.a.:

• Left knob: welding mode selection / voltage adjustment / selection confirmation,
• LCD display,
• Right knob: function mode / selector confirmation button,
• Approval button for mode selection in the interface,
• Function parameter switch button,
• Service connector for motherboard,
• Service connector for control panel.

The device also has a separate wire feeder, on which there is, among others:

• Interface mode selection button,
• Wire test,
• Gas test,
• Functional button,
• LCD display,
• Parameter adjustment knob,
• EURO connection,
• Coolant connection – power supply,
• Coolant connection – return.

✔ REPAIR WORKSHOP

✔ LOCKSMITH WORKSHOP

✔ FARMS

✔ OF ALL BODYWORK REPAIRS

✔ ASSEMBLY SERVICES

✔ FACTORIES

✔ SHIPYARD

AND WHEREVER RELIABILITY MATTERS!

✔ INDUCTANCE ADJUSTMENT - function is useful during welding using the MIG/MAG method of thin elements, preventing them from burning out and soldering galvanized elements. Changing the inductance value also reduces the amount of welding chips during CO2 shielded welding. Thanks to the inductance adjustment, the welding machine is suitable for lutowelding. Depending on the model of the welding machine, the adjustment is automatic or can be adjusted manually.

✔ SYNERGY - is a very helpful feature available in professional welding equipment class PREMIUM. By setting the appropriate program or entering parameters, the device will independently select most welding settings, such as wire feed speed or appropriate voltage, according to the programmed data.

✔ DUAL PULS - provides better transfer of the binder into the welded material, which fundamentally improves control over the welding process and the quality of the weld itself. It allows you to work in all positions and is especially useful for forced positions. It provides less heat impact, works well in the case of thinner materials or those with increased thermal conductivity, such as: aluminium alloys. Reduces the amount of chipping. The most advanced welding method, in which current pulses occur in two ranges, thanks to which we obtain the optimal aesthetics of the weld face, the so-called. husk effect.

✔ PULS - Welding with pulsating current, in which high and low current are alternately used. This reduces overall heat supply and splatter while providing greater resistance to non-melting. This method can be used to weld both metals with high thermal conductivity and thinner metals without burning them. Additionally, you can get narrower and more penetrating welds on thicker metals.

✔ WIRE TEST – function that allows you to start the wire feeder itself without switching on the power source and solenoid valve (this function is used when introducing electrode wire into the welding torch).

✔ HOT START - facilitates the ignition of the electrode by providing more welding current with each arc.

✔ ARC FORCE - is a function that facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from being extinguished when the drop of electrode contacts the welding lake.

✔ SLOW FEED - adjustable wire access speed, allows stable glowing especially in cases of high wire feeding speed. It reduces the risk of welding defects at the beginning of the weld to a minimum.

✔ POST GAS - regulation of gas outflow time after welding arc extinction. This is a helpful feature to cover the welding lake. The lack of additional gas shielding may result in oxidation of the weld.

✔ PRE GAS - gas flow before arcing. Protects the lake from the harmful effects of atmospheric air. Regulation expressed in seconds.

✔ TWO-BAR 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow.

✔ FOUR-BAR 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow.

✔ CONTROL PANEL - The welding machine is equipped with an easy-to-use control panel and display, so it can be used even by amateurs.

✔ WORK IN INDUSTRY - thanks to its high quality and multifunctionality, the device can be used in professional and hobby work

✔ INVERTER TECHNOLOGY IGBT - is a modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has the effect of significantly extending the reliable operation of welding equipment.

✔ EASY TO USE - The welding machine is equipped with an easy-to-use control panel, so it can be used even by amateurs.

✔ CHASSIS - The device is equipped with chassis, which guarantee high mobility and the ability to move the welding machine in an easy way. The chassis also allows you to mount a gas cylinder without having to invest in a welding cart. The front wheels are equipped with additional foot brakes - providing additional safety during operation.

EFFICIENT OPERATION THANKS TO PROFESSIONAL WIRE FEEDER

The welder is equipped with a separated 4R wire feeder, which guarantees stability and continuity of operation of the device.

The 4-roll feeder allows precise extension of the welding wire excluding its slippage.

The feeder has a quick wire change knob as well as a wire feed roller.

----------------------------------------------

The set includes:

✔ Guide roller 1.0 - 1.2U fi37 - 4x

✔ Guide roller 0.8 - 1.0V fi37 - 2x

✔ Guide roller 1.2 - 1.6V fi37 - 2x

✔ Pressure roller fi37 - 2x

➡ The device is equipped with overload protection, which increases its reliability.

❄ The device has a fan cooling system which significantly increases its efficiency.

⏩ TECHNICAL DATA:

• Power supply voltage: ~3× 400V ± 10% 50 / 60 Hz
• Frequency [Hz]: 50/60
• Power factor [cosφ]: 0.91

⏩ MIG PARAMETERS:

• MIG welding current [A]: 50 - 500
• MIG duty cycle [%]: 60
• Power consumption: 38
• Efficiency η: 86.9
• Type of feeder: separated, 4 - roller
• Wire spool: ≤ 15kg / ∅200/300 mm
• Wire diameter: 0.8/ 1.0/ 1.2/ 1.6 mm

⏩ TIG PARAMETERS:

• TIG welding current [A]: 10 – 500
• Power consumption: 32
• Efficiency η: 84.3
• Welding TIG: Tig DC Lift

⏩ MMA PARAMETERS:

• MMA welding current [A]: 10 – 500
• Power consumption: 39
• Efficiency η: 87.1
• Diameter of electrode Ø : 2.5 / 3.2 / 4.0 / 5.0 mm

⏩ OTHER:

• Weight of the device: 116 kg
• Degree of protection: IP21S
• Isolation class: H
• Dimensions: 1060 x 610 x 1440

WHEN YOU BUY FROM US, YOU WILL RECEIVE:

• WELDING MACHINE SPARTUS 500 DUAL PULSE - 1 pc.
• Separate wire feeder 4R
• Cooler
• Running set
• Hypercoolant - coolant poured into the radiator
• Combined cable - 5m
• MIG SPE 501 - 3m
• Graphite wire guide
• Steel wire guide
• 4x guide roller 1.0 - 1.2U fi37
• 2x guide roller 0.8 - 1.0V fi37,
• 2x guide roller 1.2 - 1.6V fi37,
• 2x pressure roller fi37
• Bulk cable with forceps-screw clamp - 3m
• User manual

SET 1 LARGE MIG INDUCTANCE MB501.
