Suvirinimo aparatas su impulsiniu lituokliu ir priedais

Trumpai apie prekę

Prekė: Suvirinimo aparatas su impulsiniu lituokliu ir priedais. Kategorija: Sandarikliai.

• Gamintojas: Techrebal
• Modelis: E697-95262

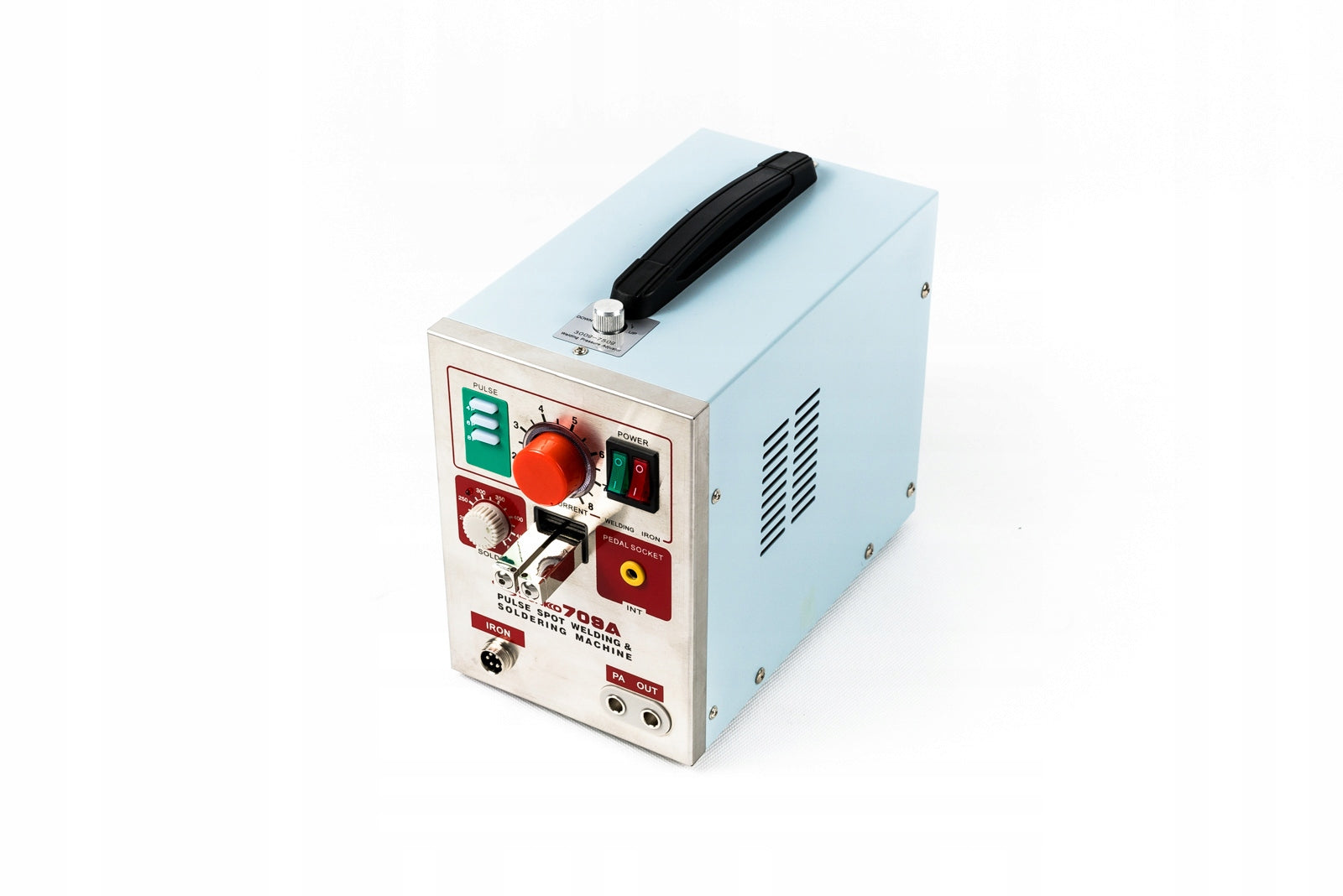

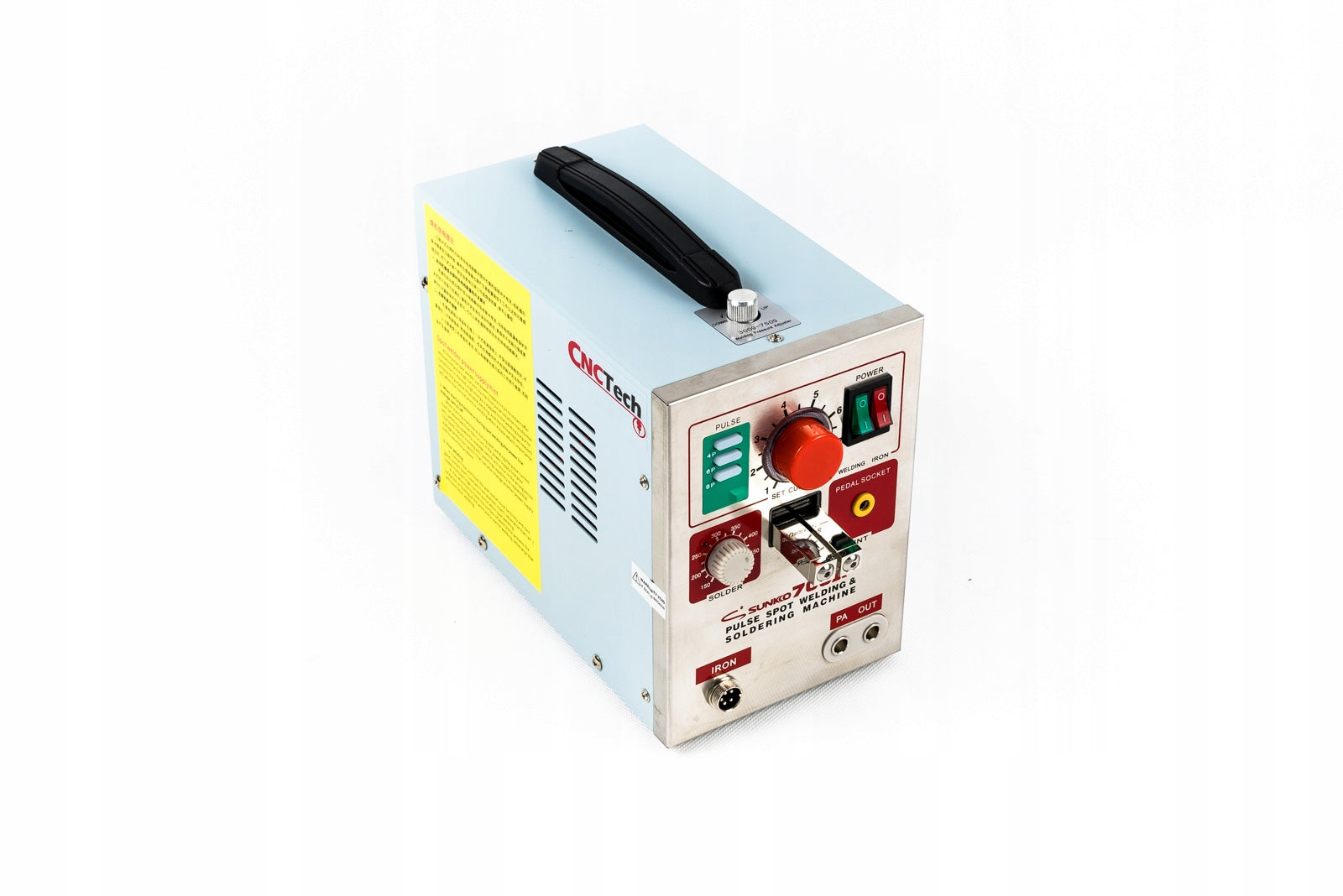

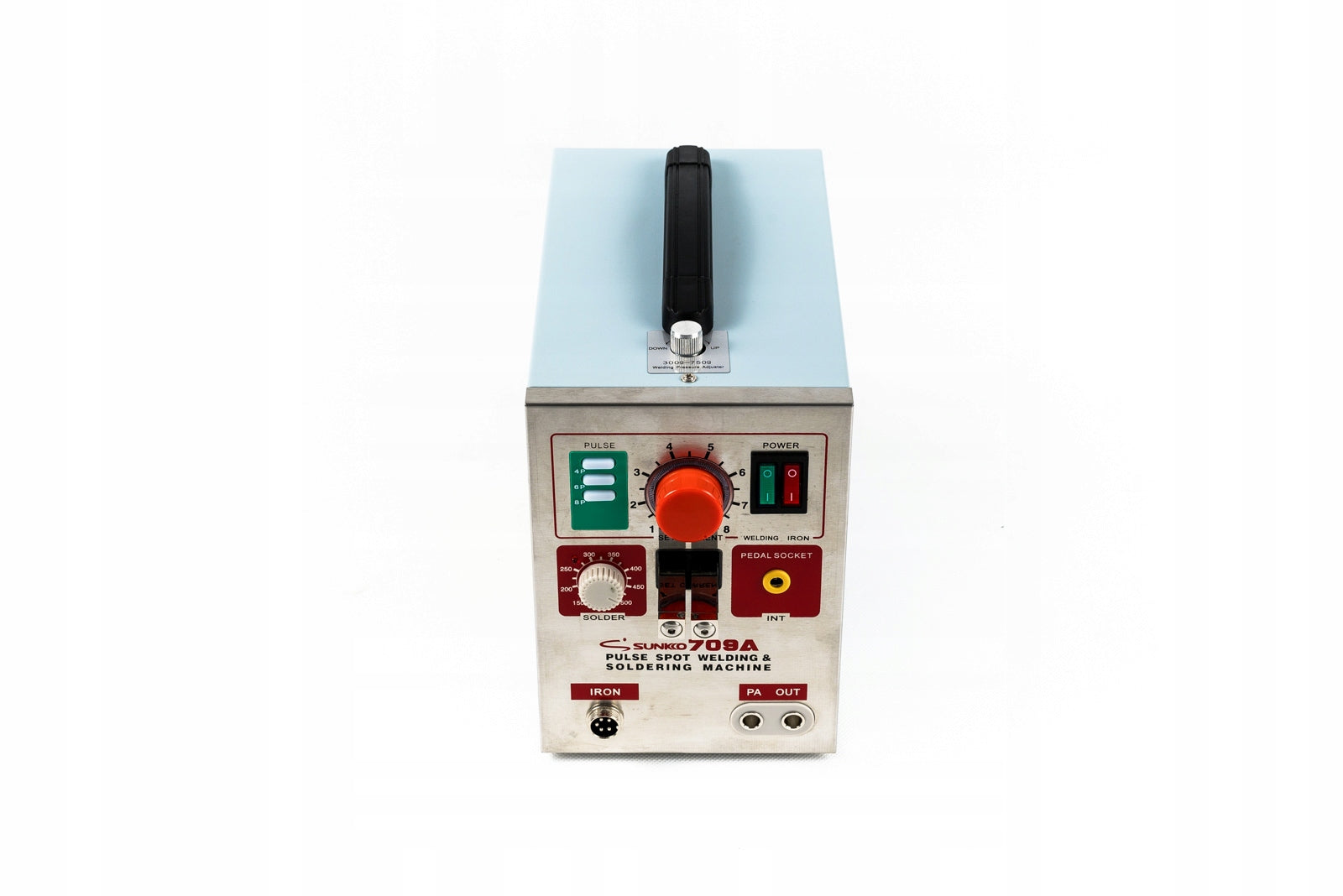

WELDING MACHINE IMPULSE WELDING MACHINE SOLDERING IRON + ACCESSORIES

POWER MAX 3,2 kW / MAX INTENSITY 500A

The latest model of portable soldering iron-point welding machine with wide application for both professional and hobbyist needs in the workshop.

Its ergonomics, high quality and multifunctionality means that you get a multi-purpose device, e.g. for operating on printed circuit boards, batteries, other elements of electronic devices or wiring.

The machine is a combination of spot welding and professional soldering station for T12 tips

Distinguishes it:

- integrated system combining spot welding with soldering, which greatly facilitates work

- fixed head and portable welding pen in one device, so we are not limited by the length of the cable

- function of selecting welding pulses (2,4,6 or 8), we have the ability to adjust the welding power depending on the thickness of the element

- Reliable and accurate current setting controller

- Built-in electronic temperature sensor for accurate control of its value

- Removable foot switch to ensure a comfortable position during operation

- pressure regulation at welding (300 - 500g)

Technical data:

Soldering module:

Temperature: 150°C~450°C

Power: 50 W.

Output voltage: 20 V DC

Welding module:

Supply voltage: 220 V AC ± 20 V / 110 V.

Power: 3,2 KW (instantaneous)

Current: 500 A.

Welding thickness: 0,05 - 0,3 mm / max. 0,2 mm for portable welding pen

Dual pulse time: 1 ~ 10 ms (adjustable)

Four pulse time: 2 ~ 20 ms (adjustable)

Eight pulse time: 8 ~ 80 ms (adjustable)

Welding pressure: 300 - 500g (knob adjustment)

SET INCLUDES:

• 1 x Welding Station
• 1 x Welding Pen
• 1 x Hex Wrench
• 1 x Soldering Iron Holder
• 1 x Soldering Iron Stand
• 1 x Footswitch
• 2 x 20A fuse
• 4 x Welding Needle
• 1 x Magnetic Battery Clamp
• 50 x Nickel Sheet
• User manual PL

BY BUYING FROM US, YOU RECEIVE LEGAL GOODS ALONG WITH A LEGAL SALES DOCUMENT - SO YOU CAN INCLUDE THE COST OF THE DEVICE IN THE COSTS OF RUNNING A BUSINESS.

WE EMPHASIZE THIS BECAUSE MORE AND MORE OFTEN YOU CAN FIND OFFERS OF CHINESE SELLERS WHO UNDERESTIMATE THE VALUE OF THE GOODS, DO NOT ISSUE ANY SALES DOCUMENTS OR ISSUE THEM CONTRARY TO TAX LAW.

IN ADDITION, YOU DO NOT HAVE ANY POSSIBILITY TO REPAIR AND SERVICE in Poland, SO THIS PROCESS CAN TAKE MONTHS.
