Suvirinimo aparatas su inverteriu 120A, LCD, MMA, IGBT, komplekte kaukė ir šepetėlis

Trumpai apie prekę

Prekė: Suvirinimo aparatas su inverteriu 120A, LCD, MMA, IGBT, komplekte kaukė ir šepetėlis. Kategorija: Invertoriniai suvirinimo aparatai.

• Gamintojas: Verke
• Modelis: V75006

The VERKE inverter welder is a top-of-the-line welding device for MMA work (welding with a wide range of wrapped electrodes). It is designed to perform a wide range of welding tasks as part of the MMA method, allows welding of elements and structures made of carbon steel, stainless steel, galvanized and cast iron using appropriate wrapped electrodes (rutile, cellulose, alkaline, for galvanized steel, stainless steel INOX) in all the most popular diameters and required positions. Smooth adjustment and digital display of current settings allow you to choose the optimal parameters depending on the type and thickness of the materials being processed and the electrodes used. The device has an integrated cooling system (thermostat and fan), which protects against overheating and significantly extends the time of uninterrupted operation. It is equipped with HOT START welding arc optimization functions (supports arc ignition), ARC FORCE (stabilizes the arc in case of fluctuations in its length) and ANTI STICK (limits sticking the electrode to the material being processed). The welder uses a standard 230 V mains power supply.

The VERKE inverter welder is a top-of-the-line welding device for MMA work (welding with a wide range of wrapped electrodes). It is designed to perform a wide range of welding tasks as part of the MMA method, allows welding of elements and structures made of carbon steel, stainless steel, galvanized and cast iron using appropriate wrapped electrodes (rutile, cellulose, alkaline, for galvanized steel, stainless steel INOX) in all the most popular diameters and required positions. Smooth adjustment and digital display of current settings allow you to choose the optimal parameters depending on the type and thickness of the materials being processed and the electrodes used. The device has an integrated cooling system (thermostat and fan), which protects against overheating and significantly extends the time of uninterrupted operation. It is equipped with HOT START welding arc optimization functions (supports arc ignition), ARC FORCE (stabilizes the arc in case of fluctuations in its length) and ANTI STICK (limits sticking the electrode to the material being processed). The welder uses a standard 230 V mains power supply.

Advanced IGBT inverter technology

Bipolar transistor with insulated gate. The high frequency of the inverter significantly reduces the volume and weight of the welding machine. Significant reduction of magnetic losses and resistance obviously increases welding efficiency and translates into energy savings.

The switching frequency is outside the audible limit range, which almost completely eliminates noise.

Advanced control technology meets the requirements for various welding applications and greatly improves welding efficiency. This technology can be widely used in electrode welding with acidic and alkaline sheath.

Efficiency, energy saving, portable, stable arc, high idle voltage and with good arc pressure compensation, can meet different requirements when working in the field.

Efficient cooling

Thanks to the use of a large fan in a small welding machine housing, the air flow was increased, which reduced the temperature of the transistors. The efficiency of the device is up to 60%.

▶ Built-in automatic functions to facilitate work:

✔ HOT START

Popularly called hot start, it allows by temporarily increasing the welding current above the value set by the welder. HOT START works at the moment of arcing and is designed to prevent the electrode from sticking to the material. It is a great convenience when lighting the electrode.

✔ ANTI STICK

cuts/minimizes welding voltage and current in case of short circuit of the electrode with the welded material. ANTI STICK allows the welder to detach the electrode more easily.

✔ ARC FORCE

stabilizes the arch regardless of its length. Regulates the dynamics of the welding arc. By reducing the value of the function, it gives a soft arc and a smaller depth of melt, while increasing the value of the function causes deeper melting and the possibility of welding with a short arc. At the highest value for the ARC FORCE function, it is possible to "press the electrode into a lake of molten metal and burn the material through.

► VERKE® 120A IGBT Welding Machine with LCD Display

Features: ANTI STICK, HOT START, ARC FORCE

► Smooth Adjustment from 20-120A LCD

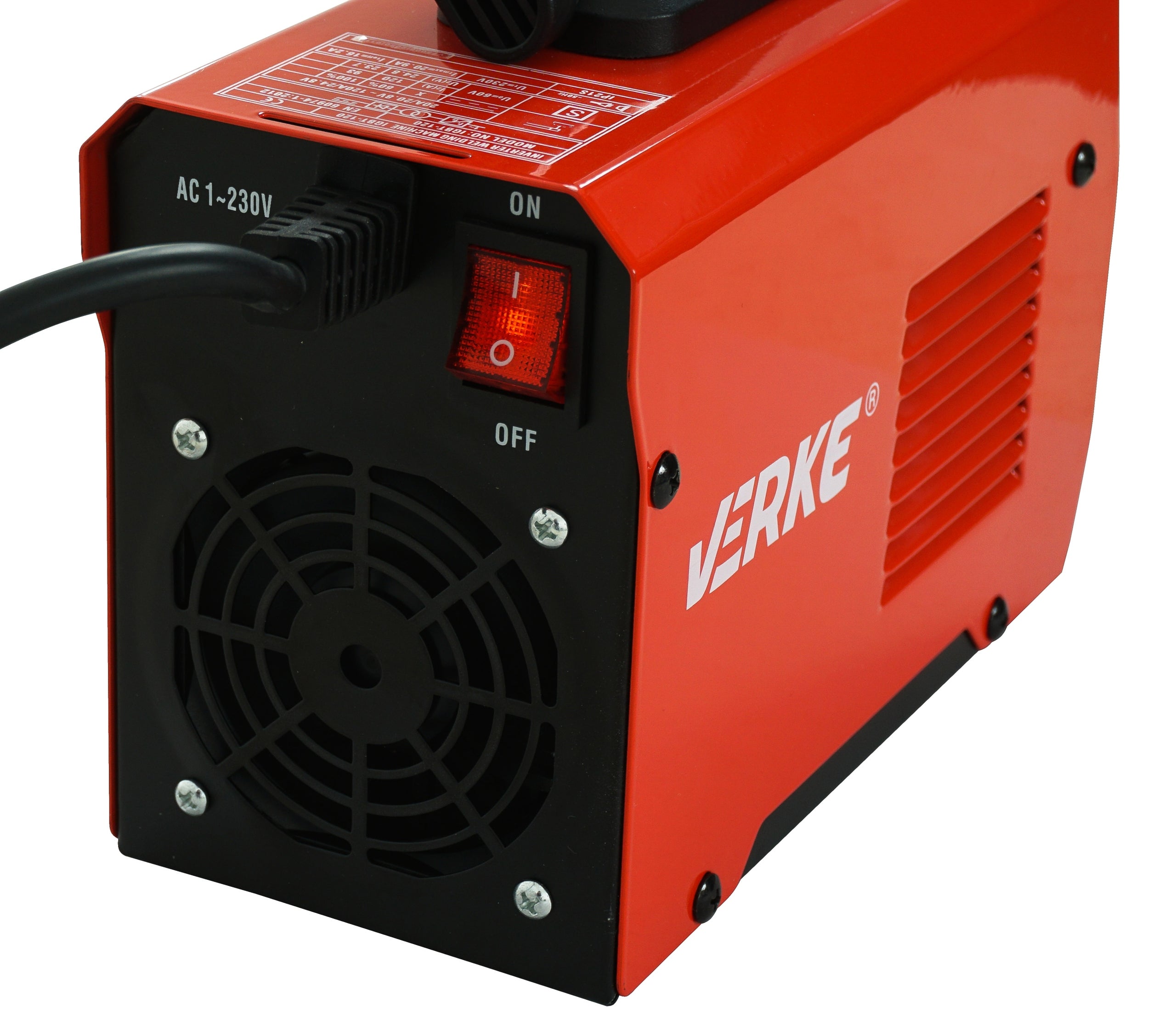

► Fan and Thermostat for Continuous Operation

► Arc ignition by scratching, electrode does not stick

Electrodes from 1.6-3.2 mm 120A

► For welding various types and grades of metals and alloys: non-alloy and alloy steels, cast iron, nickel, copper and alloys

The most powerful, compact, and easy-to-use welding machine, praised by specialists as one of the best in the price range up to £40

► The welder is equipped with an LED indicating overheating

► True power of 120A and high efficiency of 60% means that it does not turn on practically at all even when welding long welds.

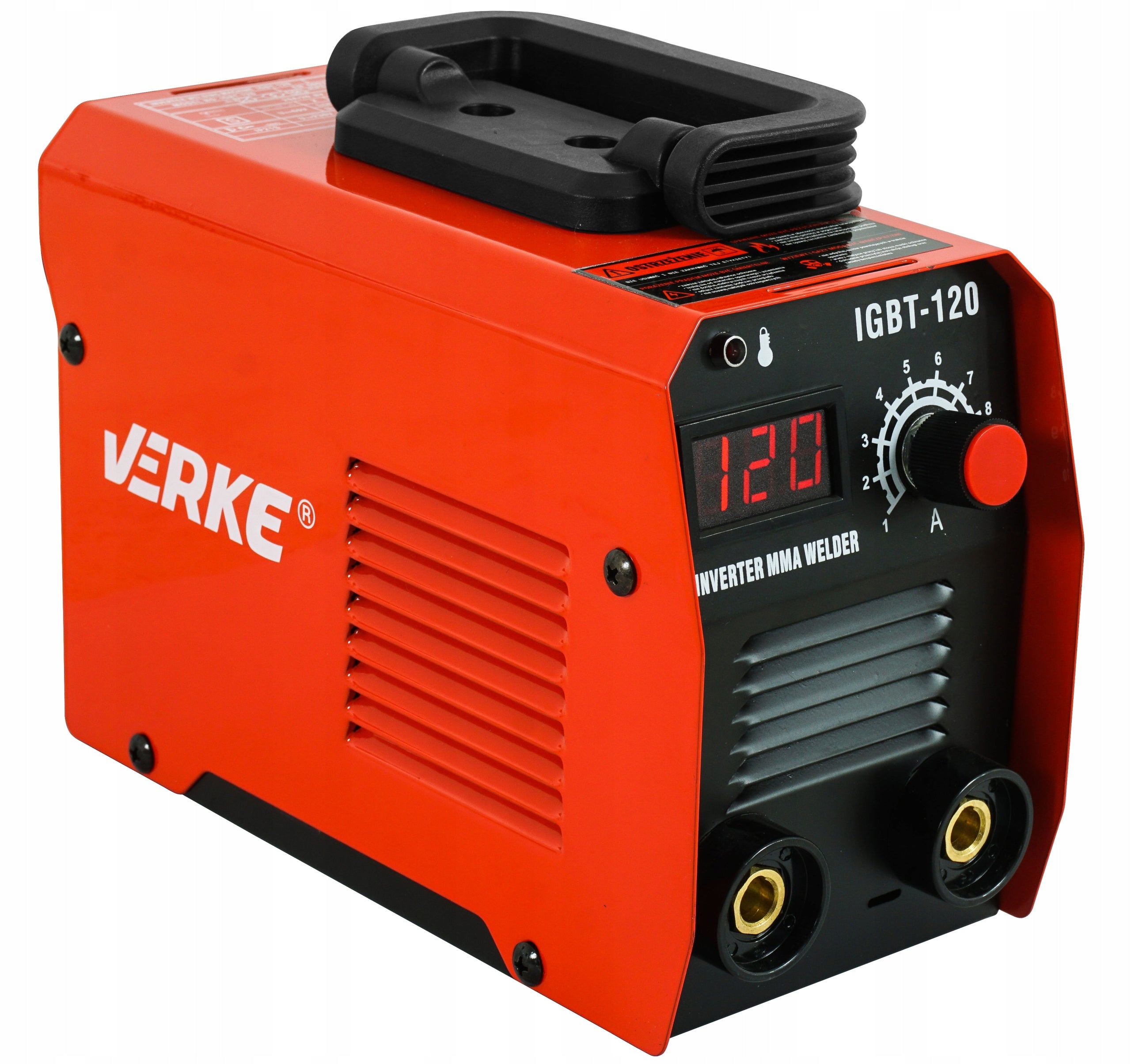

▶ VERKE® 120A Inverter Welding Machine.

It has versatile applications, used for welding stainless steel, alloy steel, carbon steel, copper and other metals.

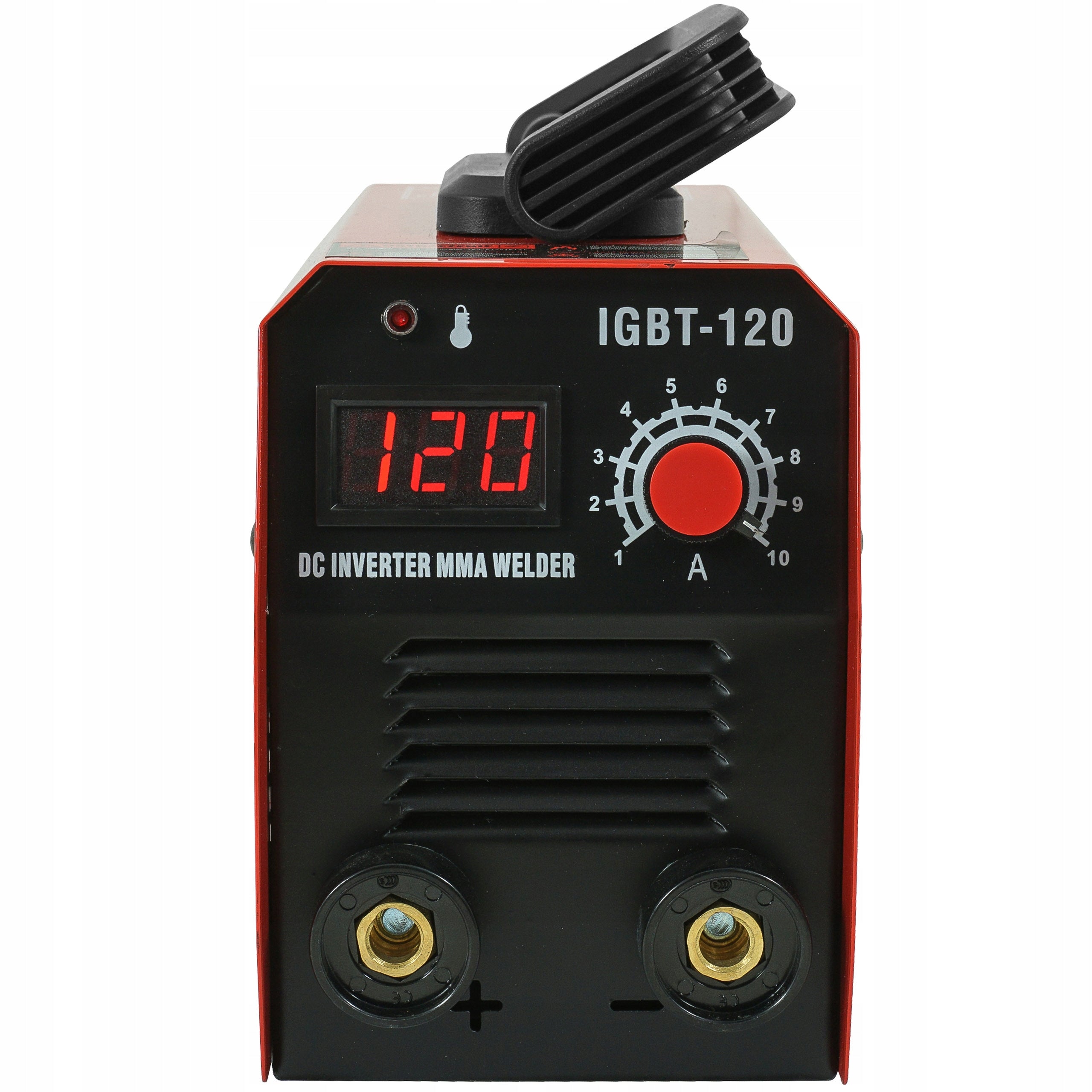

Equipped with a fan, LCD display, potentiometer for smooth adjustment and quick connectors.

The converter, which uses high-quality IGBT transistors, allows for a smooth weld and a significant reduction in spatter.

-------------------------------------------------------------------------------------------------------------

▶ The welding machine has a welding power of 20 - 120A.

Large, easy-to-read display allows for precise setting of the correct welding current.

You can take the device anywhere, and its small dimensions and weight (approx. 2.5kg) greatly facilitate this.

Welding Machine Dimensions:

• Length - 230 mm
• Width - 108 mm
• Height - 175 mm

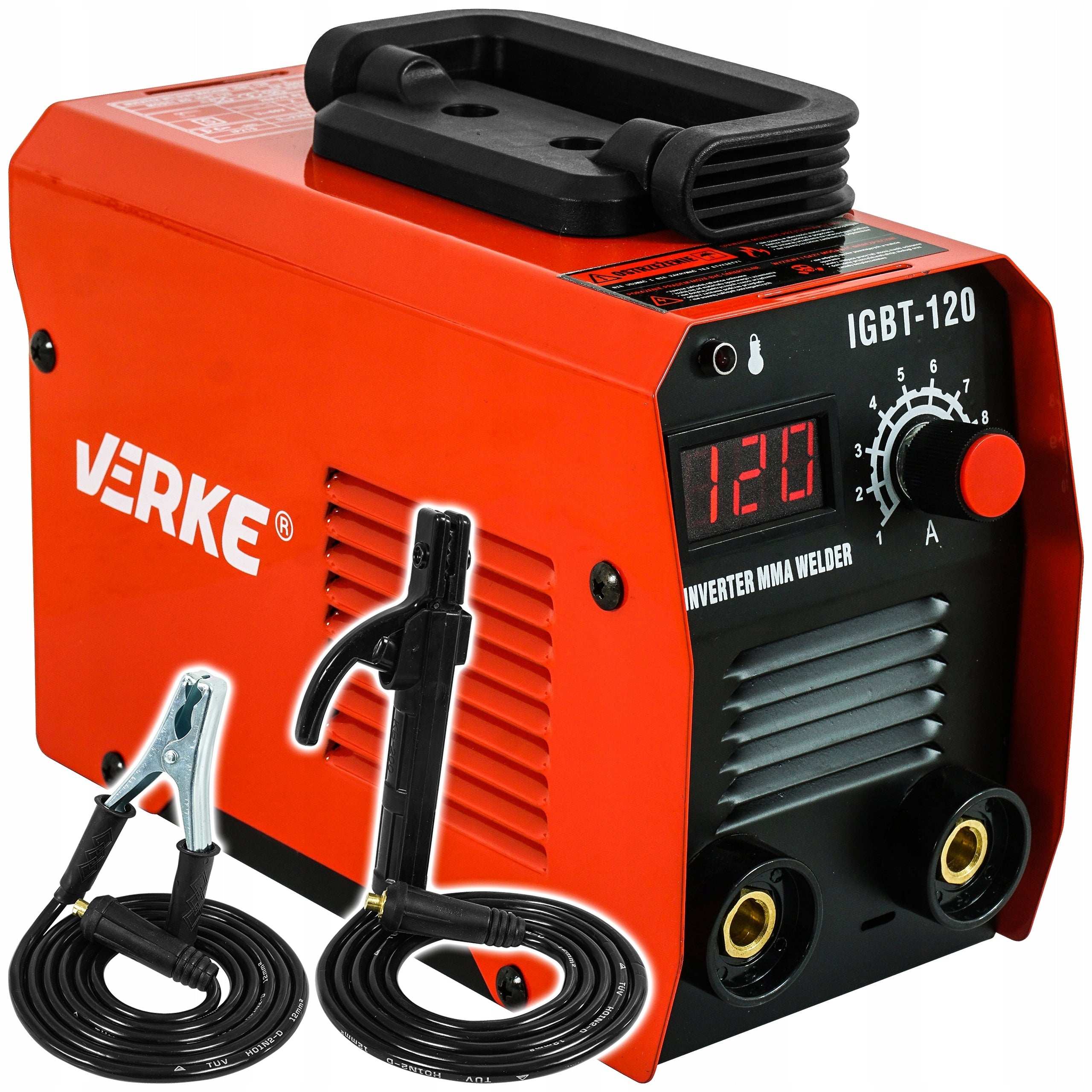

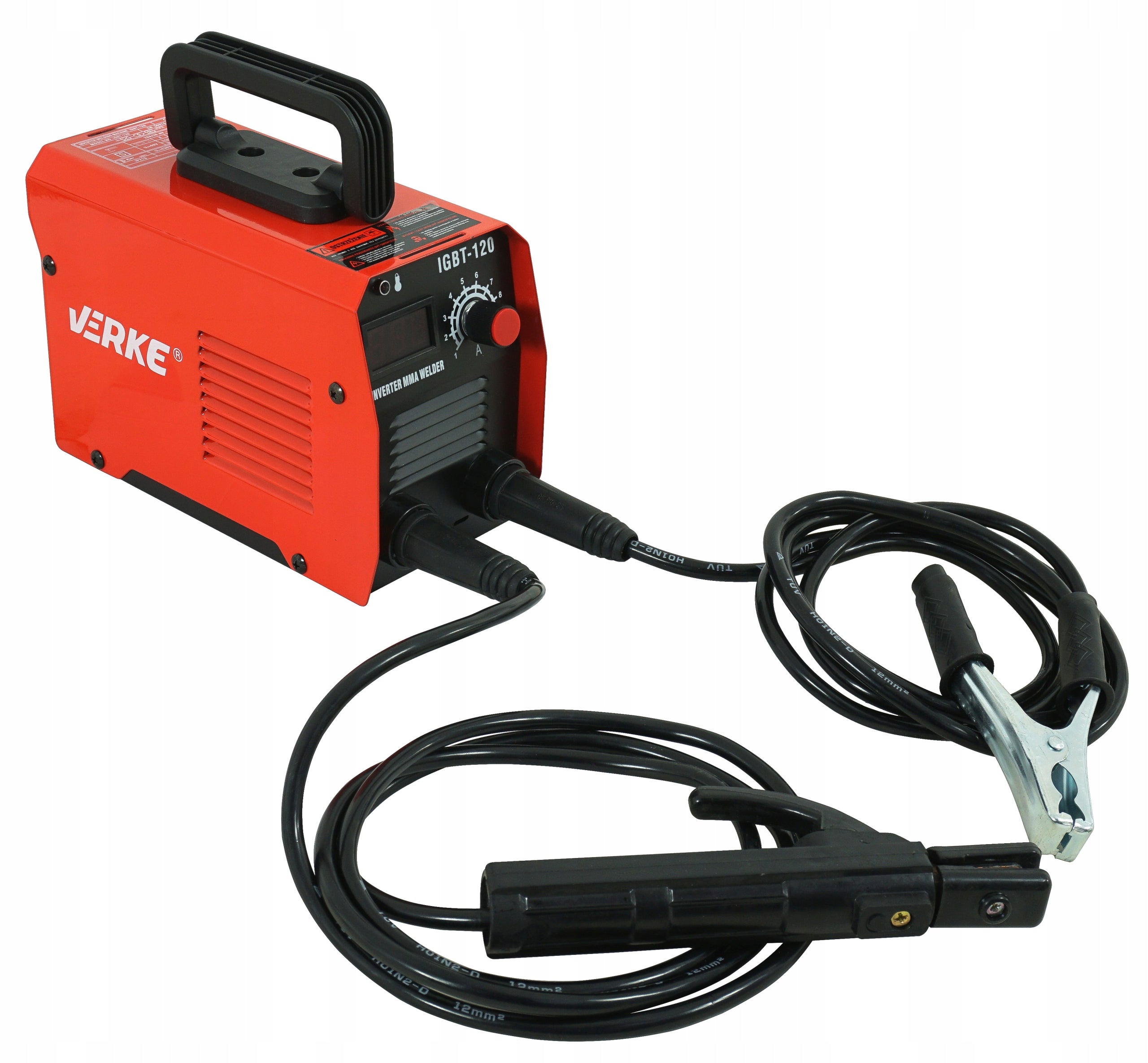

INCLUDED IN THE SET:

MMA DIN welding cable with electrode holder

DIN mass cable with clamp

✔ All packed in convenient packaging.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Verke
Parametry	Welding methods	MMA
Parametry	Power consumption	13 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	3.2 mm
Parametry	Welding range	20–120 A
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	200 cm
Parametry	Manufacturer code	V75006
Parametry	EAN (GTIN)	5908224742919
Parametry	Model	V75006
Parametry	Additional features	infinitely adjustable welding current,EURO handle,LCD display
