Suvirinimo aparatas SUNKKO 709 PLUS, impulsinis taškinis, T12 lituoklis

Trumpai apie prekę

Prekė: Suvirinimo aparatas SUNKKO 709 PLUS, impulsinis taškinis, T12 lituoklis. Kategorija: Sandarikliai.

• Gamintojas: Rosfix
• Modelis: 0ACX-UPAN

✅ Fast welding of large batteries: Efficient welding of large batteries for quick and efficient installation.

✅ Display of welding pulses: Bright and clear display of the number of welding pulses, allowing easy monitoring of the welding process.

✅ Microchip controlled cooling system: Advanced cooling system, controlled precisely by microchip, ensures optimal operating conditions of the device, even with intensive welding.

✅ Multifunctionality: is perfect for welding various types of batteries and metal components, providing versatile applications in the electronics, automotive, and other industries.

✅ High Power: With its impressive power, the spot welding machine can handle tough tasks, ensuring efficient and durable connections between components.

✅ Portability and Compact Design: The mobile handle of the welding machine allows you to operate freely in different areas. The homogeneous design, compact and thoughtful design make the tool easy to handle and store.

✅ More stable welding thanks to an intelligent heat dissipation system: Advanced heat dissipation system ensuring stable welding conditions, which translates into the quality and durability of connections.

✅ Microchip inside to prevent damage from overheating: Built-in microchip that effectively monitors and regulates temperature, protecting your device from potential damage from overheating.

‼ Other accessories such as moulds, t-shirts, tapes, tips, flasks for welding machines can be found in our offer ‼

✅ Improved Intelligent Cooling: An advanced intelligent cooling system that ensures fast and effective temperature reduction during operation.

✅ Automatic interrupt protection: Automatic shutdown function that protects the device from potential damage resulting from improper operation.

✅ Built-in smart microchip: A microchip inside the device that works intelligently, regulating the welding process and preventing overheating.

✅ Prevention of overheating during welding: Designed to prevent excessive heating during the welding process.

✅ Rotational speed 4100/min: High rotational speed of the windmill, which contributes to efficiency and speed of operation.

⚙ Fixed Temperature Soldering Flask:

• Soldering iron with precise temperature control, equipped with a T12 tip.
• The antistatic control feature makes it ideal for soldering SMD components and printed circuit boards under controlled antistatic conditions.
• The temperature can be adjusted from 150 to 480°C with an accuracy of 5°C, allowing it to be adapted to different applications.

⚙ Soldering of Protective Battery Circuits:

• It is used for soldering protective circuits on the battery pack.
• The level of static leakage is maintained at less than 5 mV, which makes it a tool dedicated to soldering protective battery circuits.

⚙ Heater capacity 50W:

• The 50W heater ensures that the required temperature is reached quickly, resulting in efficient and effective soldering.

⚙ Easy T12 tip change:

• The ease of replacing the tip with different tip shapes allows you to customize the soldering iron for different soldering tasks.

✅ Pedal Control Convenience: The welding machine is equipped with a foot controller, which allows you to control the machine with a pedal, ensuring freedom of movement, welding precision and safety.

✅ Ideal for Lithium Battery Packs: The welding machine is perfect for building large sets of lithium batteries, guaranteeing robust and durable connections. This reliable tool can handle even the most demanding tasks.

✅ LED Backlight: Additional LED lighting makes it easier to work in low-light conditions, providing better visibility during welding.

✅ Effective heat dissipation: Good heat dissipation has a positive effect on the performance and service life of the device, which is important during intensive use.

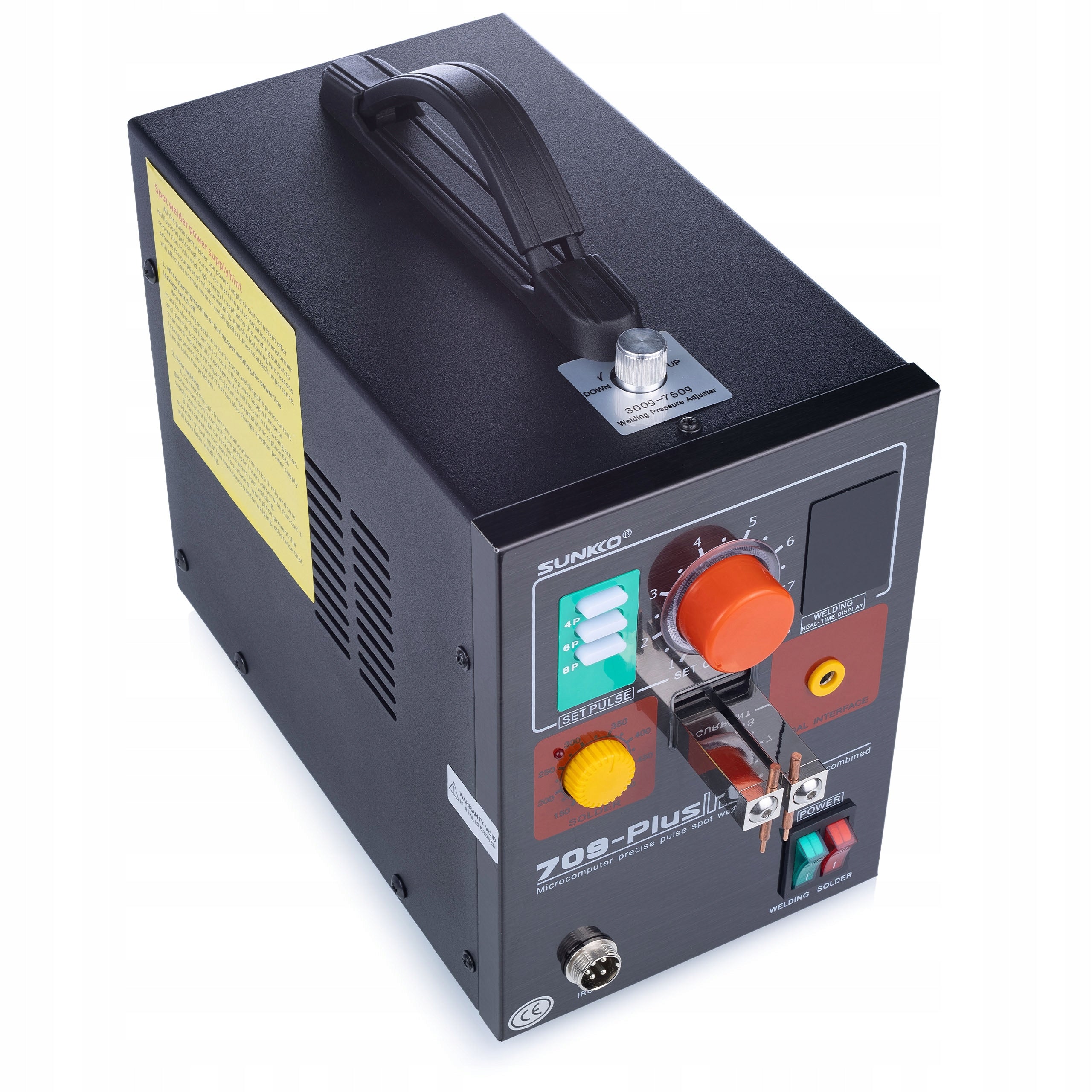

✅ Welding Pressure Regulator: The welding pressure regulator at the top allows you to adjust the pressure to details of different thicknesses, which positively affects the welding accuracy.

✅ Application Multiple: The compact design makes the welding machine easy to carry and operate, suitable for various applications such as welding batteries, button batteries, polymer batteries, as well as in electronics industry, maintenance, battery industry, welding, printed circuit boards, etc.

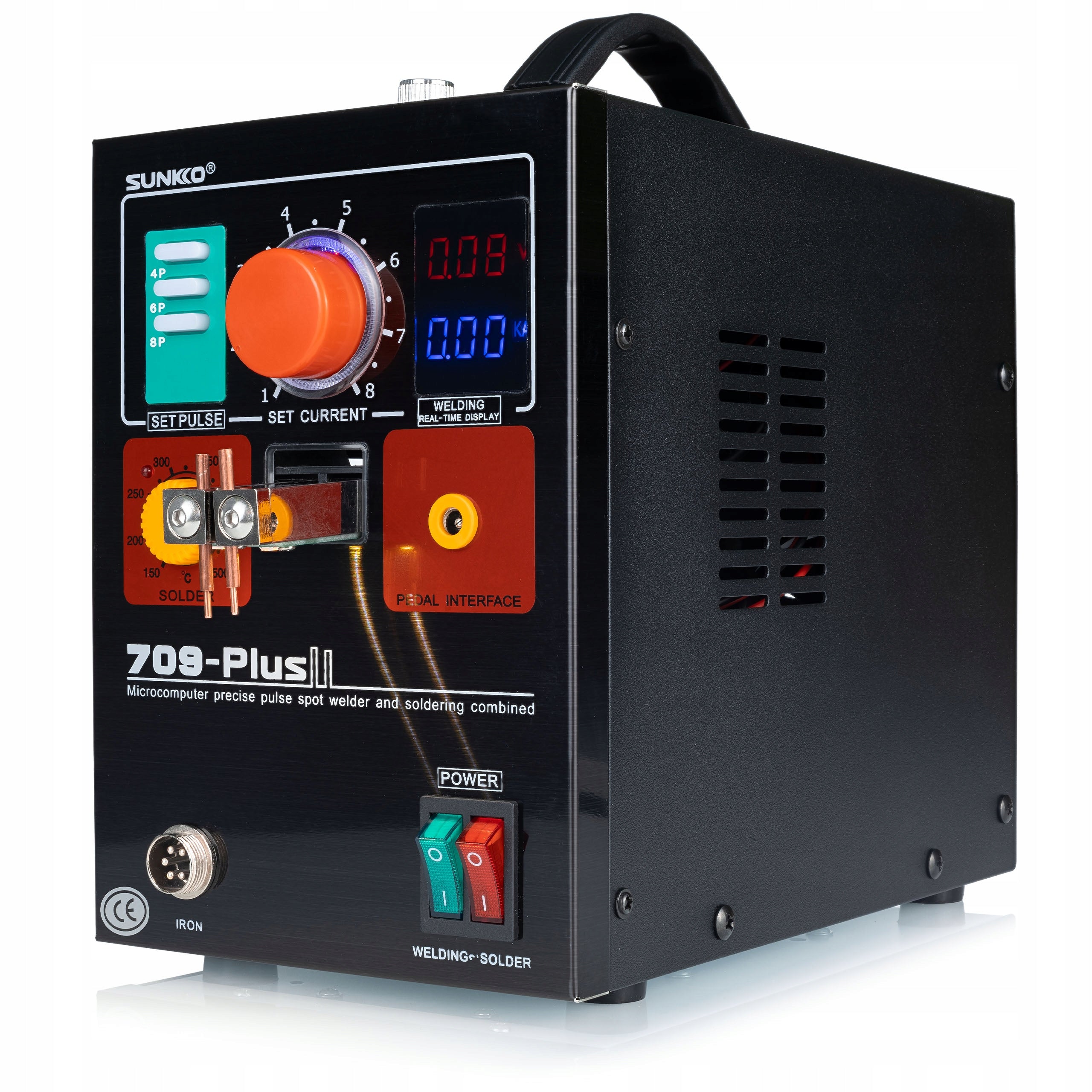

✅ Power Switch: The green switch is the main switch. It controls the part responsible for welding. The red switch controls the soldering part. (To use soldering parts, please turn on both switches - green and red. )

✅ Setting welding pulses:

• No press means 2 pulses.
• Pressing 4P means 4 pulses.
• Pressing 6P means 6 pulses.
• Pressing 8P means 8 pulses.
• Pressing 4P and 6P means a total of 10 pulses.
• Pressing 6P and 8P means a total of 14 pulses.
• Pressing 4P, 6P and 8P means a total of 18 pulses.

✳ How to Adjust Pressure During Welding:

Look at the Material: Evaluate the thickness of the material you are going to weld. Make sure the tool is suitable for the type of material.

Watch Welding Point: Carefully track the welding point during the process. Make sure that the welding energy is evenly distributed.

Settings Consistent with Thickness:

• If You Weld Thicker Material: Turn the knob according to the clock directions.
• If you are welding thinner material: Turn the knob counterclockwise.

Customize According to Indications: Follow the material thickness indications to adjust the pressure precisely. The manufacturer’s indications are crucial for optimal use of the tool.

Monitor Effects: After adjusting the pressure, carefully observe the welding results. Make sure that the resulting connections are strong and aesthetically pleasing.

Test on Trial Materials: Conduct tests on test pieces of material to verify the effectiveness of pressure adjustments.

Continue Adjustments: Depending on the different types of materials, continue adjusting the pressure to maintain optimal welding conditions.

Adjusting the pressure according to the above steps will allow you to get effective and durable seals.

✳ Device specification:

• Input Voltage: AC 220V/110V + 20V
• Power: 3,2 kW (Instantaneous)
• Welding Current: 120~1800A (Upper Welding Mode)
• Time 2 pulses: 1~10ms (adjustable)
• 4 pulse time: 2~20ms (adjustable)
• 8 pulses time: 8-80ms (adjustable)
• Dimensions: 140x245x200mm
• Net weight: 5,5kg
• Suitable washer thickness 0,05-0,35mm for fixed head
• Suitable thickness of washers 0,05-0,2mm for pen
• Pressure regulation: 300-750g

✳ Pen specification:

• Possibility to adjust the distance between welding tips: 2-7mm
• Total length with cable: 630mm x2
• Cob Wire Thickness: 18
• Tip Size: 15x7mm
• Welding Current: 500A

✳ Soldering iron specification:

• Temperature range: 150°C~450°C
• Constant temperature: +/- 5°C
• Output Voltage: 20VDC
• Power: 50W
• Heating time: 6-8S to 300°C

‼ Remember these rules when using the welding machine

• Stable Power Supply: For best results, it is recommended to connect the welding machine to a wall outlet, ensuring stable power supply.
• Current Protection: The rated operating current of the circuit breaker should be 40-63A to meet the instantaneous large welding current. By ensuring proper current protection, you will maintain safe working conditions and extend the life of the welding machine.
• Precise Settings: The pressure regulator should be set to the appropriate value as needed. This guarantees efficient welding.
• Cleanliness: Regular cleaning of needle surfaces with sandpaper will keep your device in top condition.
• Welding Needle Sharpness: Ensure the sharpness of your welding needles for optimal results.

❗ Attention! During use, there may be temporary flashes of light associated with high power and immediate discharge of high intensity. This is a normal phenomenon and does not affect the effectiveness of the welding machine.

✓ Pulse Power Adjustment: Advanced pulse power and repetition control function gives you full control over the welding process. This guarantees durable and reliable connections that meet the highest standards.

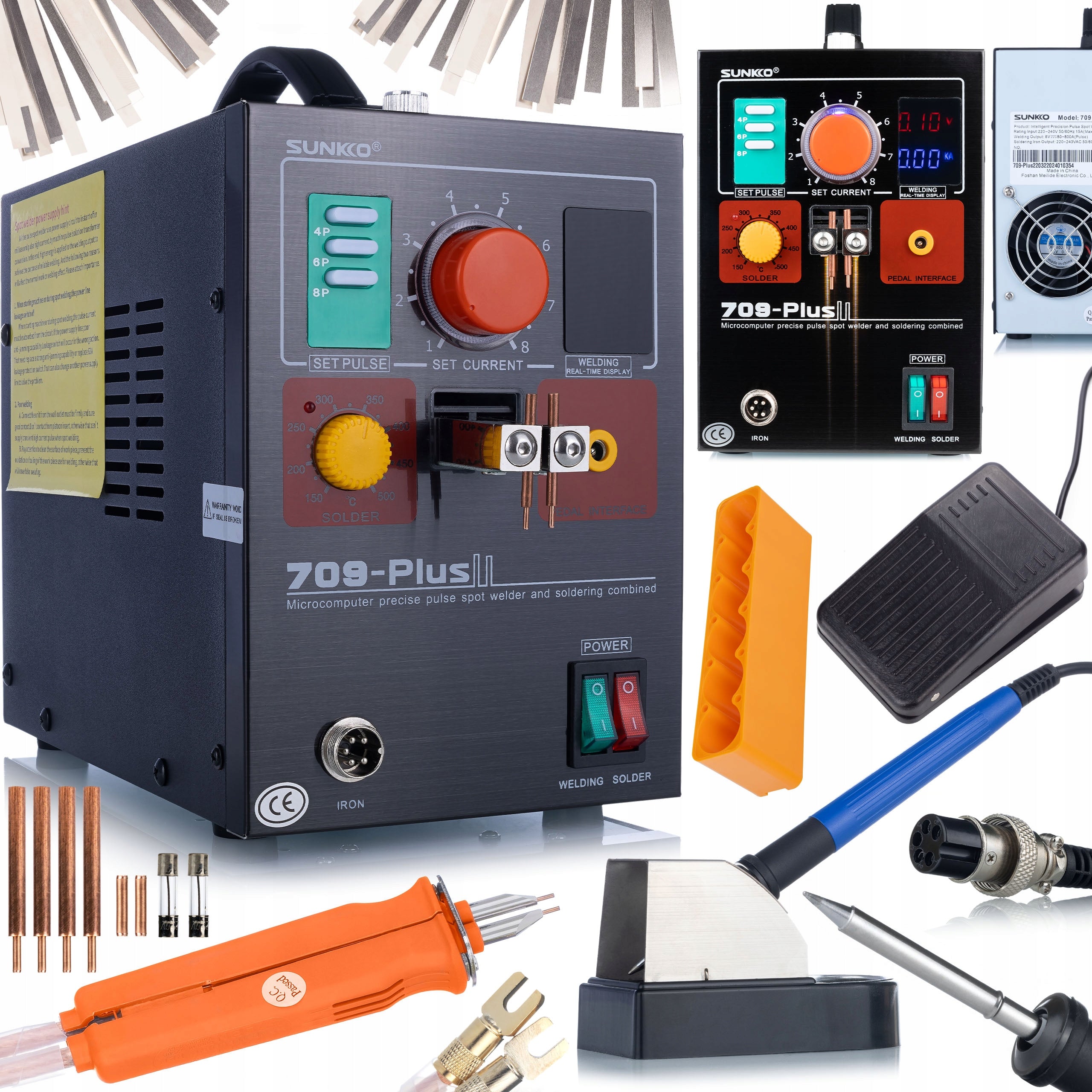

✳ Included:

• Welding machine Sunkko 709 Plus
• Welding pen S-70BN
• Allen Wrench
• Soldering iron T12
• Soldering iron stand with sponge
• Foot pedal
• Form for 6 cells 18650
• 2 x 20A fuse
• 4 x Welding Needle
• 2x Welding Needle for Pen
• 50 pcs. Nickel Plated Tape 0,1x4x100MM
• 50 pcs. Nickel Plated Tape 0,15x8x100MM

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Rosfix
Parametry	Maximum power	0 W
Parametry	Power supply	mains
Parametry	Manufacturer code	0ACX-UPAN
Parametry	EAN (GTIN)	5905954104949
Parametry	Packaging status	original
