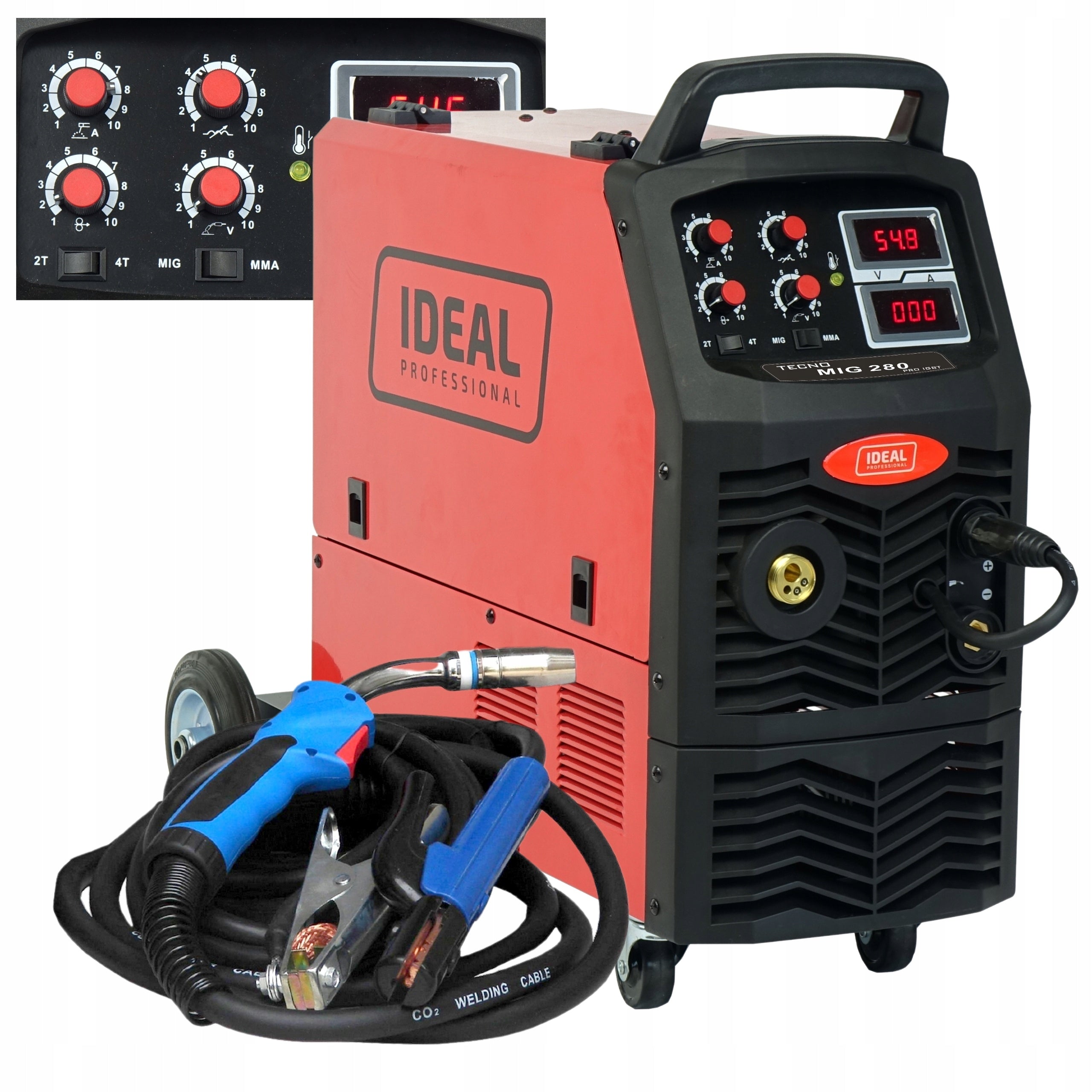

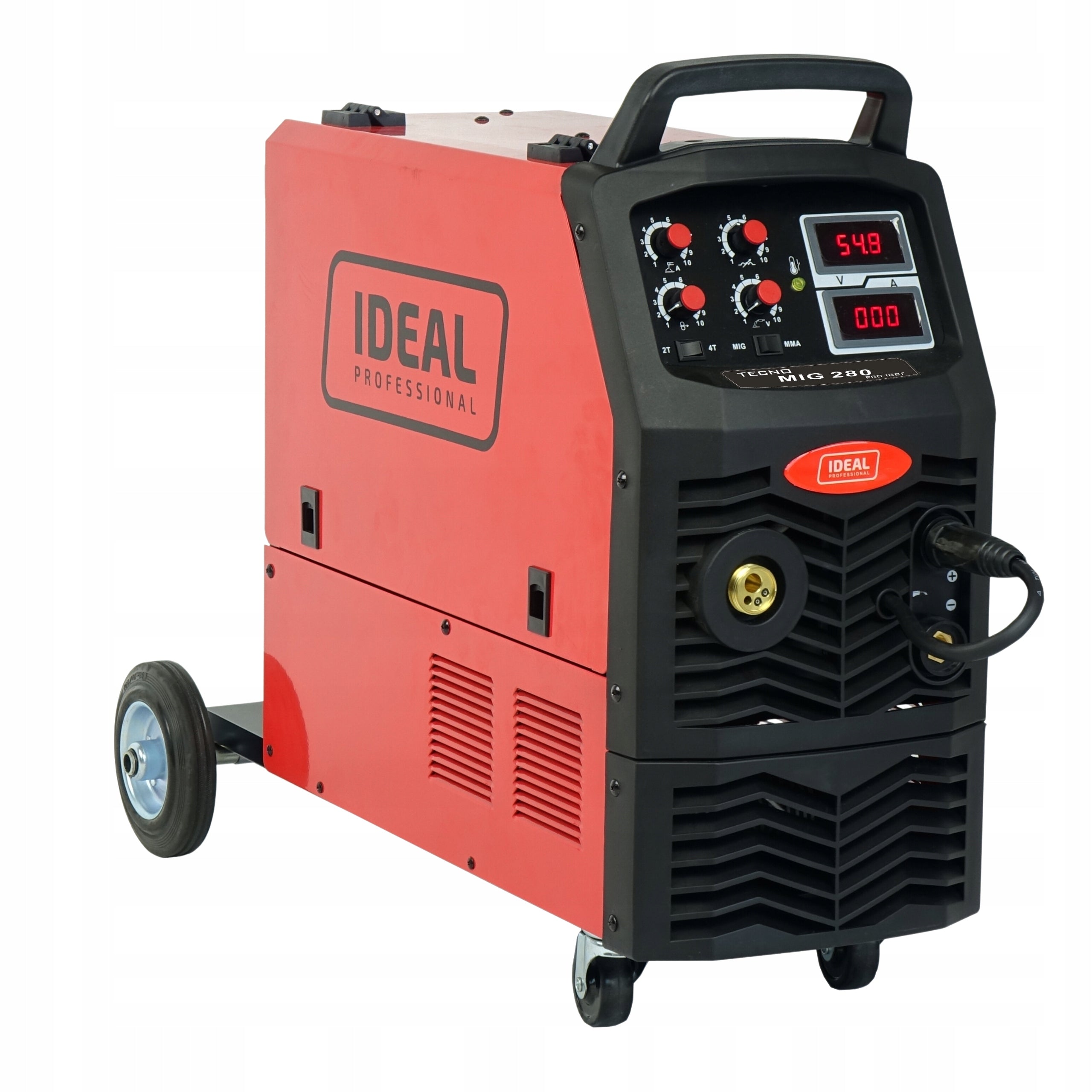

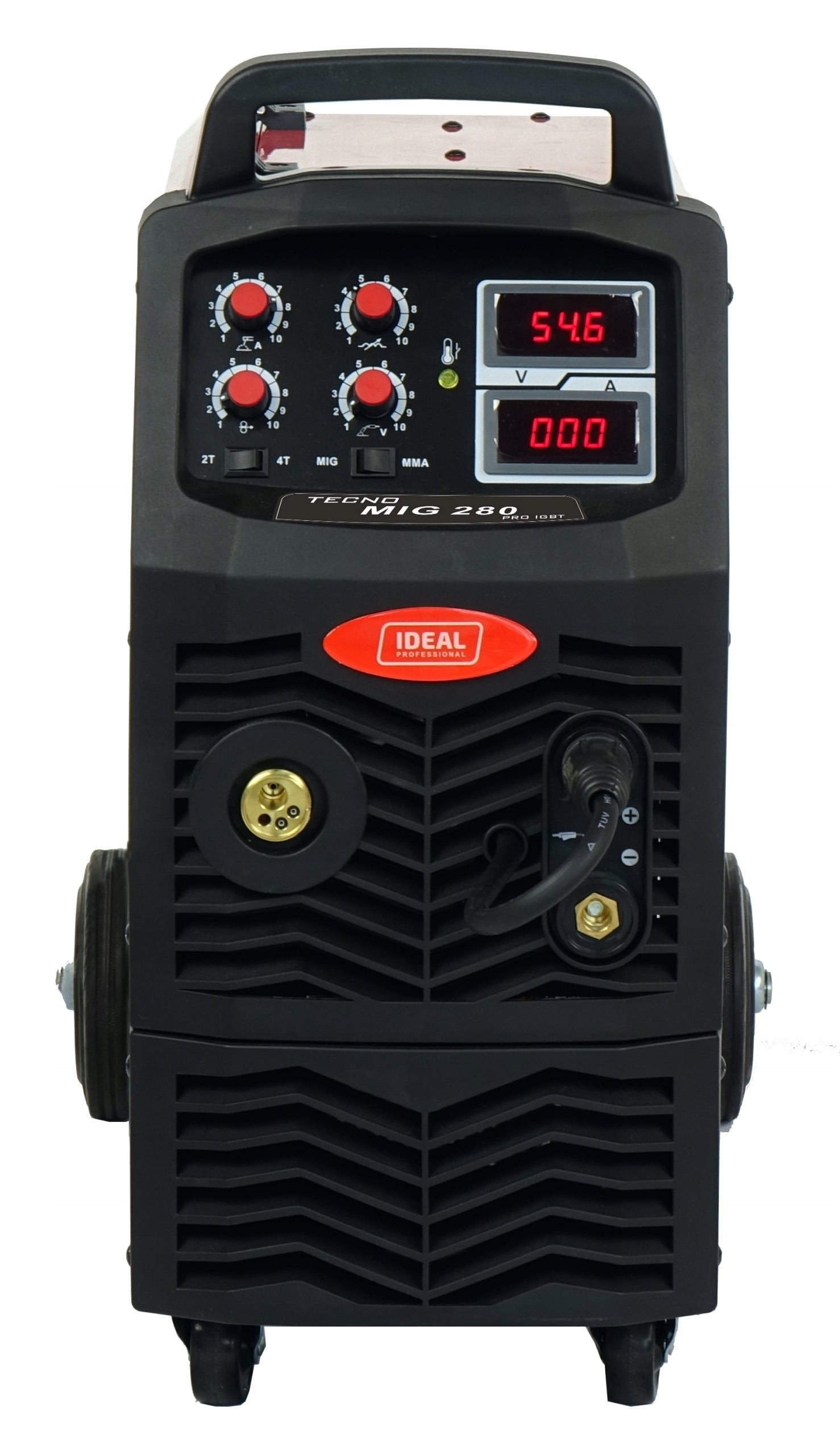

Suvirinimo aparatas TECNO MIG 280, MIG/MAG/MMA, 280A, 4x4, 400V

Trumpai apie prekę

Prekė: Suvirinimo aparatas TECNO MIG 280, MIG/MAG/MMA, 280A, 4x4, 400V. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: TMIG280V2
• Ilgis: 550 mm
• Plotis: 310 mm
• Aukštis: 860 mm

✅ Model: TECNO MIG 280 4x4 DIGITAL MMA ✅ Welding Current Adjustment Range: 30 – 280 A ✅ Welding Methods: MIG/MAG, MMA, FLUX

TECNO MIG 280 4x4 DIGITAL MMA – PROFESSIONAL 2-IN-1 WELDER

TECNO MIG 280 4x4 DIGITAL MMA is an inverter semi-automatic welding machine designed for arc welding by the following methods:

• MIG/MAG – semi-automatic welding in protective gas shielding,
• MMA – welding with wrapped electrode
• FLUX (FCAW) – self-shielding wire welding without the use of protective gas

TECNO MIG 280 is used for welding aluminium and its alloys, stainless steel and carbon and low alloy steels. Welding is carried out in an inert or active gas shield.

The device is ideal for:

• production and assembly of steel structures
• repair and maintenance of agricultural machinery equipment,
• creation and processing of metal elements.

Welding can take place in protective gas shield (inert, active) or without gas shield (FLUX, MMA).

With support for three welding methods –MIG/MAG, MMA and FLUX – the welding machine is designed to handle a variety of tasks in the workshop and on the construction site. Inductance adjustment allows for precise adjustment of welding parameters, which is crucial when working with various materials and thicknesses.

Compact dimensions facilitate transport, and the three-phase power supply 400V ensures stable operation in workshop and industrial conditions.

✅ Support three welding methods: MIG/MAG, MMA and FLUX (gas-free welding)

⚙ Welding MIG/MAG

It is a versatile metal joining method that uses an electric arc and a gas shield. The electric arc is produced between the hot melt electrode and the welded material. The electrode in the form of a welding wire, acts as a binder, which, after mixing with the native material, forms a weld.

The MIG/MAG method ensures high weld quality, efficiency and ease of use, ideal for working with a variety of materials. Allows for precise e.g. combination of black steel, stainless steel and aluminium. Thanks to its versatility, it works well in industry, workshops and home repairs, guaranteeing durable and aesthetic welds.

⚙ MMA (Manual Metal Arc)

It is a method of welding with a wrapped electrode, in which the electric arc melts the base metal and the electrode. It is one of the oldest and most versatile techniques, ideal for welding carbon steel, stainless steel and other materials.

Thanks to its ease of use and resistance to weather conditions, MMA welding is often used in construction, industry and repair work.

⚙ Self-shielding wire welding FLUX without gas

Semi-automatic welding with a special self-shielding wire, which does not require the use of shielding gas as in the MAG method. Special wire is usually available in D100 and D200 spools weighing 0,5kg, 1kg and 5kg. Welding with this method combines the advantages of MAG and MMA methods.

✅ Simple interface

TECNO MIG 280 4x4 DIGITAL MMA is equipped with a simple user interface, provides easy access to all the most important functions.

✅ Connections in accordance with global standards

• EURO socket - popular throughout Europe and a large part of the world standard connection of MIG handle. Connecting the handles is simple and secure.
• Current sockets ŁW/ŁP - quick and safe connection of MMA handles and mass cable.

The welder has a quick change of welding polarity cable.

✅ Simple and reliable gas connection

Quickly, easily and effortlessly – perfect for any DIYer! Forget about complicated activities. Simply slide the hose onto the gas supply connector to the machine, and then tighten the clamp band with a screwdriver. A few turns and you’re done – a solid, tight connection guaranteed!

✅ Professional wire feeder

Professional and reliable 4-roll wire feeder guarantees even and reliable wire feeding, which brings proper arc stability and high quality welds.

It is very important in the MIG/MAG method, where precise wire guidance is crucial for welding efficiency and aesthetics.

Model: TECNO MIG 280 4x4 DIGITAL MMA

• Power supply network protection: C16 A
• Rated supply voltage: 3x400 V; 50Hz (3ph)
• Power: 8,3 kW
• Idle Voltage: 56 V
• Current at 100%: 210 A (MIG/MAG) / 130 A (MMA)
• Diameter of aluminum wire: 1,0 - 1,2 mm
• Steel wire diameter: 0,6 - 1,2 mm
• Stainless steel wire diameter: 0,8 - 1,0 mm
• Welding electrode diameter: 1,6 - 4,0 mm
• Wire spool size: 5kg/15kg
• Degree of protection: IP 21S
• Weight: 50 kg
• Overall dimensions (L. x width x H ): 960 x 680 x 400 mm
• Package Dimensions (L. x width x H ): 860 x 310 x 580 mm

Welding current adjustment range:

• 30 - 280 A

⚙ MIG/MAG manual setting mode

Manual regulation of wire tension and feed. Full control and maximum precision in settings for each welding position.

⚙ MIG/MAG inductance regulation

Inductance in MIG/MAG welding is a very important parameter that affects the characteristics and behavior of the welding arc. It allows you to reduce the amount of welding chips and control the weld by affecting the shape of its face and depth of melting. This is an important function in welding, e.g. thin materials, where the precision of parameter settings is crucial.

⚙ Two operating modes 2T/4T

• 2T - mode of pressing and holding the button during welding, after release there is a break in welding,
• 4T - press mode, without having to hold the trigger during operation, interruption of work occurs after pressing again,

The set includes:

• Welding machine IDEAL TECNO MIG 280 SYNERGY – 1 pc.
• MIG MB25 handle (3m) – 1 pc.
• Bulk cable (3m) – 1 pc.
• MMA electrode cable (3m) – 1 pc.
• User manual – 1 pc.
