Aprašymas
Trumpai apie prekę
Prekė: Suvirinimo aparatas TIG AC/DC Magnum THF 200 HF, impulsinis, aliuminiui, 230V. Kategorija: Invertoriniai suvirinimo aparatai.
- Gamintojas: Magnum
- Modelis: SPAWARKA TIG DO ALUMINIUM ACDC MAGNUM 220S IGBT
ONE OF THE SMALLEST AC/DC SOURCES WITH WELDING CURRENT UP TO 200A
Welding methods: TIG AC, TIG DC, MMA | Important features: Pulse, TIG Point, Soft panel | Welding current: up to 200A
ADVANTAGES OF MAGNUM THF 220S AC/DC WELDING MACHINE
THF 220S AC/DC is powered from a single-phase 230V network, allows welding in 5 operating modes:
- TIG AC, TIG AC Puls - welding of aluminium and its alloys,
- TIG DC, TIG DC Pulse - welding of steel, stainless and acid-resistant steels, titanium, etc.
- MMA - welding with a wrapped electrode.
The power source is built on modern IGBT transistors, which provide:
- minimum electromagnetic interference,
- small power losses in basic systems,
- increased efficiency,
- reliability,
- rapid adjustment of current to changes in parameters during welding.
Why you should invest in THF 220 AC/DC:
- It has all the necessary functions for qualitative TIG welding ("ladder")
- Works with a high 60% duty cycle
- This is one of the smallest TIG AC/DC sources currently available for sale - great TIG for assembly

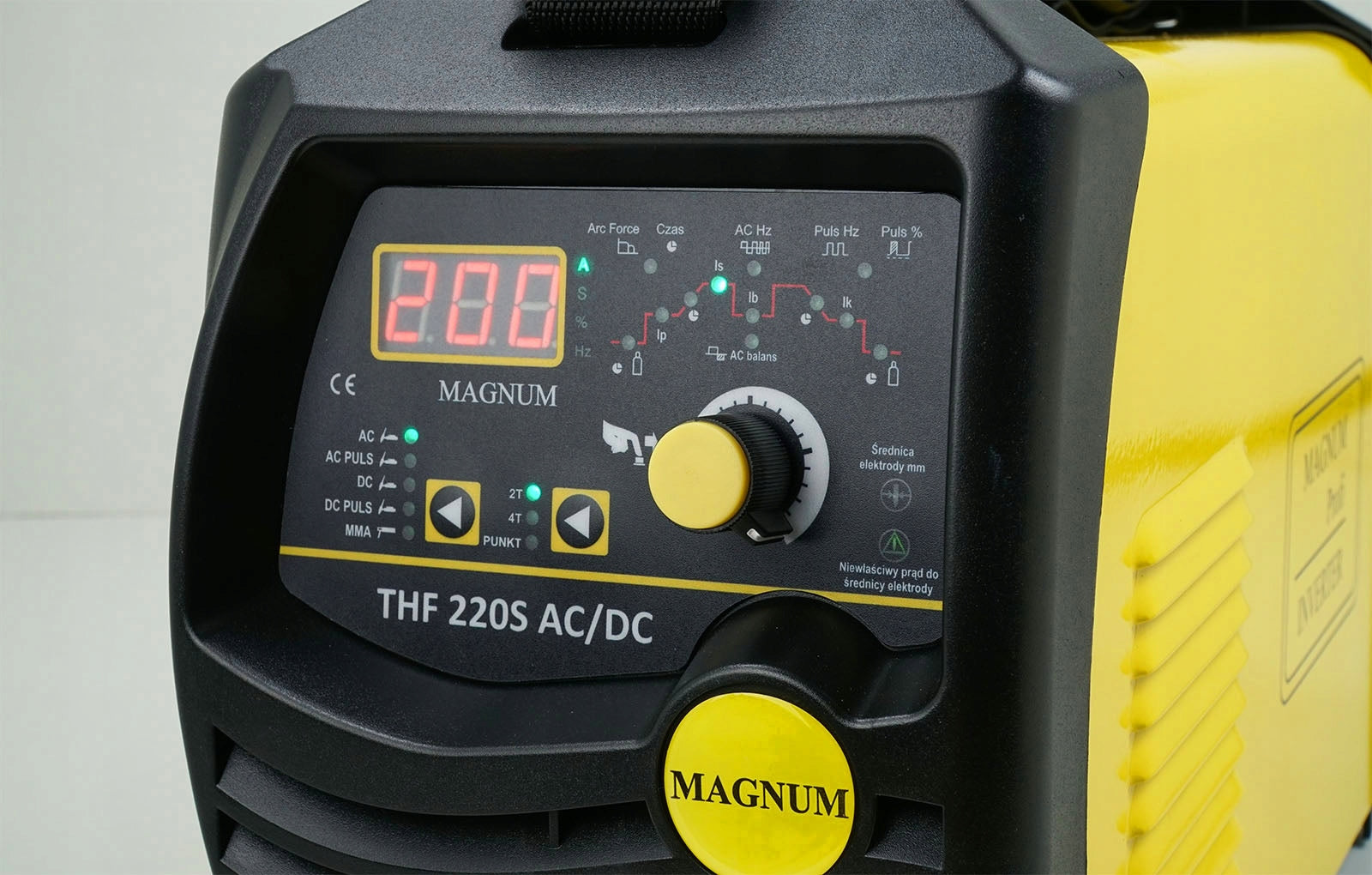

A clear panel is one of the most important criteria when choosing a TIG AC/DC welding machine. Nothing disorganizes work like an ill-considered, poorly designed panel. In the Magnum THF 220 AC/DC model, the manufacturer took care of its readability, and the description in Polish is an additional advantage.
Noteworthy is TIG POINT welding (TIG SPOT), which allows e.g. for the execution of repetitive, point strains.
Also interesting is the parameter controller, which after defining the diameter of the electrode informs the user on an ongoing basis whether the welding current value is too low or too high. Certainly, novice welders will like this feature, but also more experienced welders will like it.
- Power Supply: 230V
- Working cycle: 60%
- Welding Method: TIG AC PULS, TIG DC PULS, MMA
- Technology: IGBT
- Weight: 9kg
- MMA welding current: 10-160A
- Arc Force: 0-40
- Idle Voltage: 67V
WELDING PARAMETERS TIG
- Gas preflow: 0,1-10s
- Initial Current: 5-160A
- Rise of current: 0-10s
- TIG welding current/TIG pulse peak current: 5-200A
- Current drop: 0 - 15s
- Crater Current (Final): 5-200A
- Gas flow: 0-15s |
- Spot welding time: 0,5-10 seconds
- Arch ignition: contactless HF
PULSE MODULATION:
- Pulse base current: 5-200A
- Pulse frequency: 0,2-20Hz / 21-200Hz
- Pulse width: for 0,2 - 10 Hz > 1-99% | for 11Hz - 200Hz > 10-90%
PARAMETERS DEDICATED ONLY FOR AC CURRENT:
- AC Balance: 15-65%
- AC frequency: 20-250Hz

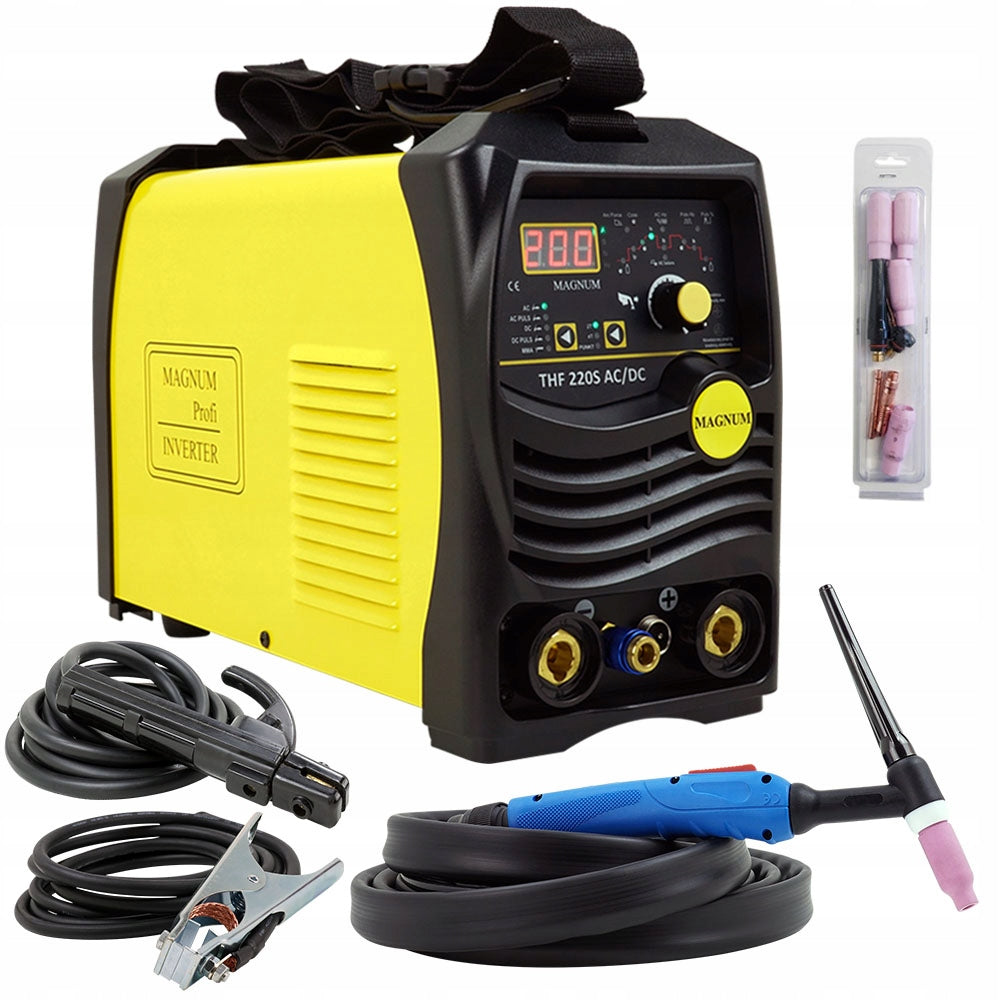

- TIG Magnum THF 220S AC/DC 230V welder
- TIG welding torch type SR-26 4m - new, more ergonomic handle
- MMA Electrode Cable
- Bulk cable
- User manual
- Burner Part Starter Kit
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Magnum |
| Parametry | Welding methods | TIG |
| Parametry | Power consumption | 8.65 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 3.2 mm |
| Parametry | Device weight | 9 kg |
| Parametry | Length of ground cable | 300 cm |
| Parametry | Welding cable length | 400 cm |
| Parametry | Additional features | infinitely adjustable welding current |
| Parametry | Product weight with unit packaging | 30 kg |
| Parametry | Manufacturer code | P046548 |
| Parametry | EAN (GTIN) | 5907056440871 |
| Parametry | Model | SPAWARKA TIG DO ALUMINIUM ACDC MAGNUM 220S IGBT |
