Suvirinimo aparatas TIG/MIG/MAG/MMA 200A su plazminiu pjovikliu

Trumpai apie prekę

Prekė: Suvirinimo aparatas TIG/MIG/MAG/MMA 200A su plazminiu pjovikliu. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: Welbach
• Modelis: TRON 200 ONE

⭐⭐⭐⭐⭐

Welbach ®

✅ Model: TRON 200 ONE

✅ Catalog No.: 10021430

✅ Product Condition: New

➡ The most important features of the product:

• Versatility – plasma cutting and MIG/MAG, TIG and MMA welding function
• User-friendly – clear, digital control panel with 2 LED displays
• Practicality – optimal welding results thanks to pre-set programs and synergy functions
• Efficiency – current up to 200 A up to welding thickness 5 mm and metal cutting up to 15 mm at current 50 A
• Usability – electrode welding with VRD and Hot Start functions

✅ Technical specification:

• 2/4 Bar - Yes
• Working cycle [%] - 60
• User manual - Yes
• ARC-Force - No
• Overcurrent - Yes
• Anti Stick - Yes
• Synergy - Yes
• Hot Start - Yes
• Power factor - 0.73
• Type of converter - IGBT
• TIG cable - 4 m
• Cutting current - 50 A
• Foot pedal - No
• Soft start - No
• Compliance with standards - EN IEC 60974-1
• Water cooling - No
• Insulation class - F
• Plasma cable - 5 m
• MIG/MAG cable - 3 m
• MMA cable - 3 m
• Pulse function - Yes
• Operating air pressure - 5 Bar
• Automatic wire feeder - Yes
• Memory function - Yes
• Ground wire - 3 m
• Idle voltage [V] - TIG 65 / MMA 65 / MIG 65 / CUT 293
• Ignition TIG - HF
• Gas solenoid valve - Yes
• Overheating protection - Yes
• Rated input current [A] - TIG 15 / MMA 18 / MIG 20 / CUT 21
• MIG/MAG welding current [A] - 40 - 200
• VRD - Yes
• Ignition Plasma - Contact
• Maximum gas outflow time [s] - 10
• Maximum thickness of welded material [mm] - TIG 6 / MMA 8 / MIG 5 / CUT 18
• Protection against too high voltage - Yes
• Maximum cutting thickness - 15 mm
• Maximum diameter of wire spool - 200 mm
• Recommended electrode diameter - 3.2
• Material - Stainless steel, Aluminium, Carbon steel
• Wire speed [m/min] - 2 - 15
• Colour - White
• Efficiency [%] - 80
• Welding methods - MIG, MMA, TIG, CUT
• Voltage [V] - 230
• Input power [kVA] - 9.6
• Wire diameter [mm] - 0.8 / 1.0 / 1.2
• Air consumption [l/min] - 80 - 160
• Welding voltage [V] - MIG 16 - 25 / MMA 20.8 - 28 / TIG 10.6 - 18 / CUT 90 - 100
• MMA welding current [A] - 30 - 160
• TIG welding current [A] - 10 - 200
• Maximum input current [A] - TIG 28, MMA 32, MIG 37, CUT 38
• Degree of protection IP - IP21S
• Package height [cm] - 50
• Package length [cm] - 64
• Package width [cm] - 33
• Package weight [kg] - 28
• Product height [cm] - 41
• Product length [cm] - 54
• Product width [cm] - 23
• Product weight [kg] - 25.9
• Number of packages - 1

✅ Versatility is its strength – multifunction welding machine from Welbach

Every welding project is a challenge, but with the TRON 200 ONE multifunction welding machine from Welbach, you don’t have to worry about any challenge. Whether you combine MIG/MAG, TIG or MMA, you can easily and effectively apply all methods with this welding device. The machine with modern IGBT inverter also shows its powerful properties as a plasma cutter.

✅ High performance multifunctional welding machine for MIG/MAG, TIG, MMA and plasma cutting welding

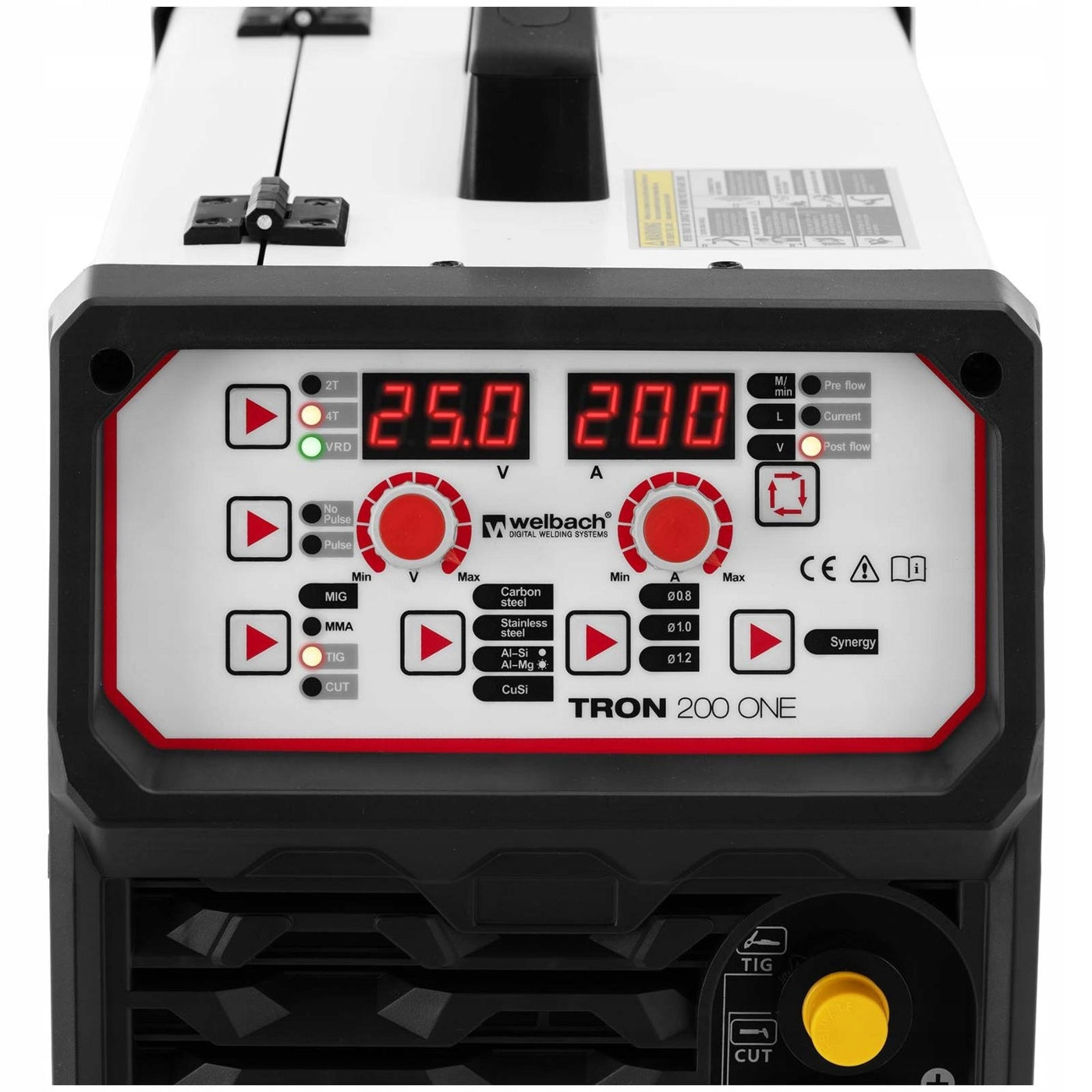

You can set the parameters of all welding methods on a clear, digital panel with two LED screens, with which you will never lose orientation. With its help, you will determine not only the technique, welding current and the time before and after the gas outflow. The panel will also allow you to select pre-set parameters, thanks to which you will achieve the best results. Also use the synergy function, in which after changing one welding parameter, the others are adjusted accordingly.

For MIG/MAG welding, use spools up to 200 mm in diameter to ensure long working time. The feeder is designed for wires with a diameter of 0,8 - 1,2 mm. Adjust the feeding speed in the range of 2-15 m/min and always achieve the best results when welding in a gas shield.

Met TIG DC met beschermgas uit verschillende posities lassen. Tot 200 A. Onder 110 A onafgebroken lassen. Voor platen vanaf 0,5 mm pulsfunctie en bijna alle metalen zoals staal, RVS, koper of nikkel lassen.

With a plasma burner, you can easily cut metals up to 15 mm thick with a maximum current of 50 A. The plasma arc is generated using compressed air. It cools the burner when cutting and leaves a clean edge. As in the case of gas shielded welding methods, here you also have a 2-bar or 4-bar mode at your disposal.

Do you weld outside and in strong winds? Then choose wrapped electrode welding (MMA). The method works without additional gas. The multifunction welder delivers a very stable current – ideal for good results. The VDR function provides greater safety when welding MMA, especially in humid environments. Thanks to the Hot Start function, you will get increased welding current for a short time after starting work. In this way, you weld stably and cleanly from the very beginning.

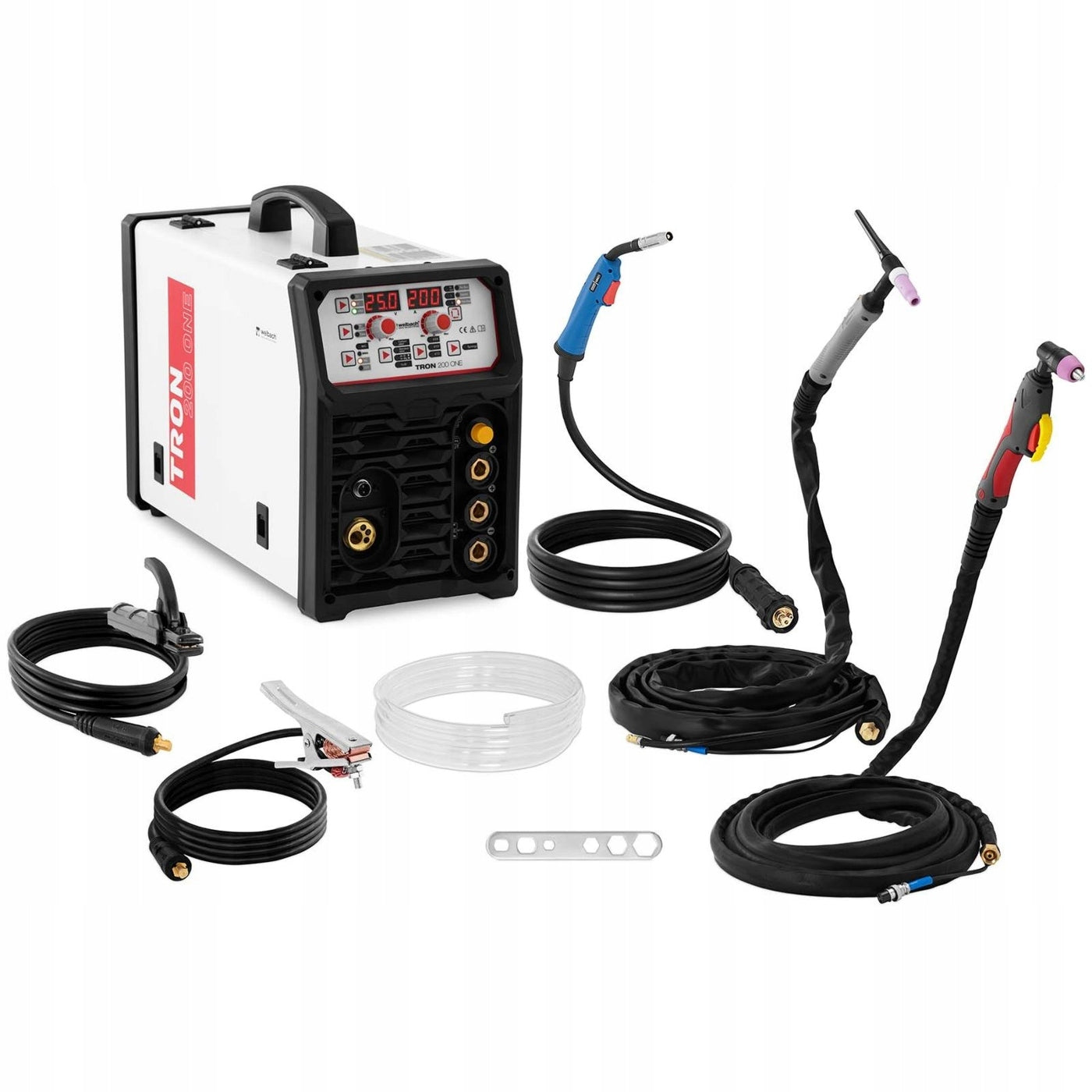

✅ Contents of the shipment:

• Multifunction welder TRON 200 ONE
• Plasma burner SG-55 with cable (5 m)
• MIG 15AK burner with wires (3 m)
• TIG WP26 burner with wires (4 m)
• Electrode holder with cable (3 m)
• Ground clamp with cable (3 m)
• Gas cable (4 m)
• User manual
