Suvirinimo aparatas TIG/MMA Sherman TIG 320 AC/DC PULSE, aliuminiui

Trumpai apie prekę

Prekė: Suvirinimo aparatas TIG/MMA Sherman TIG 320 AC/DC PULSE, aliuminiui. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: Sherman
• Modelis: TIG 320 AC/DC Pulse

BET ON A PROVEN WELDING MACHINE!

Manufacturer: SHERMAN ║ Welding methods: TIG AC/DC, PULS, MMA ║ Power supply: 400V ║ Welding current: 320A ║ Efficiency: 40%

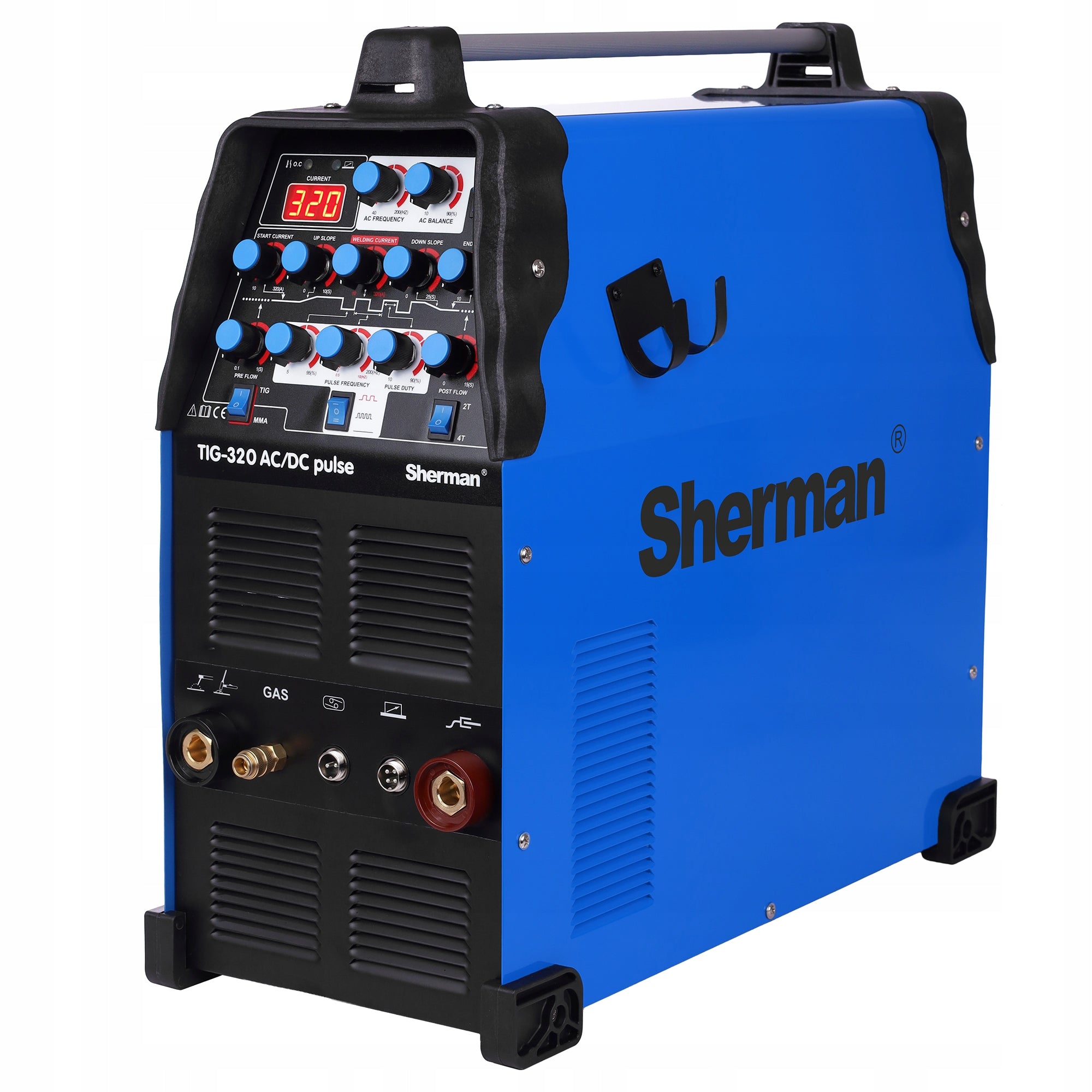

The SHERMAN 320P AC/DC inverter welder is one of the most reliable TIG AC/DC welding machines on the market. The device has been available on the market for a long time, which means that it is free of manufacturing defects and guarantees long service life. It allows you to weld any weldable material, and potentiometer control provides easy operation for a novice welder.

ADVANTAGES OF THE DEVICE:

• High efficiency 40% at 320A
• Mobile construction on a wheelchair
• High quality and purity of the weld
• Easy-to-use panel with knobs
• Contactless arc initiation HF
• Welding TIG PULS and AC with full adjustment

TIG AC/DC 320P is a proven model from SHERMAN, so you do not have to worry about the failure of the device. In addition, the welding machine is equipped with a radiator - DETAILS BELOW !

FULL FUNCTIONALITY

The TIG 320P AC/DC is an inverter welding machine made of technologically advanced components. It gives the possibility of welding with pulse current. Thanks to this function and the possibility of full adjustment of parameters, it is possible to change the focus of the arc and the shape of the weld, as well as the possibility of welding thin elements. Arching is carried out contactless, using the built-in HF ionizer. In addition, the HF system improves the stability of AC welding. Welding can be carried out classically using the 2T method or the 4T method used for longer welds.

EASY OPERATION

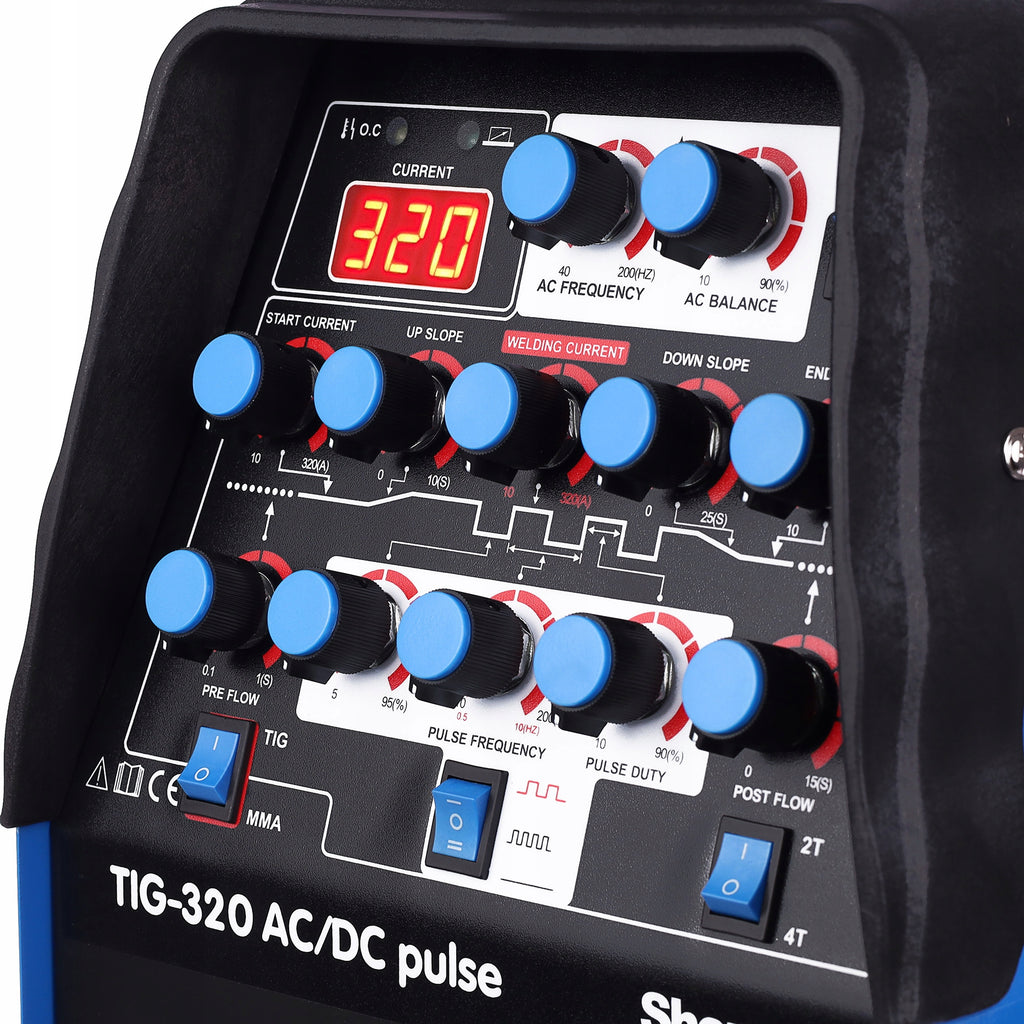

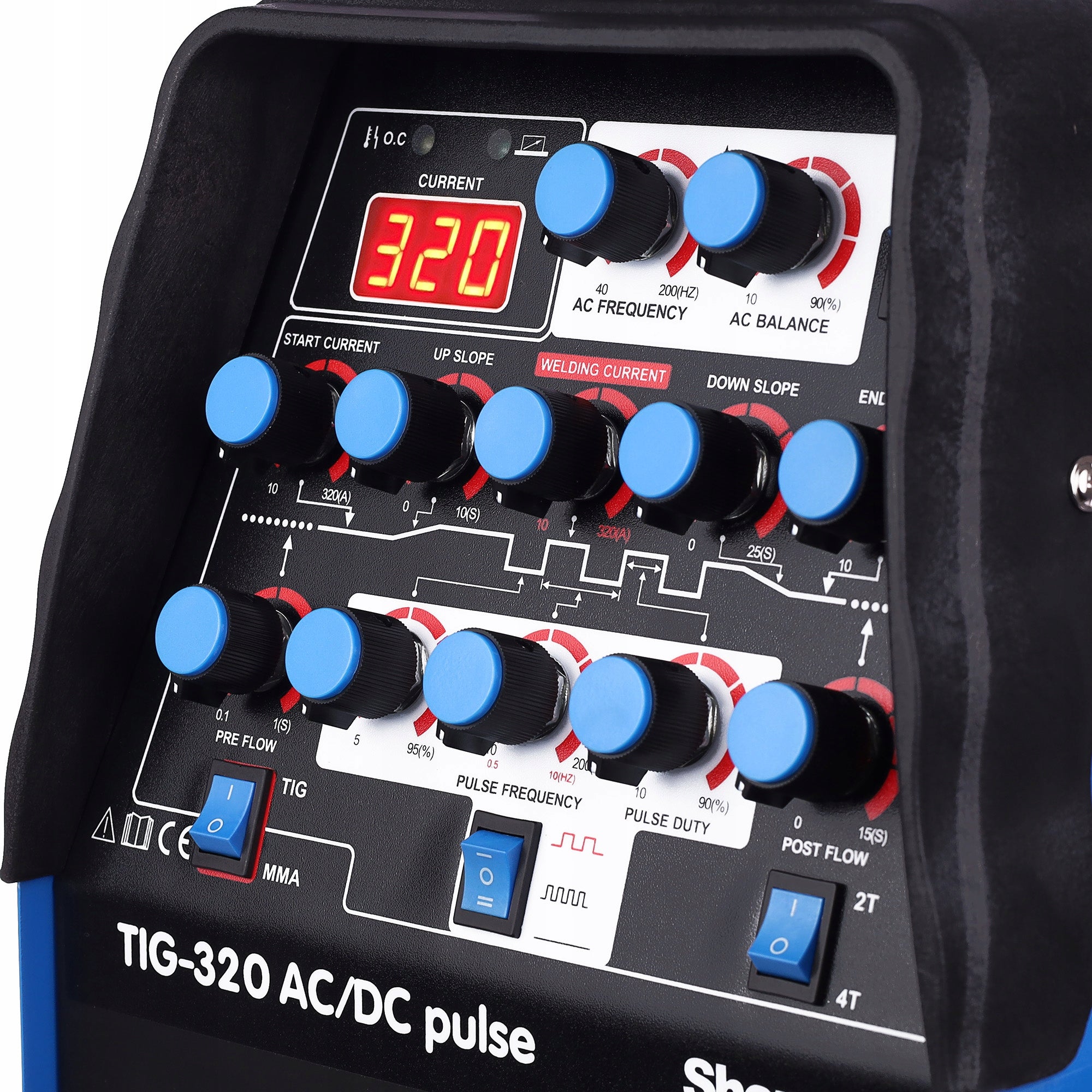

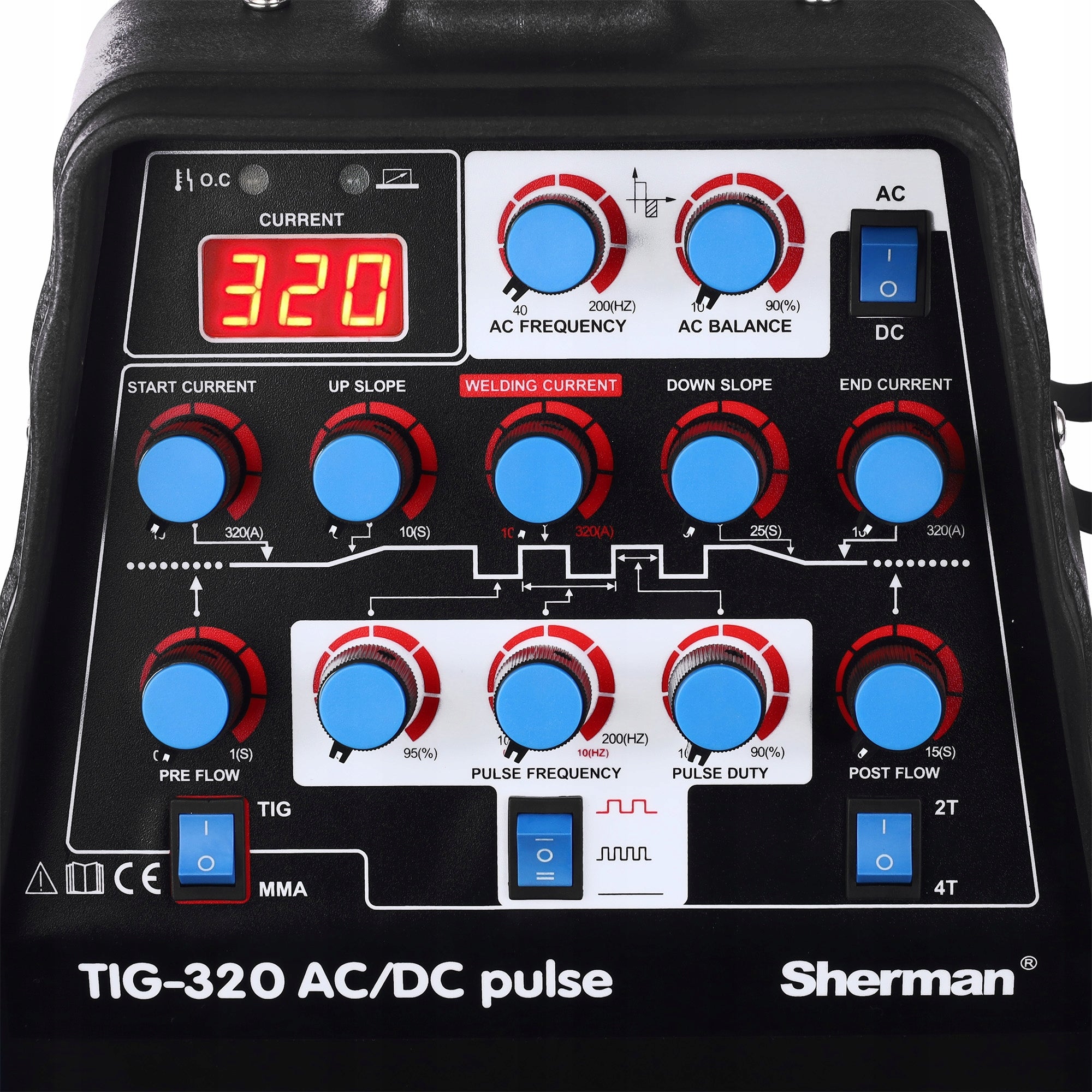

Controlling the welding machine with potentiometers allows you to quickly change the desired parameter, making setting the welding machine very easy even for novice users. Changing the frequency and balance of AC current gives the possibility of welding each aluminum alloy. In addition, you can set all the necessary parameters to obtain the best quality weld (gas outflow, current start, crater filling). A big advantage of the welding machine is the possibility of using the remote control pedal. Remote control will work well for work where frequent changes in current are needed away from the welding machine, e.g. welding of rims or aluminium structures.

POWER SUPPLY PARAMETERS

• Power supply: 400V
• Frequency: 50Hz
• Number of phases: 3ph
• Maximum power consumption: 15,2A
• Network security: 16A

TECHNICAL PARAMETERS

• Nominal voltage in unloaded condition: 65V
• Rated welding current: 320A
• Working cycle: 40%
• Before gas outflow: 0,1 – 1s
• After gas outflow: 1 – 15s
• Power build-up: 0 - 10s
• Power drop: 0 – 25s
• Initial current: 10 - 320A
• TIG welding current: 10-320A MMA: 10-270A
• Base current: 5 – 95% welding current
• Crater current: 10 - 320A
• Pulse frequency: 10 - 200Hz
• PULSE WIDTH: 10 – 90%
• AC frequency: 40 – 200Hz
• Balance AC: 10 – 90%

ADDITIONAL FUNCTIONS

• PULSE function: YES
• HF function: YES
• 2T/4T function: YES
• PRE GAS: YES
• POST GAS: YES
• Electricity build-up: YES
• Power drop: YES

PHYSICAL PARAMETERS

• Degree of protection: IP21
• Weight: 32kg
• Dimensions: 545 x 255 x 540mm

THE SET INCLUDES:

• Welding machine SHERMAN 320P AC/DC
• Welding torch TIG type SR18 - 4m
• Bulk holder - 3m
• Operating manual and warranty card

+ ADDITIONAL ACCESSORIES:

• Hose for connecting the radiator
• Gas hose
• Gas hose clamps - 2pcs
• Handle consumables (cork, bushing, ceramic nozzle)

Specifications
