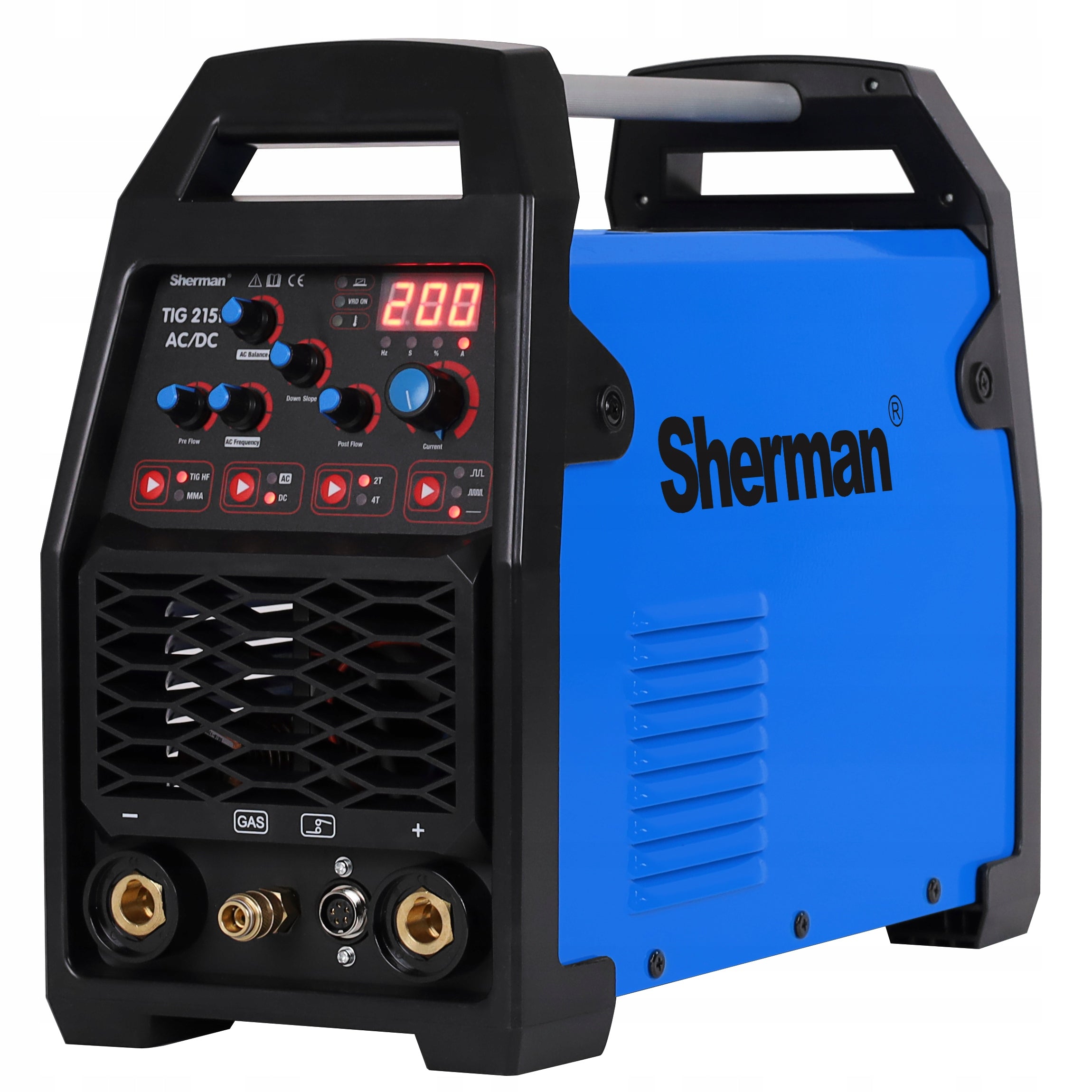

Suvirinimo aparatas TIG Sherman 215P AC/DC, aliuminiui

Trumpai apie prekę

Prekė: Suvirinimo aparatas TIG Sherman 215P AC/DC, aliuminiui. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: Sherman
• Modelis: SPAWARKA INWERTOROWA TIG 215P AC/DC

TIG 215P AC/DC inverter welder is a modern, multi-process welding device designed for professional workshop, service and production applications. The design based on IGBT technology ensures stable operating parameters, high energy efficiency and precise control of the welding arc.

The device enables the implementation of three methods of manual welding, which makes it a universal solution for working with structural steel, stainless steel, aluminum, copper and their alloys.

✅ Methods of welding

• MMA DC (Manual Metal Arc) – welding with a direct current (DC) electrode, designed for welding structural steels.
• TIG HF DC (Tungsten Inert Gas – direct current) – welding with a non-melting electrode in an inert gas shield (Argon), enabling precise joining of steel, stainless steel, copper and its alloys.
• TIG HF AC (Tungsten Inert Gas – alternating current) – welding of aluminium and its alloys with oxide layer cleaning control.

✅ Advanced TIG process features

The TIG 215P AC/DC offers a wide range of configuration options for TIG welding parameters, allowing you to adjust the arc characteristics to the type of material and thickness of the components.

• TIG pulse (DC) – welding with current pulsation enables linear energy control, reduction of deformations and improvement of weld quality, especially with thin materials.
• Regulation of current drop time (0 to 25 s) – smooth arc extinction, preventing the formation of craters and final cracks.
• Gas pre-flow regulation (0,1 – 3 s) – protection of the electrode against arc ignition.
• Regulation of TIG gas flow (1 to 15 s) – protection of the electrode and welding lake after welding.
• AC frequency control (20 – 300 Hz) – control of arc focus and stability during welding of aluminium.
• AC balance adjustment (20 – 80%) – the ability to adjust the positive and negative proportion of half of the current, which allows you to control the depth of melting and the effectiveness of oxide removal.
• Electrode cleaning function – improves the working conditions of the tungsten electrode.

✅ Additional Features and Design

• IGBT technology – stable operation, high efficiency and lower energy losses.

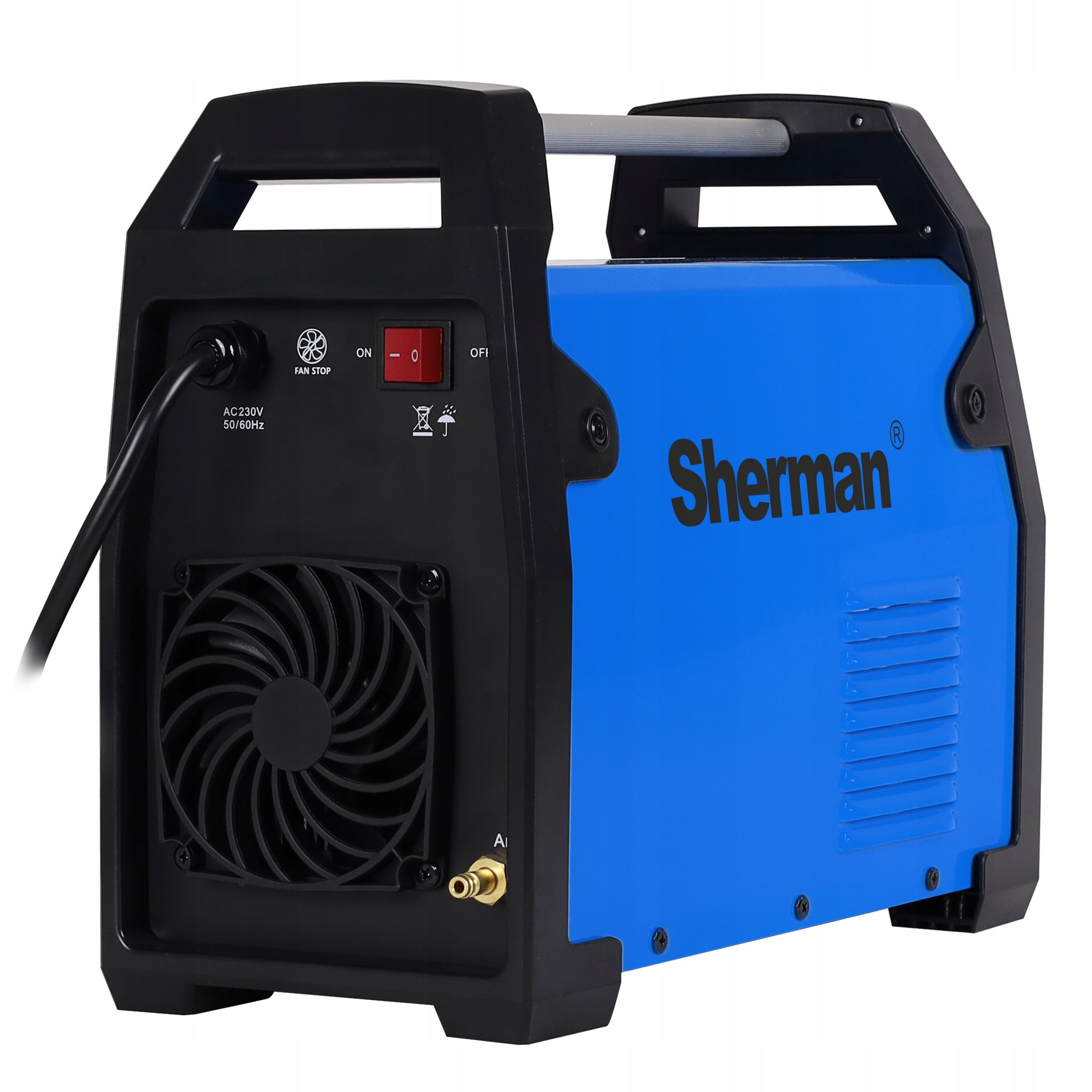

• Fan Stop – the fan starts only when cooling is needed, which reduces noise, reduces component wear and reduces the amount of dust sucked in.

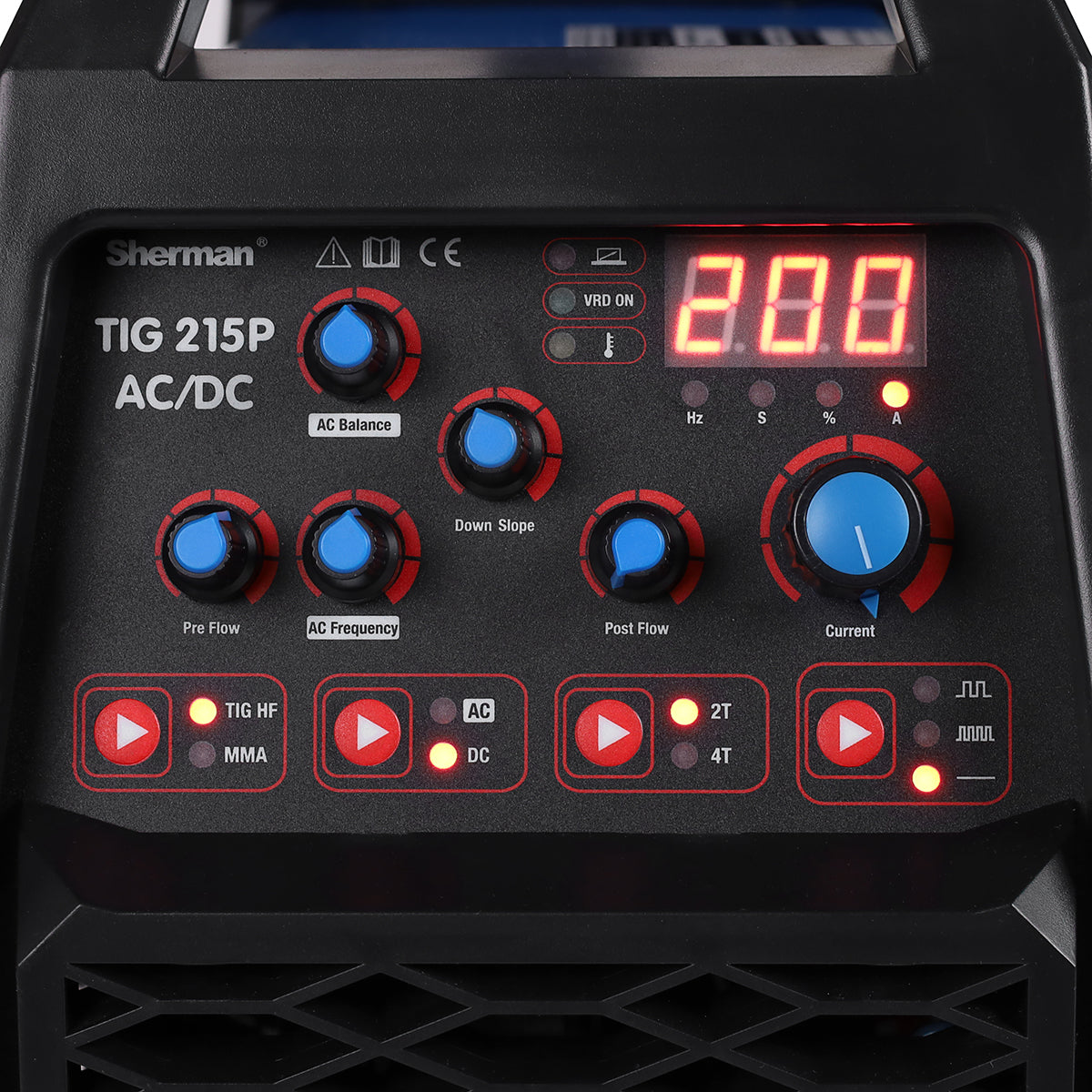

• Analog control – precise adjustment of parameters.
• LED display – clear presentation of set values.
• Gas connection on quick coupler R21 – quick and tight connection of gas installation.
• 35/50 current socket – compatibility with professional welding wires.

✅ Technical data

• Welding Methods: MMA DC, TIG HF AC, TIG HF DC
• Supply Voltage: AC 230 V
• Technology: IGBT
• Maximum MMA welding current: 160 A
• Maximum TIG DC welding current: 200 A
• Maximum TIG AC welding current: 200 A
• MMA work cycle: 60%
• TIG duty cycle: 60%
• Voltage without load: 68 V
• Current drop time: 0 to 25 s
• Gas outflow: 0,1 to 3 s
• TIG gas flow: 1 to 15 s
• AC Frequency: 20 – 300 Hz
• AC Balance: 20 to 80%
• Maximum TIG current consumption: 35,6 A
• Network Security: 25 A
• Current socket type: 35/50
• Weight: 8,8 kg
• Dimensions (D x SZ x W): 42 x 19,5 x 34,5 cm

✅ Set equipment

• Welding torch T-26 / 4 m
• Electrode cable
• Bulk cable

✅ Application

TIG 215P AC/DC welding machine is designed for precise assembly, repair and production work. It works well when welding thin-walled stainless steel elements, steel structures, aluminum details and copper and its alloy components. With its adjustable AC parameters and pulse function, it allows you to control the welding process even in demanding applications.
