Aprašymas
Trumpai apie prekę
Prekė: Suvirinimo aparatas TIG Sherman DIGITIG 315GD Pulse AC/DC 315A IGBT HF MMA VRD. Kategorija: Invertoriniai suvirinimo aparatai.
- Gamintojas: Sherman
- Modelis: DIGITIG PULSE AC DC 315GD
TIG Sherman DIGITIG 315GD Pulse AC/DC 315A IGBT HF MMA VRD
Sherman

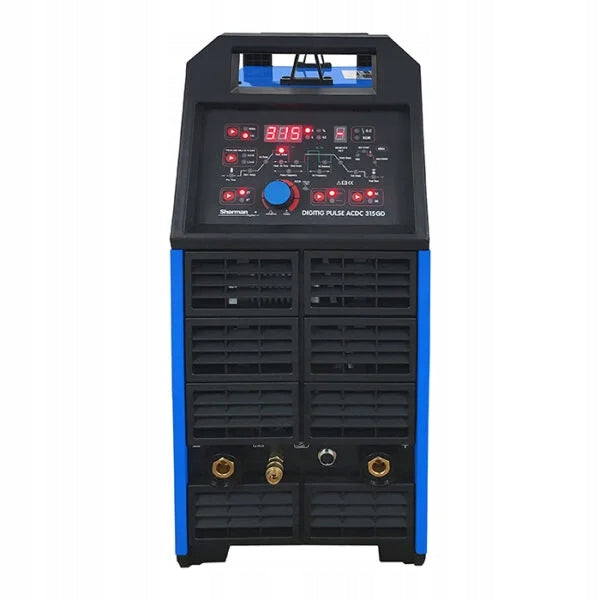

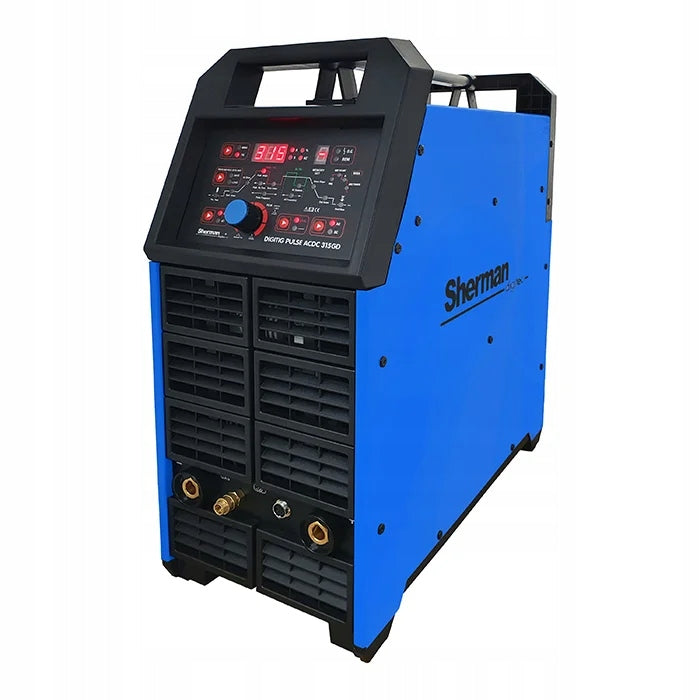

TIG Sherman DIGITIG 315GD Pulse AC/DC Welder – Digital, Professional, Modern
✅ Product description
The Sherman DIGITIG PULSE AC/DC 315GD digital welding machine is the latest generation of , designed for professional applications. Made in IGBT technology and equipped with digital control, it guarantees stable arc, high precision and full control of welding parameters.
The device is designed for TIG welding of stainless steel, aluminum, copper and other non-ferrous metals with both direct current (DC) and variable current (AC). In addition, it has the possibility of welding using the MMA method (wrapped electrode).
⚙ The most important features and capabilities

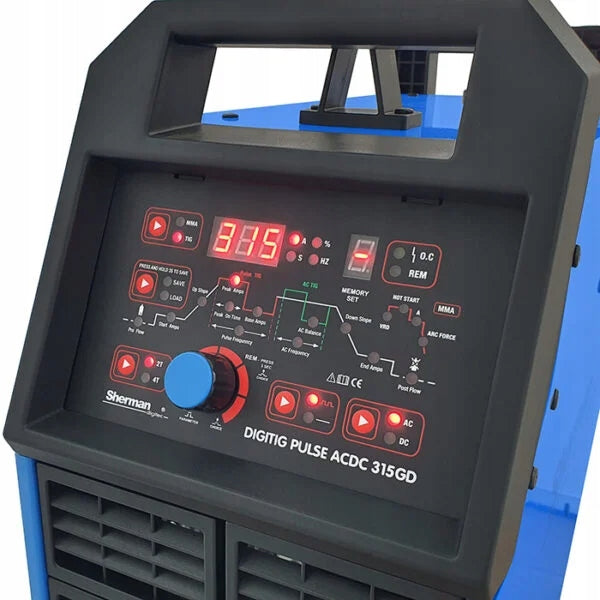

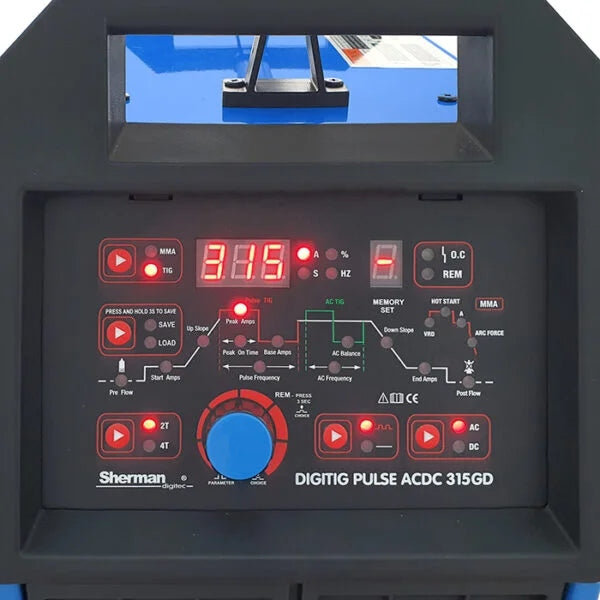

- Digital control – full control over welding parameters
- HF – non-contact arc ignition
- Puls TIG – adjustable range of parameters
- VRD, ARC FORCE, HOT START, 2T/4T
- Settings memory – the ability to save up to 20 sets of parameters
- Memory function of the last setting – after restarting, the last parameters are restored
- Regulation of current build-up and drop, time of pre-flow and gas outflow
- AC/DC mode – possibility of welding non-ferrous metals
- AC frequency and balance adjustment – precise control when welding aluminium

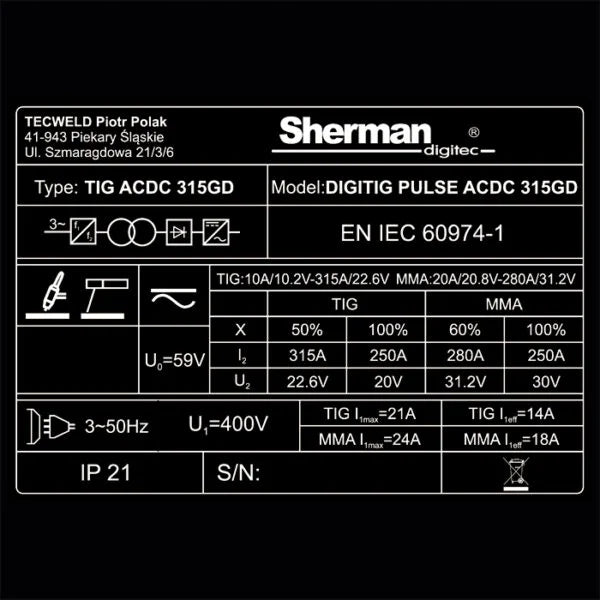

✅ Technical data:

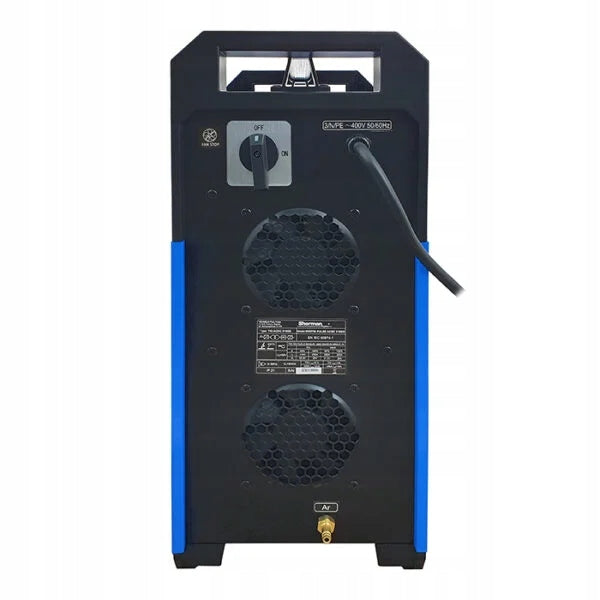

- Power supply AC 3x400V 50Hz
- Technology IGBT
- Welding methods TIG AC/DC, MMA
- Welding current (TIG) 10–315A
- Welding current (MMA) to 280A
- Working cycle TIG: 50%, MMA: 60%
- Idle voltage 20V (VRD) / 59V
- Power consumption TIG: 21A / MMA: 24A
- Power consumption TIG: 8,5 kVA / MMA: 8,8 kVA
- Weight 29,5 kg
- Dimensions (LxWxH) 565 x 240 x 585 mm
TIG regulation range:
- Gas outflow: 0,1 to 1 s
- Gas flow: 0 to 15 s
- Current build-up: 0 to 15 s
- Current drop: 0 to 25 s
- Initial current: 10 – 315 A
- Base current: 5 to 95% welding current
- Crater Current: 10 – 315 A
- Pulse Frequency: 0,5 – 200 Hz
- Pulse duration: 10 to 90%
- AC Frequency: 40 – 200 Hz
- AC balance: 30 to 70 %
- ARC FORCE: 0 TO 10 A

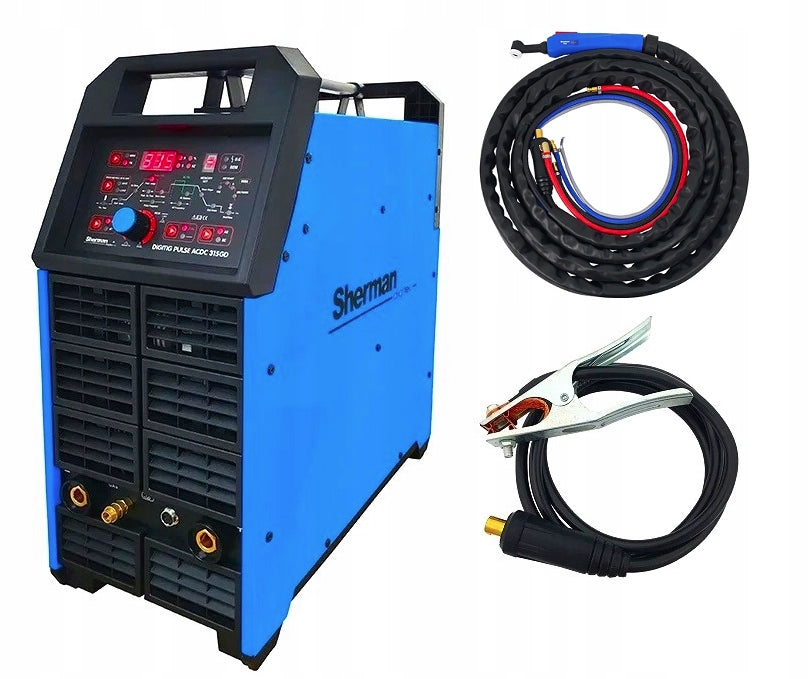

The set includes:
- ✅ Sherman DIGITIG PULSE AC/DC 315GD
- ✅ Welding torch T-18 / 4 m
- ✅ Bulk cable
Advantages of Sherman DIGITIG 315GD welding machine
✔ Professional quality and durability
✔ Digital control and precise adjustment
✔ Weldable a wide range of materials
✔ High performance and arc stability
Settings memory and intuitive operation
Sherman DIGITIG 315GD Pulse AC/DC is the ideal choice for workshops, production plants and professional welders who expect reliability, precision and full control over the welding process.
TIG Sherman DIGITIG 315GD Pulse AC/DC 315A welder with digital control and IGBT technology. It allows welding of steel, aluminum and non-ferrous metals with AC/DC current. It has HF, pulse, VRD, HOT START, ARC FORCE, settings memory and full TIG and MMA parameters adjustment. Ideal for workshops and industry.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Sherman |
| Parametry | Power consumption | 8.5 kVA |
| Parametry | Supply voltage (V) | 400 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 5 mm |
| Parametry | Device weight | 29.5 kg |
| Parametry | Welding range | 10–315 A |
| Parametry | Length of ground cable | 300 cm |
| Parametry | Welding cable length | 400 cm |
| Parametry | Product weight with unit packaging | 33 kg |
| Parametry | Manufacturer code | SDIGITIGPACDC315GD |
| Parametry | EAN (GTIN) | 5906372629182 |
| Parametry | Model | DIGITIG PULSE AC DC 315GD |
| Parametry | Welding methods | MMA,TIG |
| Parametry | Additional features | infinitely adjustable welding current,LCD display |
