Suvirinimo aparatas TIG SPARTUS XPro TIG 200P DC

Trumpai apie prekę

Prekė: Suvirinimo aparatas TIG SPARTUS XPro TIG 200P DC. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: Spartus
• Modelis: XPROTIG200

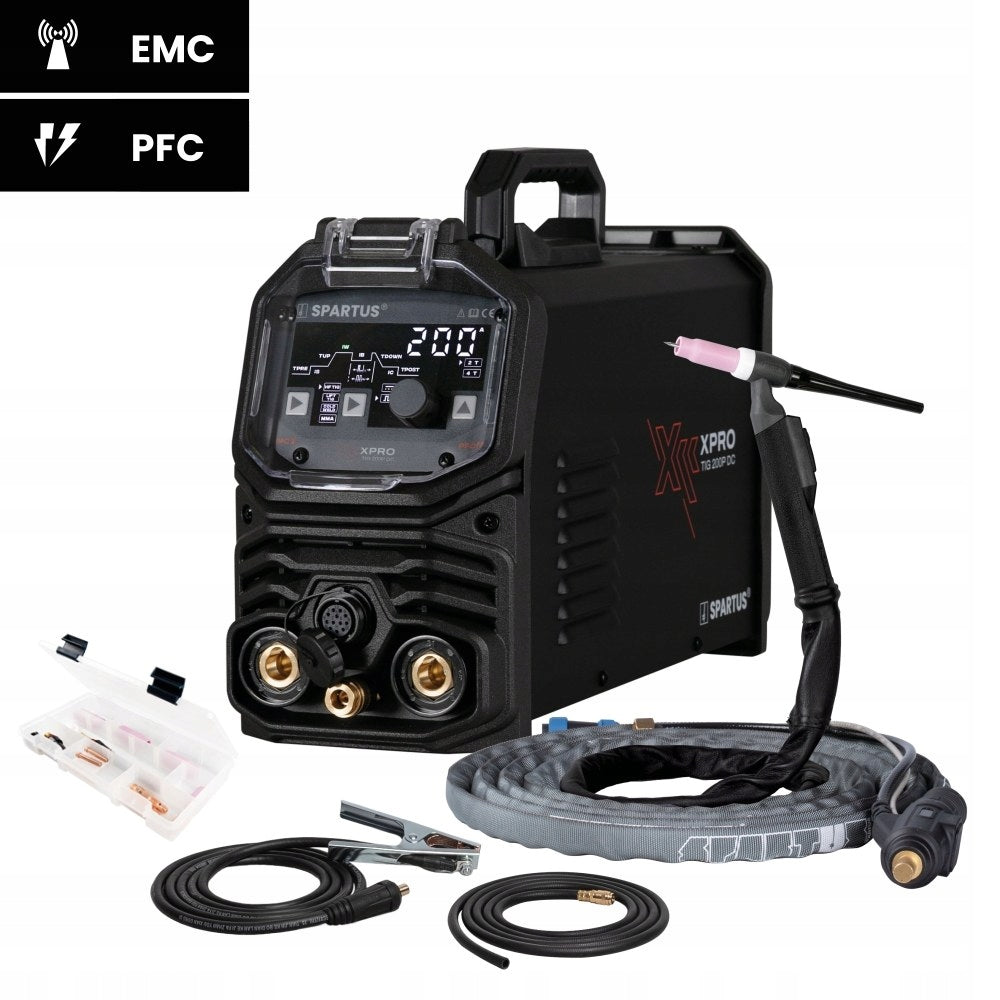

Package includes:

XPRO TIG 200P DC

• handle SPARTUS ProFlex TIG 170 1B 4m

• TIG tool with parts for the burner

• 3m mass cable

• 3m gas hose with band and quick coupler

• instruction manual

Guarantee

The warranty period for SPARTUS XPro series devices is up to 36 months.

Technical parameters

• Power supply voltage: ~1× 230V ± 10% 50 / 60 Hz
• TIG welding current: 10 – 200A
• TIG duty cycle: 40%
• Pre-gas: yes
• Post-gas: 0.1 - 10s
• Power build-up time: 0 - 5s
• Power drop time: 0 - 5s
• TIG Pulse: yes
• Pulse current: 10 - 200A
• Pulse width: 5 -100%
• Pulse frequency: 0.5 -100Hz
• Working mode 2T/4T: yes
• Arc glow: LIFT / HF
• Control options: wired foot control, potentiometer handle control
• MMA welding current: 10 - 200A
• Arc Force: yes
• Hot Start: yes
• Idle voltage: 70V
• Power consumption: TIG 32A / MMA 48A
• Power factor (cosφ): 0.65
• Efficiency η: 78.5
• Isolation class: H
• Degree of protection: IP21S
• Weight: 6,5kg
• Dimensions: 430 x 150 x 250mm
• Connection: 12SPA - SPARTUS®

SPARTUS XPro TIG 200P DC is a modern welding power source designed for users who expect high-quality TIG welding, extensive configuration options, and device mobility without compromising performance. Powered by 230V, with welding current up to 200A and a compact design, this unit is perfect for professional workshops, installation and service work, as well as field applications.

The new XPro series is designed for users who want more than a standard TIG DC welder. It combines modern features, a high-quality arc, and solutions that significantly improve the comfort of daily welding.

TIG HF / TIG Lift – comfortable glow and full arc control

SPARTUS XPro TIG 200P DC offers two ways of arcing TIG – contactless HF and TIG Lift. The HF glow allows you to start working quickly and comfortably without the electrode coming into contact with the material, reducing the risk of tungsten weld contamination. Lift mode provides stable glow in places requiring limitation of electromagnetic interference.

Stable arc characteristics and precise parameter control allow to obtain high quality of welds when working with stainless steel, black steel or other TIG DC welded materials.

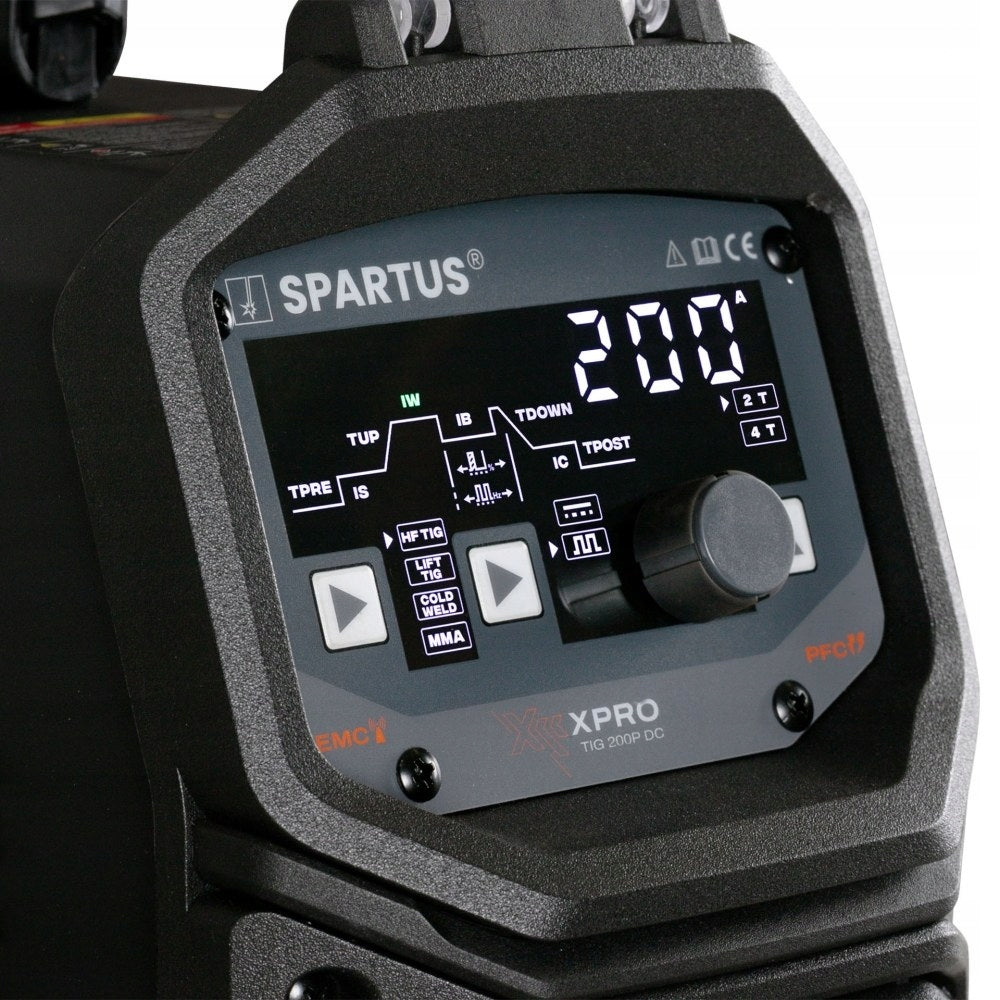

TIG Pulse and Cold Weld – more control over welding energy

The device is equipped with an advanced TIG Pulse mode, which allows precise control of the amount of energy introduced into the material. The pulse facilitates the control of the welding lake, reduces the amount of deformation and improves the aesthetics of welds, especially when welding thin elements.

Cold Weld function allows you to reduce the amount of heat transferred to the material even more effectively. This solution is perfect when working with thin sheets, elements requiring high aesthetics and wherever it is crucial to reduce discoloration and deformation of the material.

Professional ergonomics – 2T/4T and extensive control

SPARTUS XPro TIG 200P DC has been prepared for comfortable operation both during short welding operations and long-term production tasks. 2T and 4T modes allow you to adjust the way the handle works to the nature of the tasks performed and increase the comfort of the operator during longer welding.

The device offers a wide range of possibilities for remote control of welding current. Works with handles equipped with a micro switch, potentiometer control and foot control. Thanks to this, the operator can adjust the configuration of the device to his own preferences and the type of work performed, maintaining full control over the welding process without interrupting work.

SPARTUS ProFLEX 170 – premium handle as standard

The set includes a professional SPARTUS ProFLEX 170 handle designed for maximum comfort during everyday work. This solution distinguishes the device from many competing models available in this segment.

The handle, manufactured in Poland has been designed with maximum ergonomics and comfort in mind for everyday work. The shorter, lightweight handle and compact torch body allow for more confident grip, improve movement precision, and facilitate welding in hard-to-reach places. The firmly mounted body provides excellent balance and greater arc control when performing demanding welds.

The use of professional cotton braided cables manufactured in the USA also contributes to exceptional work comfort. The dense outer braid guarantees above-average flexibility at both high and low temperatures , so the cable does not stiffen during operation and naturally follows the welder's movement. The result is less operator fatigue, greater freedom of handle maneuvering, and higher precision of torch guidance. Unlike many competing devices where a high-end torch is an optional accessory, SPARTUS XPro TIG 200P DC offers a premium solution as standard . Additionally, each SPARTUS ProFLEX handle is delivered with a set of consumable parts packed in a practical box , so the user receives a complete set ready to work from day one.

Electromagnetic compatibility (EMC)

SPARTUS XPro TIG 200P DC is characterized by high electromagnetic compatibility (EMC), which guarantees stable operation without interference in demanding industrial environments. The device has been designed so as not to affect the operation of other machines and control systems, while maintaining resistance to external interference. This ensures reliable operation in the environment of automation, robots and modern production installations.

PFC technology – stable operation and greater power efficiency

SPARTUS XPro TIG 200P DC is equipped with PFC (Power Factor Correction) system, which significantly improves energy efficiency and stability of the device. Active power factor correction technology reduces energy losses, reduces the load on the electrical network and allows for more stable welding parameters even when working with long extension cords or in places with less stable power supply. In practice PFC means:

• greater resistance to voltage fluctuations,
• a more stable plasma arc,
• lower power consumption from the grid,
• better energy efficiency,
• greater comfort of work in the field and with a power generator.

This solution is particularly important for mobile users, assembly teams and workshops operating in demanding power supply conditions, where the stability of the device has a direct impact on the quality and continuity of work.

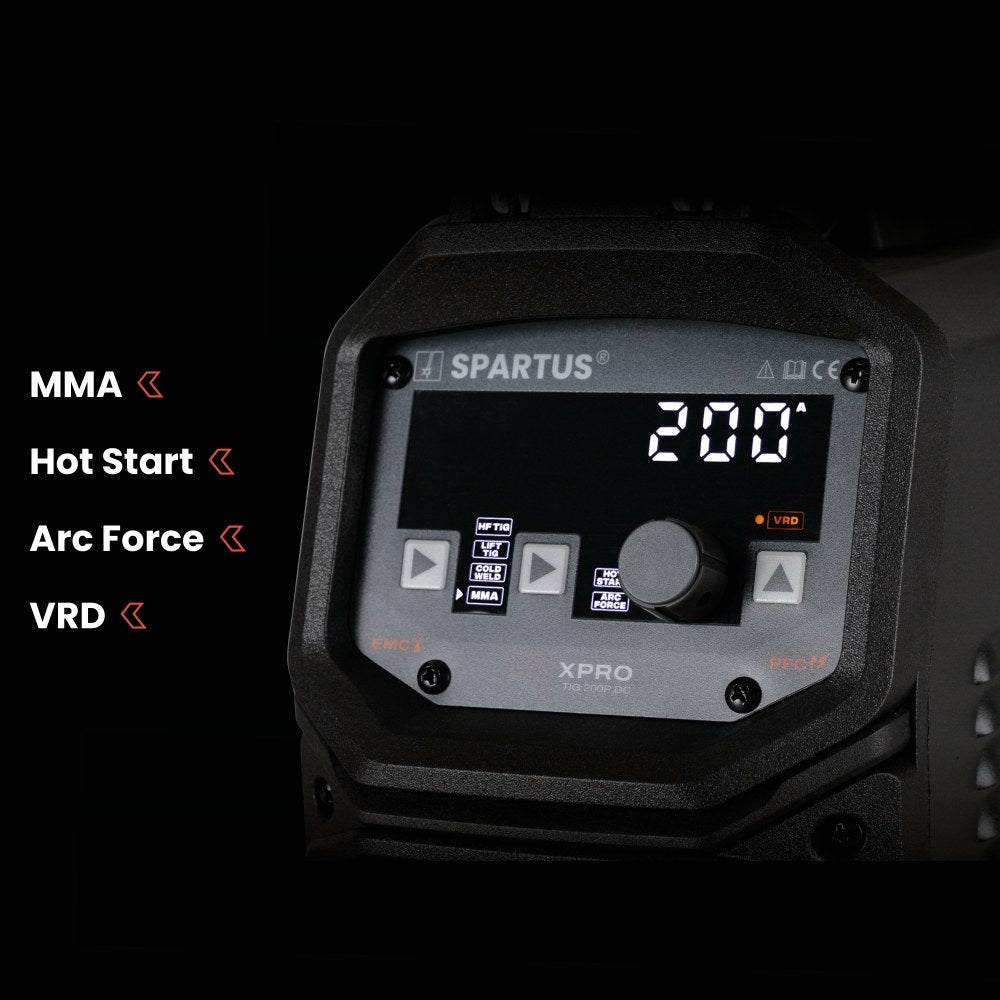

MMA 200A – stable electrode welding

SPARTUS XPro TIG 200P DC is also a fully functional MMA source with welding current up to 200A. The device is equipped with functions supporting process stability and comfort of work:

• Hot Start — easier electrode glow,
• Arc Force — arc stabilization during welding,
• VRD — increase safety by lowering idle voltage.

Stable arc characteristics allow for convenient welding of various types of electrodes in workshop, assembly and service work.

Greater range of work, fewer restrictions

Thoughtful configuration of wires – 4-meter welding torch, 3m mass cable and 3m power supply – provides real freedom of work with large elements and reduces the need for frequent rearrangement of the device. The 3-meter gas hose terminated with quick coupler accelerates connection and improves the organization of the station, which translates into greater efficiency of work.

Specifications
