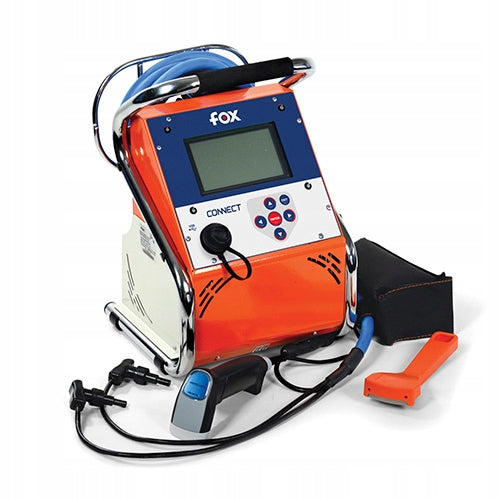

Suvirinimo aparatas vamzdžių jungtims FOX CONNECT 1000

Trumpai apie prekę

Prekė: Suvirinimo aparatas vamzdžių jungtims FOX CONNECT 1000. Kategorija: Sandarikliai.

• Gamintojas: Fox
• Modelis: CONNECT1000

The CONNECT 1000 welding machine is absolutely the highest class of electroresistance welding equipment, designed for the most demanding infrastructure contracts. It offers an unprecedented operating range of up to 1600 mm, which makes it an ideal choice for the construction of buses with huge cross-sections, collectors and transmission systems in the power industry and mining industry.

✅ Technical specification:

➡ Diameter range: 20 - 1600 mm

➡ Power Supply: 230V / 50-60 Hz (Max. Power: 3500 W)

➡ Output voltage: 8 - 48 V

➡ Maximum intensity: 120 A

➡ Code reader: Professional scanner included

➡ Device memory: 4000 welding protocols

➡ Communication: USB and RS232 ports (full data export)

➡ Protection class: IP 54

➡ Weight: 20 kg

➡ Packaging: Reinforced aluminium box

✅ UNBEATABLE RANGE UP TO 1600 MM – CONNECT 1000 is a device without restrictions. It supports the widest range of fittings on the market – from standard home connections to giant bus muffs.

✅ EXTREME POWER 3500 W – a huge power reserve allows for stable operation with the largest fittings that require a powerful charge of energy to properly carry out the welding process.

✅ PROFESSIONAL ARCHIVING (4000 RECORDS) – gigantic memory allows you to save documentation from many months of work without having to rip data. Export via USB enables immediate generation of reports for construction supervision.

✅ HIGH INTENSITY AND PRECISION – stable current of 120 A guarantees ideal welding parameters even with large voltage drops in networks powered from aggregates.

✅ MOBILITY AND PROTECTION – despite its power, the welding machine weighs only 20 kg. The aluminum transport box provides the highest level of mechanical protection during transport on difficult construction sites.

✅ INTELLIGENT SCANNING SYSTEM – laser scanner included allows for instant loading of barcodes, automatically protecting the process against operator error.

✅ RESISTANCE TO EXTREME CONDITIONS – IP 54 protection class and robust housing design allow for uninterrupted operation in dust, dust and high humidity.
