Suvirinimo aparatas WELDER Ideal TECNO MIG 211 S PULSE ALU SYNERGIC su balionu

Trumpai apie prekę

Prekė: Suvirinimo aparatas WELDER Ideal TECNO MIG 211 S PULSE ALU SYNERGIC su balionu. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: 211

WELDER Migomat Ideal TECNO MIG 211 S PULSE ALU SYNERGIC Cylinder set

IDEAL

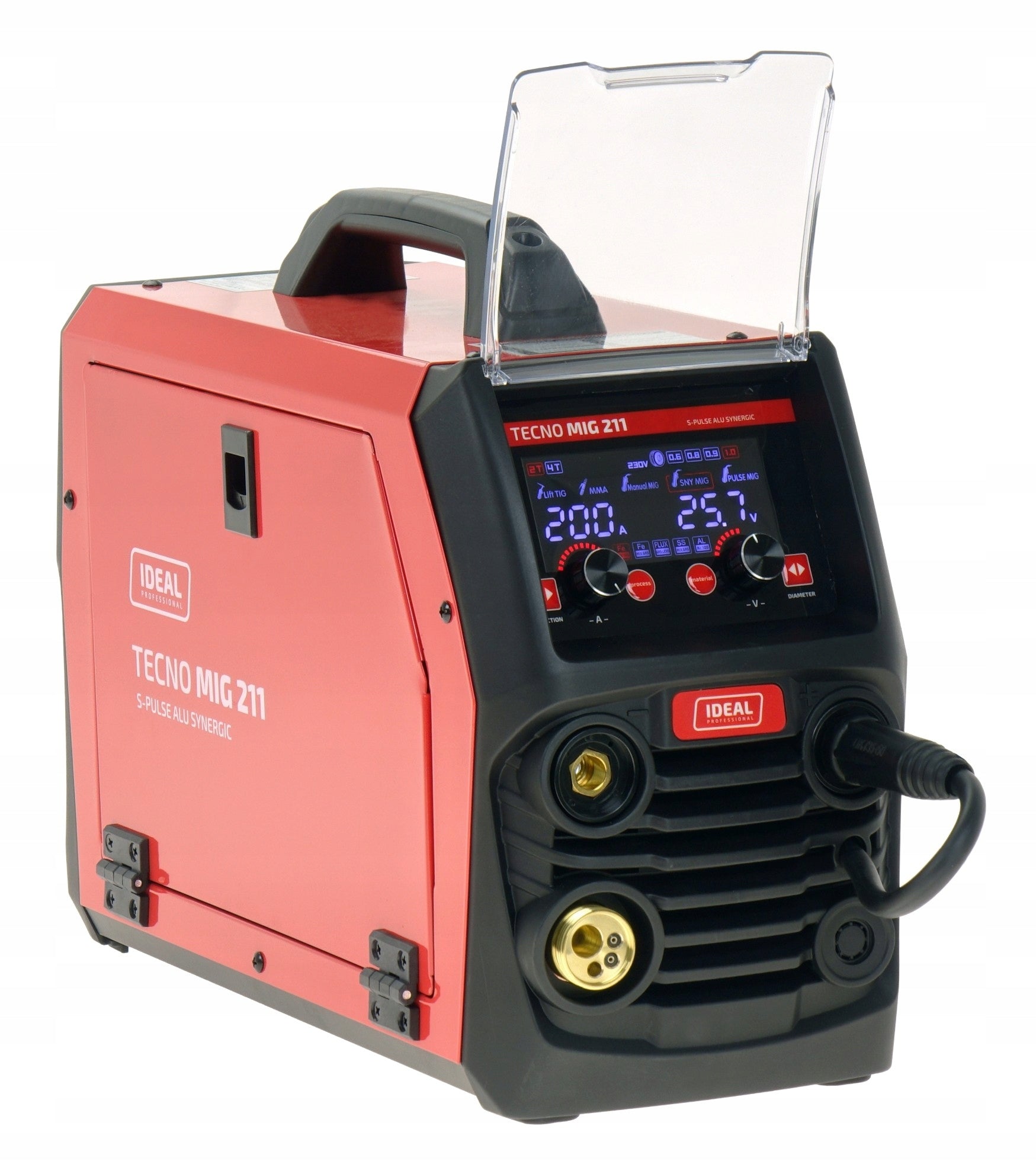

TECNOMIG 211S PULSE is an inverter synergistic semi-automatic welding machine designed for arc welding using the MIG/MAG, MMA, TIG Lift, and galvanized sheet welding methods. The device is designed from maintenance work to car body repairs

The device has three synergic welding modes MIG/MAG: MIG, MIG PULS,

TECNOMIG 211 PULSE LCD 230 is used for welding aluminum and its alloys, stainless steel, carbon and low alloy steels and lutowelding of galvanized sheets. Welding is carried out in an inert gas shield, active or mixture depending on the program selected on the control panel.

The PULS MIG in the TECNO MIG 211 S-PULSE is designed for welding aluminium with a single pulse of 1,0 mm wire, allows for a better weld regardless of the welding position and reduces the amount of spatter.

Thanks to the use of pulsation MIG, the amount of heat introduced into the welded element is increased. It is possible to obtain a better weld, regardless of the welding position and reduce the amount of spatter.

Both with the MIG method as well as MIG PULS we have the ability to select the button function in the handle between work in Spot mode (point welding), 2-bar, S2-bar, 4-bar (button lock for long welds) and S4-bar.

✅ EURO 15/3M welding torch

✅ Welder 3in1: MIG-MAG, MMA, TIG LIFT DC

✅ WELDING CURRENT 30-200 A

✅ Device prepared for welding aluminium

✅ 5kg spool support

✅ Low weight ONLY 9,5KG and mobility of the device

✅ Weldable without gas

✅ TIG DC LIFT welding capability

✅ synergistic program for: aluminium, black steel, stainless steel, soldering, core wires

✅Possibility of manual settings

✅ Welding without gas - FLUX

✅ Inductance regulation less chipping

✅ Easy and smooth adjustment of welding parameters

✅ Easy to read LCD panel

✅ Function 2T and 4T

✅ ARC FORCE function

✅ Sturdy metal feeder

Options are available:

• Fe/CO2 100 – steel wire / CO2 gas shield
• Fe / MIX GAS – steel wire / mixed gas cover (CO2+Ar)
• FLUX / GASLESS – self-shielding wire / without gas shield (gasless)
• SS / MIX GAS – stainless steel wire / mixed gas cover
• AL/AR 100 – aluminium wire / gas shield Ar

Display of the selected welding method:

• LIFT TIG – non-melting electrode
• MMA – wrapped electrode
• MANUAL MIG– manual mode
• SNY MIG (Synergic) – e synergistic mode
• PULSE MIG – single pulse mode

additional functions (MMA only)

• HOT START – easier glow function of the wrapped electrode, increased current value during glowing (range 0÷10).

• ARC FORCE – a function that stabilizes the welding arc, also reduces the number of chippings (range 0÷10).

• VRD – VRD (voltage reduction device) function reduces the idle voltage on the electrode to a safe value; enables operation in an environment with increased humidity.

Button mode selection (MIG/MAG only):

• 2T – mode of pressing and holding the button during welding, after release there is a break in welding

• 4T – press mode, without having to hold the trigger during operation, interruption of operation occurs after pressing againOverload protection.

⏩ IGBT - the welding machine uses modern transistors, a solution that provides a minimum of electromagnetic interference small power losses in basic systems, allowing to increase the efficiency and reliability of the power source.

⏩ Inductance regulation - allowing less heat to be introduced into the welding site.

✅ ARC FORCE: short-circuit current adjustment (manual) - facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from extinguishing when the drop of electrode contacts the welding lake

✅ HOT START: hot start adjustment (manual) - facilitates the ignition of the electrode by providing more welding current with each arc.

✅ VRD (Voltage Reduction Device) function - reduces the resting voltage of the idle state on the electrode to a safe value. Provides shock safety when working in humid environments.

⏩ Synergy - is a function of MIG/MAG welding machines, which allows for automatic selection of welding parameters, we choose the type of welded material, wire diameters, shielding gas and welding current or material thickness and the device will automatically select the appropriate welding parameters from these settings we can make slight adjustments

⏩ Manual Settings - Possibility of manual setting of wire feed ora welding voltage.

⏩ 2T/4T - when the start button is pressed, the welding process takes place after releasing the button, the welding process is stopped - when the button is pressed and released for the first time, the welding process takes place at the second press, it is a more convenient solution for longer welds.

⏩ FCAW - the possibility of welding with core wire without the use of a gas cylinder. The wire itself (FLUX) is filled with a gas-producing substance during welding.

⏩ TIG LIFT To do this, switch to TIG position. Connect the current plug of the TIG welding torch to the “minus” socket (marked with the symbol “-”) and the mass holder to the “plus” socket (marked with the symbol “+‘”). Then plug the gas and control plugs into the appropriate sockets. Place the non-melting electrode in the TIG handle body. The mass wire clamp closes the circuit and should be pinned relatively close but collision-free distance from the welding area (in case of greater or too close distance, it is possible to accidentally detach the clamp! ). Then connect the power plug to the single-phase power supply network (230V, 50Hz) and turn on the welding machine with the ON/OFF button. After the steps are taken, the device is ready to work.

⏩ EUROCONNECTOR

Standard welding torch connection that allows you to connect various types of torches (e.g. prepared for welding Aluminum by replacing the Teflon cartridge and current tip).

⏩ Professional wire feeder

Professional 2R feeder - reliable and precise wire feeding, thanks to the use of a professional feeder - ensures smooth wire feeding to the handle and stable welding parameters.

⏩ PULSE WELDING MODE (PULSE)

In the case of MIG welding, two pulse welding modes are also possible - single pulse (PMIG) Used for welding most materials available on the market (black steel, aluminum, "stainless steel", non-ferrous metal alloys). On the example of aluminum, the connection to work is similar to black steel.

Important differences are other working parts in the handle and feeder. For this purpose, it is necessary first of all to replace the feeder roll with a properly adapted for aluminum (usually it has the symbol “U”).

For the welding torch, replace the wire spiral (long tube covering the wire in the MIG handle wire, color-coded depending on the wire diameter) with a Teflon cartridge (photo below, red Teflon). In addition, after extending the gas nozzle from the handle pipe, replace the current tip there with a suitable aluminum for welding (usually with the designation “AL”).

Place the corresponding AlMg5 or AlSi5 wire spool in the feeder chamber and, as with steel material, pull the wire through the feeder and the entire welding torch wire.

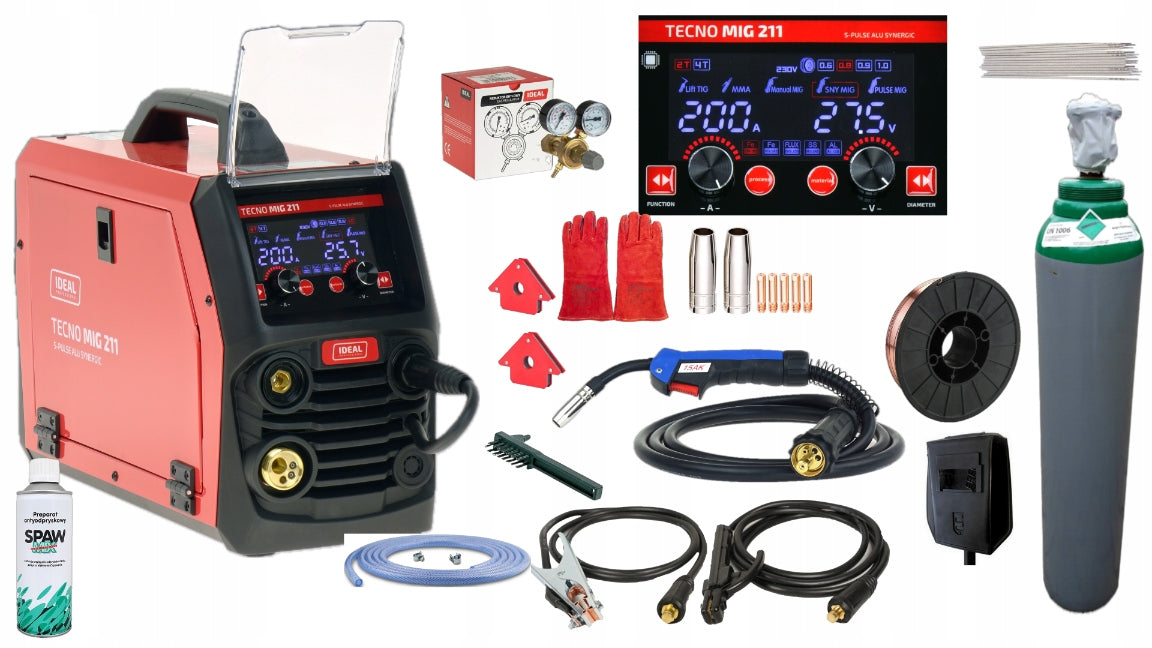

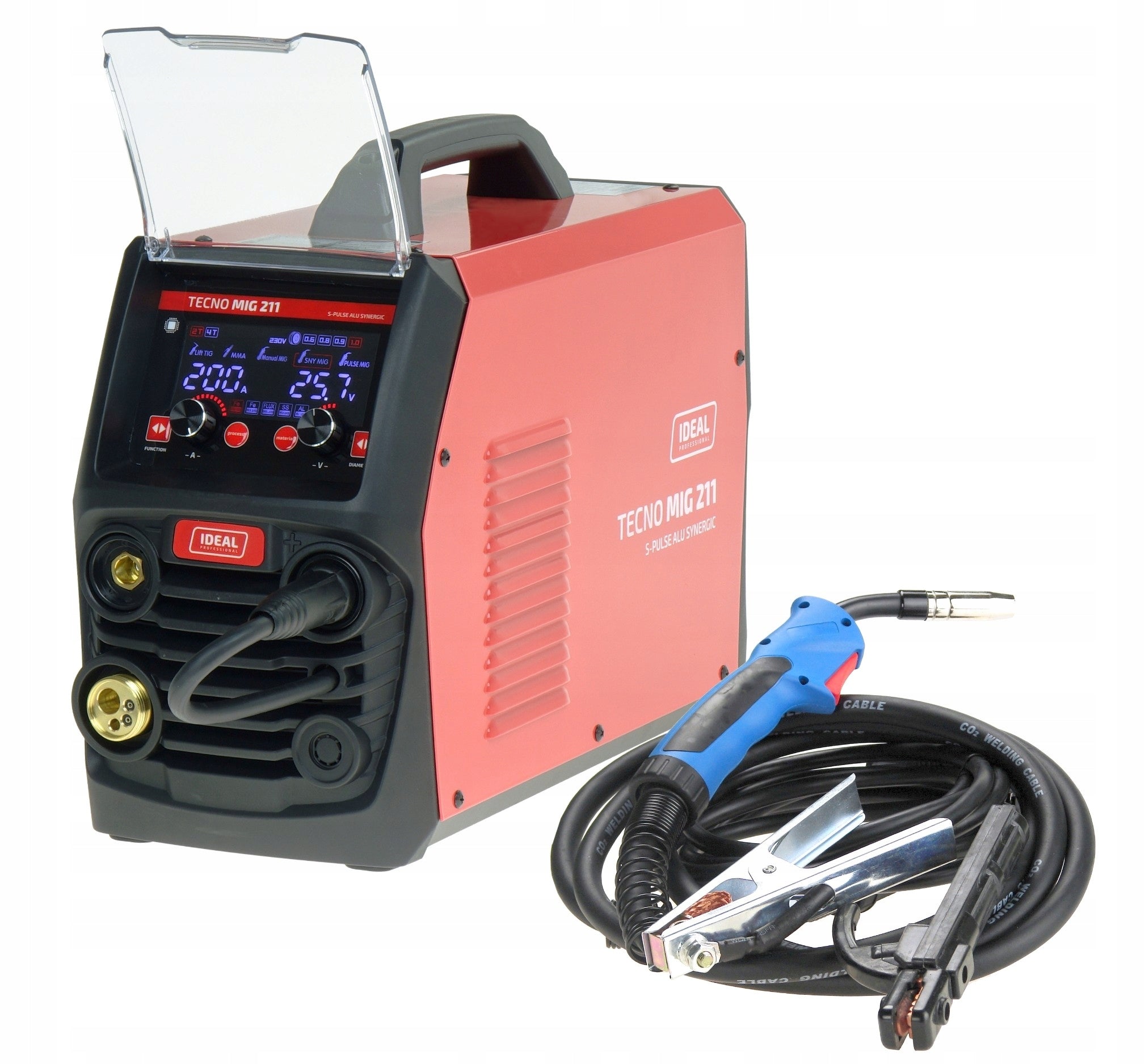

Delivery includes a device with a professional welding torch

• MIG 15 with a length of 3 meters
• electrode cable with a length of 2 meters,
• mass cable with a length of 2 meters,
• 0,8-1,0 wire feed rollers for steel
• consumables of the welding torch
• brush hammer
• 8 mm hose connector for connecting a gas pipe
• Welding wire Sg2 0,8/5 KG
• Anti-chipping SPRAY
• Welding gloves
• Mini reducer
• The new 8l cylinder filled with CO2/AR Butle and valves are brand new. Painted according to Polish Standard. Bottles filled. Very light and efficient. Cylinders and valves meet EN 1964-1. Legalization 10 YEARS Interchangeable at a local distributor
• 2 welding angles 12 Kg

• Power supply network protection: C20A
• Rated supply voltage: 230 V; 50Hz (1ph)
• Power: 6,3 kW
• Idle Voltage: 62 V
• Maximum current: 200 A
• Current at 100%: 155 A (MIG/TIG) / 139 A (MMA)
• Current at 60% operation: 200 A (MIG/TIG) / 180 A (MMA)
• Aluminium wire diameter: 0,9 - 1,2 mm (MAN/SYN) / 1,0 mm (PULS)
• Self-shielding wire diameter: 0,6 - 1,0 mm (MAN/SYN)
• Steel wire diameter: 0,6 - 1,0 mm (MAN/SYN)
• Stainless steel wire diameter: 0,8 - 1,0 mm (MAN/SYN)
• Welding electrode diameter: 1,6 - 4,0 mm
• Welding Current Adjustment Range: 30 - 200 A (MIG) / 15 - 200 A (TIG) / 20 - 180 A (MMA)
• Wire spool size: D100 (0,45kg and 1kg), D200 (2kg and 5kg)
• Degree of protection: IP21S
• Weight of the device / set: 9,5 / 13,5 kg
• Overall dimensions L x W x H: 460x205x350 mm
• Package Dimensions L x W x H: 550x230x365 mm

IDEAL

Ideal is a leader in the welding equipment sales industry, offering a wide range of high-quality equipment designed for professionals and welding enthusiasts. Thanks to cooperation with renowned manufacturers, the company provides innovative technological solutions that are characterized by reliability, efficiency and safety. The offer includes m.in. MIG/MAG, TIG welding machines, electrodes, accessories and consumables.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	IDEAL
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Device weight	15 kg
Parametry	Welding range	30–200 A
Parametry	Product weight with unit packaging	18 kg
Parametry	Manufacturer code	211
Parametry	EAN (GTIN)	5903991100405
Parametry	Customs tariff code	85153918
Parametry	Packaging status	original
Parametry	Model	211
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	transport wheels,infinitely adjustable welding current,EURO holders,LCD display
