Pristatymo terminas visoje Lietuvoje: 5-7 d.d.
Pristatymo kaina nurodytu adresu: 3 eur
Aprašymas
Trumpai apie prekę
Prekė: Suvirinimo aparatas Weldman ARC 203 IGBT MMA, 200A, 230V. Kategorija: Invertoriniai suvirinimo aparatai.
- Gamintojas: Weldman
- Modelis: 103011 WELDMAN
Weldman | MMA | 230 V | 200 A / 60% | DC | Hot Start | Arc Force | Anti Stick | 3,5 kg | IGBT
- 2 m power cord with 230V plug
- welding wire 2 m with electrode holder 200A (DX50)
- 1,6 m mass cable with 300A terminal (DX50)
- instruction manual in Polish

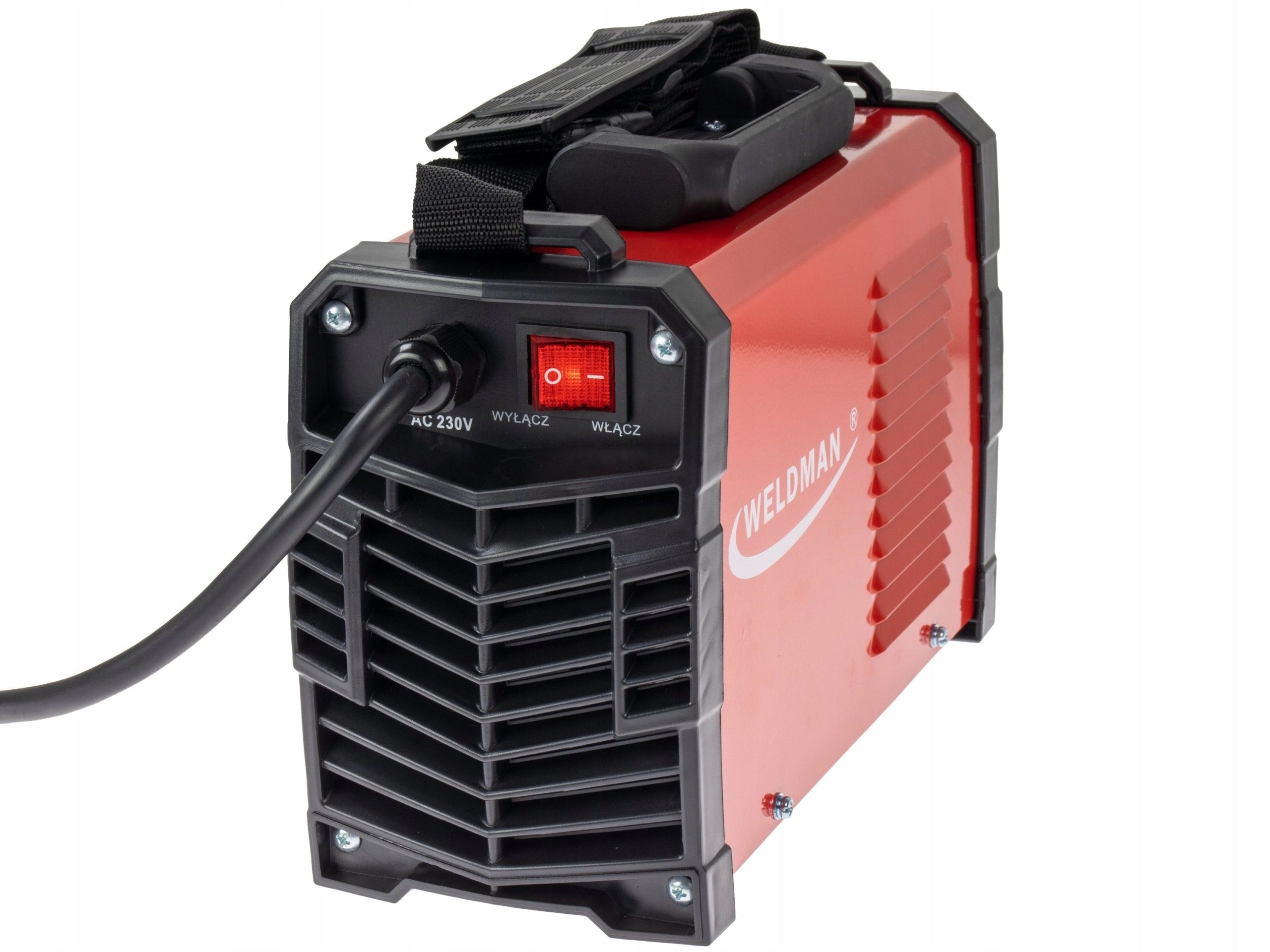

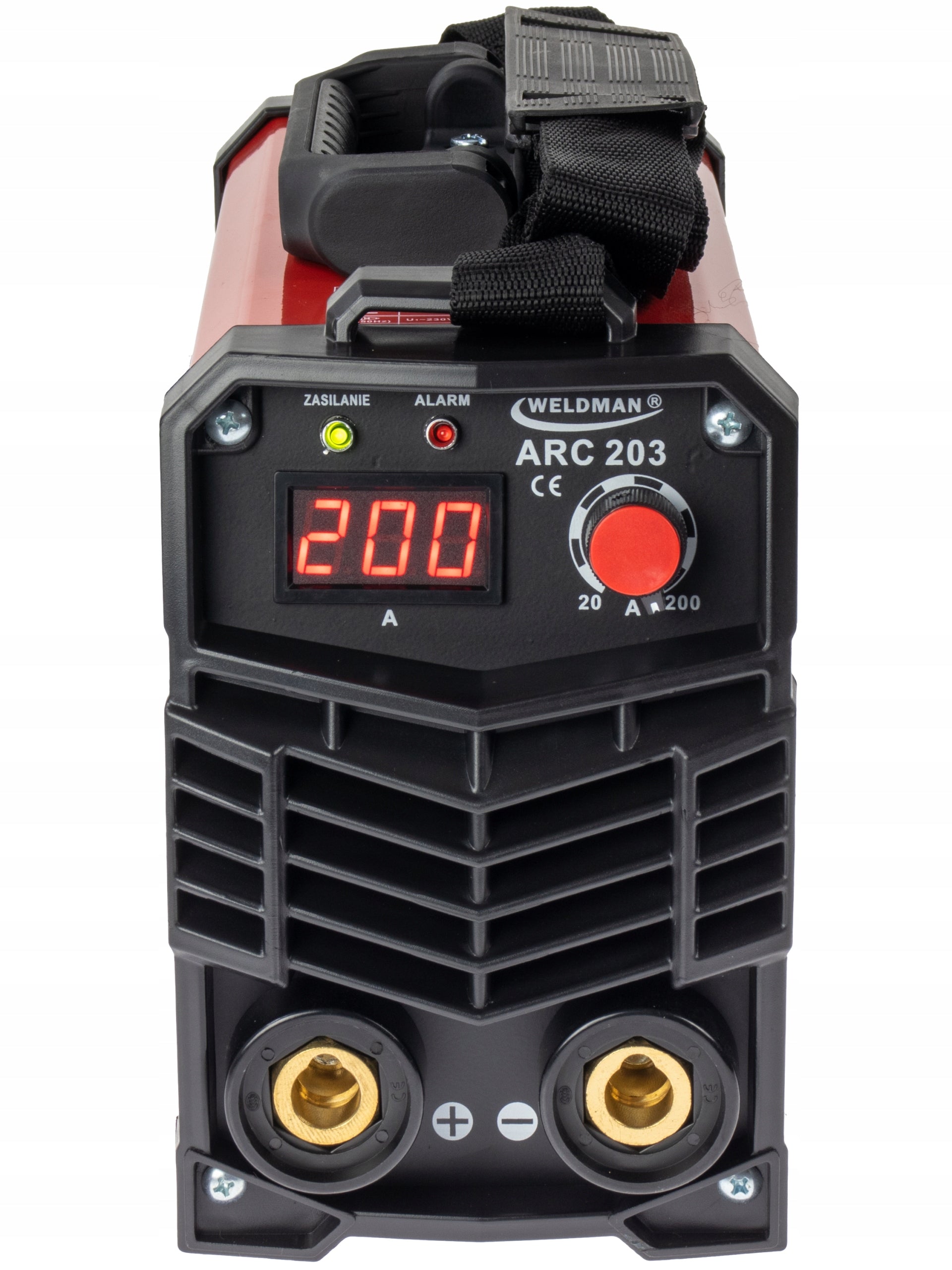

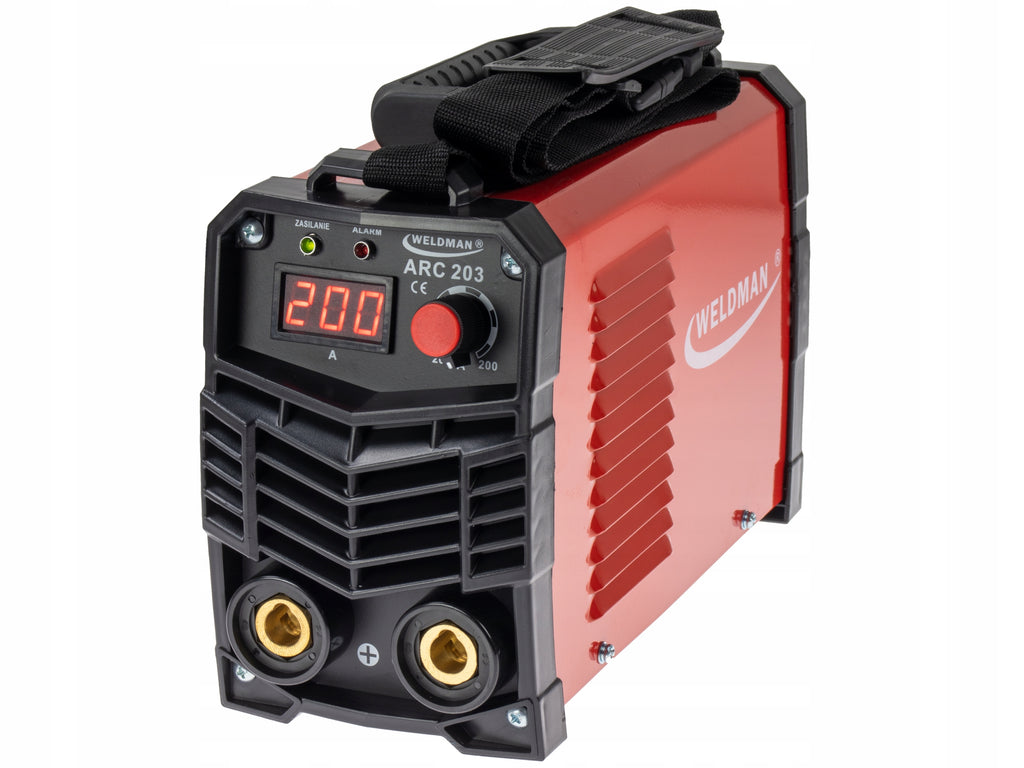

Weldman ARC 203 inverter welder made in IGBT technology for welding with DC electrodes.
Designed for welding with rutile and alkaline electrodes up to 4 mm of various steel grades (low carbon, low alloy, stainless, etc. ) and cast iron.

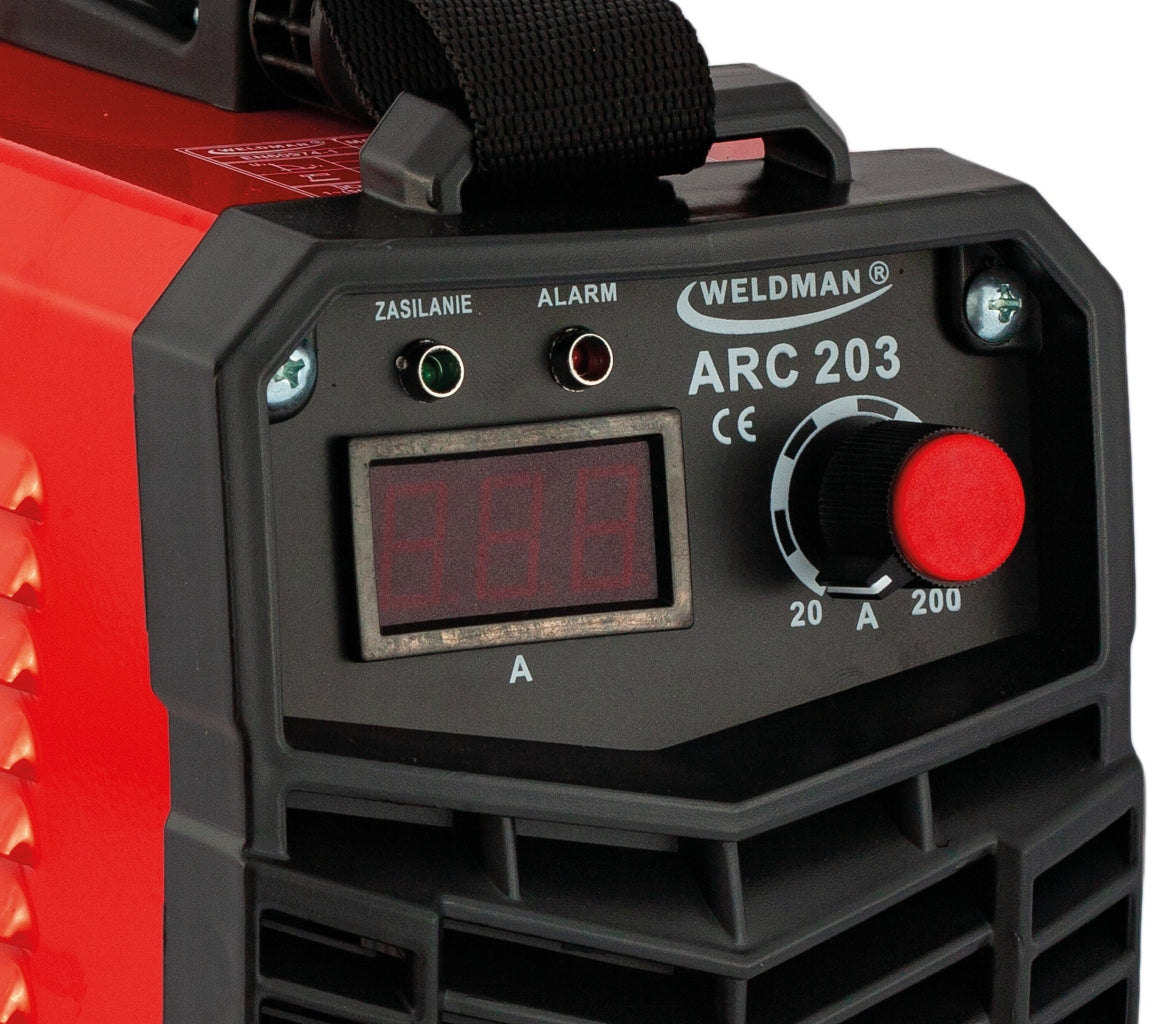

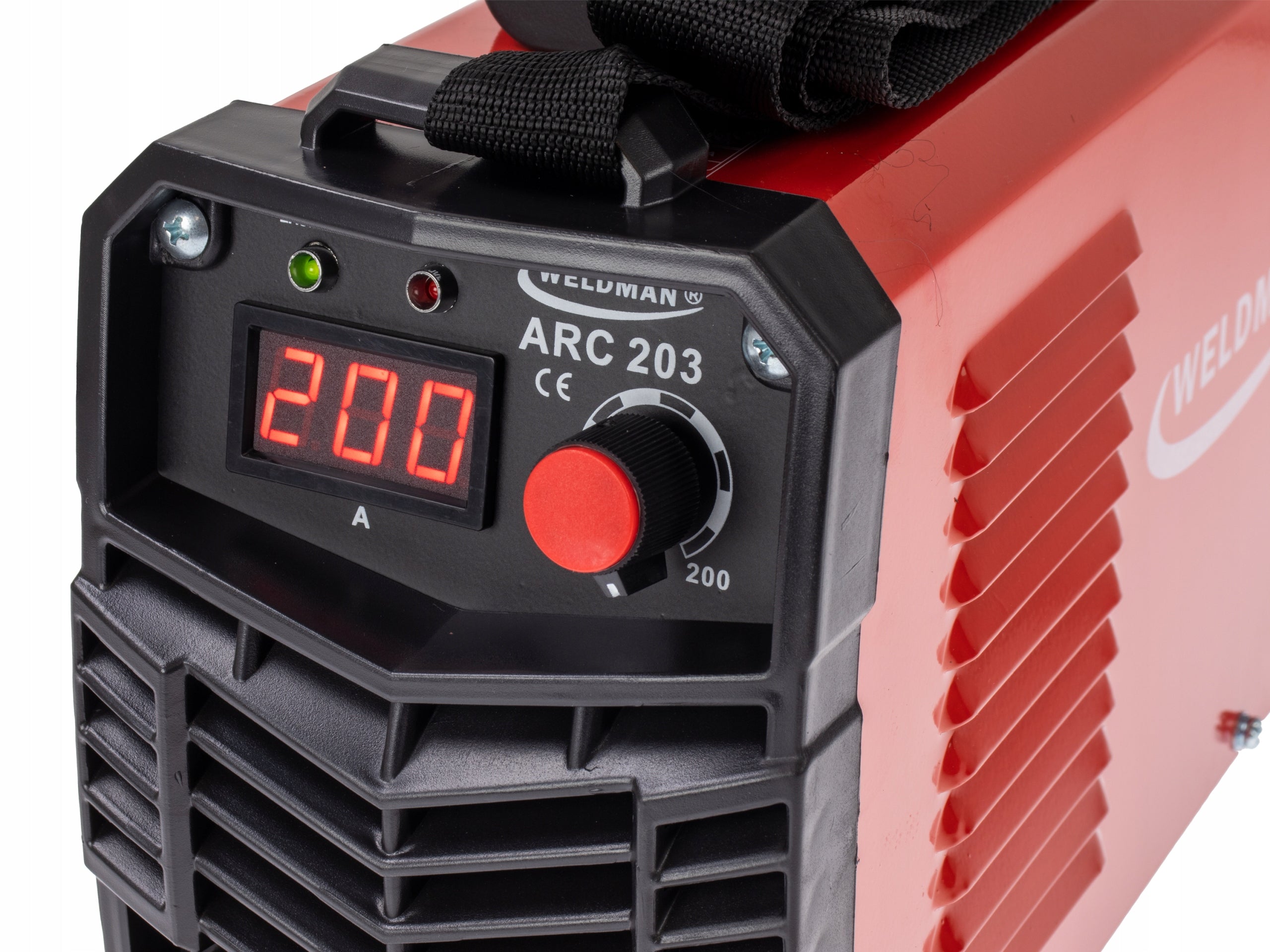

The welder has a digital display of welding current, equipped with a simple system of lights. LEDs on the front panel indicate that the power supply is connected (green LED) or turned off due to overload (red LED).
The device is equipped with electronically controlled smooth regulation of welding current and special protection of equipment against overload (overvoltage, undervoltage, overload and overcurrent).
The welder has functions to facilitate welding:
- HOT START (hot start) increases the welding current when arcing to facilitate electrode ignition.
- ARC FORCE (arch dynamics) shortens the arc length when increasing the welding current by optimizing the transfer of a drop of molten electrode to the welded material, preventing the arc from being extinguished when the electrode comes into contact with the welded material.
- ANTI STICK reduces welding current by preventing the electrode from sticking to the welded material.
The small and lightweight design makes the welding machine applicable in semi-professional repair work in workshop conditions as well as in field work.
Technical parameters
- Max. welding current [A]: 200
- Welding current range [A]: 20 - 200
- Current [A] / duty cycle [%]: 200 A/ 60%; 155 A/ 100%
- Power supply [V]: 230
- Idle voltage [V]: 56
- Degree of protection: IP21S
Functions
- Diameter fi [mm]: to 4,0
- Current adjustment: Smooth
- Anti Stick Function: Yes
- Arc Force function: Yes
- Hot Start Function: Yes
Physical parameters
- Weight: 3,5 [kg]
- Height: 190 [mm]
- Width: 125 [mm]
- Length: 300 [mm]
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Weldman |
| Parametry | Welding methods | MMA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Device weight | 3.5 kg |
| Parametry | Welding range | 20–200 A |
| Parametry | Length of ground cable | 160 cm |
| Parametry | Welding cable length | 200 cm |
| Parametry | Product weight with unit packaging | 4 kg |
| Parametry | Manufacturer code | 103017 |
| Parametry | EAN (GTIN) | 5902701751241 |
| Parametry | Model | 103011 WELDMAN |
| Parametry | Additional features | welding mask included,infinitely adjustable welding current,LCD display |
