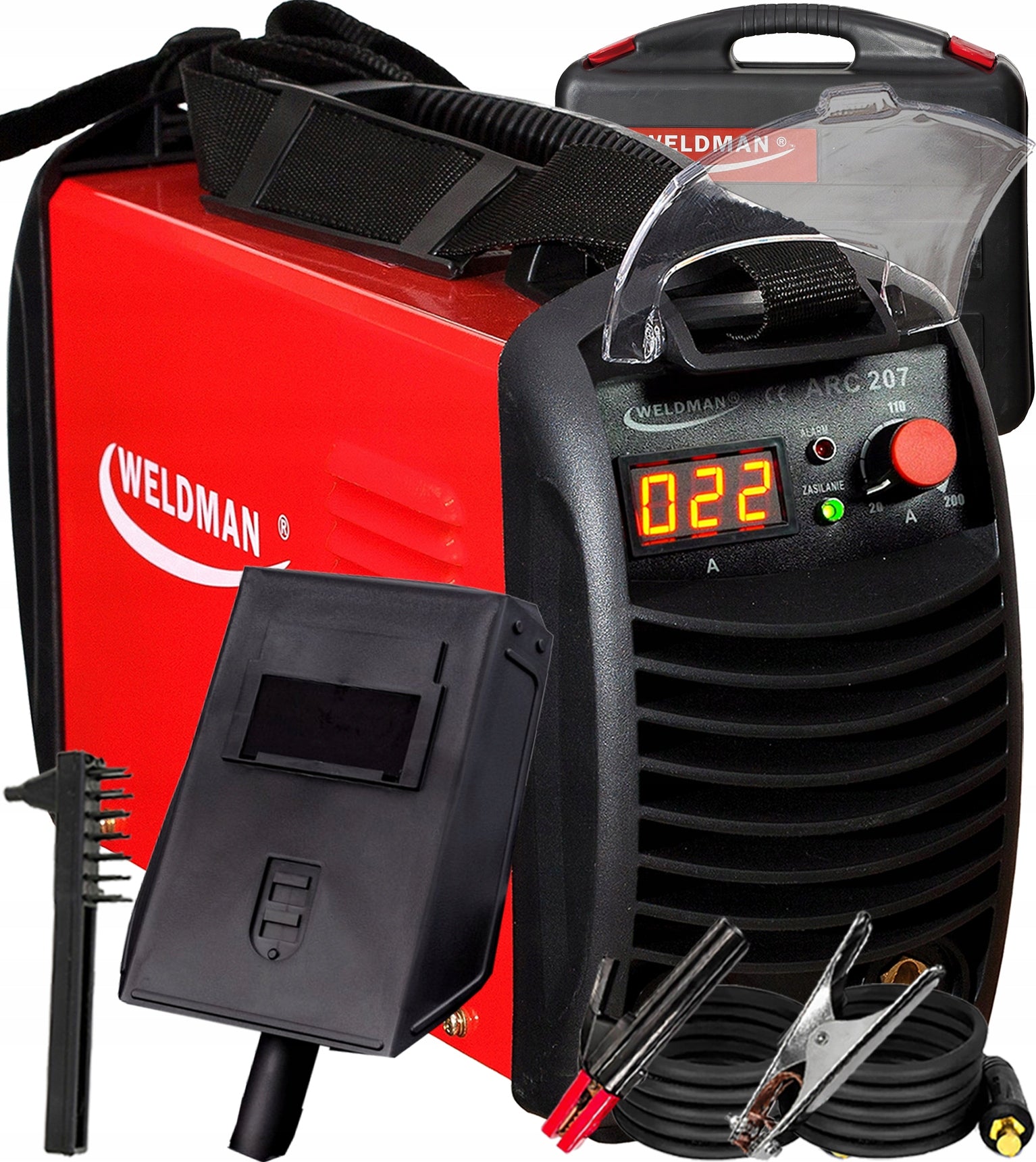

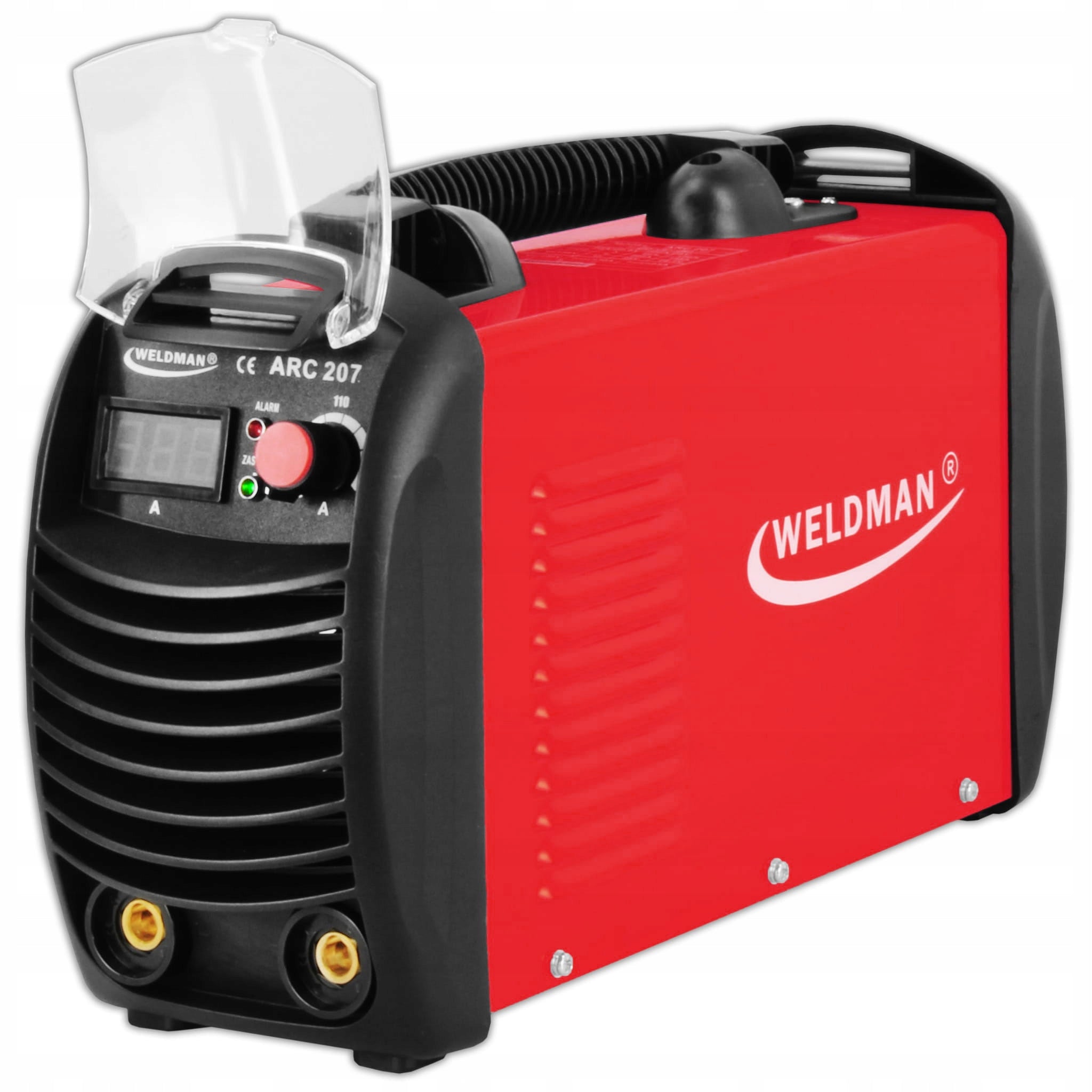

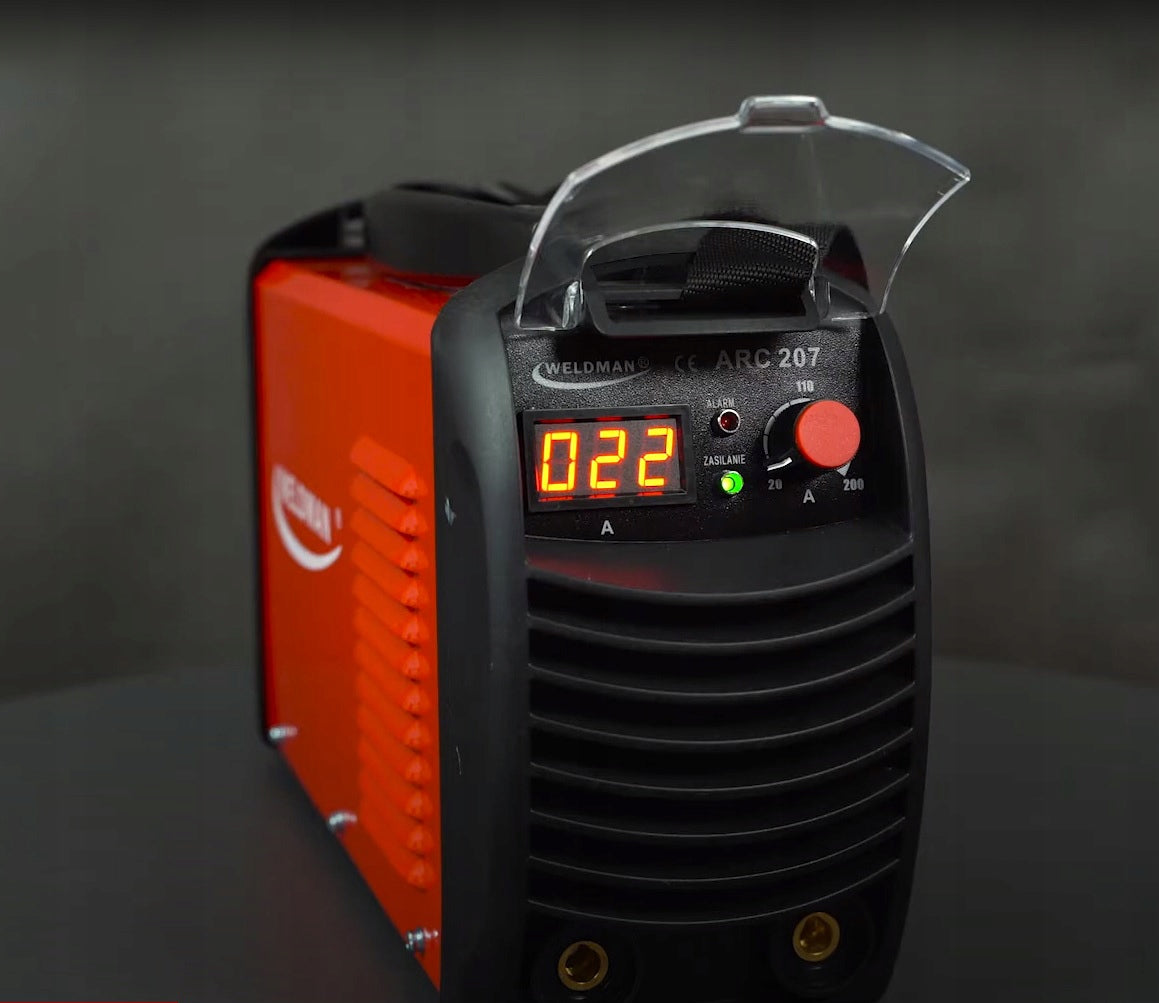

Suvirinimo aparatas WELDMAN ARC 207, 200A, 230V, su lagaminu

Trumpai apie prekę

Prekė: Suvirinimo aparatas WELDMAN ARC 207, 200A, 230V, su lagaminu. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: Weldman
• Modelis: spawarka inwertorowa MMA 103 014

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

WELDMAN ARC 207 - Single-phase powered inverter welding machine 230V made in IGBT technology, which allows welding using the following methods:

➡ MMA

• MMA - welding with wrapped electrodes (rutile, alkaline, acidic).

➡ TIG

• TIG LIFT DC - welding with a non-melting electrode in an inert gas shield.

The TIG method can be welded after connecting an additional handle, available at our auctions.

The device has a high maximum welding current of 200A, with a duty cycle of 60%, which allows welding elements with a thickness of up to 12mm.

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

WELDMAN ARC 207 is used for welding:

✔ low alloy steels,

✔ low carbon steel,

✔ alloy steels,

✔ cast iron steels.

The device is perfect for home workshops, during assembly work, as well as during hobby work.

⭐ IGBT INVERTER TECHNOLOGY - ang. Insulated Gate Bipolar Transistor - is a modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has the effect of significantly extending the reliable operation of welding equipment.

⭐ EASY TO USE - The welding machine is equipped with an easy-to-use control panel so it can be used even by amateurs.

⭐ FAN COOLING SYSTEM, which significantly increases its efficiency.

⭐ STRONG METAL HOUSING - reduces the risk of damage to the welding machine.

⭐ MOBILITY OF THE DEVICE - thanks to the light weight of the device and the handle and a solid shoulder strap allows welding in hard-to-reach places.

⭐ VERSATILITY - thanks to its high quality and multifunctionality, the device can be used in professional and hobby work as well as for light, casual workshop work.

➡ The device is equipped with overload protection, which increases its reliability.

❄ The device has a fan cooling system which significantly increases its efficiency.

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

IN ADDITION, THE DEVICE HAS THE FOLLOWING FUNCTIONS TO SUPPORT WELDING:

✅ ARC FORCE short-circuit current regulation - facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from extinguishing when the drop of electrode contacts the welding lake.

✅ HOT START - facilitates the ignition of the electrode by providing more welding current with each arc.

✅ ANTI STICK - short-circuit function - reduces the welding current to a minimum value when the welder makes a mistake and the electrode is glued to the welded material. This makes it easier to detach the electrode from the welded material and protects the electrode holder from damage.

The device has a clear, easy-to-use panel:

⚡ It has a digital display of welding current, equipped with a system of lamps that greatly facilitates work.

⚡ The LEDs on the front panel indicate that they are connected to the power supply (green LED) or switched off due to overload (red LED).

⚡ During operation, there is also electronically controlled smooth regulation of welding current and special protection of equipment against overload.

✔ REPAIR WORKSHOPS,

✔ ASSEMBLY SERVICES,

✔ FARMS,

✔ HOUSEWORK.

☀ VERSATILITY OF THE DEVICE ☀

The welding machine from WELDMAN, is a device with a wide range of applications, designed as an inverter power source enabling welding with the MMA buffer electrode, as well as the TIG Lift method.

✔ Welding MMA

In the MMA method, a wrapped electrode is used, consisting of a metal core covered with a sheath. An electric arc is produced between the end of the electrode and the welded material. Arching is created by touching the end of the electrode to the welded material.

✔ Welding TIG DC

In the TIG (Tungsten Inert Gas) method, the electric arc is ignitioned in an inert gas (argon) shield between the welded element and the non-melting electrode, made of pure tungsten or tungsten with additives. In TIG DC Lift mode, the arc glow occurs when the electrode comes into contact with the welded element. In TIG DC mode, the current is constant.

❗❗ The TIG method can be welded after connecting an additional handle, available at our auctions ❗❗

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

⏩ TECHNICAL DATA:

• Power supply voltage: 230V/50Hz
• Voltage in unloaded condition: 56V

⏩ MMA PARAMETERS:

• Welding current [A]: 20 - 200
• Power supply current max: 30A
• Power supply current effective: 23A
• Welding parameters: 20,8-28V
• Welding current voltage: 60% - 28 V
• Welding current voltage: 100% - 26,2 V
• Welding current: cycle 60% - 200A
• Welding current: cycle 100% - 155A
• Diameter of electrodes: 2 - 5mm

⏩ OTHER:

• Mass: 5.5 kg
• Security: IP 21S
• Dimensions [cm]: 38x12,5x24 cm
• Isolation class: F

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

• Inverter welder WELDMAN ARC 207
• Electrode cable MMA 2m (DX25) - 1 pc.
• Mass cable 1,6m (DX25) - 1 pc.
• Power cord 2m with plug 230V
• Plastic case
• Welding disc - 1 pc.
• User manual in Polish
• Warranty card

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

SET OF 1

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Weldman
Parametry	Welding methods	MMA
Parametry	Power consumption	7.2 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Device weight	5.6 kg
Parametry	Welding range	20–200 A
Parametry	Length of ground cable	160 cm
Parametry	Welding cable length	200 cm
Parametry	Product weight with unit packaging	6 kg
Parametry	Manufacturer code	spawarka inwertorowa MMA 103 014
Parametry	EAN (GTIN)	5905031037436
Parametry	Additional features	welding mask included,infinitely adjustable welding current,LCD display
