Suvirinimo aparatas Weldman ARC 207 MMA/TIG 200 A su lagaminu

Trumpai apie prekę

Prekė: Suvirinimo aparatas Weldman ARC 207 MMA/TIG 200 A su lagaminu. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: Weldman
• Modelis: ARC 207

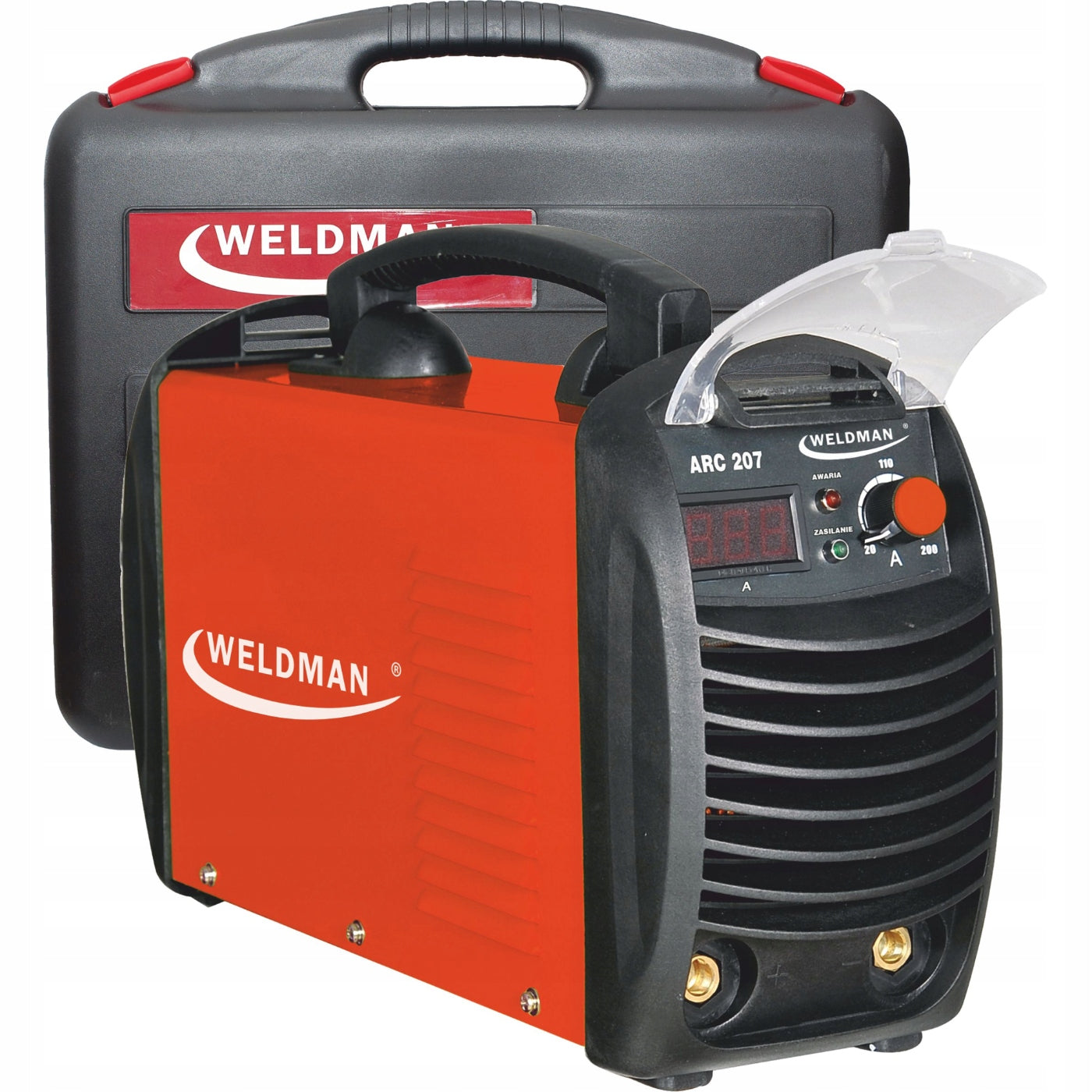

Inverter welder Weldman ARC 207 MMA/TIG 200 A + suitcase

WELDMAN

Inverter welding machine ARC 207for welding with DC electrodes and TIG lift.

Designed for welding with rutile and alkaline electrodes up to 5 mm of various steel grades (low carbon, low alloy, stainless, etc. ) and cast iron. The welding machine has a digital display of welding current.

The LEDs on the front panel indicate that they are connected to the power supply (green LED) or switched off due to overload (red LED). Electronically controlled smooth regulation of welding current. Overload protection.

The welding machine has functions to facilitate welding:

– HOT START: increases welding current when arcing to facilitate electrode ignition

– ARC FORCE (arch dynamics): shortens the arc length when increasing the welding current by optimizing the transfer of a drop of molten electrode to the welded material, preventing the arc from extinguishing when the electrode contacts the welded material

– ANTI STICK: reduces welding current by preventing the electrode from sticking to the welded material

The welding machine can weld by TIG method after connecting the handle with the gas valve. Tactile glow of the welding arc due to rubbing with a tungsten electrode against the welded material (TIG Scratch).

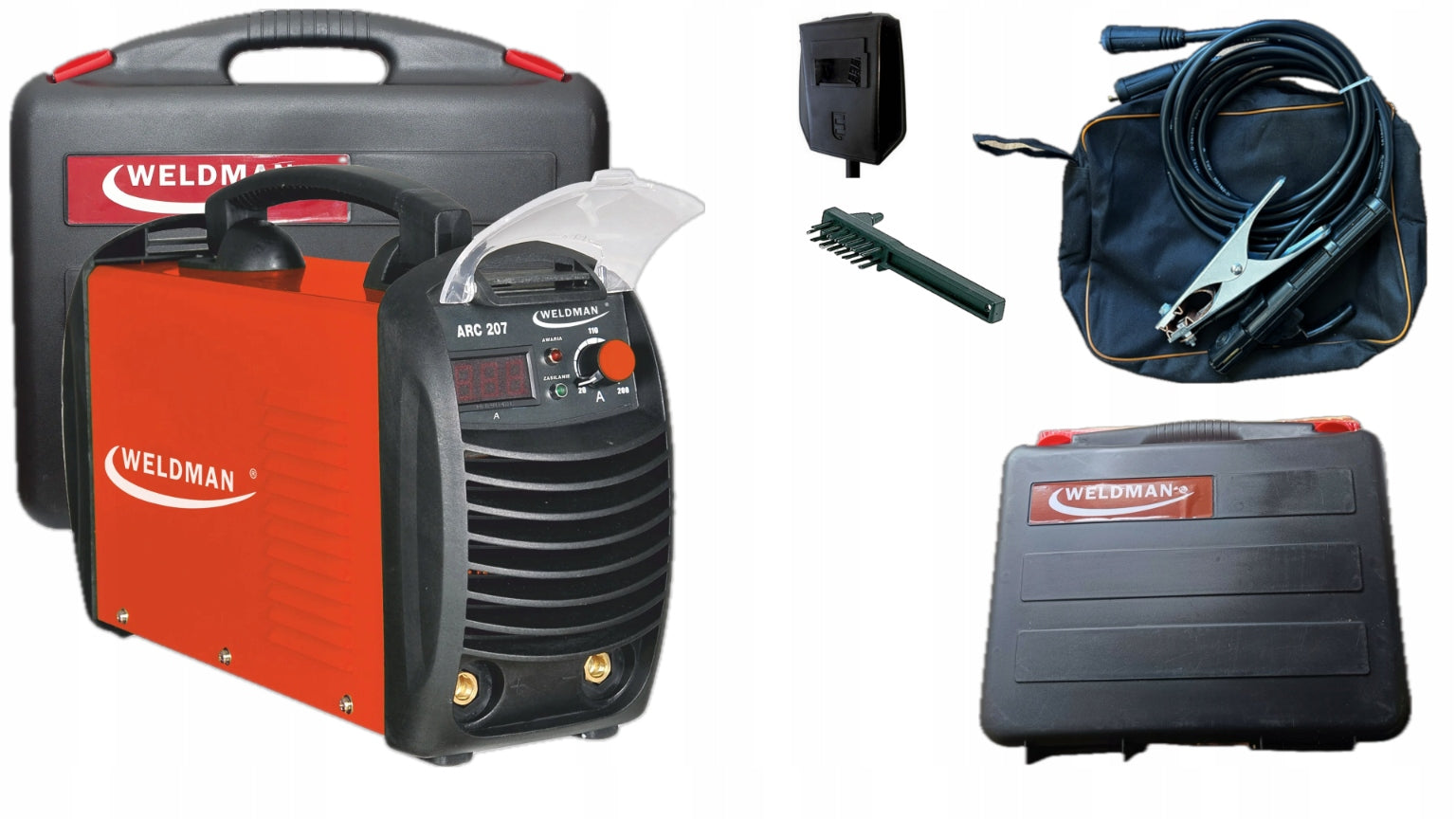

The welder is equipped with:

• 2 m power cord with 230V plug
• welding wire 2 m with electrode holder 200A (DX25)
• mass cable 1,6 m with terminal 200A (DX25)
• welding disc
• hammer for upholstery
• plastic case

Technical data

• Code: 103 014
• Device type: ARC 207
• Power supply voltage [V]: 230
• Idle current voltage [V]: 56
• Welding current adjustment range [A]: 20-200
• Diameter of electrode [mm]: 2-4
• Protection class [IP]: 21
• Dimensions [cm]: 38×12,5×24
• Weight [kg]: 5,5
