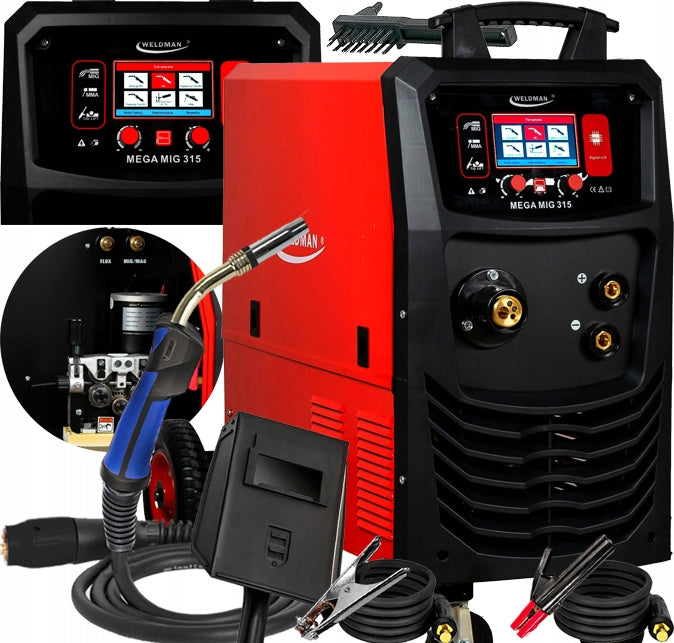

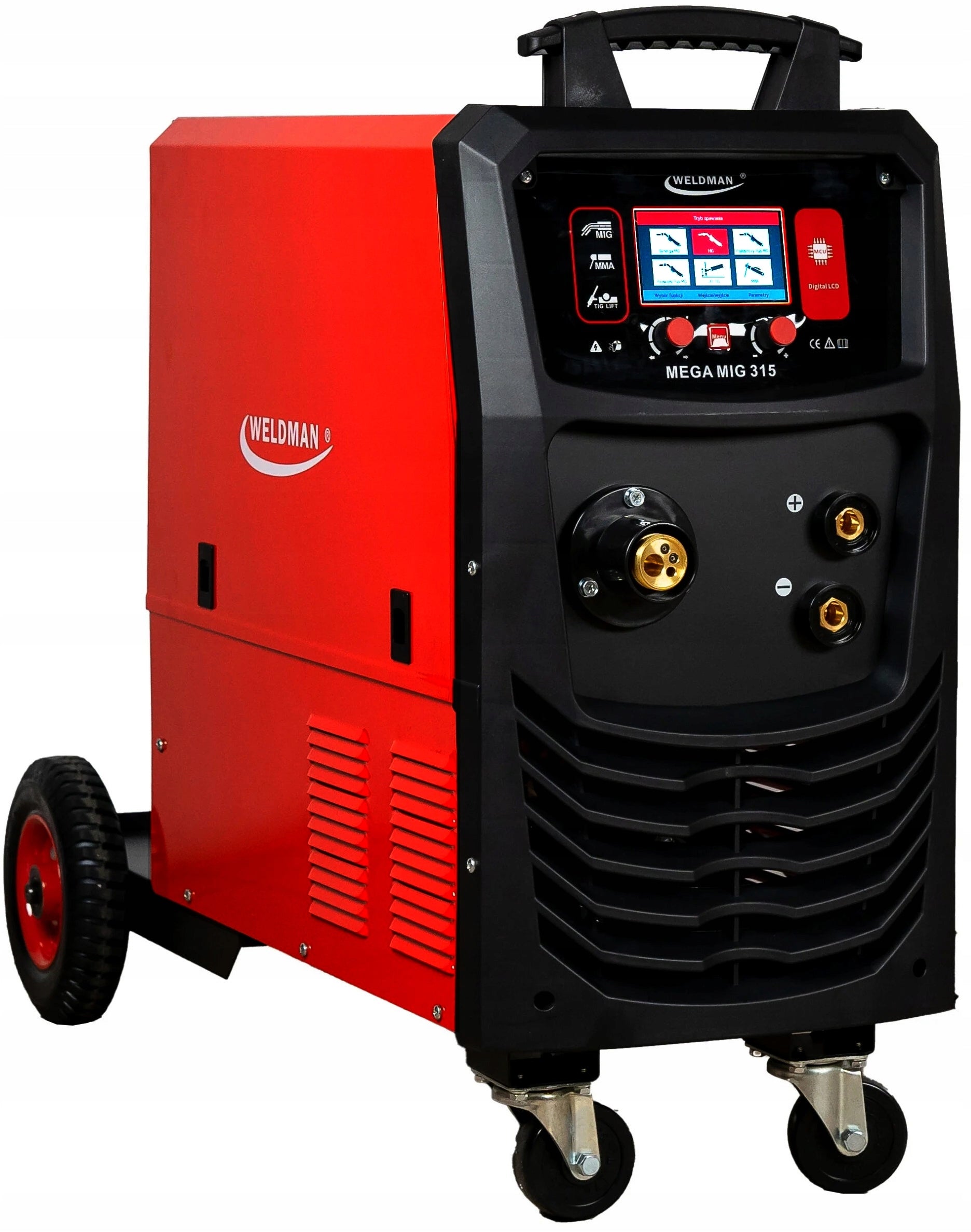

Suvirinimo aparatas WELDMAN MEGA MIG 315 4x4, sinchronizuotas, dvigubo impulso

Trumpai apie prekę

Prekė: Suvirinimo aparatas WELDMAN MEGA MIG 315 4x4, sinchronizuotas, dvigubo impulso. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Weldman
• Modelis: 103 119
• Ilgis: 76 mm
• Plotis: 40 mm
• Aukštis: 90 mm

WELDING MACHINE MEGA MIG 315 LCD 4×4 SYNERGY DUAL PULSE

it is a professional, technologically advanced semi-automatic welding machine designed for welding using the following methods:

➡ MIG/MAG:

Arc welding in gas shields (CO2 or Argon+CO2) is one of the most commonly used processes for the production of welded structures. The semi-automatic welding process involves melting the edges of the welded object and the welding material (welding wire on a roll) with an electric arc produced between the welding wire fed by the handle and the welded material.

Available Modes:

• MIG PULS - synergistic settings with single pulse,
• MIG 2-PULS - synergistic settings with double pulse,
• MIG SYN - MIG/MAG welding with synergistic settings,
• MIG MAN - MIG-MAG welding with manual settings.
• FLUX / FCAW - self-shielding wire welding. This is a similar welding process as MIG/MAG but does not require a gas cylinder. On the wire there is a thin layer of powder, which at the time of arc formation produces gas covering the working area.

➡ TIG LIFT DC - welding with a non-melting electrode (tungsten) in an inert gas shield (Argon) using an additional handle. In the TIG DC Lift mode, the arc glow occurs when the electrode with the welded element is contacted (the button in the handle does not ignite the arc, the gas is connected directly from the reducer to the handle). In TIG Lift DC mode, the current is constant.

➡ MMA - classic welding with wrapped electrodes (rutile, alkaline, acidic).

The MEGA MIG 315 LCD 4×4 SYNERGY DUAL PULS welder is used for welding:

✔ stainless steels (MMA, MIG/MAG, TIG Lift DC),

✔ low carbon steel (MMA, MIG/MAG, TIG Lift DC),

✔ low alloy steels (MMA, MIG/MAG, TIG Lift DC),

✔ cast iron (MMA, MIG/MAG, TIG Lift DC),

✔ aluminium and its alloys (MIG),

✔ other weldable metals and alloys

The device has been designed for all kinds of welding work in automotive, locksmith, repair, industrial workshops etc.

WELDMAN MEGA MIG 315 LCD 4x4 SYNERGY DUAL PULS has readable and easy to use function panel, which has m.in.:

• Color LCD display,
• Left knob ( ← / → ) - change parameter in settings menu / gas test,
• Button Menu (back to the choice of welding mode - main menu),
• Right knob ( - / + ) - adjusting the value of the selected parameter in the settings menu /wire extension.

On the back panel there is:

• Power cord socket 230V,
• Power main switch,
• Power socket AC 36V,
• Socket for shielding gas connection (8 mm connector),
• Rated plate.

✔ INDUCTANCE ADJUSTMENT - function is useful during welding using the MIG/MAG method of thin elements, preventing them from burning out and soldering galvanized elements. Changing the inductance value also reduces the amount of welding chips during CO2 shielded welding. Thanks to the inductance adjustment, the welding machine is suitable for lutowelding. Depending on the model of the welding machine, the adjustment is automatic or can be adjusted manually.

✔ SYNERGY - is a very helpful feature available in professional welding equipment class PREMIUM. By setting the appropriate program or entering parameters, the device will independently select most welding settings, such as wire feed speed or appropriate voltage, according to the programmed data.

✔ DUAL PULS - provides better transfer of the binder into the welded material, which fundamentally improves control over the welding process and the quality of the weld itself. It allows you to work in all positions and is especially useful for forced positions. It provides less heat impact, works well in the case of thinner materials or those with increased thermal conductivity, such as: aluminium alloys. Reduces the amount of chipping. The most advanced welding method, in which current pulses occur in two ranges, thanks to which we obtain the optimal aesthetics of the weld face, the so-called. husk effect.

✔ PULS - Welding with pulsating current, in which high and low current are alternately used. This reduces overall heat supply and splatter while providing greater resistance to non-melting. This method can be used to weld both metals with high thermal conductivity and thinner metals without burning them. Additionally, you can get narrower and more penetrating welds on thicker metals.

✔ SPOT WELDING - It consists in making small area of joining materials of small thickness. Most often, spot welding of sheet metal is carried out. This procedure is also referred to as one-sided welding.

✔ TWO-BAR 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow.

✔ FOUR-BAR 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow.

✔ S2T - special two-bar with hot start and final current.

✔ S4T - special four-bar with hot start and final current.

✔ POST GAS - regulation of gas outflow time after welding arc extinction. This is a helpful feature to cover the welding lake. The lack of additional gas shielding may result in oxidation of the weld.

✔ PRE GAS - gas flow before arcing. Protects the lake from the harmful effects of atmospheric air. Regulation expressed in seconds.

✔ VRD - is a voltage reduction system whose task is to turn off the power supply within a few milliseconds after welding. This function is also responsible for reducing the voltage on the wrapped electrode to a safe level.

✔ EUROCONNECTOR - allows you to quickly change the handle and allows you to change the polarity for welding with self-shielding wire.

✔ INVERTER TECHNOLOGY IGBT - is a modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has the effect of significantly extending the reliable operation of welding equipment.

✔ WORK IN INDUSTRY - thanks to its high quality and multifunctionality, the device can be used in professional and hobby work.

✔ CONTROL PANEL - The welding machine is equipped with an easy-to-use control panel and display, so it can be used even by amateurs.

✔ CHASSIS - The semi-automatic machine is also equipped with a solid chassis, equipped with durable bearing wheels that guarantee high mobility and give the possibility of moving the welding machine on uneven ground.

EFFICIENT OPERATION THANKS TO PROFESSIONAL WIRE FEEDER

The welder is equipped with a solid wire feeder, which guarantees stability and continuity of operation of the device.

The 4x4 feeder allows precise extension of the welding wire excluding its slippage.

The feeder has a quick wire change knob as well as a wire feed roller.

➡ The device is equipped with overload protection, which increases its reliability.

❄ The device has a fan cooling system which significantly increases its efficiency.

⏩ TECHNICAL DATA:

• Power supply voltage: 400V/50Hz
• Power supply network protection: 3x 25A
• Idle voltage: 70 V
• Efficiency: 60%

⏩ MIG PARAMETERS:

• MIG/MAG welding current: 20 - 300 A
• Welding current at 60% operation: 300 A
• Welding current at work 100%: 232 A
• Current voltage at 60%: 29 V
• Current voltage at 100%: 25,6 V
• Power supply current max: 18,8 A
• Power supply current ef: 14,3 A
• Wire spool size: max 15 kg
• Wire feeder: 4x4
• Wire diameter for steel: 0,8/1,0/1,2 mm
• Diameter of wire for aluminium: 1,0/1,2 mm
• FLUX wire diameter: 0,8/0,9/1,0 mm

⏩ MMA PARAMETERS:

• Welding current MMA: 20 - 280 A
• Welding current at 60% operation: 280 A
• Welding current at work 100%: 217 A
• Current voltage at 60%: 31,2 V
• Current voltage at 100%: 28,7 V
• Power supply current max: 12,2 A
• Power supply current ef: 16,8 A

⏩ PARAMETERS OF TIG:

• Welding current TIG: 20 - 280 A
• Welding current at 60% operation: 280 A
• Welding current at work 100%: 217 A
• Current voltage at 60%: 21,2 V
• Current voltage at 100%: 18,7 V
• Power supply current max: 15,7 A
• Power supply current ef: 11,5 A

⏩ OTHER:

• Electrode diameter: 2,0/2,5/3,2/4,0/5,0/6,0 mm
• Cooling: fan
• Degree of protection: IP21
• Isolation class: F
• Weight of the device : 41,5 kg
• Dimensions: 90x40x76 cm

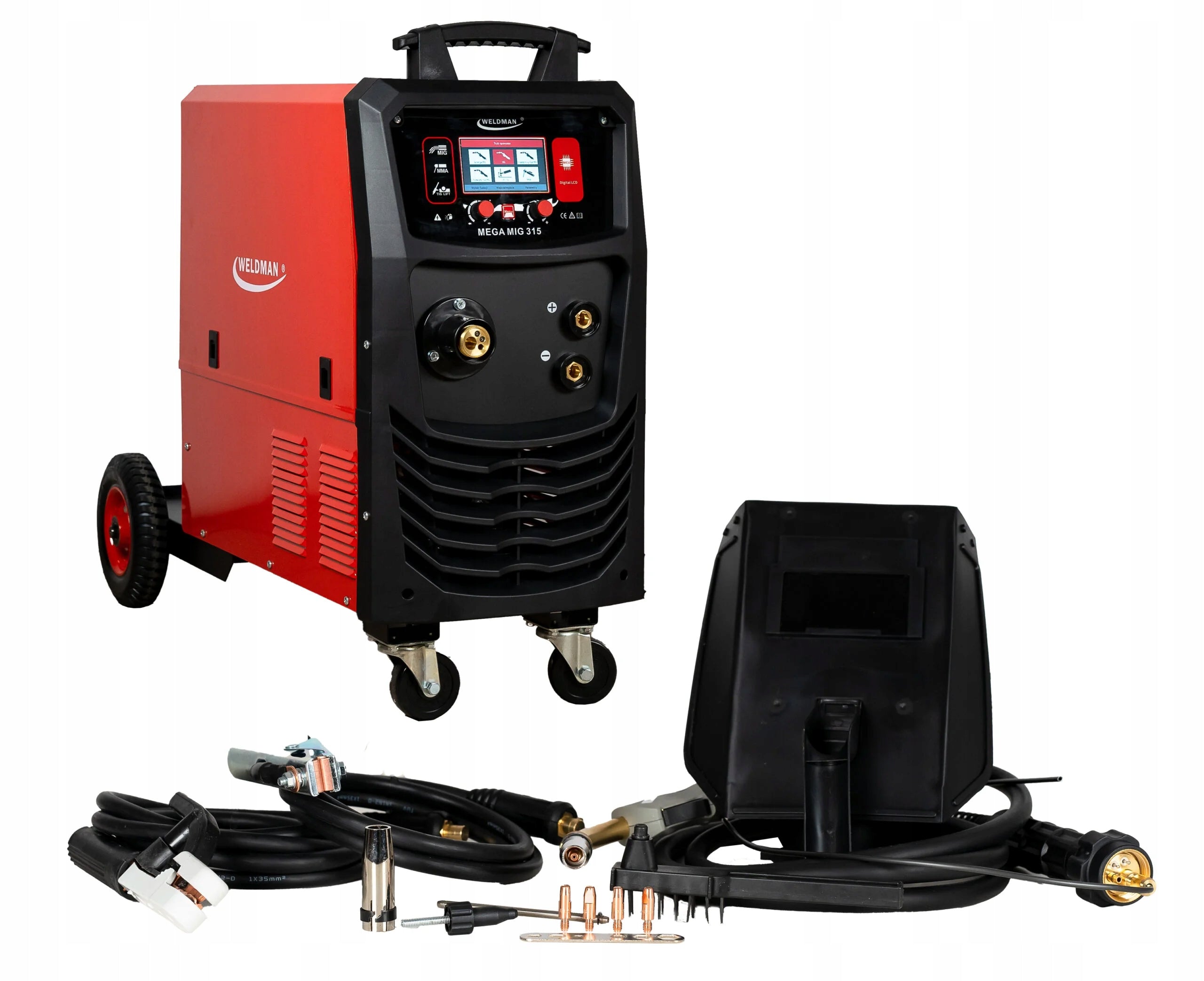

WHEN YOU BUY FROM US, YOU WILL RECEIVE:

• Welding machine WELDMAN MEGA MIG 315 LCD 4x4 SYNERGY DUAL PULS - 1 pc.
• Welding torch MB 24/3m (with Teflon insert) - 1 pc.
• Electrode cable - 1 pc.
• Bulk cable - 1 pc.
• 380V power cord without plugs - 2m
• 36V AC Heater Socket on Rear Panel
• Gas connection to technical hose - 8 mm
• Welding disc - 1 pc.
• Brush - 1 pc.
• Instruction service in Polish

SET 1 LARGE MIG INDUCTANCE MB24.

M.
