Aprašymas
Trumpai apie prekę

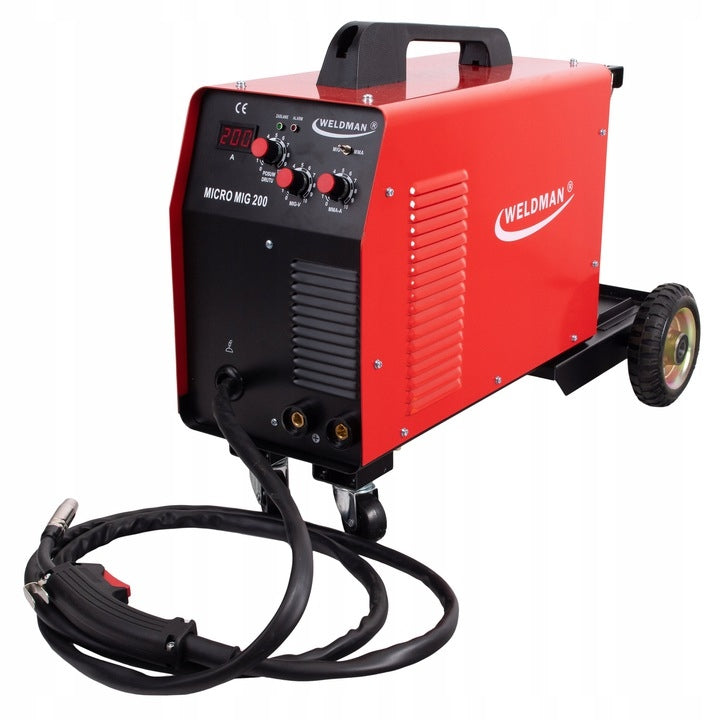

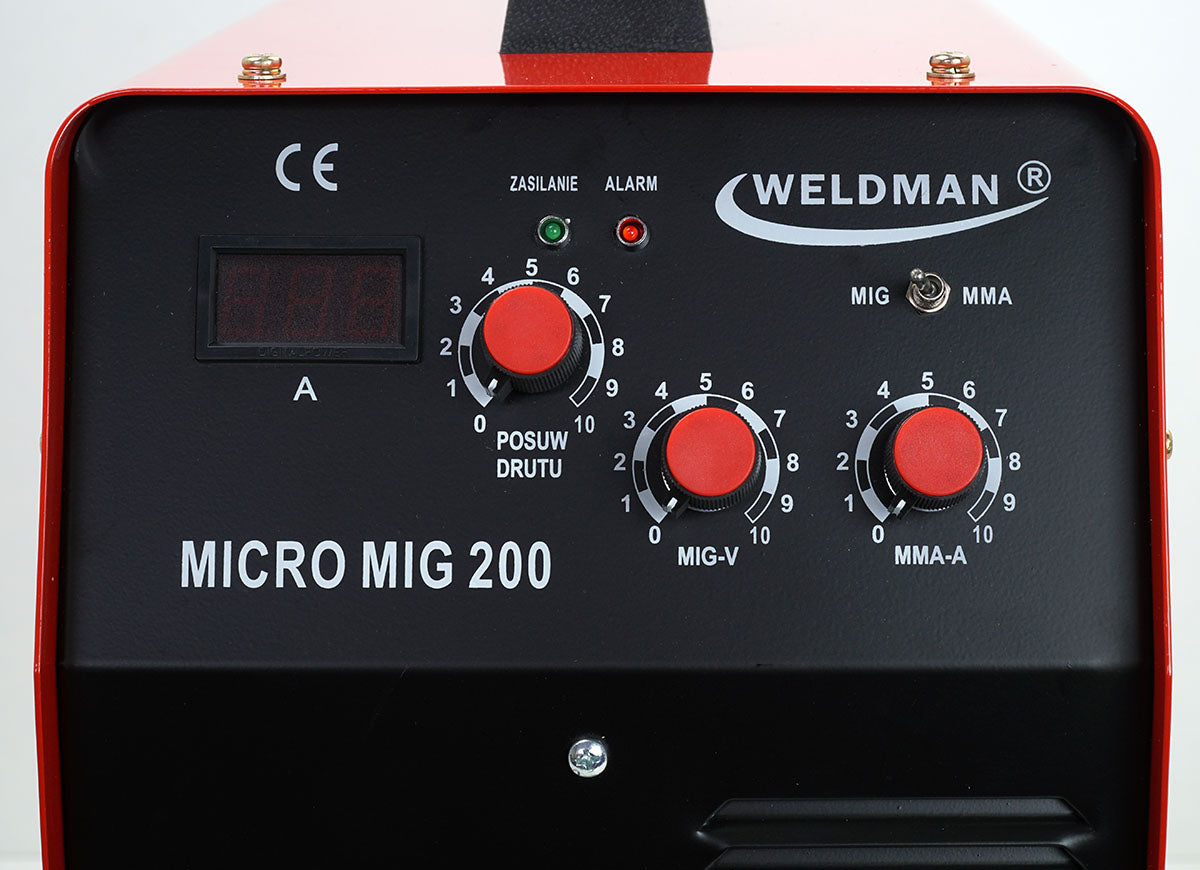

Prekė: Suvirinimo aparatas WELDMAN MICRO MIG 200A MMA TIG LIFT. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Weldman
- Modelis: MICRO MIG 200
- Ilgis: 680 mm
- Plotis: 320 mm
- Aukštis: 480 mm
Manufacturer: WELDMAN ||| Welding methods: MIG/MAG, FLUX, MMA ||| Maximum welding current: 200A ||| Power supply: 230V 1ph
MICRO MIG 200 is an inverter semi-automatic welding machine for welding using the following methods:
- MIG/MAG - semi-automatic welding in gas shield,
- FLUX - semi-automatic welding with self-shielding wire,
- MMA - welding with wrapped electrode,
MICRO MIG 200 was constructed using IGBT transistors, which translates into good and stable welding parameters. The device is powered from a single-phase 230V network, and most importantly allows welding current up to 200 amps for all welding methods.
This small inverter MIG is recommended for various types of sheet and workshop applications, it will also be suitable for welding various types of steel structures. Due to the simplicity of execution and usability, it will also be ideal for DIYers. Amazing price/quality ratio and price/possibilities.

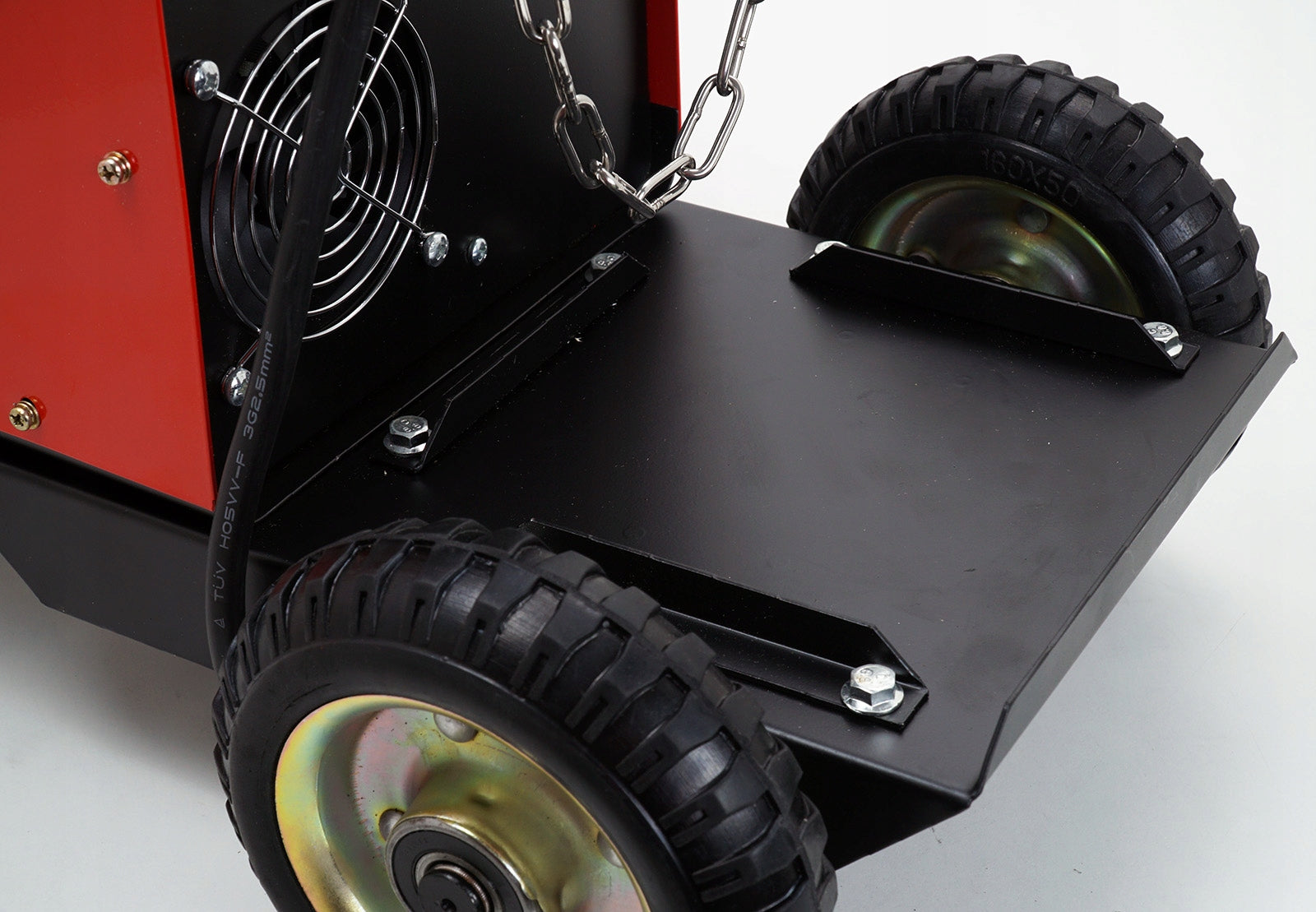

STRONG AND ROBUST DRIVING WHEELS
A solid chassis for a gas cylinder and strong driving wheels are a huge advantage of this device. The composed set with a gas cylinder can be moved freely around the workshop. Particularly noteworthy is the strong rear axle and a pair of front wheels with a torsion axle.
GOOD WIRE FEEDER 2R
The 2R wire feeder ensures reliable feeding of welding wire of various types, and this translates directly into good welding parameters.
CHANGE OF WELDING POLARITY ON THE MIG HANDLE
By changing the polarity of MIG/MAG welding, it is possible to weld with self-shielding wire without the use of gas. Changes can be made in a simple and convenient way.
BASIC:
- Supply Voltage: Single Phase 230V
- Technology: IGBT Inverter
- Degree of protection: IP 21S
- Dimensions: 680x320x480 mm
- Weight 19,0kg
MIG/MAG WELDING PARAMETERS:
- MIG/MAG welding current: 40 - 200A
- MIG/MAG duty cycle: 60% 170A, 100% 130A
- MIG/MAG welding voltage: smooth adjustment
- Wire feed speed: smooth adjustment
- Spool with wire: max 5kg (D100, D200)
- Steel wire diameter: 0,6 - 0,8 mm
- Stainless steel wire diameter: 0,6 - 0,8 mm
- Self-shielding wire diameter: 0,9 mm
- MIG/MAG welding polarity change: YES
WELDING PARAMETERS MMA:
- MMA welding current: 20 - 200A
- Electrode diameter: 1,6 / 2,0 / 3,2 / 4,0mm
- MMA Welding Current Adjustment: Smooth
- Idle Current Voltage: 56V
- Semi-automatic welding machine Weldman MICRO MIG 200 230V
- MIG fixed holder MB15 3m
- MMA Electrode Cable
- Bulk cable
- Welding mask
- Brush-hammer
- User manual
PHOTO GALLERY:
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Weldman |
| Parametry | Power consumption | 8.7 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Wire diameter (mm) | 0,6-0,8 |
| Parametry | Device weight | 19 kg |
| Parametry | Welding range | 40–200 A |
| Parametry | Height | 480 mm |
| Parametry | Length | 680 mm |
| Parametry | Width | 320 mm |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Manufacturer code | 103 105 MAPL |
| Parametry | EAN (GTIN) | 5907195564353 |
| Parametry | Model | MICRO MIG 200 |
| Parametry | Welding methods | MIG/MAG,MMA |
| Parametry | Additional features | transport wheels,infinitely adjustable welding current,LCD display |
