Aprašymas
Trumpai apie prekę

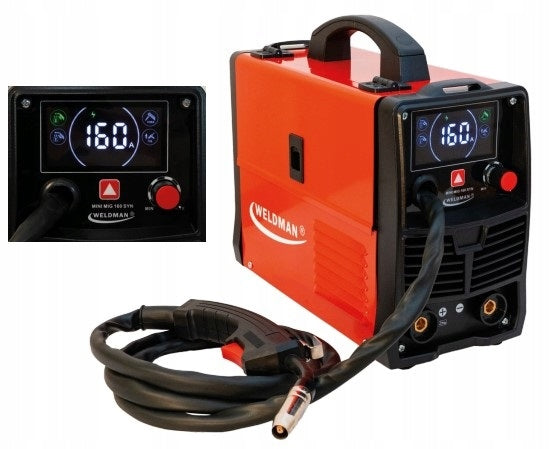

Prekė: Suvirinimo aparatas Weldman MIG 160A Synergy, MIG/MAG/FCAW/MMA. Kategorija: Invertoriniai suvirinimo aparatai.
- Gamintojas: Weldman
- Modelis: MINI MIG 160 SYN
WELDMAN MINI MIG 160 SYNERGY - SEMI-AUTOMATIC WELDING MACHINE
| Brand: WELDMAN| Welding methods: MMA, FLUX, TIG DC LIFT | Power supply: 230V | Welding current: 160A | Efficiency: 60% |
- Power Supply: 230V
- Welding Methods: FLUX, MMA
- Maximum welding current: 160A
- Working cycle: 60%
- Net weight: 5,6kg
- Degree of protection: IP21
- Idle current voltage 62 V
Welding parameters
- Welding Current: 35 - 160A
- Welding Voltage: 15,5-22V
- Parameter adjustment: smooth
- Wire diameter: 0,8 /0,9/1,0 mm
- Wire spool weight: max. 1kg - D100
Welding parameters TIG LIFT
- TIG LIFT 15A/10,4V-160A/16,4V
- Efficiency (at 40°C) 60%: 160 A
- Efficiency (at 40°C) 100%: 130 A
- Welding Current Voltage:16,4 V
Welding parameters MMA
- Efficiency (at 40°C) 60% 160A
- Efficiency (at 40°C) 100% 130A
- Welding current 160 A
- Welding Current Voltage 26,4 V
ADVANTAGES OF THE DEVICE:
- smooth regulation of welding current,
- synergy function,
- built-in fan - good air circulation,
- electric welding - no need to purchase gas cylinders,
- processes: MIG/MAG, MMA, TIG Lift
- compact dimensions and light weight.
Professional Wire Feeder
Professional 2R feeder - reliable and precise wire feeding, thanks to the use of a professional feeder - ensures smooth wire feeding to the handle and stable welding parameters.
Welding FCAW
The FCAW method is arc welding with core wire (powder). It is a welding method similar to the MIG/MAG method, except that the wire inside is filled with flux or a chemical that produces protective gases during welding. FCAW welding combines the advantages of both wrapped electrode welding and MAG welding.
The MINI MIG 160 SYNERGIA welding machine is a single-phase device made in accordance with innovative IGBT inverter technology. It is these features that distinguish this semi-automatic welding machine. What’s more, this product was created for welding by three methods:
- FLUX (without gas shield) – black steel
- MMA (DC electrode welding) – black steel, stainless steel, aluminium and cast iron
- TIG DC LIFT (contact arc glow) – black steel, stainless steel, copper and cast iron.

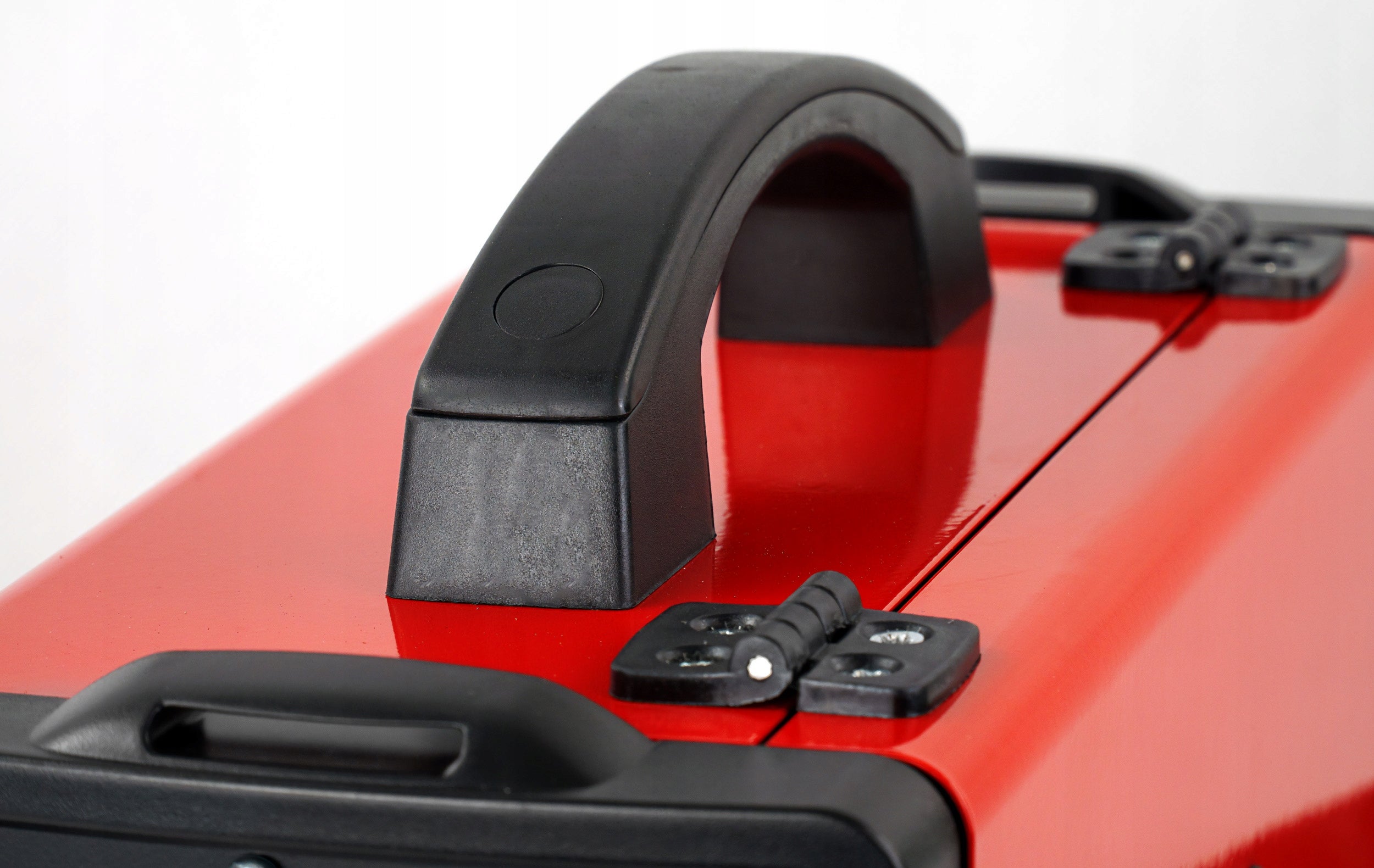

Thanks to its compact design, the welding machine will do its job both in and out of the halls. The welding machine also has a rigid handle for easy transport.
The device is used in closed or covered rooms, not exposed to direct weather conditions. It is designed mainly for amateur work and light casual workshop work.
STANDARD EQUIPMENT
- MINI MIG 160 SYNERGY welder
- Welding torch fixed 2 m (1,7 m outside welding machine)
- Mass cable 1,6 m with mass clamp 200A (DX25)
- 2 m cable with electrode holder 200A (DX25)
- 2 m power cord with 230V plug
- 230V power socket located on the rear panel
- Welding mask
- Welding brush
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Weldman |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Device weight | 5 kg |
| Parametry | Welding range | 35–160 A |
| Parametry | Length of ground cable | 160 cm |
| Parametry | Welding cable length | 200 cm |
| Parametry | Product weight with unit packaging | 6 kg |
| Parametry | Manufacturer code | 103128 |
| Parametry | EAN (GTIN) | 5902701751838 |
| Parametry | Customs tariff code | 85153918 |
| Parametry | Model | MINI MIG 160 SYN |
| Parametry | Welding methods | MIG/MAG,MMA |
| Parametry | Additional features | infinitely adjustable welding current,LCD display |
