Suvirinimo aparatas WELDMAN MIG/MAG/MMA IGBT, 230V, su rėmo komplektu

Trumpai apie prekę

Prekė: Suvirinimo aparatas WELDMAN MIG/MAG/MMA IGBT, 230V, su rėmo komplektu. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Weldman
• Modelis: WELDMAN MICRO MIG 200
• Ilgis: 68 mm
• Plotis: 48 mm
• Aukštis: 65 mm

MIG, MAG, MMA, FLUX | Power supply: 230V | Maximum welding current: 200A | Operating cycle: 60% | Manufacturer: Weldman

WELDMAN MICRO MIG 200 - A GOOD MIG FOR HOME AND WORKSHOP

Weldman MICRO MIG 200 hit the market of MIG devices for workshop and hobby work. This small size migomat has good welding parameters and great usability.

Quick glance at the advantages of the device:

• possibility of welding by methods: MIG/MAG in gas shielding, FLUX - self-shielding wire welding, MMA - welding with wrapped electrodes,
• maximum welding current 200A for all welding methods,
• It has a solid chassis for a cylinder with shielding gas.

It is currently one of the best welding equipment in its segment. More information in the description.

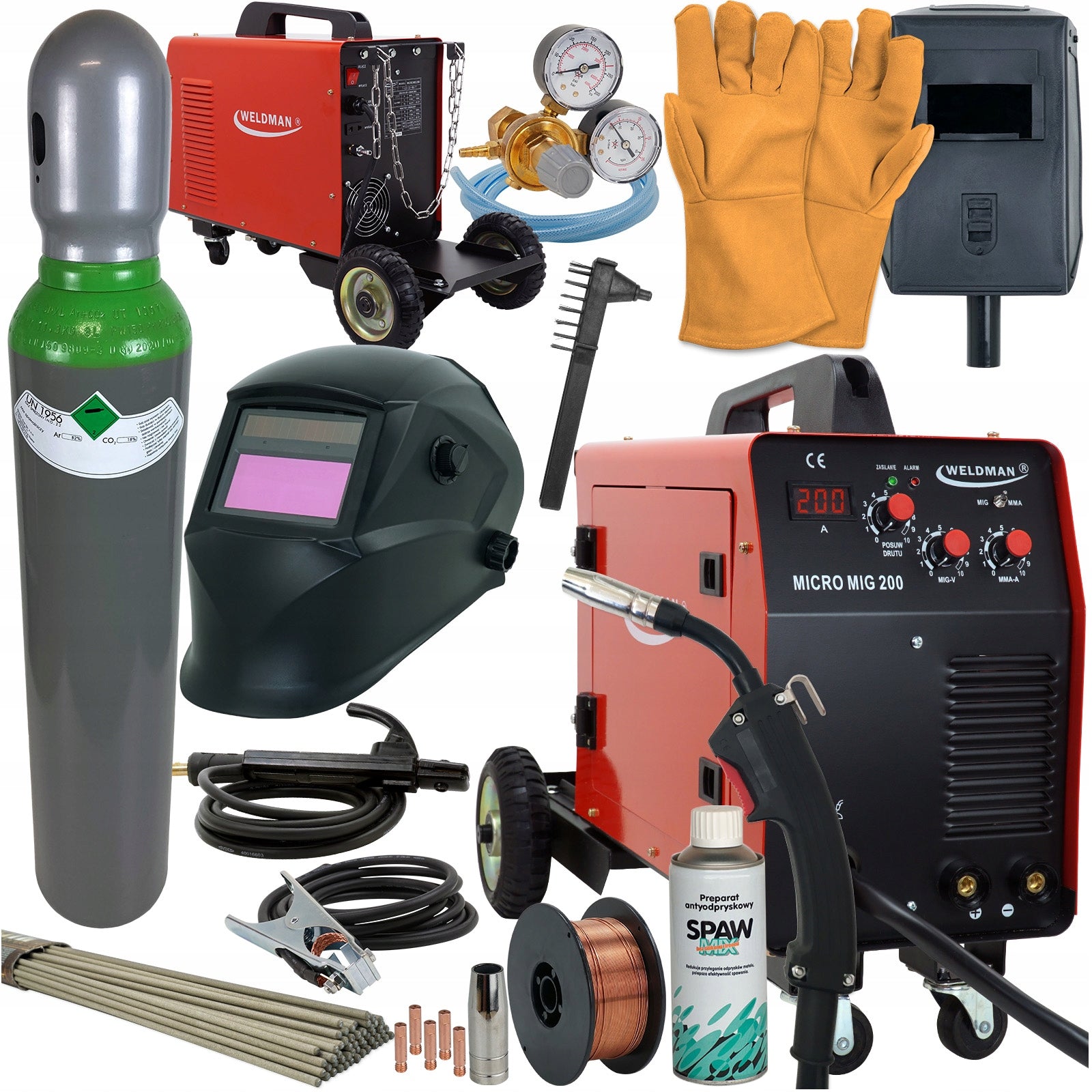

Welding kit with empty cylinder 8l + accessories + visor:

• contains an Ar/CO2 cylinder with a capacity of 8l,
• professional welding accessories for MAG welding,
• a set of accessories necessary for welding with MMA wrapped electrode,
• complete welding kit,
• additionally included self-tinting visor.

WELDMAN MICRO MIG 200 - THE PERFECT MIG FOR HOME AND WORKSHOP - CHECK OUT WHY...

MICRO MIG 200 is a small, inverter semi-automatic welding machine with excellent utility values. Designed and made typically for workshop and hobby work. The manufacturer has used numerous optimization solutions, thanks to which we can offer a device with sensational price / quality ratios.

MICRO MIG 200 enables semi-automatic welding with a hot melt electrode in a gas shield (MIG/MAG) and welding with self-shielding wire without gas. It can also be used as an MMA welding machine for welding with a wrapped electrode. The machine is made in inverter technology and is powered from a single-phase 230V network.

WHY YOU SHOULD CHOOSE:

• good choice for DIY and workshop applications,
• maximum welding current for all methods - 200 amps,
• possibility of welding with MMA wrapped electrode with a diameter of up to 4,0mm,
• high quality workmanship, durable construction, front steering axle, gas cylinder chassis,
• smooth regulation of welding parameters - welding voltage, wire feed, welding current,
• variable polarity of the MIG/MAG handle,
• set of welding wires included - MIG handle, mass cable, MMA handle,
• HIT! - integrated MIG holder with a cable length of 3m - probably the only such device on the market.

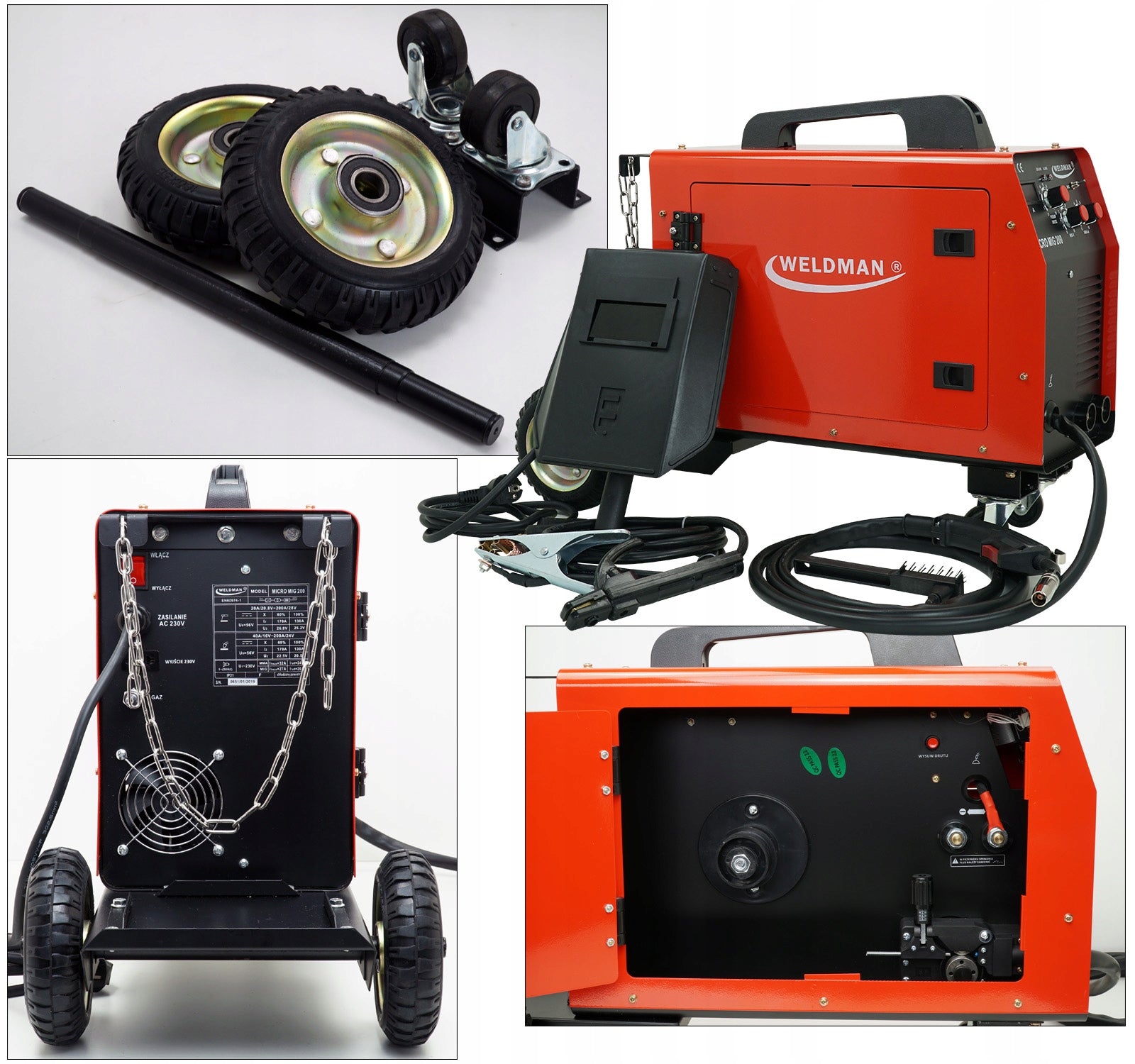

STRONG AND ROBUST RUNNING WHEELS

A solid chassis for a gas cylinder and strong driving wheels are a huge advantage of this device. The composed set with a gas cylinder can be moved freely around the workshop. Particularly noteworthy is the strong rear axle and a pair of front wheels with a torsion axle.

GOOD WIRE FEEDER 2R

The 2R wire feeder ensures reliable feeding of welding wire of various types, and this translates directly into good welding parameters.

CHANGE OF WELDING POLARITY ON THE MIG HANDLE

By changing the polarity of MIG/MAG welding, it is possible to weld with self-shielding wire without the use of gas. Changes can be made in a simple and convenient way. The manufacturer took care of readability and placed inside a short information on what polarity to use depending on the wire used.

• Supply Voltage: Single Phase 230V
• Technology: IGBT Inverter
• Degree of protection: IP 21S
• Dimensions: 680x320x480 mm
• Weight 19,0kg

MIG/MAG WELDING PARAMETERS:

• MIG/MAG welding current: 40 - 200A
• MIG/MAG duty cycle: 60% 170A, 100% 130A
• MIG/MAG welding voltage: smooth adjustment
• Wire feed speed: smooth adjustment
• Spool with wire: max 5kg (D100, D200)

• Steel wire diameter: 0,6 - 0,8 mm
• Stainless steel wire diameter: 0,6 - 0,8 mm
• Self-shielding wire diameter: 0,9 mm

• MIG/MAG welding polarity change: YES

WELDING PARAMETERS MMA:

• MMA welding current: 20 - 200A
• Electrode diameter: 1,6 / 2,0 / 3,2 / 4,0mm
• MMA Welding Current Adjustment: Smooth
• Idle Current Voltage: 56V

• Semi-automatic welding machine Weldman MICRO MIG 200 230V
• MIG fixed holder MB15 3m
• MMA Electrode Cable
• Bulk cable
• User manual

+ MAG WELDING KIT WITH EMPTY CYLINDER Ar/CO₂

• Ar/CO₂ 8 l cylinder – brand new, empty, has all the required approvals and approvals accepted by cylinder filling points.

• welding wire steel SG2 - 0,8mm (D100/1kg)
• Ar/CO2 reducer with two clocks,
• gas line.

+ WELDING ACCESSORIES

• welding gloves,
• professional anti-chipping preparation 400ml - for industry,
• spare parts of the MB15 burner.

+ PACK OF MMA WELDING ELECTRODES

• electrodes wrapped from a reputable manufacturer,
• pack of electrodes 1kg.

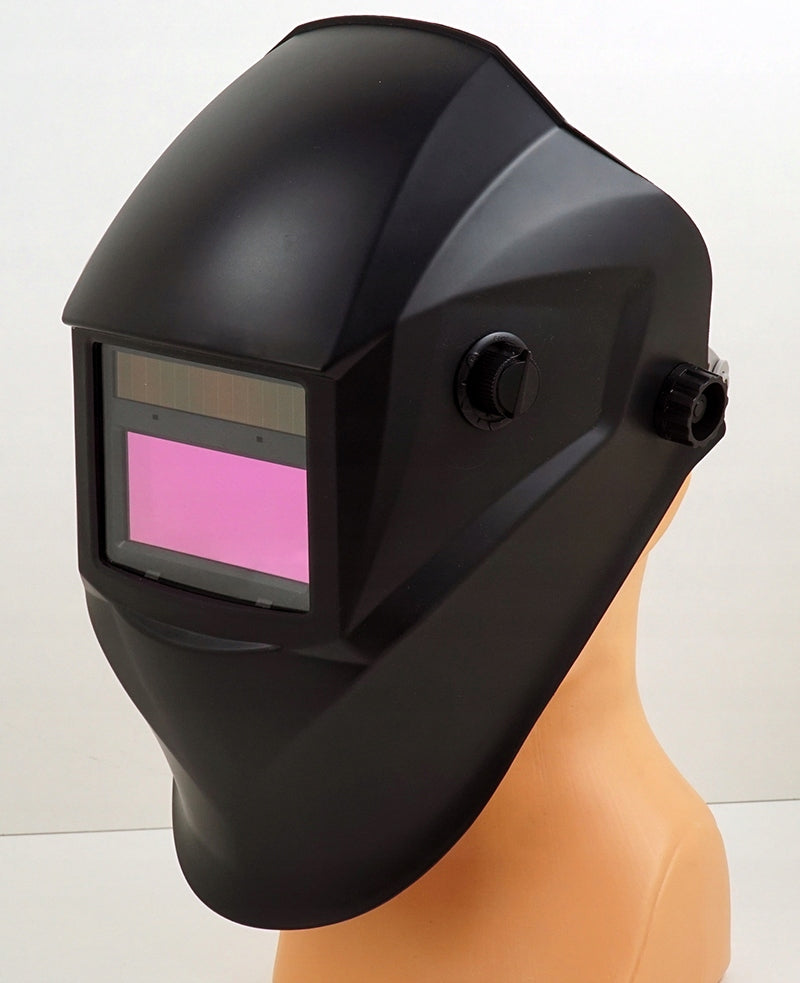

+ PROFESSIONAL SELF-TINTING VISOR DIN 9-13

• blackout: DIN 9-13 - smooth adjustment,
• Filter Type: Automatic
• active field of view: 93x43mm
• sensitivity adjustment: yes - smooth,
• lightening time adjustment: yes - smooth,
• shell/header type: ergoX - with reduced weight,
• mass: approx. 460g

Specifications
