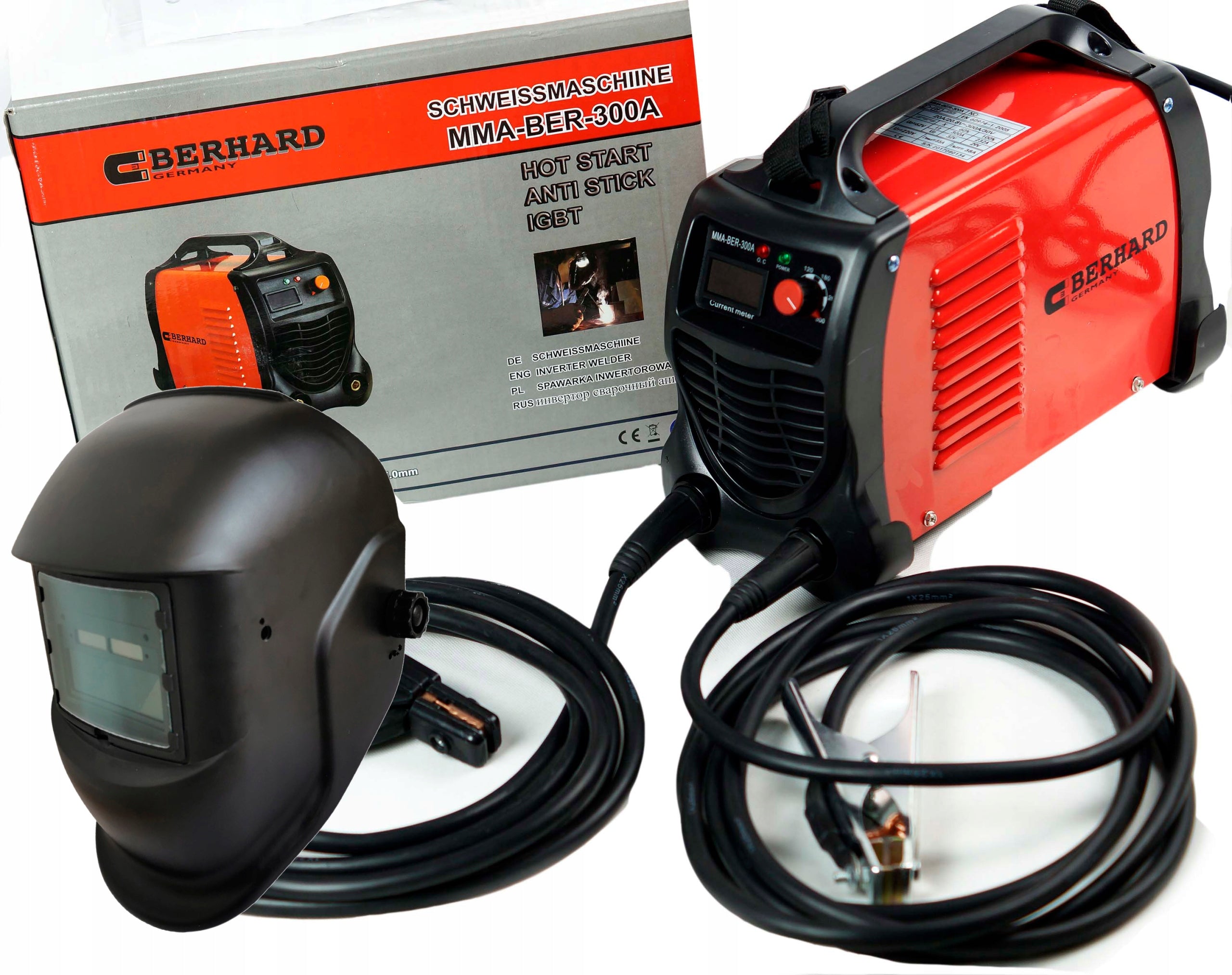

Suvirinimo inverteris Berhard 20-300A, 230V, 7 kVA

Trumpai apie prekę

Prekė: Suvirinimo inverteris Berhard 20-300A, 230V, 7 kVA. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: Berhard
• Modelis: BER-300

➕Copper mass cable 4 Mb

➕Copper welding cable 4 Mb

➕Self-tinting visor

➕Spare filters (skeletons) for visor

➕Welding mask (traditional)

➕Magnetic welding triangle

➕Welding electrodes

➕ Hammer for wrapping

Compact lightweight and ergonomic for manual arc welding, using electrodes in the sheath for use in the home, garage, workshop or farm. Designed for welding with buffer electrodes of stainless steel, copper, boiler steel, structural steels of ordinary and increased strength.

The welding machine is equipped with a cooling fan for electronic systems, as well as a thermal sensor to protect the device from overheating.

Smooth regulation of welding current

The inverter welding machine is much smaller than traditional welding machines. It is characterized by lower energy consumption compared to transformer welding machines, therefore there are no such large voltage drops when using e.g. extensions. They do not charge the home installation like its predecessors.

WELDING MACHINE BERHARD

1. Thermal protection and suitable size heat sinks to dissipate heat to the outside

3. PWM technology allows you to generate powerful electricity used for welding and cutting. Thanks to the use of this technology, the weight and volume of the central transformer has been significantly reduced, and the efficiency has been improved by more than 30%.

5. Efficient fan, simple operation, metal housing. The welder is equipped with a belt, thanks to which you can hang it on your shoulder. In addition, the device is equipped with the appropriate length of wires. Extremely useful when welding on high-altitude structures or when repairing all kinds of agricultural machinery.

The convenience of use in the set of high-quality copper wires was also taken care of.

Mass length 4 M

welding length 4 M

TECHNICAL SPECIFICATIONS:

• Power Supply Voltage: 230 V
• Output Current Range: 20-300 A
• Duty Cycle: 60% - 300 A
• Efficiency: 100% - 232 A
• Idle Power: 56 V
• Electrode Diameter: 2 - 5 mm
• Arc Ignition: Contact
• Weight: 7 kg
• Copper Ground Cable: 4 m
• Copper Welding Cable: 4 m
• Cable Cross-Section: 16 mm²

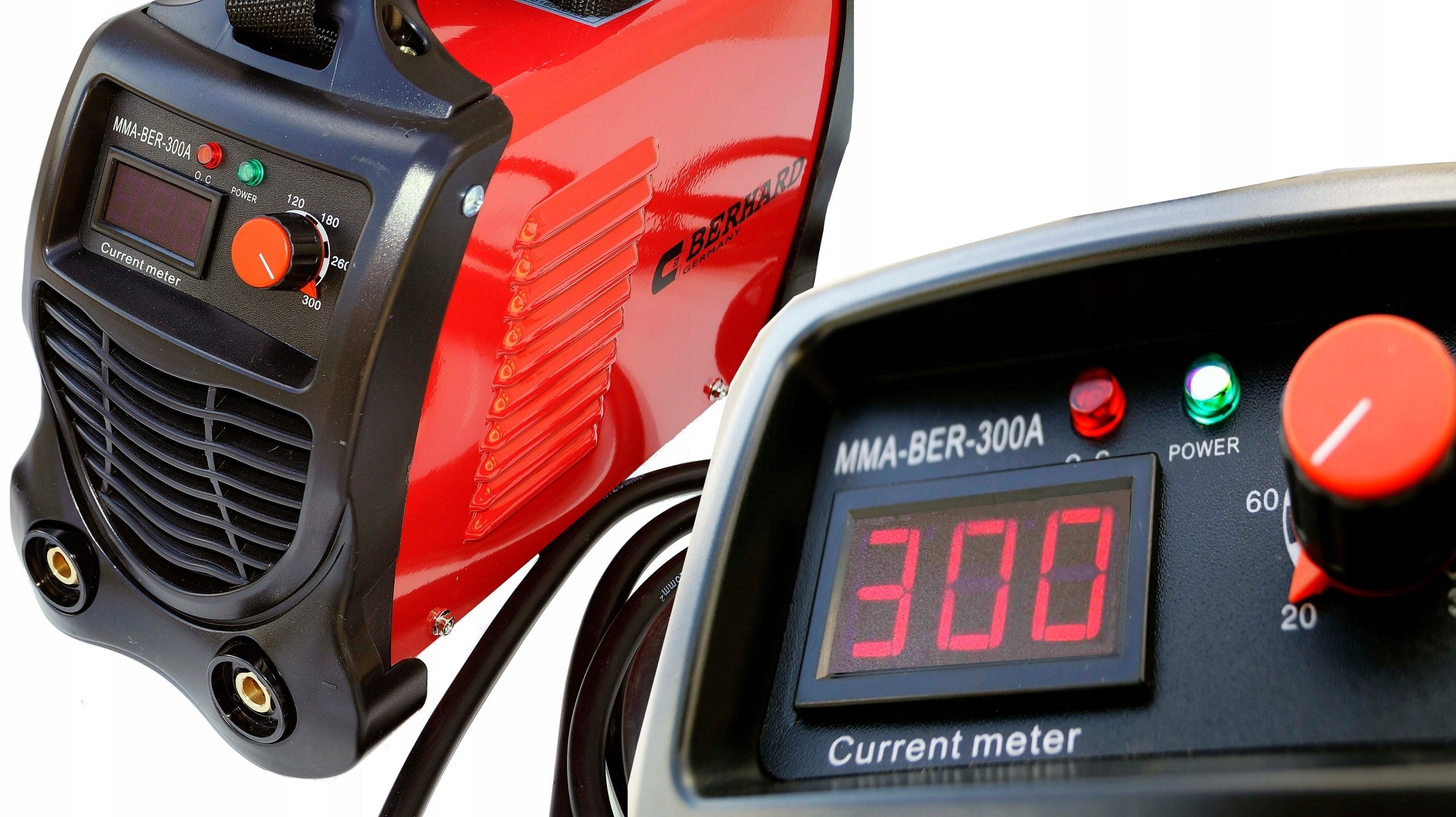

• LCD Display
• Fan
• Hot Start
• Anti Stick
• ARC Force
• Temperature Capacitors
• Smooth Welding Adjustment

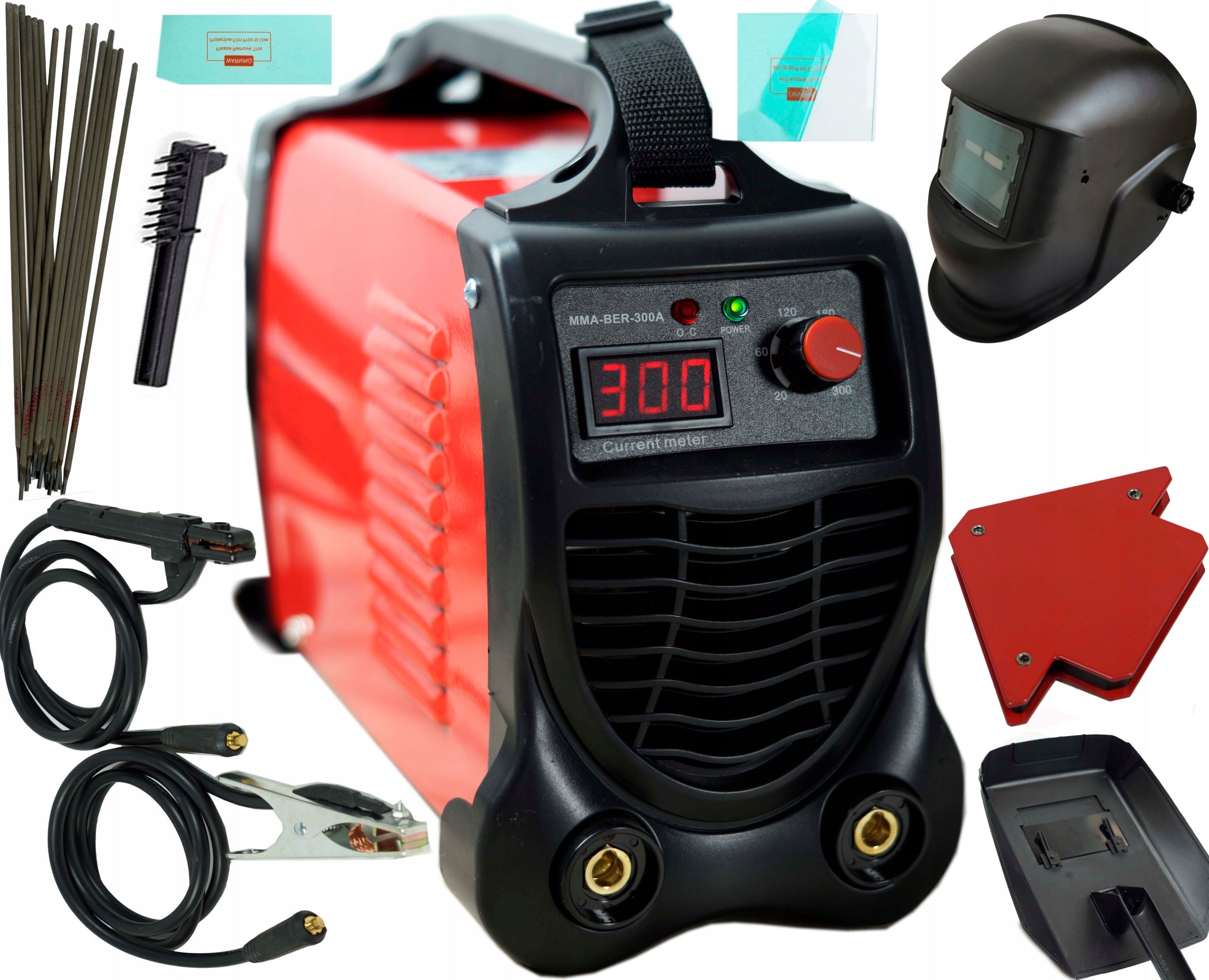

THE KIT INCLUDES A BERHARD 300 A WELDING MACHINE AND THE FOLLOWING ACCESSORIES:

+Welding angle

+Ordinary welding mask

+Self-tinting visor mask

+Spare filters for visor

+Brush with hammer

+Self-tinting visor

+Welding electrodes 15 pieces

1. Thermal protection and suitable size heat sinks to dissipate heat to the outside

2. Perfectly selected temperature capacitors Some manufacturers neglect this important issue by assuming ordinary non-temperature capacitors that dry out after a while losing capacity. The BERHARD brand has perfectly selected electronics using temperature capacitors and IGBT power transistors.

3. PWM technology allows you to generate powerful electricity used for welding and cutting. Thanks to the use of this technology, the weight has been significantly reduced and the efficiency has been improved by more than 30%.

4. Even such simple details as the fittings inside the welding machine are coated with varnish so that they do not disconnect accidentally during shocks.

5. Efficient fan, simple operation, metal housing. The welder is equipped with a belt, thanks to which you can hang it on your shoulder. In addition, the device is equipped with long 4-meter copper wires. Extremely useful when welding structures. You do not have to move the welding machine every now and then. This ensures a much higher comfort of work

Characteristics of the visor

Designed for welding with all methods using an electric arc - MMA wrapped electrode and semi-automatic MIG MAG and TIG gas shield.

It is also possible to weld using TIG (-) - small current (20A).

A special sensor placed in the filter cartridge automatically identifies the start of the welding process, triggering the self-blackout function. After completing the work, the filter automatically returns to the brightening state. The filter is powered by internal batteries that charge themselves via solar cells and do not require replacement.

Titanium electrodes for high quality welding AWSE6013 with a diameter of 3,2 mm and a length of 350mm.

All titanium welding electrodes contain iron powder in the coating. They have high welding efficiency, smooth appearance, stable arc and negligible chipping loss.

Used for welding low carbon steel elements, e.g. machinery, buildings, vehicles, etc.

Hammer with brush for cleaning and bumping weld from the sheath

• Type: Magnetic
• Size: 3"
• Angle: 45,90,135
• Weight: 11.5kg

Angle helpful in welding, assembly of metal elements. A strong magnet with a large surface area enclosed with metal plates, which will allow precise and durable positioning of the material at an angle of 45, 90 or 135 degrees, and thanks to the high attraction force will ensure a stable, stationary position.

Specifications
