Suvirinimo inverteris ENERGO FUSION 200, 200A, MIG/TIG HF/MMA/PULSE/FLUX

Trumpai apie prekę

Prekė: Suvirinimo inverteris ENERGO FUSION 200, 200A, MIG/TIG HF/MMA/PULSE/FLUX. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: no brand
• Modelis: ENERGO FUSION 200

PROFESSIONAL MULTIFUNCTION DEVICE FOR WELDING STEEL, STAINLESS STEEL AND ALUMINUM!

Manufacturer: thyssenkrupp Materials Poland ⭐ Brand: ENERGOline ⭐ Model: ENERGO Fusion 200 ⭐ Working methods: MIG Synergy / MIG Manual / TIG HF / MMA ⭐ Power supply: 230V ⭐ Maximum current: 200A

Meet the multifunctional 5in1 device that combines versatility, quality and convenience – designed for professionals and advanced users.

FUSION 200 welding machine offers multiple operating modes:

1. MIG/MAG with and without gas (FLUX) – CO₂, Ar, mixtures
2. MIG PULSE – pulsed current welding of aluminium
3. HF TIG – high frequency arc glow (contactless)
4. MMA – classic welding with wrapped electrode (up to 5 mm)

It is a compact, efficient and digitally controlled device with a large LED display, a metal 4-roll feeder and high-quality pure copper welding wires – it provides full control, stability and reliability even with long-term operation.

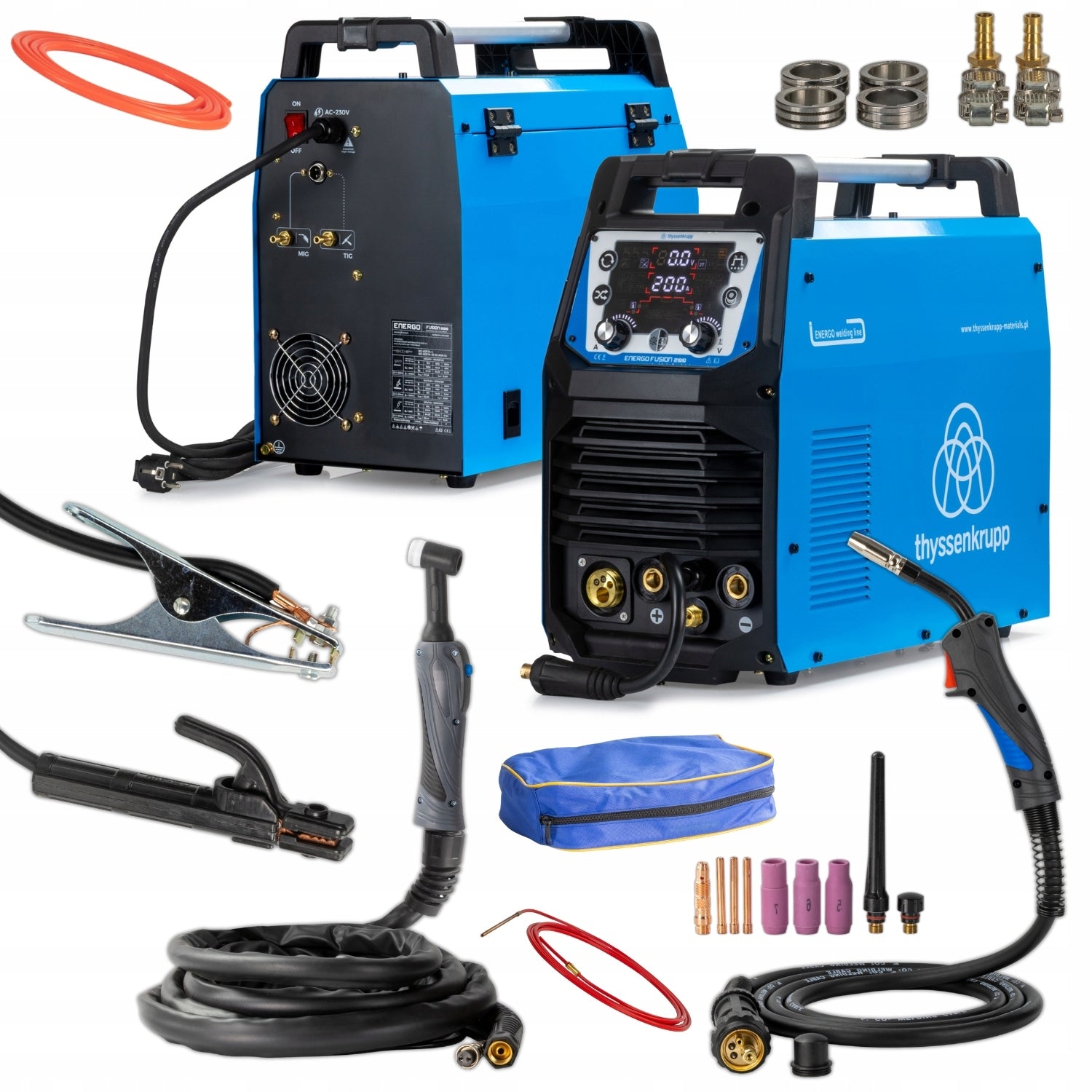

1 Inverter welding machine ENERGO FUSION 200

2 15AK MIG holder with Teflon guide (3 m)

3 TIG holder with accessories (approx. 4 m)

4 Mass and electrode holder with copper conductors 1×25 mm² (2 m)

5 Mounting kit for feeder and compressor (10 elements)

• 4 interchangeable drive rollers type K and U – for wire diameters 0.8 / 0.9 / 1.0 / 1.2 mm
• 2 pneumatic quick couplers for connecting the compressor
• 4 metal clamps for air hoses (e.g. for filter or dehumidifier)

6 Red wire guide and gas line (orange)

7 Instruction manual in Polish

• Power supply voltage: 230 V ±15% / 50 – 60 Hz
• Power consumption: max. 7,8 kVA
• Working cycle: 60% – 200 A / 100% – 155 A
• Technology: IGBT Efficiency: ≥ 85%
• Protection class: IP21S

MIG/MAG / FLUX

• Current Range: 30 to 200 A
• Voltage: 15,5 – 24 V
• Wire diameters: Ø 0.6 / 0.8 / 0.9 / 1.0 / 1.2 mm
• Supported Materials: Steel, Stainless Steel, Aluminum, FLUX
• Synergistic mode: YES (with voltage correction ±3 V)

TIG HF (high frequency ignition)

• Current Range: 10 – 200 A
• Electrodes: Ø 1.6 / 2.0 / 2.4 / 3.2 mm
• Functions: Pre-Gas / Post-Gas, 2T/4T, smooth adjustment

MMA (wrapped electrode)

• Current Range: 20 – 180 A
• Electrodes: Ø 1.6 – 5.0 mm
• Functions: Hot Start, Arc Force, Anti Stick, VRD

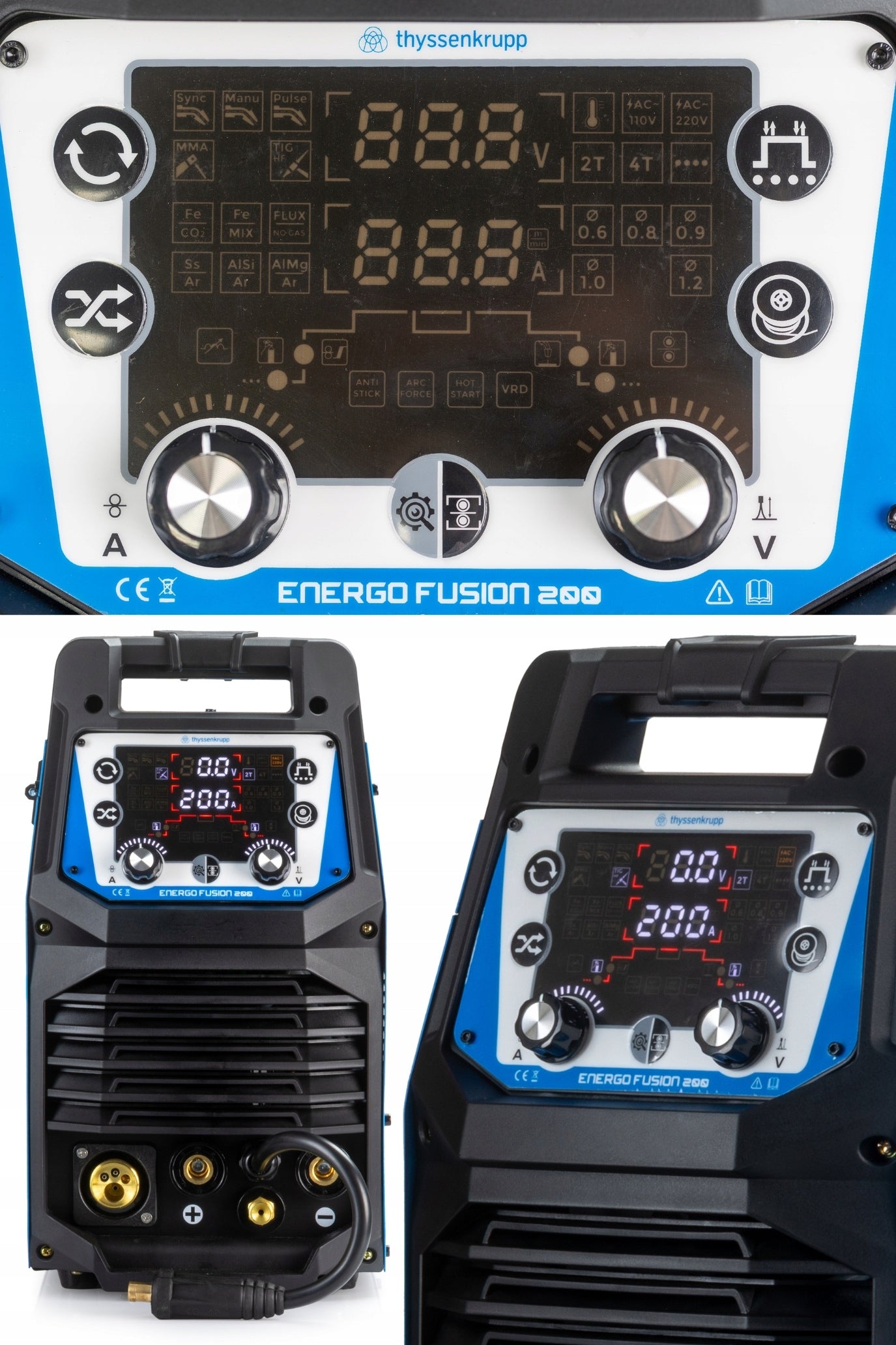

▶ Interface with digital LED display

The device offers intuitive operation – a combination of a large display with ergonomic buttons and encoders (knobs).

On screen:

• Voltage (V) and current (A)
• Active welding method
• Wire diameter, material type, shielding gas
• Handle operating mode – 2T/4T/SPOT
• Information about synergistic mode

Control:

• 5 function buttons
• smooth knobs (encoders)

▶ Sturdy, all-metal 4-roll feeder

The ENERGO FUSION 200 welder is equipped with a pprofessional wire feeder with four metal rollers, which provides exceptional stability and precision of movement – especially important for longer wires or working with soft wires such as aluminum.

• All rollers are bearing and driven by gear – this guarantees even feeding without .
• Both upper pressure arms have separate adjustment knobs, so you can individually adjust the pressure to the type of wire.
• The chamber accommodates spools with a diameter of D100 and D200 (up to 5 kg), which makes the device compatible with most welding cartridges available on the market.

This solution far exceeds the standards in this class of devices – instead of the popular 2-roller systems with rubber rollers, you get a semi-professional class drive, which translates into higher weld quality and lower failure rate.

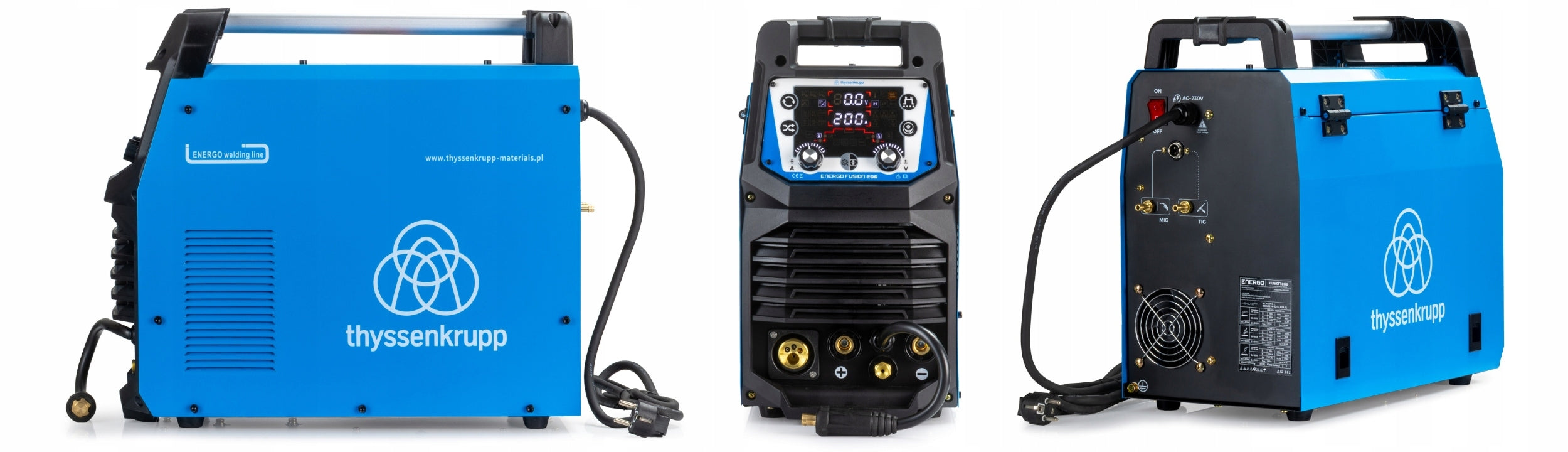

▶ Compact and robust design

ENERGO FUSION 200 is a robust welding machine enclosed in a well-ventilated housing, equipped with an aluminum transport handle and stabilizing rubber feet that prevent the device from moving during operation.

On the front of the device are:

• Large digital control panel with LED display,
• Euro socket for MIG holder,
• TIG HF connector,
• Sockets for mass and electrode wire.

On the back of the device you will find:

• Power switch (ON/OFF),
• Built-in power cord with 230V plug,
• Two separate gas ports – for MIG and TIG methods,
• Cooling fan,
• Grounding point,
• Nameplate with device information.

▶ Extended functions that really affect welding comfort

FUSION welding machine offers full control over the welding process, thanks to a number of additional functions, which in this class of devices are rare:

• Arc inductance – allows you to adjust the characteristics of the arc (soft / hard), which affects the depth of melting, the spillage of the lake and the number of chippings. Particularly important for thin sheets and work with aluminum.
• Gas blow regulation (Pre-Gas and Post-Gas) – increases the quality of the weld and protects the electrode from oxidation. Precise gas supply times can be set separately before and after welding.
• Burn-back time – protects against wire sticking to the end lake, improving the aesthetics of the weld end.
• Ramp-up (Wire Ramp Slope) – a gentle start of the welding process without a sudden "shot" of electricity. Especially useful for less experienced operators or when working on thin materials.
• 2T/4T / SPOT torch modes – flexibility to work with longer welds, spot welding or with more comfortable control of the welding cycle.

▶ Synergistic mode – automation for each method

ENERGO FUSION 200 has advanced synergistic programs that automatically select the voltage and feed speed of the wire depending on the selected material and shielding gas:

• Fe CO₂ – structural steel in carbon dioxide
• Fe MIX – steel in Ar/CO₂ mixture
• FLUX – self-shielding wire, welding without gas
• SS Ar – stainless steel in argon
• AlSi Ar / AlMg Ar – argon-shielded aluminium

In addition, the device is equipped with temperature and overload sensors – automatically protecting components from damage.

Efficient ventilation at the back of the device supports cooling even under long-term high loads.

✅ Summary – ENERGO FUSION 200

• Device type: multifunction inverter welding machine (MIG/MAG, MIG FLUX, MIG PULSE, TIG HF, MMA)
• Application: welding of steel, stainless steel, aluminum – ideal for workshop, service, construction
• Current range: up to 200 A (MIG/TIG), up to 180 A (MMA)
• Synergic modes: ready-made programs for CO₂, Ar/CO₂, FLUX, aluminium and stainless steel
• Additional features: PULSE, SPOT, HOT START, ARC FORCE, ANTI STICK, VRD, inductance adjustment, PRE/POST GAS, BURN BACK TIME, WIRE RAMP SLOPE, 2T/4T modes
• Synergic mode: automatic selection of MIG parameters depending on the type of material, wire and gas
• LED display: large, easy-to-read screen with information about parameters and method of operation
• Control panel: function buttons and encoders – convenient regulation of voltage, current and gas
• Wire feeder: fully metal, 4-roller, with bearings and gear transmission
• Power supply: 230 V / 50 Hz, efficiency ≥ 85%, protection class IP21S
• Weight: approx. 11 kg (without accessories)

✅ The ENERGO FUSION 200 welding machine is the perfect choice for those who expect precision, control and multitasking in one welding machine.

Compact, modern and fully equipped – designed to work without compromise.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	no brand
Parametry	Power consumption	7.8 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	5 mm
Parametry	Device weight	11 kg
Parametry	Welding range	20–200 A
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	15 kg
Parametry	Manufacturer code	Spawarka inwertorowa ENERGO FUSION 200
Parametry	Packaging status	original
Parametry	Model	ENERGO FUSION 200
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	infinitely adjustable welding current,EURO handle,EURO holders,LCD display
