Suvirinimo inverteris IDEAL PRAKTIK 205D, MMA/TIG, 200A, 230V, IGBT

Trumpai apie prekę

Prekė: Suvirinimo inverteris IDEAL PRAKTIK 205D, MMA/TIG, 200A, 230V, IGBT. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: PRAKTIK205D

✴ Manufacturer: IDEAL ║ ✴ Welding methods: MMA, TIG DC ║ ✴ Power supply: 230V ║ ✴ Welding current: 200A ║ ✴ Efficiency: 40% ║ ✴ Weight: 4.5kg

➡ BET ON A UNIVERSAL WELDING MACHINE FOR HOUSEHOLD AND WORKSHOP

DISCOVER THE ADVANTAGES OF THE IDEAL WELDING MACHINE

✅ Welding current 200A

✅ TIG DC welding option (Lift)

✅ ANTI STICK function - easier detachment of the electrode

✅ HOT START - easier to get started

✅ Function ARC FORCE

✅ Overload protection

✅ Excellent dimensions of the welding machine

✅ Great weight - 4,5kg

✅ Built-in efficient fan

✅ Perfectly contrasting display

✅ Welding machine proven for field work

✅ Shoulder strap - easier transport

✅ Simple and easy control

➡ COMPACT AND LIGHTWEIGHT WELDING MACHINE

Ideal PRAKTIK 205 DIGITAL is a small and lightweight device with a power of 200A, which is great for economic-home tasks, as well as for work in small workshops. The device is great for field work due to its compact size.

The PRAKTIK 205 welding machine was made in inverter IGBT technology and is used for method MMA welding. The welding machine allows welding with electrodes up to 4mm diameter steel and other weldable metals.

The device has the function of liquid regulation parameters welding, in addition, the device can be welded method TIG using a special handle with valve (TIG Lift).

ADDITIONAL FEATURES AND BENEFITS

✅ IGBT

The welding machine uses modern transistors, a solution that provides minimum electromagnetic interference and small power losses in basic systems, enabling increased efficiency and reliability of the power source.

✅ HOT START function "hot start"

HOT START consists in temporarily increasing the welding current above the set value at the moment of arcing. This prevents the phenomenon of "sticking the electrode" in the initial phase of welding, making it easier to start the whole process.

✅ ARC FORCE “arch dynamics”

Shortening the arc length is accompanied by an increase in welding current, which results in stabilisation of the arc, regardless of its length.

✅ TIG LIFT

The welder enables TIG welding using an additional TIG torch . Arching occurs by rubbing, similarly to the MMA method.

➡ TECHNICAL SPECIFICATION

POWER SUPPLY PARAMETERS:

• Power supply voltage: 230V
• Power Current Frequency: 50Hz
• Network security: 16A

TECHNICAL PARAMETERS:

• MMA welding current: 10-200A
• Efficiency: 40%
• Diameter of electrodes: 1,6-4mm
• Idle voltage: 60V
• Current adjustment: smooth

ADDITIONAL FUNCTIONS

• TIG DC: YES (Lift)
• ARC FORCE: YES
• HOT START: YES
• VRD: YES
• LCD display: YES

PHYSICAL PARAMETERS

• Housing protection class: IP21S
• Dimensions: 310x125x225mm
• Weight: 4,5kg

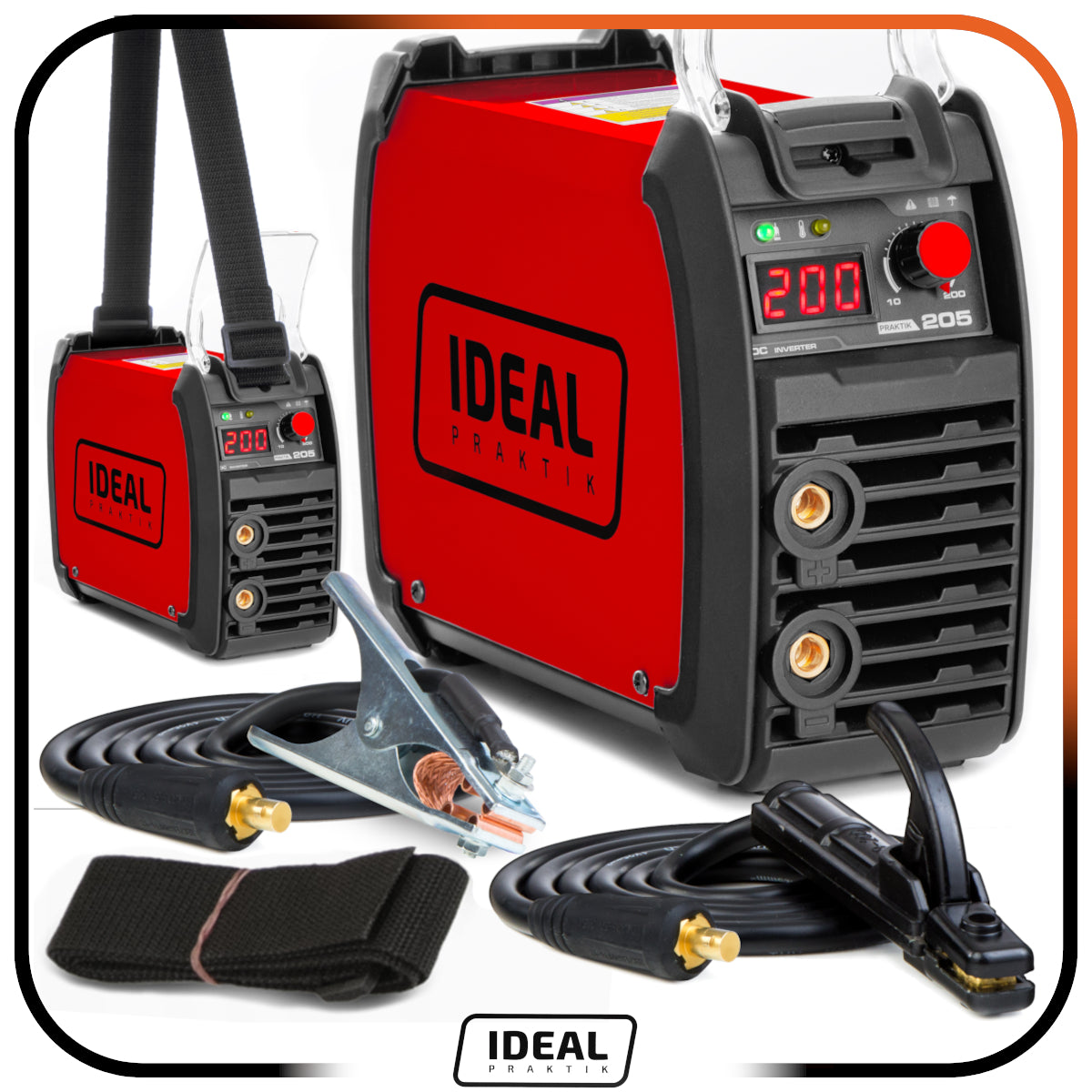

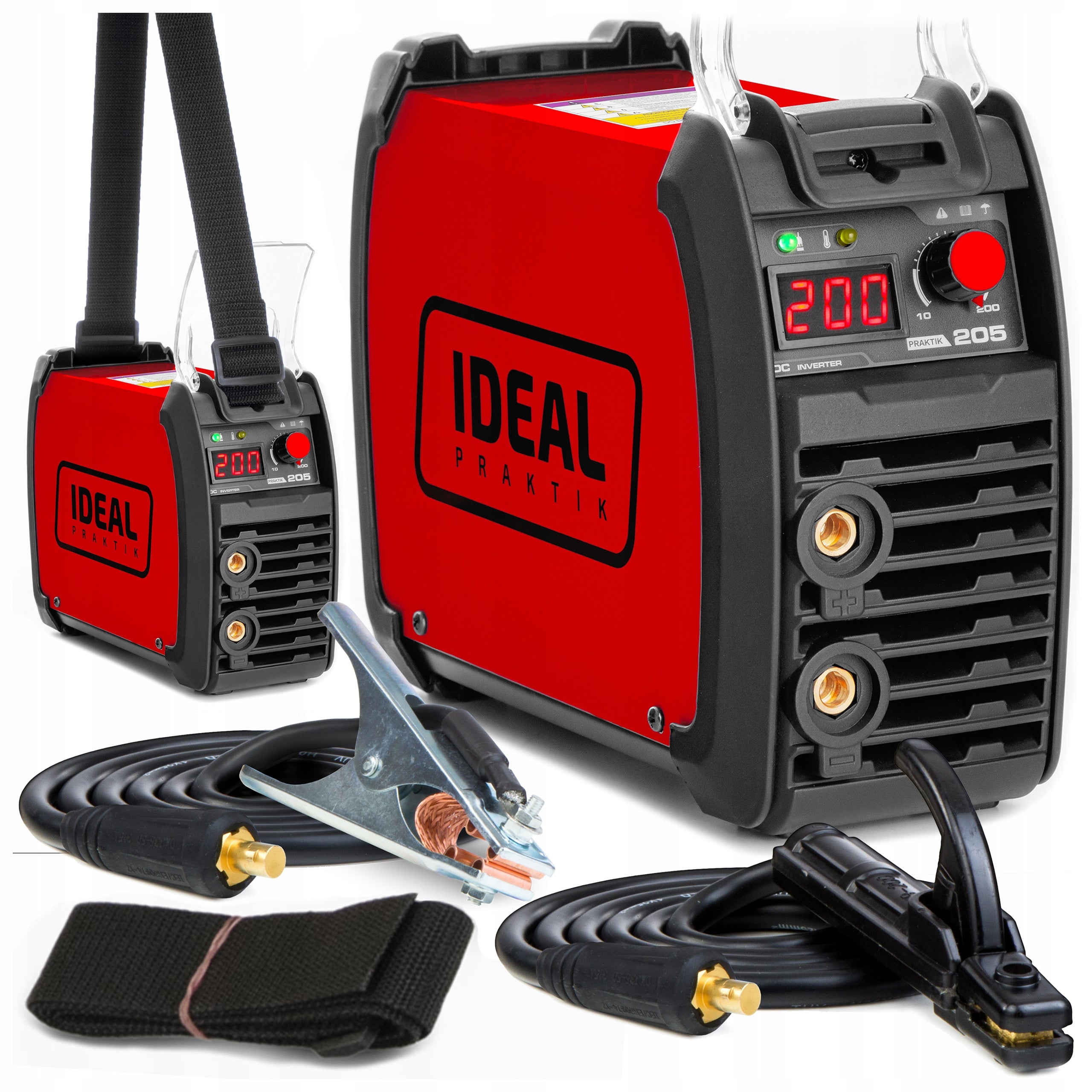

THE SET INCLUDES:

✅ Welder IDEAL PRAKTIK 205 DIGITAL

✅ Electrode holder - 1,5 m

✅ Mass holder - 1,5 m

✅ Carrying strap - 1 pc.

✅ User Manual

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	IDEAL
Parametry	Welding methods	MMA
Parametry	Power consumption	6.9 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	40%
Parametry	Maximum electrode diameter	4 mm
Parametry	Device weight	4.5 kg
Parametry	Welding range	10–200 A
Parametry	Length of ground cable	150 cm
Parametry	Welding cable length	150 cm
Parametry	Product weight with unit packaging	15 kg
Parametry	Manufacturer code	PRAKTIK205D
Parametry	EAN (GTIN)	5903991101808
Parametry	Packaging status	original
Parametry	Additional features	welding mask included,infinitely adjustable welding current,LCD display
