Suvirinimo inverteris MAGNUM 331 ALU SYNERGY, 320A, 400V

Trumpai apie prekę

Prekė: Suvirinimo inverteris MAGNUM 331 ALU SYNERGY, 320A, 400V. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MIG Magnum 331 ALU Synergia KPW1

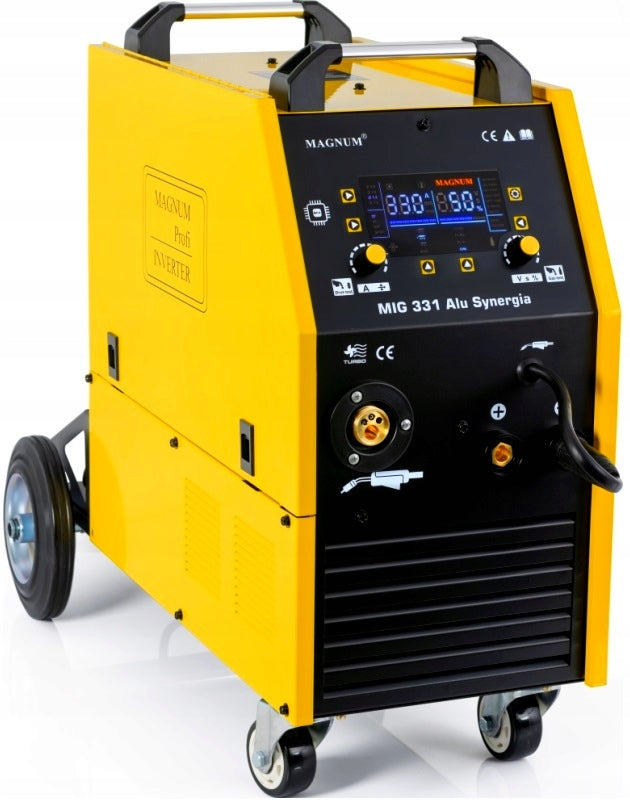

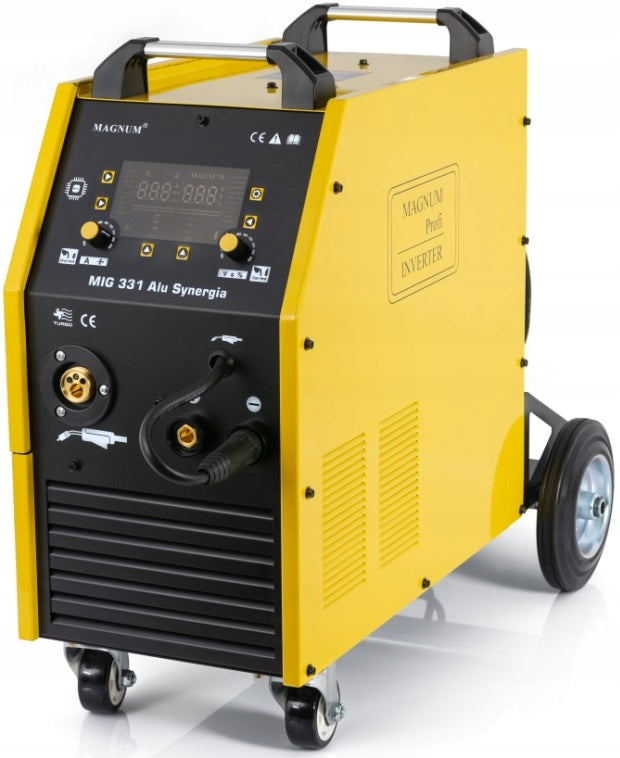

MAGNUM WELDING MACHINE 331 ALU SYNERGY

it is a professional, technologically advanced semi-automatic welding machine designed for welding using the following methods:

➡ MIG/MAG:

Arc welding in gas shields (CO2 or Argon+CO2) is one of the most commonly used processes for the production of welded structures. The semi-automatic welding process involves melting the edges of the welded object and the welding material (welding wire on a roll) with an electric arc produced between the welding wire fed by the handle and the welded material.

Available Modes:

• MIG SYN - MIG/MAG welding with synergistic settings,
• MIG MAN - MIG-MAG welding in manual (traditional) mode,
• FLUX / FCAW - self-shielding wire welding. This is a similar welding process as MIG/MAG but does not require a gas cylinder. On the wire there is a thin layer of powder, which at the time of arc formation produces gas covering the working area.

➡ TIG LIFT DC - welding with a non-melting electrode (tungsten) in an inert gas shield (Argon) using an additional handle. In the TIG DC Lift mode, the arc glow occurs when the electrode with the welded element is contacted (the button in the handle does not ignite the arc, the gas is connected directly from the reducer to the handle). In TIG Lift DC mode, the current is constant.

➡ MMA - classic welding with wrapped electrodes (rutile, alkaline, acidic).

The MIG 331 ALU SYNERGY welding machine is used for welding:

✔ low alloy steels

✔ low carbon steel

✔ alloy steel

✔ other weldable metals and alloys

✔ acid-resistant steel

✔ aluminium and its alloys

The device has been designed for all kinds of welding work in automotive, locksmith, repair, industrial workshops etc.

MAGNUM MIG 331 ALU SYNERGIA has a readable and easy to use function panel, which has i.a.:

1. Wire diameter selection button, for MIG-MAG method in synergistic mode.
2. Selection button for control and spot welding functions.
3. Adjustment knob for selected parameters and wire extension button.
4. Button for selecting the welding method.
5. Selection button for the type of welded material and gas shield for MIG-MAG.
6. The control knob of selected parameters and the gas outflow test button.
7. Device memory button.
8. Additional functions selection button.
9. A set of digital displays with units.

MAGNUM MIG 331 ALU SYNERGIA has synergic programs, thanks to which you can adjust welding parameters to the selected material.

TYPE OF WELDED MATERIAL:

• Fe Co2 - welding of carbon steels in CO2 shielding.
• Fe Mix - welding of carbon steels in Ar/ CO2 mixture cover. The recommended proportions of the mixture are 82% Ar 18% CO2.
• Al Ar - aluminum alloys in argon sheath.
• CrNi - stainless steel in argon sheath.

DIAMETERS OF WELDING WIRES:

• Φ 0.8mm
• Φ 1.0mm
• Φ 1.2 mm

✔ REPAIR WORKSHOPS,

✔ AUTOMOTIVE INDUSTRY,

✔ LOCKSMITH WORKSHOPS,

✔ ALL BODYWORK REPAIRS,

✔ FACTORIES,

✔ FARMS,

✔ HOMEWORK,

AND WHEREVER RELIABILITY MATTERS!

✔ SYNERGY - is a very helpful feature available in professional welding equipment class PREMIUM. By setting the appropriate program or entering parameters, the device will independently select most welding settings, such as wire feed speed or appropriate voltage, according to the programmed data.

✔ MANUAL MODE - The ability to manually set the welding machine and make adjustments to synergistic settings (most synergistic welding machines currently available on the Polish market do not have a fully manual mode, and thus it is not possible to manually set the m.in wire feed speed, which is not always in synergy tailored to our needs).

✔ SPOT WELDING SPOT - It consists in making a small area of joining materials of small thickness. Most often, spot welding of sheet metal is carried out. This procedure is also referred to as one-sided welding.

✔ INDUCTANCE ADJUSTMENT - function is useful during welding using the MIG/MAG method of thin elements, preventing them from burning out and soldering galvanized elements. Changing the inductance value also reduces the amount of welding chips during CO2 shielded welding. Thanks to the inductance adjustment, the welding machine is suitable for lutowelding. Depending on the model of the welding machine, the adjustment is automatic or can be adjusted manually.

✔ SOLDERING - is a method that resembles MIG/MAG welding to a fairly large extent, but the energy supplied in this case is much less. This means that soldering is used to join thin sheets covered with a layer of zinc. The described method is a bonding process during which solder melts, not the material we work with.

✔ S4T - Special four-bar with hot start and final current.

✔ AC 36 V POWER SOCKET - input for connecting a gas heater.

✔ TWO-BAR 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow.

✔ FOUR-BAR 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow.

✔ POST GAS - regulation of gas outflow time after welding arc extinction. This is a helpful feature to cover the welding lake. The lack of additional gas shielding may result in oxidation of the weld.

✔ HOT START - facilitates the ignition of the electrode by providing more welding current with each arc.

✔ ARC FORCE - is a function that facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from being extinguished when the drop of electrode contacts the welding lake.

✔ VRD - is a voltage reduction system whose task is to turn off the power supply within a few milliseconds after welding. This function is also responsible for reducing the voltage on the wrapped electrode to a safe level.

✔ MEMORY SETTINGS - The device has the memory of the last setting, i.e. after turning it off and re-enabling, the last set parameters are restored. It is also possible to remember 21 sets of settings with easy access to the save/playback mode of the program.

✔ INVERTER TECHNOLOGY IGBT - is a modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has the effect of significantly extending the reliable operation of welding equipment.

✔ WORK IN INDUSTRY - thanks to its high quality and multifunctionality, the device can be used in professional and hobby work.

✔ CONTROL PANEL - The welding machine is equipped with an easy-to-use control panel and display, so it can be used even by amateurs.

✔ EASY TO USE - The welding machine is equipped with an easy-to-use control panel, so it can be used even by amateurs.

✔ CHASSIS - The semi-automatic machine is also equipped with a solid chassis, equipped with durable bearing wheels that guarantee high mobility and give the possibility of moving the welding machine on uneven ground.

EFFICIENT OPERATION THANKS TO PROFESSIONAL WIRE FEEDER

The welder is equipped with a solid wire feeder, which guarantees stability and continuity of operation of the device.

The 4x4 feeder allows precise extension of the welding wire excluding its slippage.

The feeder has a quick wire change knob as well as a wire feed roller.

➡ The device is equipped with overload protection, which increases its reliability.

❄ The device has a fan cooling system which significantly increases its efficiency.

⏩ TECHNICAL DATA:

• Power supply: AC 400 [V], 50/60 [Hz]
• Security required: 25 [A], type C
• Idle voltage: 73 V
• Efficiency: 60 %

⏩ MIG PARAMETERS:

• Welding current: 50 ÷ 320 A
• Welding voltage: 14 - 33,5 V
• Type of feeder: built-in 4x4
• Wire diameter : 0,8 / 1,0 / 1,2 mm
• Wire spool: 5-15 kg

⏩ MMA AND TIG PARAMETERS:

• Welding current: 20 ÷ 280 A
• Welding TIG: Tig DC Lift

⏩ OTHER:

• Mass: 31,4 kg
• Degree of protection: IP21S

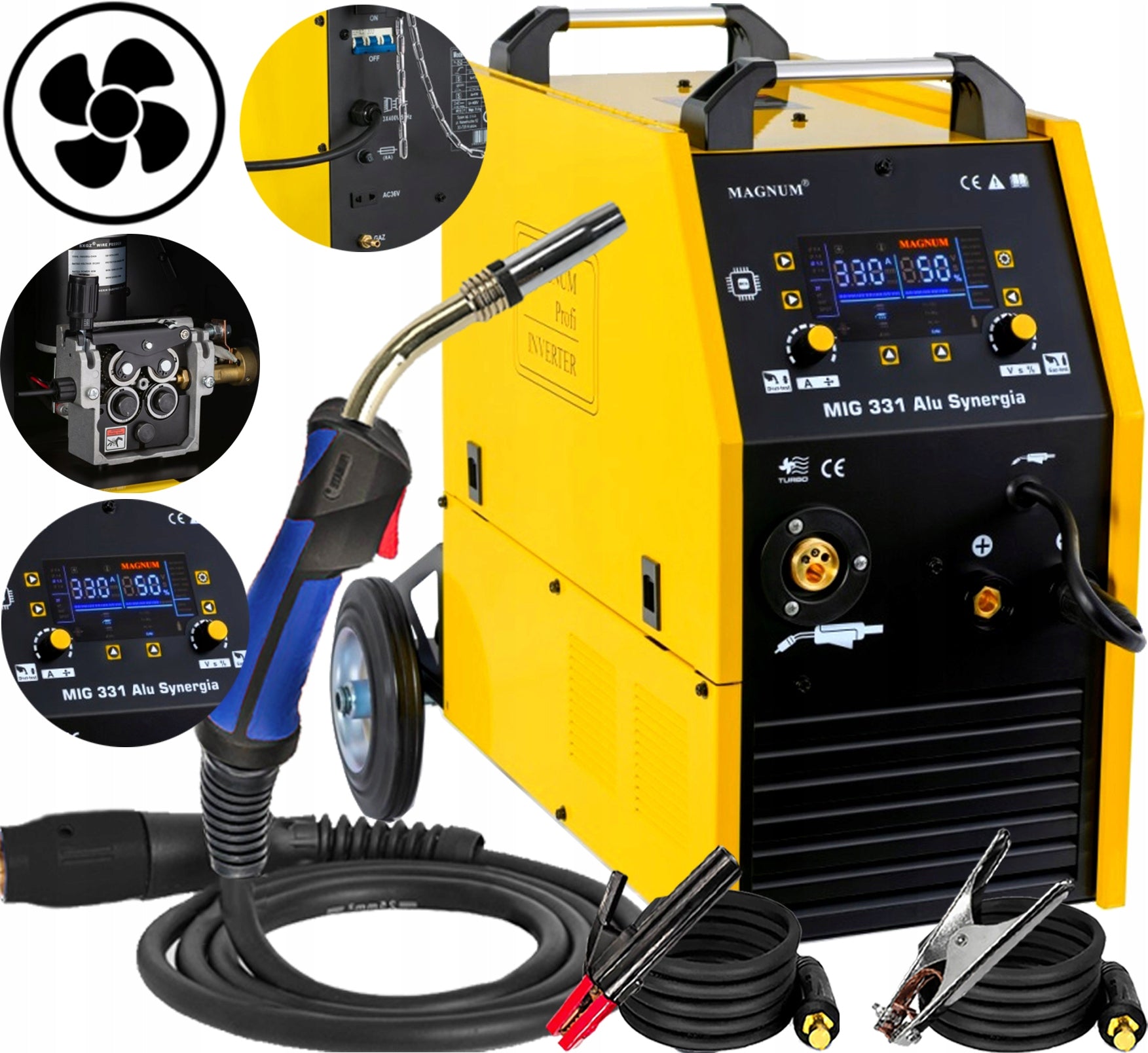

WHEN YOU BUY FROM US, YOU WILL RECEIVE:

• Welding machine MAGNUM MIG 331 ALU SYNERGY - 1 pc.
• Welding torch MB24 - 3 m - 1 pc.
• Bulk cable - 1 pc.
• Electrode cable - 1 pc.
• Instructions service in Polish

SET 1 LARGE MIG INDUCTANCE MB24.
