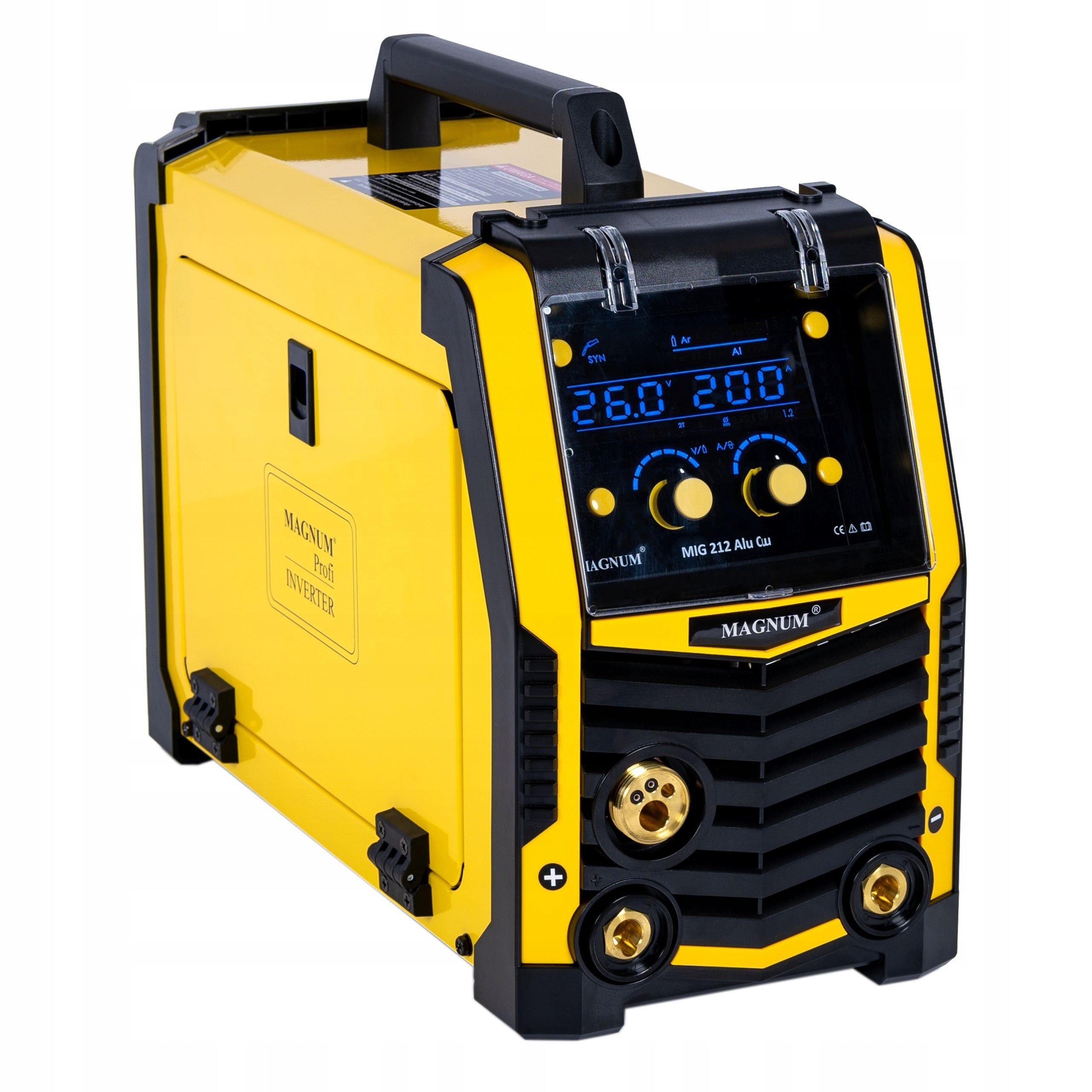

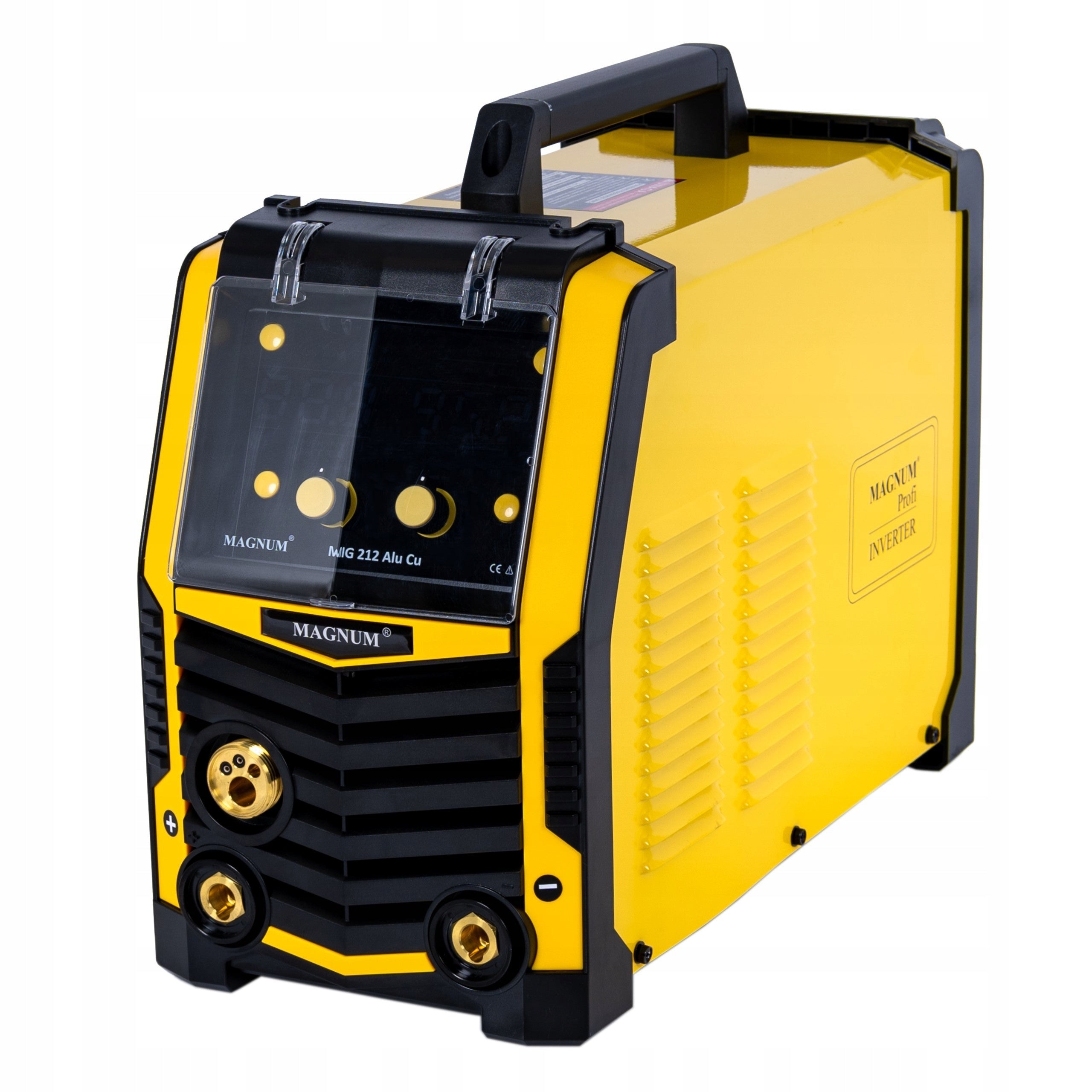

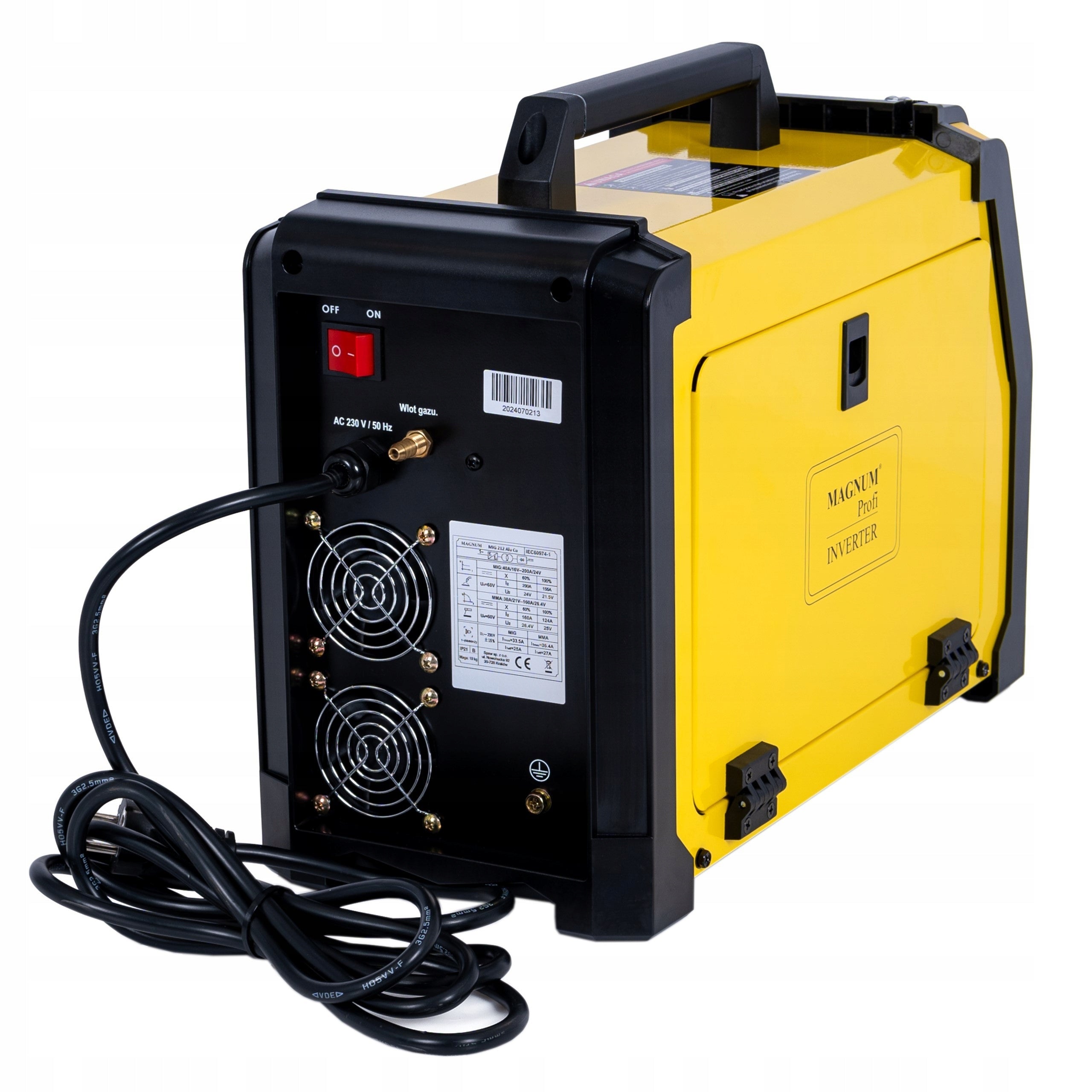

Suvirinimo inverteris MAGNUM MIG 212 ALU CU, 200A, 60%

Trumpai apie prekę

Prekė: Suvirinimo inverteris MAGNUM MIG 212 ALU CU, 200A, 60%. Kategorija: Invertoriniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: mag_212_zeskk

MAGNUM MIG 212 Alu Cu inverter welding machine is an advanced technological welding device that allows MIG/MAG, MMA and TIG Lift welding. This device is designed for manual, electric welding of low-carbon, low-alloy steels, high-alloy stainless and acid-resistant steels as well as aluminum alloys or soldering.

Magnum MIG 212 Alu Cu will be used in all kinds of welding work performed in car workshops, locksmiths, repair workshops, industrial, etc. The device is perfect for both professional and amateur in the home workshop.

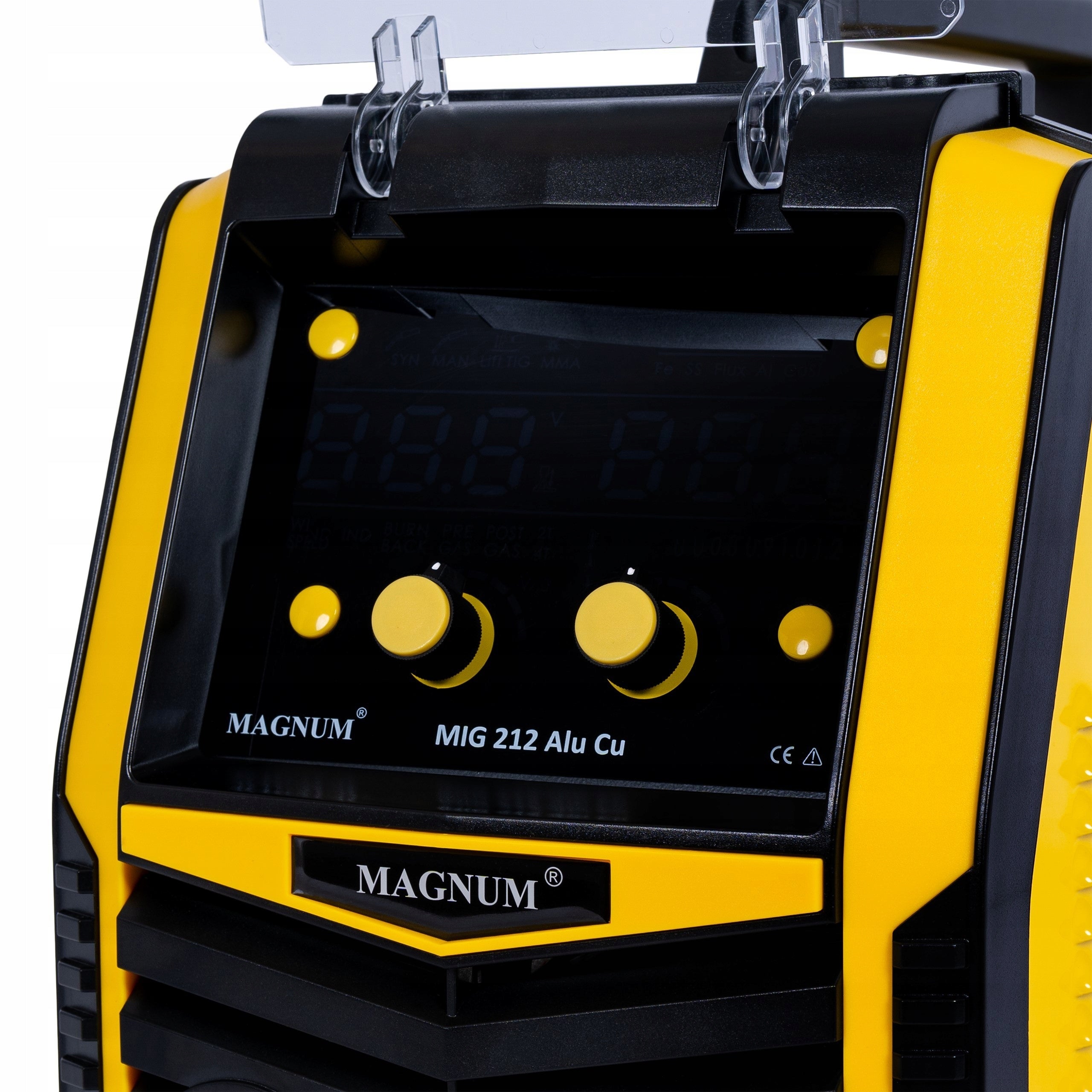

Thanks to a clear and user-friendly control panel, perfectly selected algorithms of synergistic programs and digital control of the welding process, this device is extremely easy to use and allows you to perform welding work even for a person without experience.

In addition to preloaded synergistic programs, the device has the ability to weld in a traditional way with manual setting of welding parameters.

The power source is based on high-performance IGBT transistors, ensuring high efficiency, low power consumption and reliability.

Features and advantages of the device:

✅ Welding MIG/MAG, MMA, TIG Lift

✅ Welding in synergistic and manual mode

✅ Function 2T and 4T

✅ Function Anti Stic, Arc Force, Hot Start, VRD

✅ Adjustable inductance

✅ Simple control panel

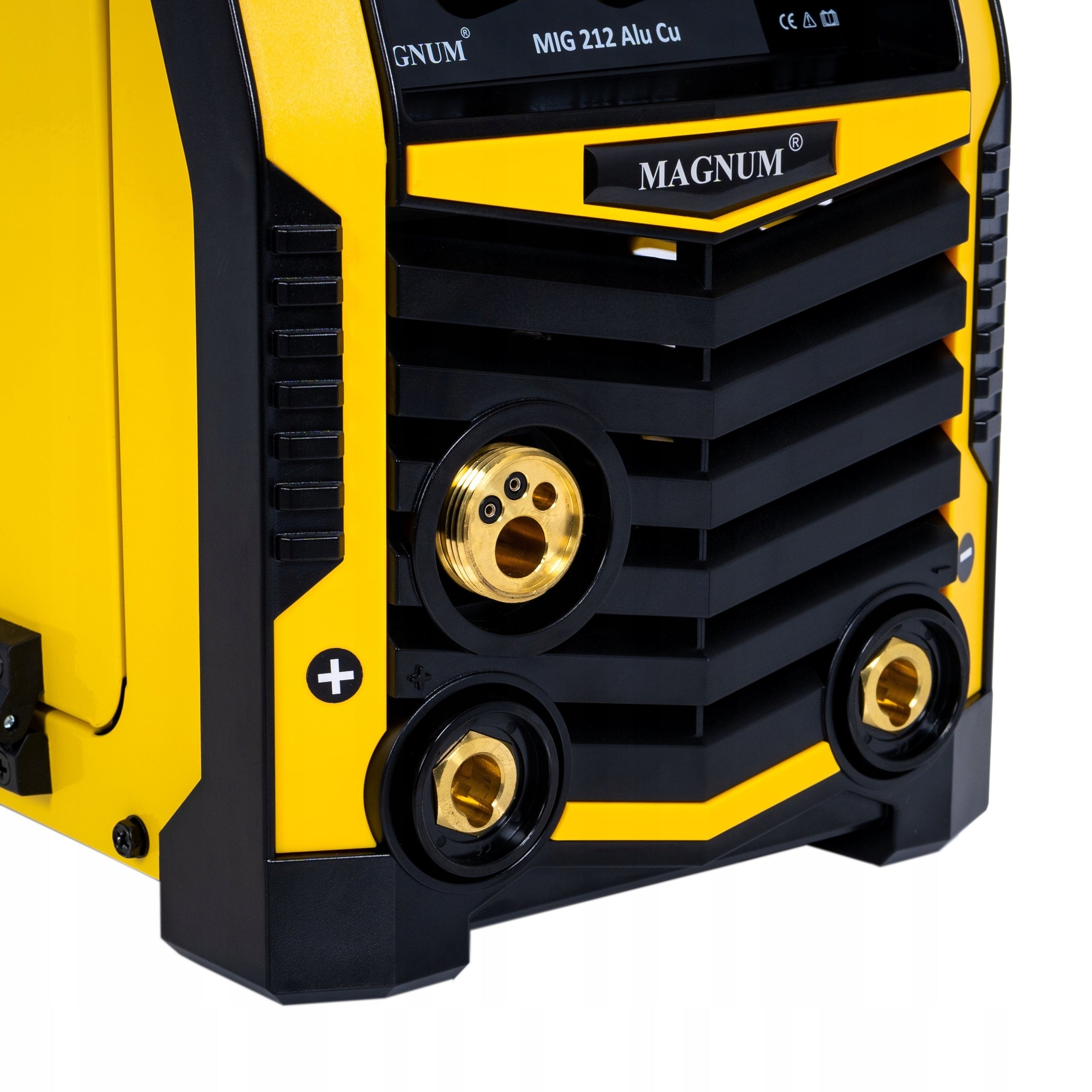

✅ Polarity Selector Socket

✅ Built-in thermal protection

✅ Wire access speed control

✅ Correction of wire burning height

✅ Regulation of gas outflow time before and after welding

TECHNICAL DATA:

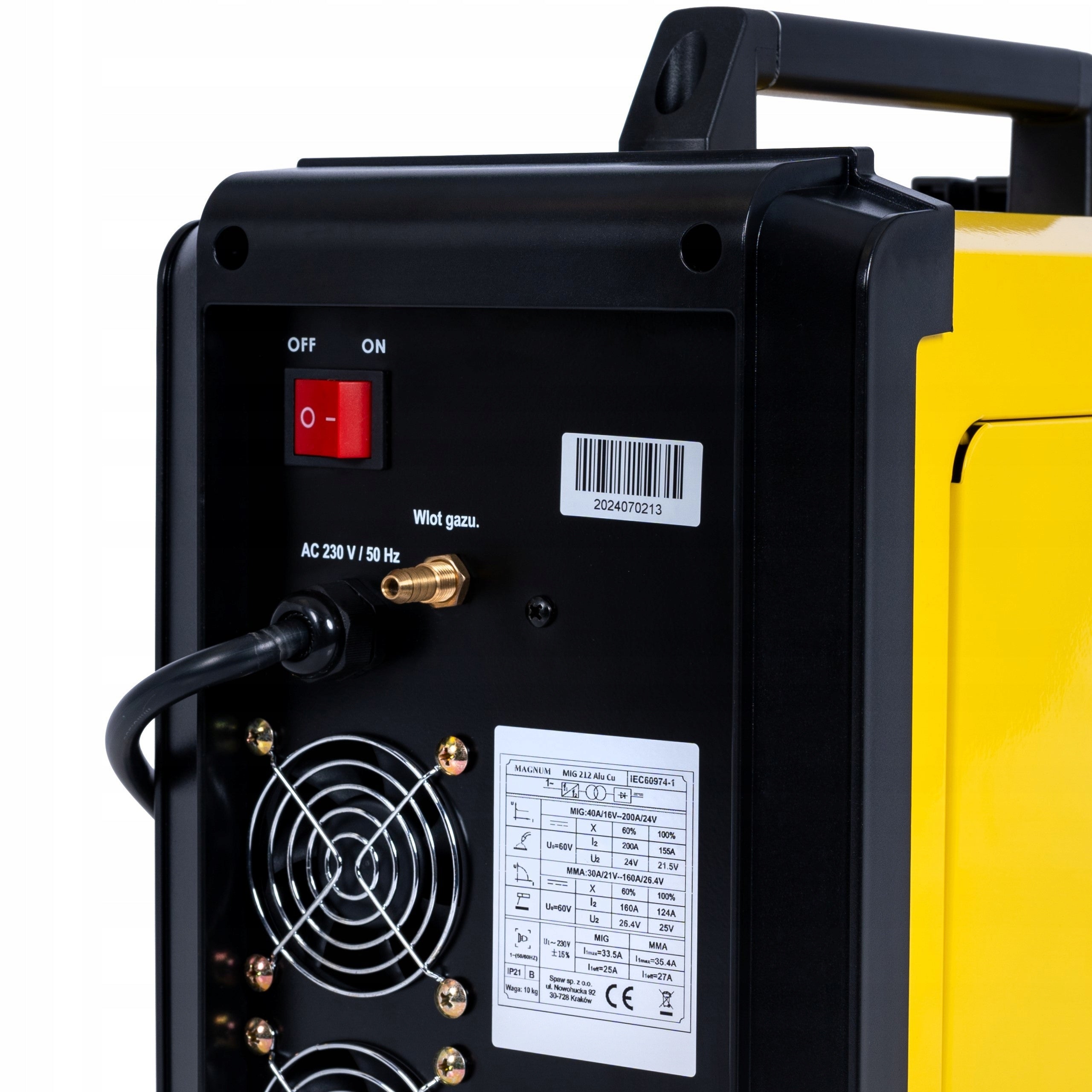

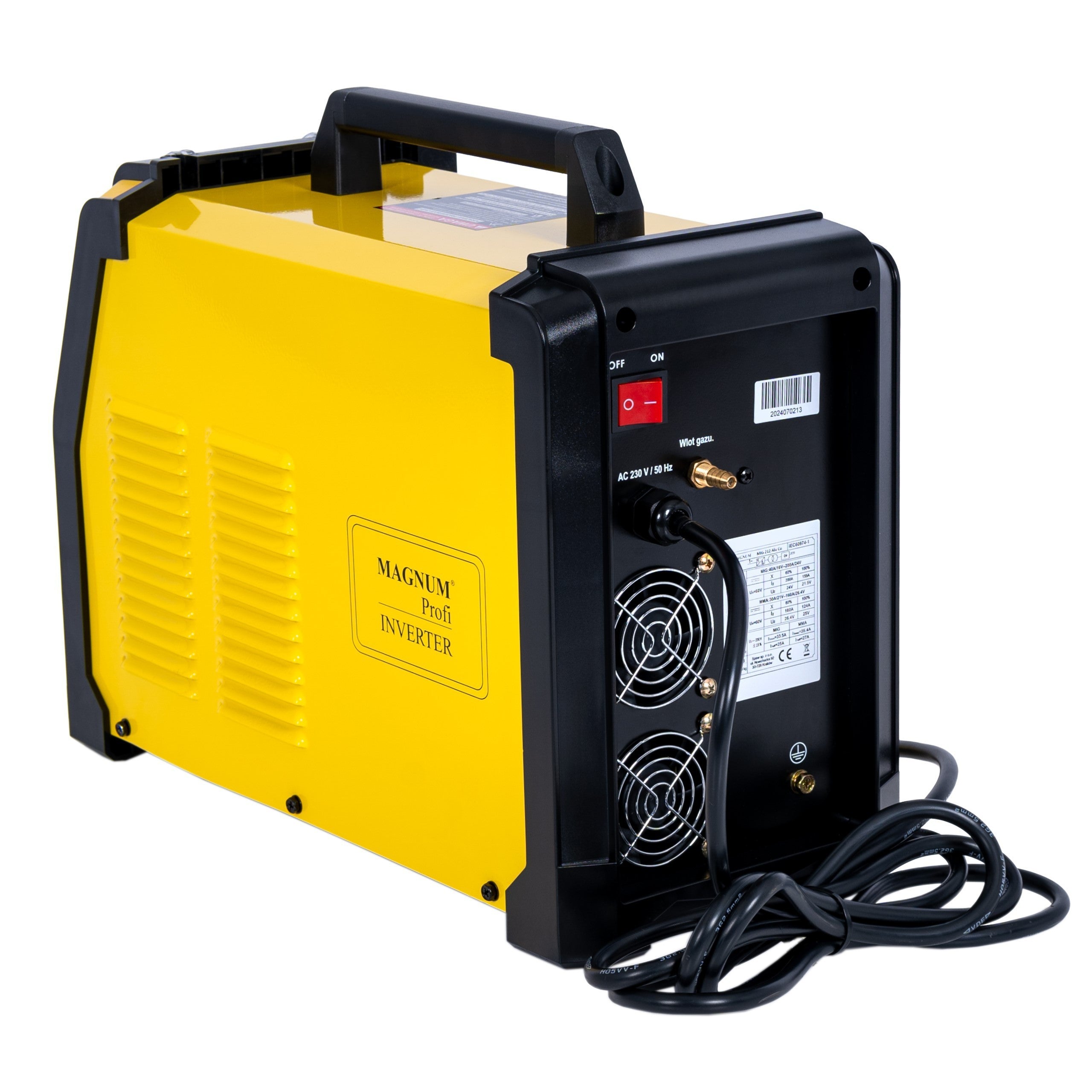

• Power supply: AC 230, 50/60 [Hz]
• Security required: 20 [A], C
• MIG/MAG welding current: 40 - 200 [A]
• MMA welding current: 30 -160 [A]
• MIG/MAG welding voltage: 16 -24 [V]
• Idle voltage: 60 [V]/ 15 [V] VRD
• Wire diameter: 0,6/0,8/0,9/1,0/1,2 [mm]
• Efficiency: 60 [%]
• Housing protection class: IP21
• Weight: 10 [kg]

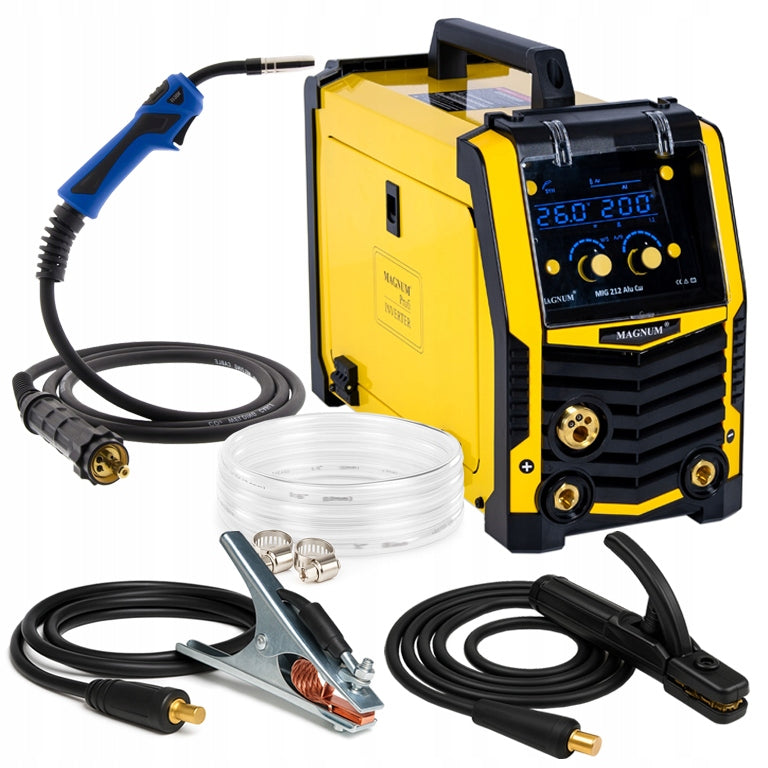

The set includes:

➡ Welding device MAGNUM MIG 212 Alu Cu

➡ Working cable MB15 3 m

➡ MMA working cable 2m

➡ Mass cable 2m

➡ Gas hose

➡ User Manual

Welding torches are designed for manual MIG and MAG welding with electrode wire in a gas shield. The handle is cooled with shielding gas. The MAG method is used for welding low-alloy steels in CO2 shielding or gas mixtures. The MIG method is used for welding high-alloy steels and non-ferrous metals in argon sheath. For welding light alloys, it is recommended to use guide inserts made of Teflon.

The handle is terminated with a standardized EURO connection, suitable for most semi-automatic welding machines.

TECHNICAL DATA:

• Brand: Magnum
• Model Name: MB15
• Length: 4 m
• Co2 gas shielded load capacity: 180 A
• Ar/Co2 gas shielded load capacity: 150 A
• Working cycle: 60%
• Connection of the handle to the device: EURO connector
• Protective gas flow: 10 - 18l/min
• Wire diameter: 0,6-1,0 mm
