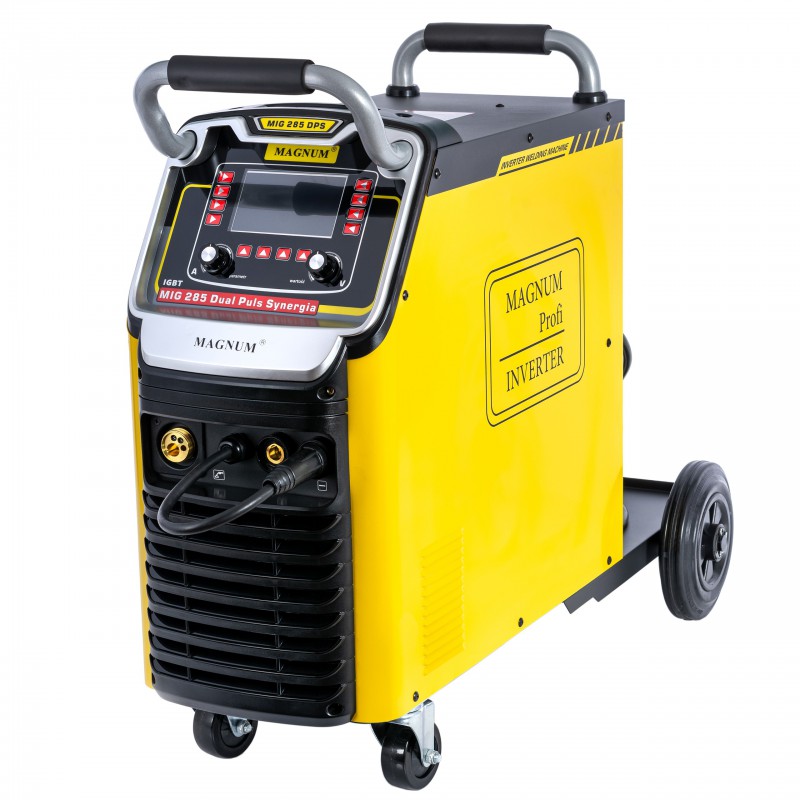

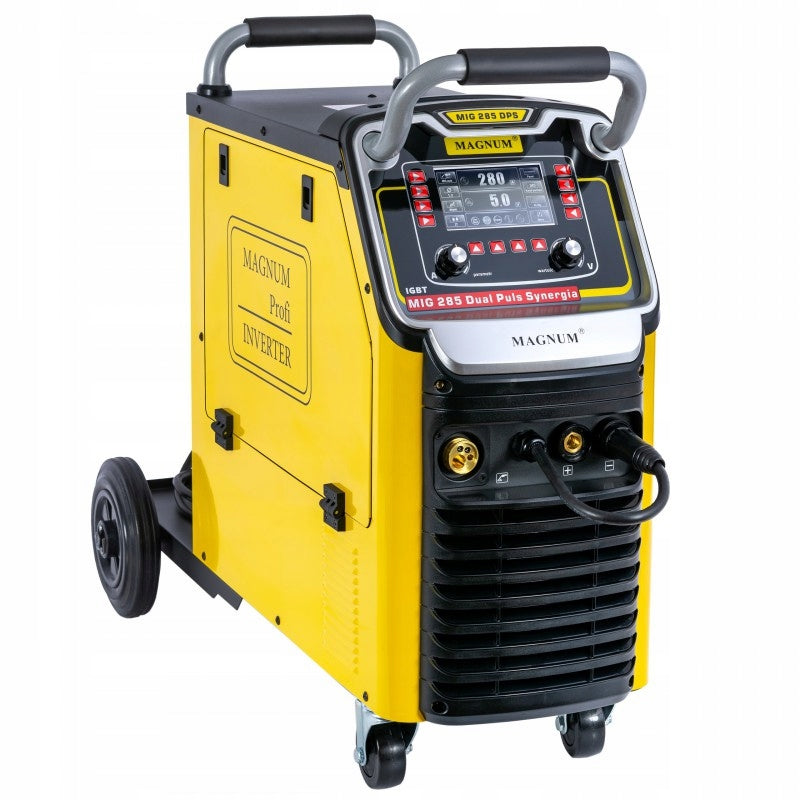

Suvirinimo inverteris MAGNUM MIG/MAG 285 Dual Pulse, 280A, 400V, LCD

Trumpai apie prekę

Prekė: Suvirinimo inverteris MAGNUM MIG/MAG 285 Dual Pulse, 280A, 400V, LCD. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: U MI 285 PULS LCD

The Magnum MIG 285 Dual Pulse Synergy is a technologically advanced, professional, synergistic semi-automatic welding machine with single and double pulsation welding current function. Designed for manual, electric welding of low carbon steels, low alloy steels, low and high alloy steels, aluminum and its alloys, copper and its alloys, soldering, etc.

MIG 285 Dual Pulse Synergy is designed for all kinds of welding work in factories, industrial plants, locksmith workshops, repair workshops, etc.

The power source is built on the basis of IGBT transistors, providing a minimum of electromagnetic interference and low power losses, allowing to increase the efficiency and reliability of the power source. Very high efficiency, which translates directly into lower energy consumption, and high switching frequency, ensure rapid adjustment of the current to changes in parameters during welding.

The MIG 285 Dual Pulse Synergy device has the function of synergistic welding with a single and double pulsation of welding current, thanks to which it is possible to obtain the highest quality weld, welding any weldable materials, especially those made of stainless steel or aluminum. This device has many options, e.g. spot welding, control of the duration and value of the initial and final current, the possibility of welding without synergy, the possibility of MMA welding, etc.

The device is dedicated to professionals who require the highest standards.

Functions and Advantages of the Device:

✅ Built-in memory (9 memory channels)

✅ Possibility of manual settings

✅ Built-in synergistic programs (Al-Mg, Al-Si, Cu, black steel, stainless steel)

✅ Single and double PULSE

✅ Adjustable inductance

✅ Adjustable gas outflow time before and after welding

✅ Adjustable frequency and pulsation balance

✅ Adjustable wire burn height adjustment

✅ Adjustable HOT START function

✅ Adjustable welding time at the point

✅ Adjustable crater filling duration

✅ Advanced menu of individual functions

✅ Spot welding

✅ 2T/4T/S2T/S4T function

✅ LCD Display

✅ Sturdy 4x4 feeder

✅ Possibility to connect remote control

✅ Solid chassis with cylinder shelf

✅ 36V Heater Socket

Technical data:

- Power supply: AC 400 [V] 50/60 [Hz]

- Security Required: 25 [A]/C

- MIG/MAG welding current: 40-280 [A]

- MIG/MAG welding voltage: 14 - 30 [V]

- MMA welding current: 10- 280 [A]

- Idle voltage: 64 [V]

- Efficiency: 60 [%]

- Wire spool size: max. 15 [kg]

- Wire diameter: 0.8/1.0/1.2/1,6 [mm]

- Housing protection class: IP21S

- Net weight: 38 [kg]

The set includes:

➡ Welding device Magnum MIG 285 Dual Pulse Synergy LCD

➡ MIG/MAG MB 24 working cable

➡ MMA working cable

➡ Cable with mass clamp

➡ Instructions
