Aprašymas
Trumpai apie prekę
Prekė: Suvirinimo inverteris MAGNUM THF 206P, MMA/TIG, 200A, 230V, DC Pulse, IGBT, HF, 4T. Kategorija: Inverteriniai suvirinimo aparatai.
- Gamintojas: Magnum
- Modelis: U I THF 206P
Manufacturer: MAGNUM ║ Welding methods: TIG DC, PULS, MMA ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 60%
THF 206P is a modern TIG DC welding machine by MAGNUM. The device with very small dimensions provides a very high power source and allows welding with 200A current with an efficiency of up to 60%. Such parameters allow to obtain 5mm melting in all conditions. Thanks to the PULS function, the arc is stable, and the weld itself is narrower and prettier.
ADVANTAGES OF THE DEVICE:
- Welding TIG PULS with full adjustment
- IGBT transistors of the latest generation
- Light weight and small size
- Full control panel type "ladder"
- Spot welding "SPOT"
- Welding mode 2T/4T
- Contactless arc glow HF - ionizer
The MAGNUM THF 206P welder is a proven device that has been available on the market for a long time. Due to its reliability and simplicity of operation, it collects only positive feedback. This TIG recommended is for assembly work, workshops, garage work and more using black steel, stainless steel and acid-resistant steel.
FUNCTIONAL DEVICE
The MAGNUM THF 206P welder was built based on the latest IGBT technologies, thanks to which its size and functionality have decreased. The device gives us TIG welding options with PULSEM, thanks to which the welder has more control over the welding process, and the weld itself is narrower and prettier. PULS also allows for welding very thin elements, reducing the linear energy of the arc, and thus reducing overheating or burnout of welded materials.
INTUITIVE OPERATION

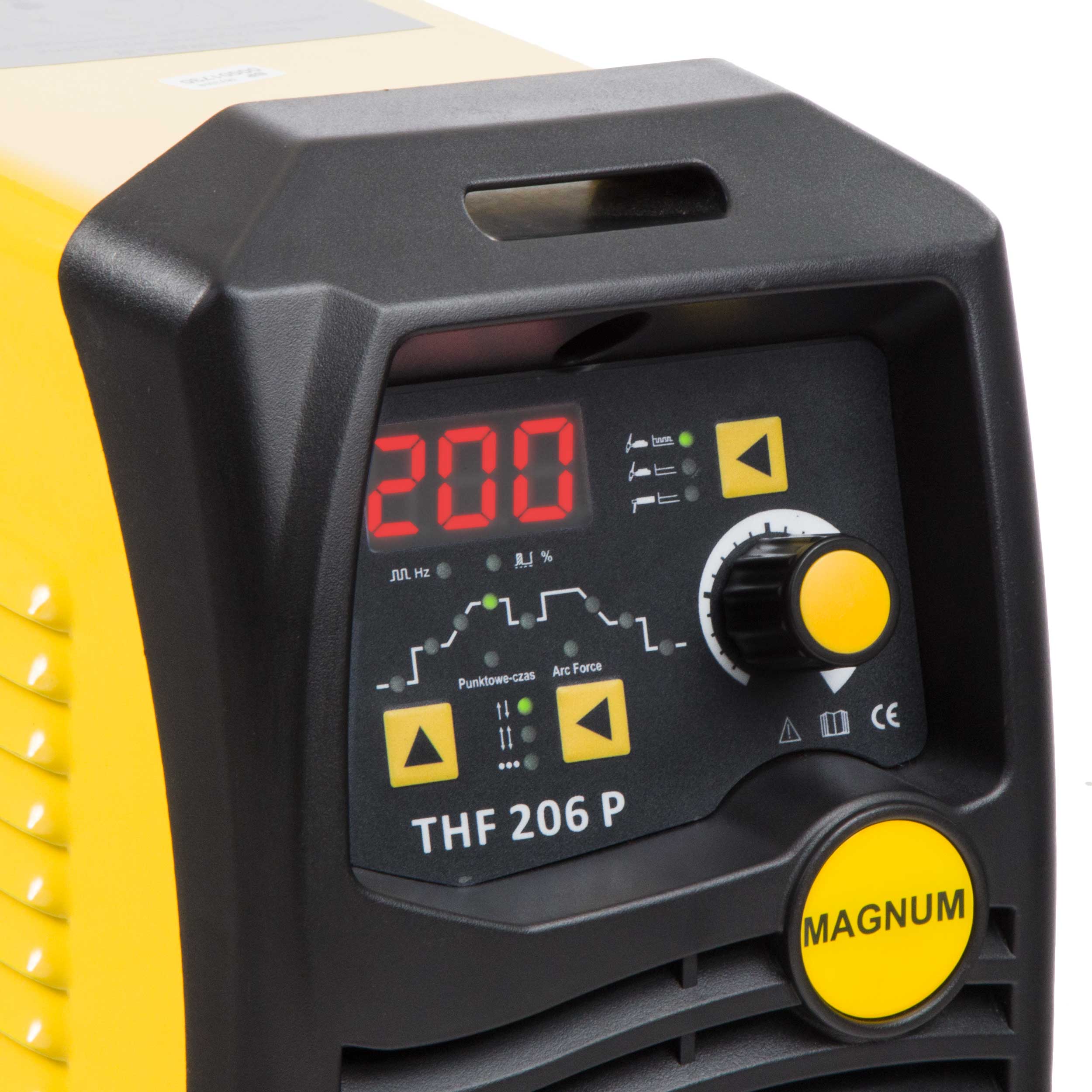

The device has a clear and transparent "soft panel", and parameter adjustments are made using the multifunctional knob and dedicated buttons. With the knob we adjust all parameters of PULS, with the buttons we select the welding method and function and the operating mode. The welder has a full TIG process graph "ladder" and all its parameters are adjusted to the appropriate range.
SMALL SIZE AND HIGH EFFICIENCY
MAGNUM THF 206P is an inverter welding machine, manufactured from new generation IGBT transistors. The welder impresses with its small dimensions and weight of only approx. 9kg. Small dimensions and low weight make the model THF 206p unrivaled in its class of welding machines, they also guarantee high mobility and the ability to work even in hard-to-reach places.
STABLE OPERATION
Arching is carried out without contact using the built-in HF ionizer. In addition, the HF system improves welding stability and ensures rapid adjustment of current to changes in parameters during welding.
STRONG GRIP

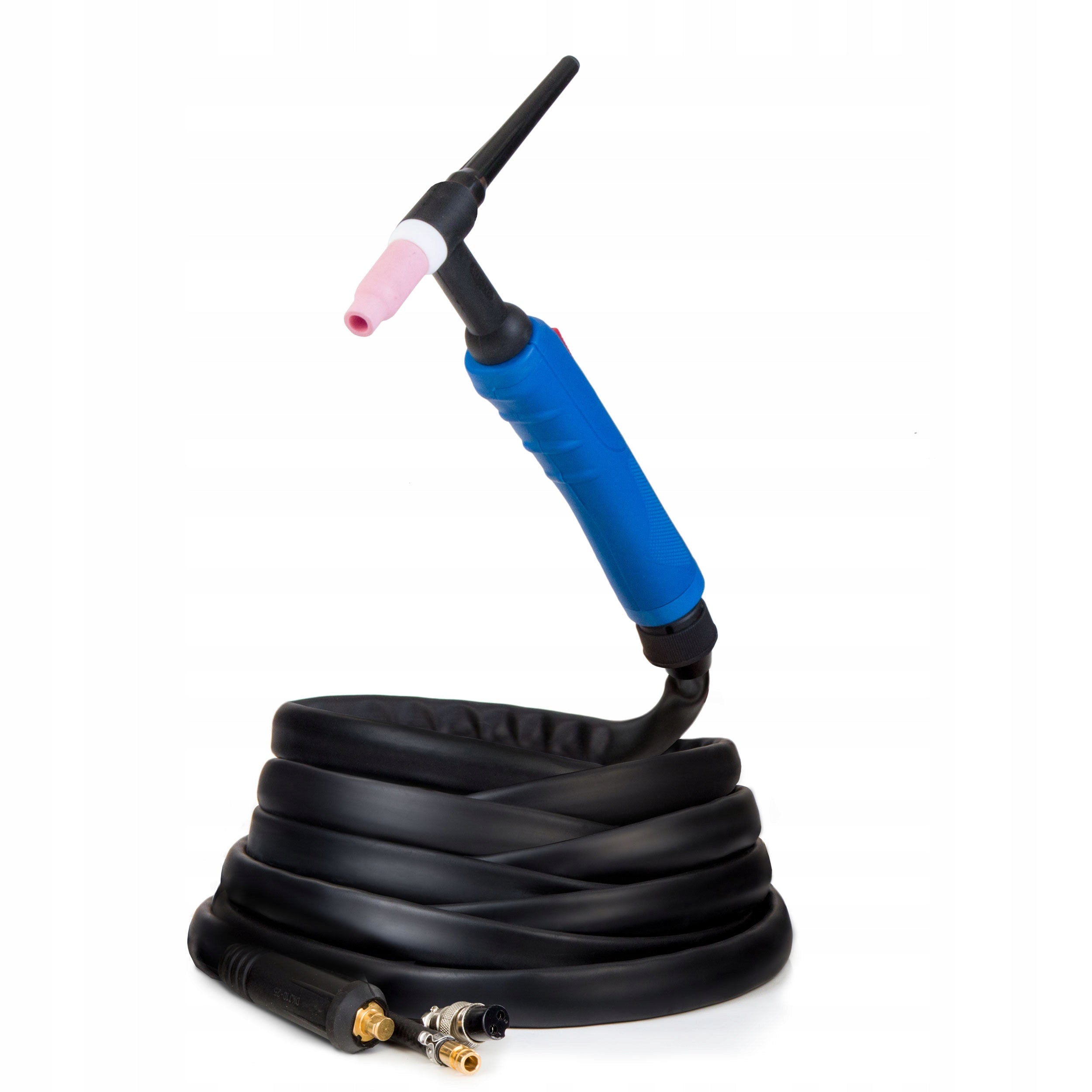

The device is equipped with a TIG SR 26 welding torch length 4m, with a high current capacity, thanks to which it will withstand work even in long cycles.
We add consumable parts to each handle to start, so that the handle is armed and ready to work. In addition, all spare parts of the handle are easily accessible and can be purchased at attractive prices.
POWER SUPPLY PARAMETERS
- Power supply: 230V
- Frequency: 50Hz
- Number of phases: 1ph
- Network security: 25C
TECHNICAL PARAMETERS
- TIG DC welding current range: 10 - 200A
- Work cycle: 60%
- PULSE function: YES
- TIG function POINT: YES
- HF function: YES
- 2T/4T function: YES
- PRE GAS: YES
- POST GAS: YES
- Increase in electricity: YES
- Power drop: YES
- HOT START function: YES
- ARC FORCE function: YES
PHYSICAL PARAMETERS
- Degree of protection: IP23
- Weight: 6kg
- Dimensions: 370x225x135mm

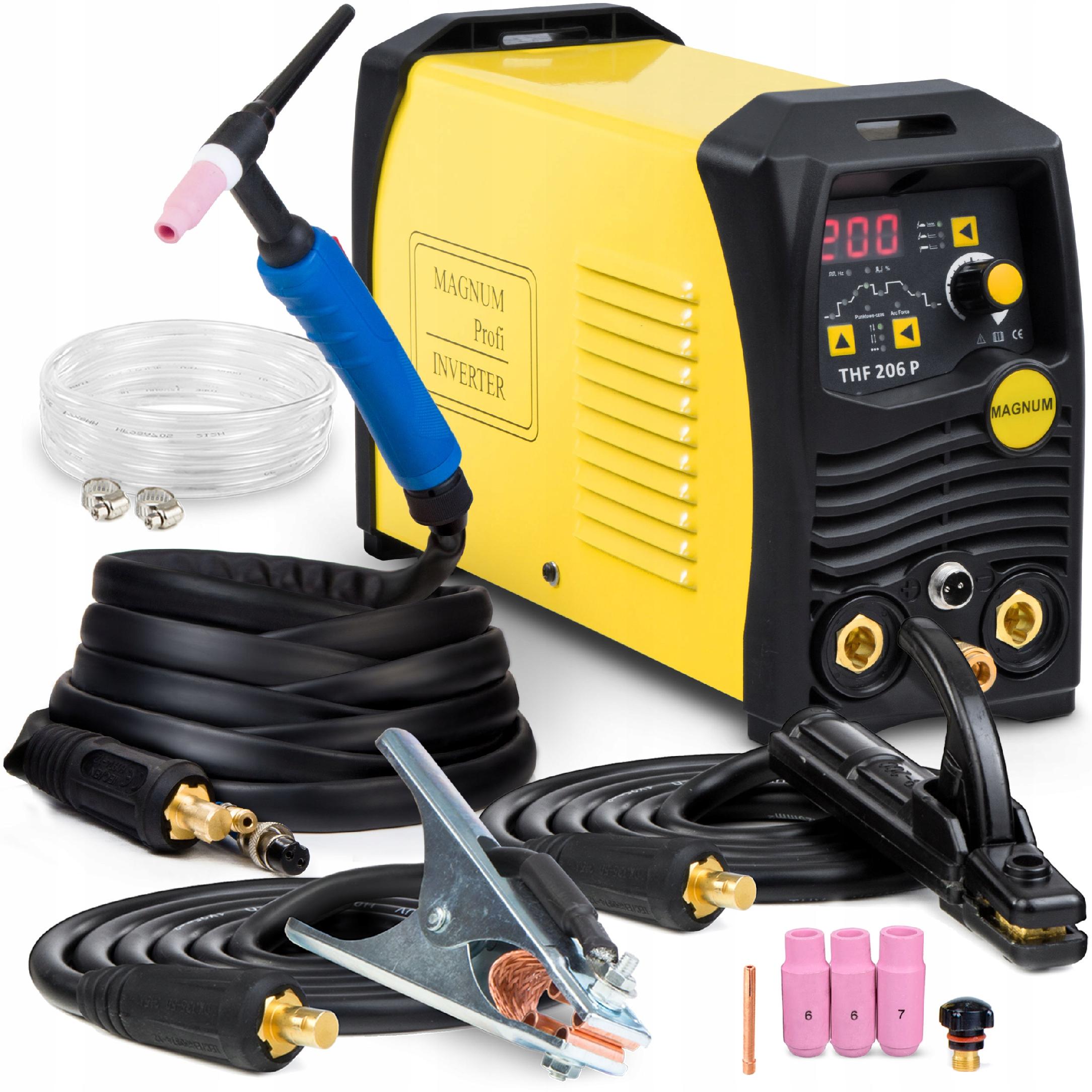

THE SET INCLUDES:
- Welding machine MAGNUM THF 206P
- Welding torch TIG type SR26 - 4m
- Bulk holder - 3m
- Electrode holder - 3m
- Basic consumables of the TIG handle (cork, electrode, bushing, ceramic nozzle)
- Shoulder strap for carrying
- Clamp ties - 2 pcs
- Gas hose - 1 pcs
- User manual and warranty card
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Magnum |
| Parametry | Power consumption | 6 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Device weight | 6 kg |
| Parametry | Welding range | 10–200 A |
| Parametry | Length of ground cable | 300 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Product weight with unit packaging | 11 kg |
| Parametry | Manufacturer code | U I THF 206P |
| Parametry | EAN (GTIN) | 5905323107793 |
| Parametry | Packaging status | original |
| Parametry | Welding methods | MMA,TIG |
| Parametry | Additional features | welding mask included,infinitely adjustable welding current,LCD display |
