Suvirinimo inverteris MAGNUM TIG THF 206 DC PULS

Trumpai apie prekę

Prekė: Suvirinimo inverteris MAGNUM TIG THF 206 DC PULS. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: Spawarka MAGNUM TIG 206P HRS 1

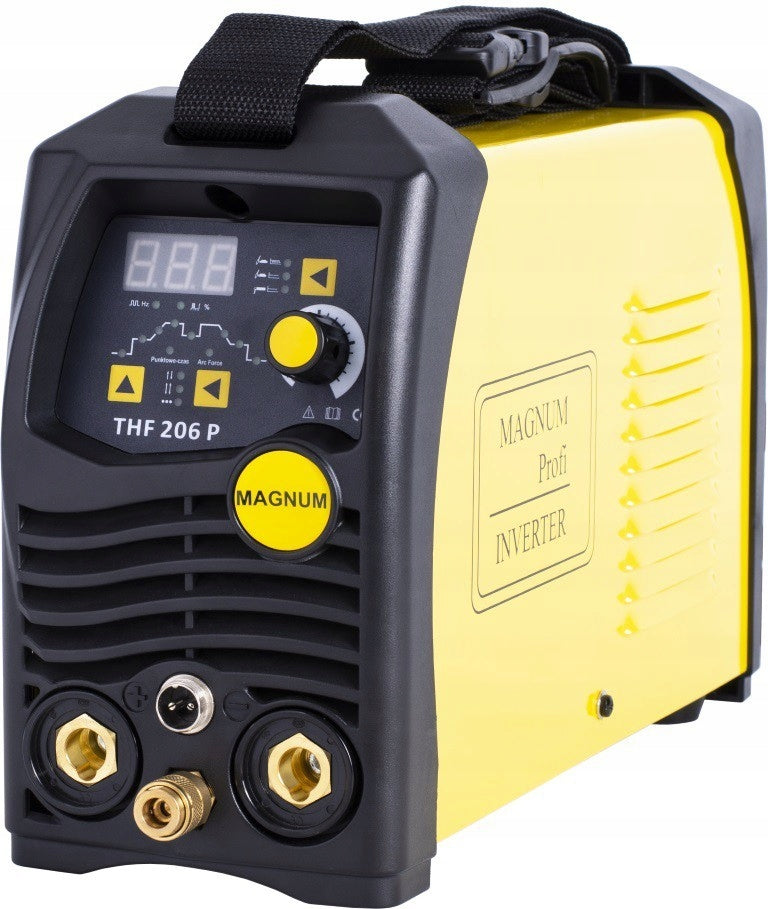

The THF 206P device by MAGNUM is a lightweight, portable inverter welding machine designed for TIG HF welding (with contactless arc welding) with DC current. It provides excellent performance in welding non-alloy, low-alloy, high-alloy steel, titanium and other weldable metals and alloys. The device can also be welded using MMA method using hot melt coated electrodes.

The THF 206P welder is powered from a single-phase 230V network, has a high 60% duty cycle at 200 A current, which allows it to be used in various industrial segments. The device has an intuitive, easy-to-use control panel that allows for quick and precise selection of individual welding parameters.

The welding machine is designed for all kinds of welding work in locksmith workshops, repair workshops, etc.

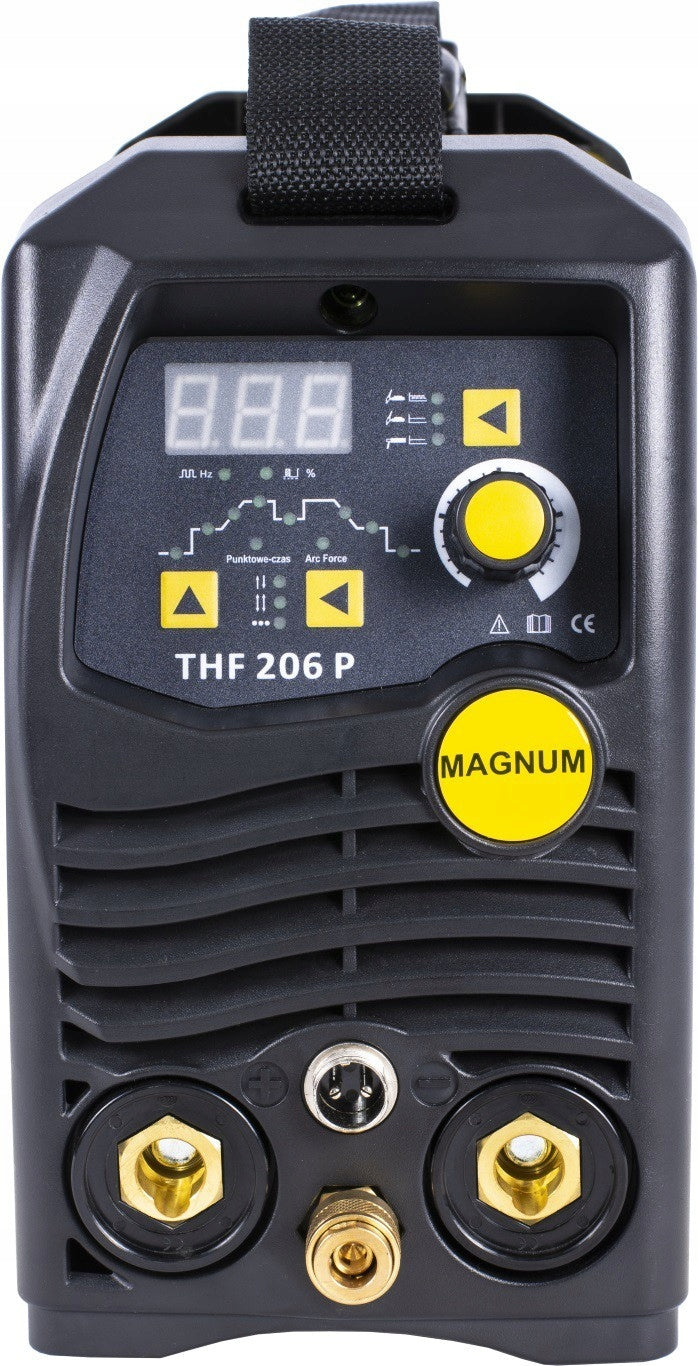

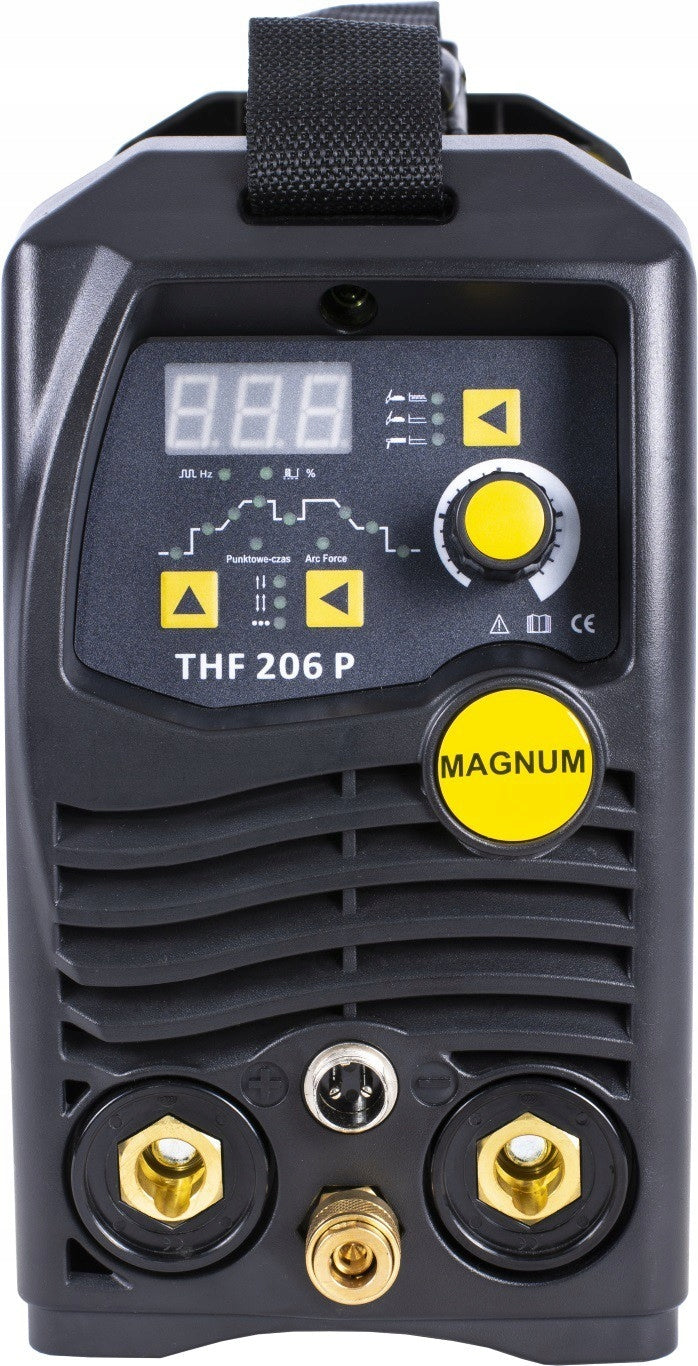

Digital function panel enables precise control of all the most important welding parameters for TIG DC methods:

• Graph of TIG process,
• Gas flow before welding,
• Starting current,
• Time of electricity build-up,
• Welding current,
• Time of falling current,
• Final current (extinguishing),
• Gas flow after welding
• TIG PULS: peak current, base current, pulse frequency,
• Spot welding
• Operating mode 2T/4T

The power source was built on the basis of IGBT (Insulated Gate Bipolar Transistor) transistors, which provide a minimum of electromagnetic interference, small power losses in basic systems, enabling increased efficiency and reliability of the power source. Very high efficiency, which translates directly into lower energy consumption, and high switching frequency, ensure rapid adjustment of the current to changes in parameters during welding.

TECHNICAL DATA:

• Power supply: AC 230 [V], 50/ [Hz],
• Security required: 25 [A] / C
• Efficiency: 60 [%]
• Idle voltage: 62 [V]
• Welding current adjustment range: 10 - 200 [A]
• Housing protection class: IP23
• Weight: 6 [kg]

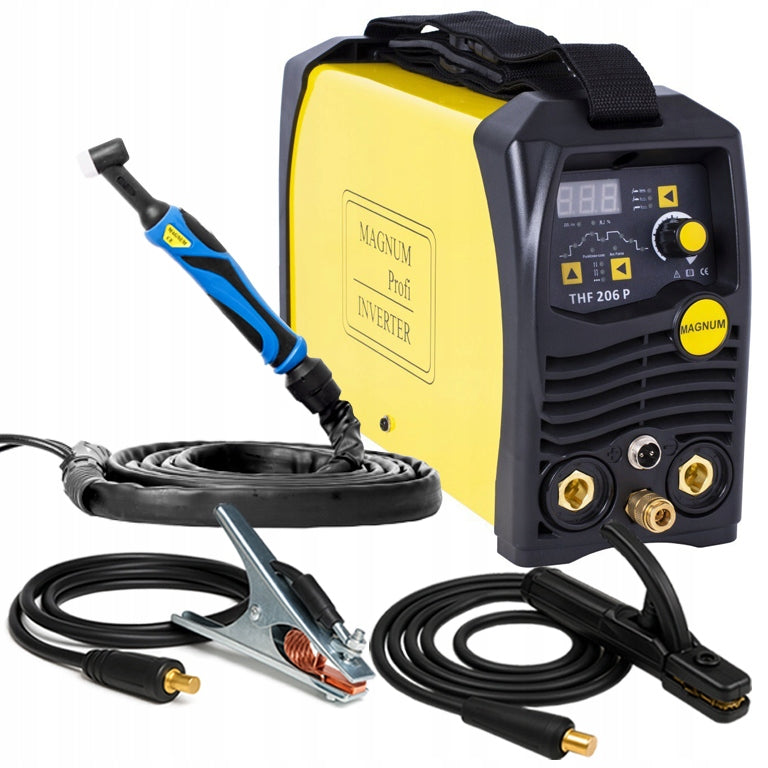

The set includes:

➡ Welding device,

➡ TIG working cable 26/4 m,

➡ MMA working cable,

➡ Mass cable with clamp

➡ User manual.

Welding torch TIG SR26 4M by MAGNUM gas-cooled for welding using the TIG method.

The handle has an ergonomic shape so it fits perfectly in the hand. The control button is located in the central place of the handle.

The handle of the burner has specially rubber inserts, thanks to which the handle lies securely in the hand. The handle has a high-quality rubber cover, protecting the wires from abrasion.

Technical data:

• current capacity for 35% cycle: 180A (DC),
• current carrying capacity for 35% cycle: 150A (AC),
• cooling: gas,
• plug: ŁW 25 (9mm plug),
• control plug 2-pin (plug diameter 13 mm)
• Length: 4m

The TIG welding torch kit adds basic consumables such as:

• cork,
• sleeve,
• ceramic nozzle,
• connector.

Depending on the delivery, the handle may vary in color.
