Aprašymas
Trumpai apie prekę

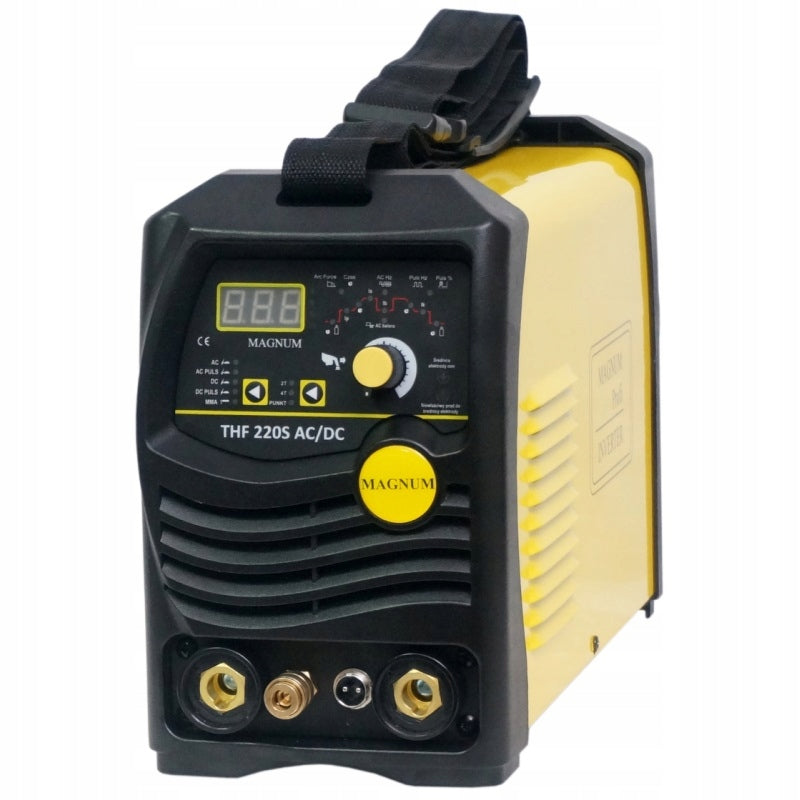

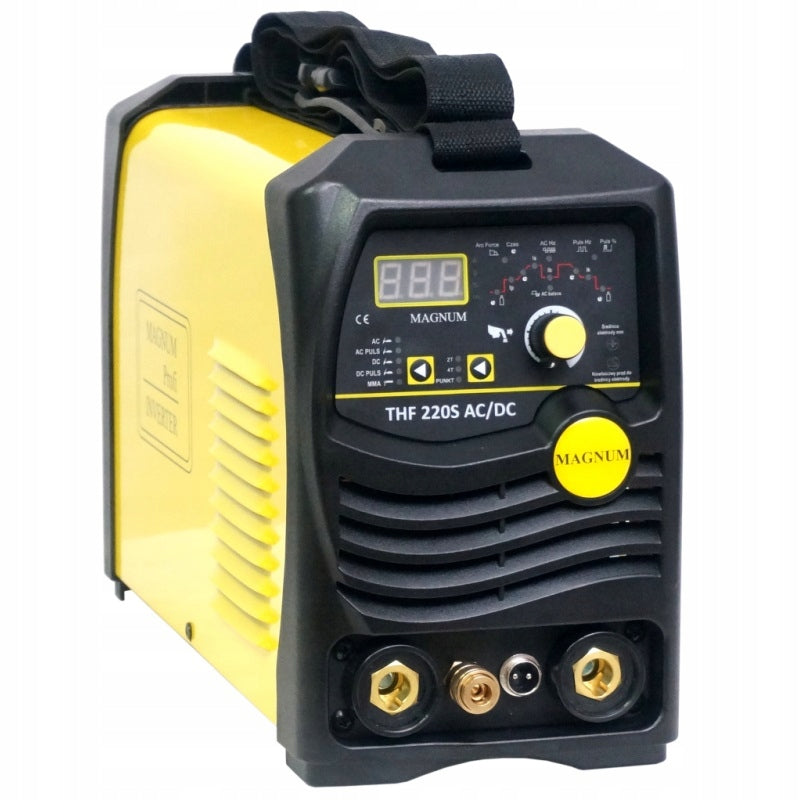

Prekė: Suvirinimo inverteris MAGNUM TIG THF 220S ACDC PULS. Kategorija: Invertoriniai suvirinimo aparatai.
- Gamintojas: Magnum
- Modelis: MAGNUM TIG AC/DC MAGNUM THF 220S
MAGNUM TIG THF 220S AC/DC is an inverter lightweight welding machine designed for welding with TIG HF direct current DC and alternating current AC. The device is powered from a single-phase network 230V 50Hz, has a maximum welding current of 200A.
The device also allows welding with wrapped electrodes (MMA) of various materials made of carbon and alloy steels, brass, copper and cast iron.
The welding machine is designed for all kinds of welding work in locksmith workshops, repair workshops, etc.

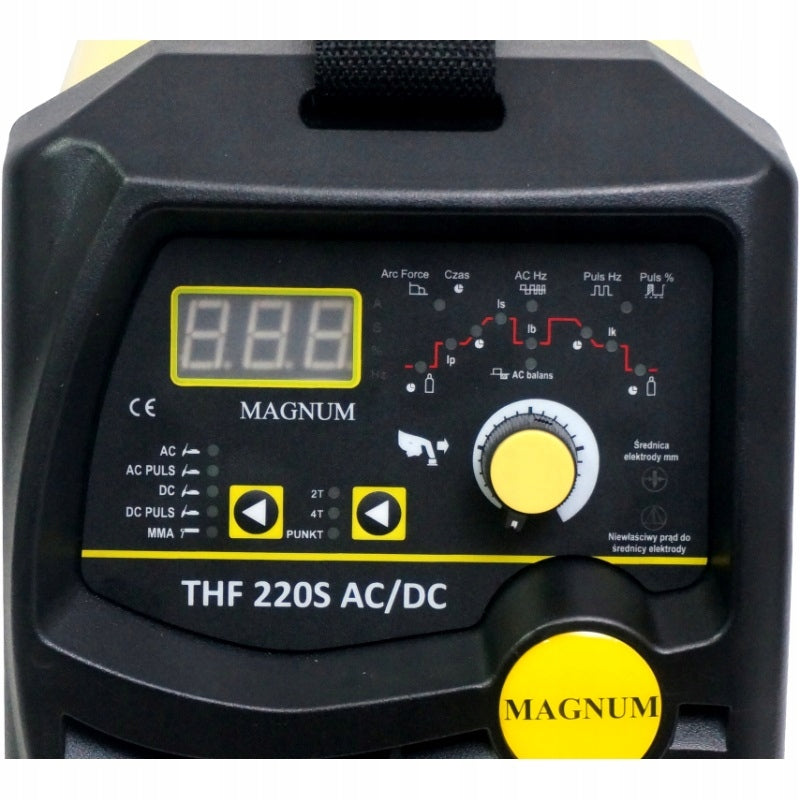

The devices are equipped with a “soft” transparent panel that allows you to set all the necessary welding functions (start/fill current of the crater/welding/base, current rise and fall times, gas outflow before and after welding, pulse frequency, balance, etc. ).
The power source was built on the basis of the latest technology using IGBT transistors, which translates into reduced electromagnetic interference, low power losses, increased efficiency and reliability of the power source and lower energy consumption.
The device has a function - illumination of the electrode diameter
- for TIG method: 1,0 - 3,2 mm
- for MMA method: 1,6 - 4,0 mm
The choice of diameter does not force any parameters, only suggests by illuminating the indicator light - the wrong current to the diameter of the electrode, informs us that the value of the welding current is too low or too high for a given diameter of the electrode.
FUNCTIONS OF THE DEVICE:
- welding MMA, TIG AC/DC
- digital processing of AC wave
- frequency PULS AC 20 - 250 Hz (increased arc focus)
- PULSE frequency DC 0,2 - 200 Hz
- function 2T / 4T
- pulse function
- arc force function
- spot welding
TECHNICAL DATA:
- Power supply: 230 V / 50 [Hz]
- TIG welding current: 5 - 200 [A]
- MMA welding current: 20 - 160 [A]
- Efficiency: 60 [%]
- TIG arc glow:contactless
- Electrode diameter range: 1,6 - 3,25
- Protection: 25 [A] (type C)
- Idle voltage: 67 [V]
- Protection class IP21
- Weight: 9 [kg]
SET INCLUDES:
- Welding device THF 220S,
- TIG working cable UT26 4m,
- MMA working cable,
- Bulk cable with clamp
- User manual.
Watch the product video on YouTube!
https://www.youtube.com/watch?v=X9O4RRES1v0
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Magnum |
| Parametry | Power consumption | 8 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Device weight | 9 kg |
| Parametry | Welding range | 5–200 A |
| Parametry | Length of ground cable | 300 cm |
| Parametry | Welding cable length | 400 cm |
| Parametry | Product weight with unit packaging | 12 kg |
| Parametry | Manufacturer code | U I THF220SAC |
| Parametry | EAN (GTIN) | 5901053100035 |
| Parametry | Customs tariff code | 85153918 |
| Parametry | Model | MAGNUM TIG AC/DC MAGNUM THF 220S |
| Parametry | Welding methods | MMA,TIG |
| Parametry | Additional features | infinitely adjustable welding current,LCD display,EURO holders |
