Suvirinimo inverteris MAGNUM VIP5000 SYNERGY, 200A

Trumpai apie prekę

Prekė: Suvirinimo inverteris MAGNUM VIP5000 SYNERGY, 200A. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: POWER VIP 5000

One of the best models available on the market. Thousands of units sold, 0 complaints.

.

The company MAGNUM specializes in welding, which is why the welding machines of this company are characterized by the highest quality that distinguishes them from the competition.

POWER VIP 5000 | SYNERGY function | 230V | MMA | 60% | WELDING CURRENT CONTROL | MAGNUM | VRD

The company MAGNUM specializes in welding, which is why the welding machines of this company are characterized by the highest quality that distinguishes them from the competition.

.

+ CARRYING BELT

+ WELDING CABLES

.

TECHNICAL DATA:

• - Welding machine type: Power VIP 5000
• - Producer: Magnum
• - Power supply: AC 230 [V] / 50 [Hz]
• - Welding current: 20 - 200 [A]
• - Uo idle voltage: 66 [V]
• - Idle voltage Uo-VRD: 21 [V]
• - Power protection: 20 [A] / C
• - Efficiency: 60%
• - Cooling: fan
• - Housing protection class: IP21S
• - Weight: 2,5 kg

QUALITY AND POWER THAT DOES NOT NEED TO BE ADVERTISED.

MAGNUM HAS BEEN PRESENT ON THE MARKET FOR MANY YEARS.

THE COMPANY'S PRODUCTS ARE FAMOUS FOR HIGH-QUALITY WORKMANSHIP I FAILURE-FREE.

Lightweight portable welding machine MAGNUM POWER VIP 5000.

The POWER VIP 5000 inverter welder with a power of 200A enables manual welding with MMA wrapped electrodes, welding of ordinary and high-quality structural steels,stainless, heat-resistant and cast iron.

To achieve the best possible performance and reliability of the devices, they are manufactured in accordance with the most demanding standards, which provides them with excellent welding parameters for both the MMA and TIG DC LIFT methods - after purchasing the appropriate holder.

It has a built-in protection against overheating, overload, power instability, as well as hot start, anti stick and arc force.

Thanks to this, arching and guiding the electrode is extremely easy, even for welders without any experience.

The MAGNUM POWER VIP 5000 series is based on 60% welding efficiency.

Thanks to their dimensions, they are perfect for work in field conditions and stationary and for performing all kinds of repair work.

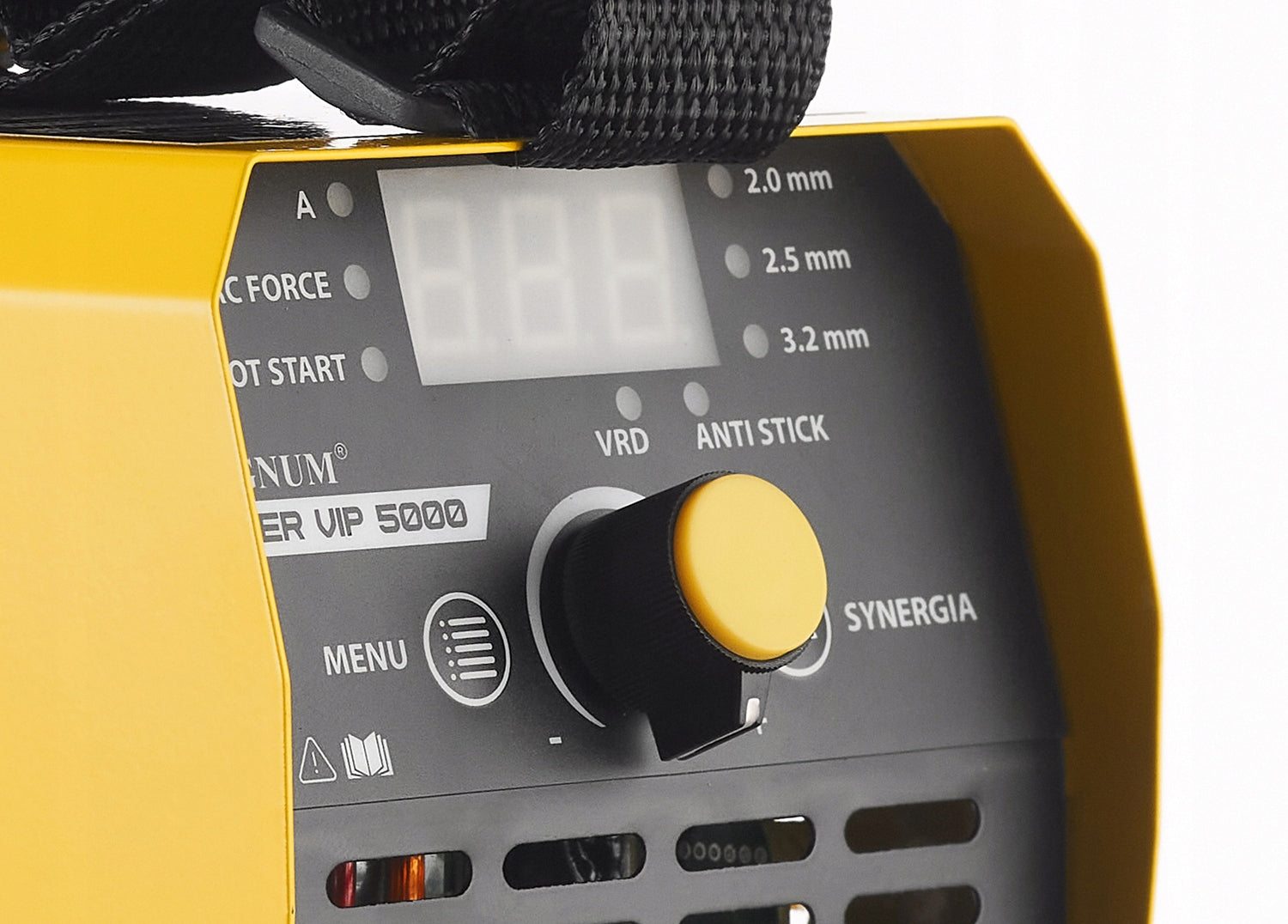

The device has a clear display and SYNERGY functions.

SYNERGISTIC MMA WELDING - after selecting the electrode diameter on the control panel, the device suggests the welding current range : 2.0 mm: 50-80 [A] , 2.5 mm: 80-100 [A], 3.25 mm: 110-180 [A],

• Suitable for use in off-road conditions
• Made in inverter technology,
• Durable metal housing
• Extremely light (2,5kg)
• 60 % welding efficiency
• Function SYNERGY
• - choice of electrode diameter
• - manual control
• - HOT START function
• - ARC FORCE function
• - VRD function
• - ANTI STICK function
• - smooth adjustment of parameters

Popularly called hot start, it allows by temporarily increasing the welding current above the value set by the welder. HOT START works at the moment of arcing and is designed to prevent the electrode from sticking to the material. It is a great convenience when lighting the electrode.

cuts/minimizes welding voltage and current in case of short circuit of the electrode with the welded material. ANTI STICK allows the welder to detach the electrode more easily.

stabilizes the arch regardless of its length. Regulates the dynamics of the welding arc. By reducing the value of the function, it gives a soft arc and a smaller depth of melt, while increasing the value of the function causes deeper melting and the possibility of welding with a short arc. At the highest value for the ARC FORCE function, it is possible to "press the electrode into a lake of molten metal and burn the material through.

Thermal protection of the source with signaling.

turns off the power supply within a few milliseconds after welding, which reduces the voltage on the wrapped electrode to a safe level for the welder.

If the welding continues, the VRD will immediately increase the welding voltage allowing the welder to continue working.

Inverter welders with VRD should be used primarily in wet workplaces, e.g. sewerage, excavations, combined heat and power plants, etc.

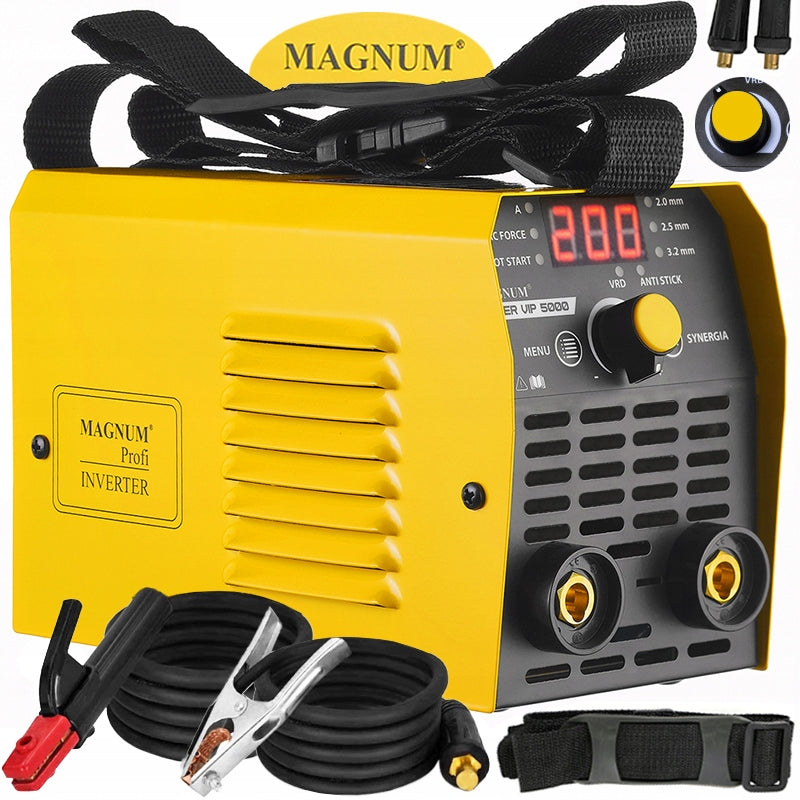

• MAGNUM POWER VIP 5000 inverter welder
• MMA DIN welding cable with electrode holder
• DIN mass cable with clamp
• User manual in Polish
• CARRYING STRAP
• Original packaging
