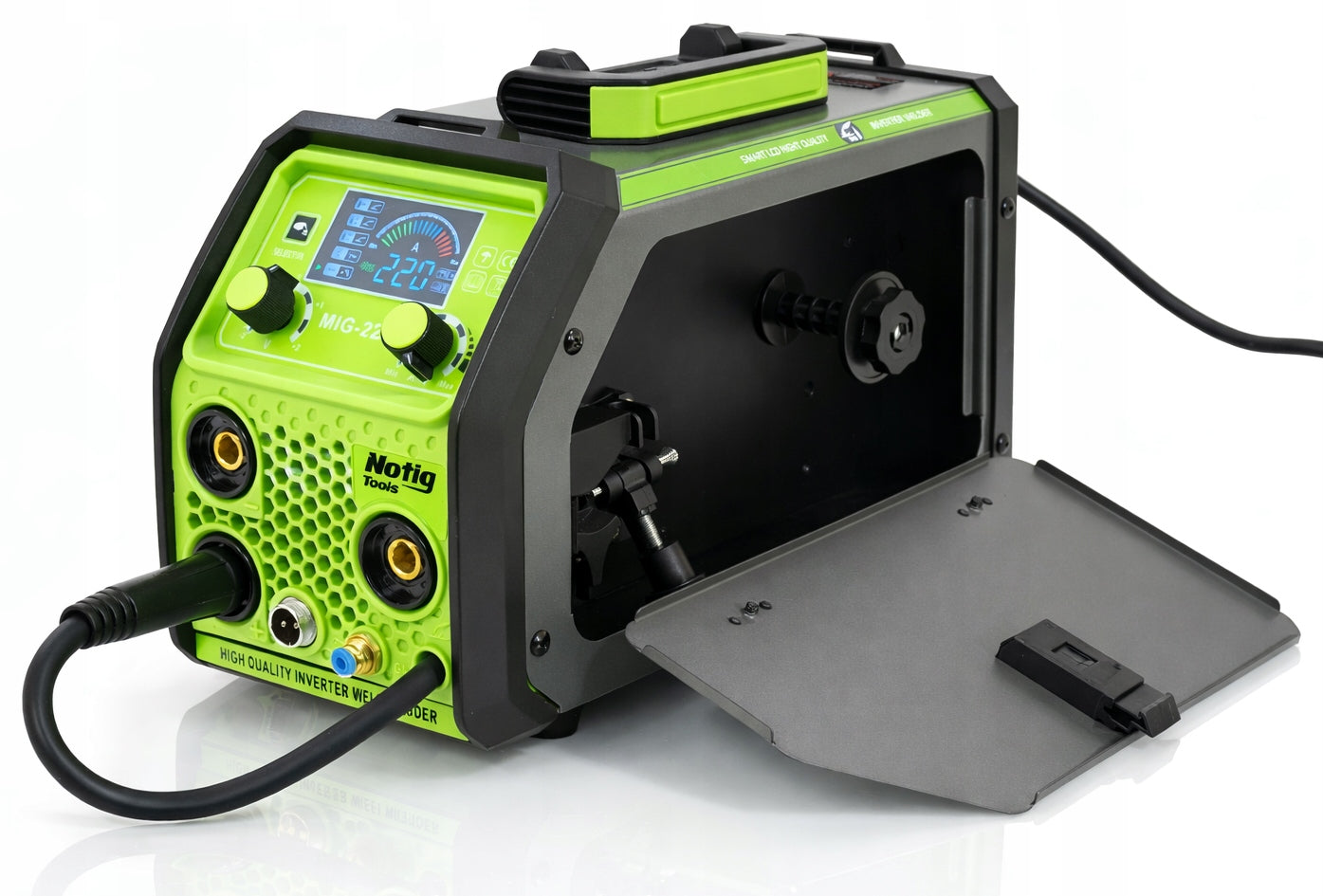

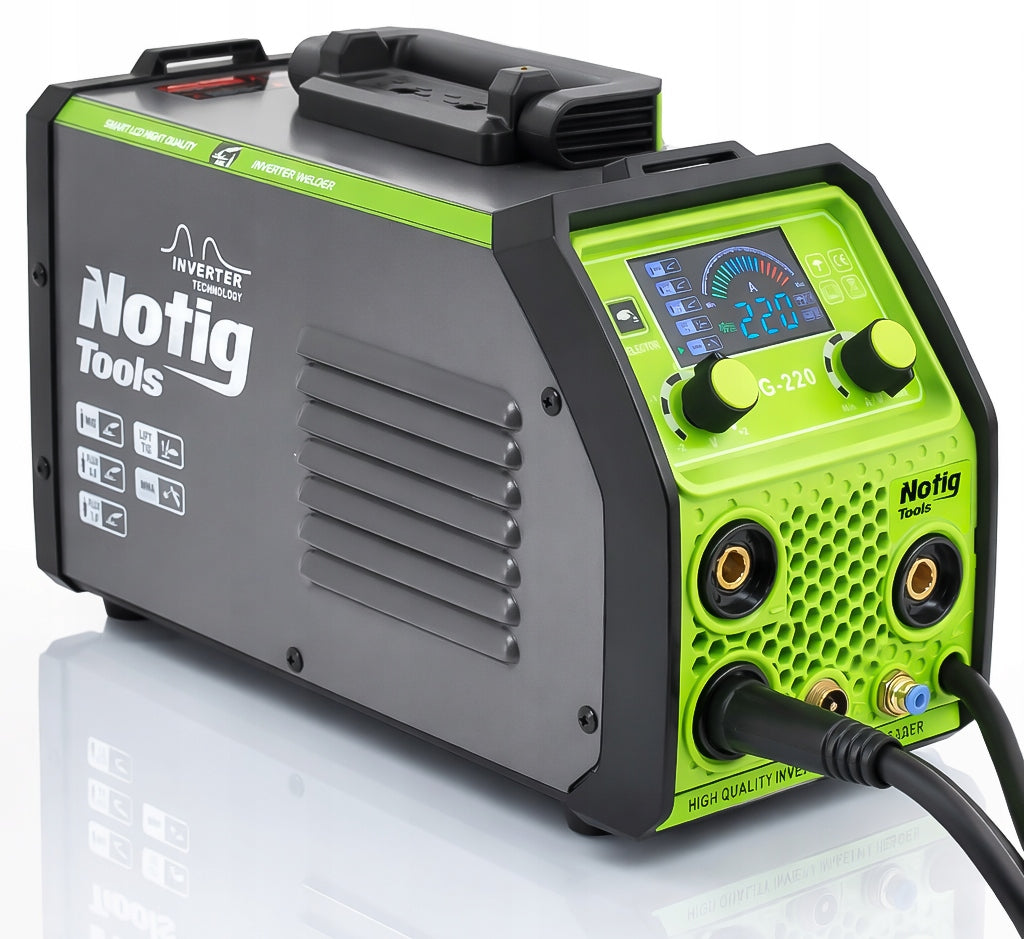

Suvirinimo inverteris MIG/MAG/FLUX/MMA/TIG 220A IGBT su HOT START ir ANTISTICK

Trumpai apie prekę

Prekė: Suvirinimo inverteris MIG/MAG/FLUX/MMA/TIG 220A IGBT su HOT START ir ANTISTICK. Kategorija: Invertoriniai suvirinimo aparatai.

• Gamintojas: Notig Tools
• Modelis: N1305

⭐ 100% satisfaction with your purchase or your money back! ⭐

► Synergy function ► IGBT transistor ► MIG FLUX / MMA / TIG / ► 20-220A ► Hot Start, Arc Force, Anti-Stick ► LCD display ► Long wires 2 m ► Operating cycle 60% ► VRD

⚡ High-performance welding machine for many applications

✅ Working mode ► the device provides a working cycle of 60%, which means the ability to work for 5 minutes at full load, and then the necessary 5-minute break

✅ MIG FLUX / MMA / TIG ► weld in the most comfortable way for you using three different methods. The welder is an extremely versatile device

✅ Solid wire feeding mechanism ► support wire with a diameter of 0,6 or 0,8 mm and weight of 1 kg

✅ Admissible electrode diameter ► the equipment works with electrodes with a maximum diameter of 4,0 mm, enabling welding of thicker elements requiring more power

✅ Adjustable welding current ► range from 20A to 220A (depending on the method) allows exact adjustment of parameters to thickness of material and type of weld

⚡ Practical solutions to increase the comfort of use

✅ Modern IGBT ► transistors guarantee high energy efficiency and stable welding current during operation

✅ Efficient cooling system ► effectively dissipates heat, allowing long-term operation without worrying about overheating equipment

✅ Hot Start, Arc Force, Anti-Stick ► these features provide comfortable service, even for beginners. The problem of sticking the electrode to the material ceases to exist!

✅ 2 m ► extended cables provide freedom of movement and allow convenient welding in all conditions

⭐ What makes it worth betting on this equipment?

✔ Our welding machines are made of high-quality materials and using proven technologies,

This makes them the best choice in their price class

► Solid build quality

► Care for the smallest technical and aesthetic details

► Device of a reputable brand with a stable position on the market

► Full availability of spare parts and efficient service

⭐ High power and welding accuracy

► The welding machine operates in the current range from 20A to 220A, offering high flexibility in the selection of the electrode and precise adjustment of parameters to the type of welded metal, which translates into equal and aesthetic welds

► Thanks to this, the device works efficiently with both thin and thick elements, which makes it a universal tool for many applications – from small repairs to more demanding constructions

► Wide current adjustment range also provides appropriate weld properties, regardless of the type of material, such as carbon steel, stainless steel or cast iron

► High-capacity electrolytic capacitors are responsible for voltage stabilization and its controlled release, guaranteeing a stable welding arc during each operation

⚙ TECHNICAL DATA:

Manufacturer: Notig Tools

Supply Voltage: 230-240V / 50Hz

MIG output current range: 40-220A

MMA Output Current Range: 20-220A

TIG output current range: 40-220A

Operating cycle < 25°C : 60%

Operating cycle 26-35°C< : 30%

Rated current consumption: 16A

Possibility of welding with electrodes with diameter: 2.0-4.0 mm

Wire diameter: 0,6-0.8 mm

Wire Type:Self-shielded

Protection class: H

Degree of protection: IP21S

Length of mass cable: 2,0 m

Length of electrode cable: 2,0 m

MIG handle: 2,0 m

► MIG FLUX operating range: 40 – 220A

In MIG FLUX - mode, the device allows you to work with output current from 40A to 220A

✔ With thin sheets, lower current settings allow softer melting of the material, reducing the risk of burnout and allowing for aesthetic and even welds

✔ When welding thicker elements, the possibility of raising the current to 220A provides deeper melt, which is necessary to make durable and robust connections

⚡ Great quality combined with favorable price

You do not need to be a welding specialist to get a deep melt using this welding machine

✔ Solutions and functions, which usually only occur in the most expensive IGBT models, are also available in Notig Tools

Making a aesthetic surface weld is relatively easy, but the real challenge remains to obtain a deep melt, which guarantees a clean, full and extremely durable weld

✔ Our welding machine offers parameters, thanks to which it is possible to achieve such results even for people without experience

✔ The welder also has the possibility of TIG Lift welding

(method of arcing by rubbing after using the appropriate handle - to be purchased separately)

After its installation, the welding machine turns into a TIG welding machine while maintaining many parameters of expensive TIG devices.

► MMA mode: range 20 – 220A

In MMA mode (welding with wrapped electrode), the device operates in the current range from 20A to 220A

✔ Thanks to this, the welding machine works well with thin and thick elements, which makes it a universal solution for diverse applications – from simple repairs to more demanding constructions

✔ Wide range of current regulation allows you to obtain appropriate weld properties, regardless of type of material, such as carbon steel, stainless steel or cast iron

­

► TIG mode: range 40 – 220A

In TIG mode (welding with non-melting tungsten electrode), the welding machine offers current regulation from 40A to 220A

✔ Low current values (from 40A) enable precise and controlled welding of thin elements, where accuracy plays a key role

✔ However, the possibility of increasing the current to 220A provides great flexibility to work with thicker materials, guaranteeing strong melt and durable and solid welds, without losing precision and quality of finish

­

• NOTE! TIG grip not included

­

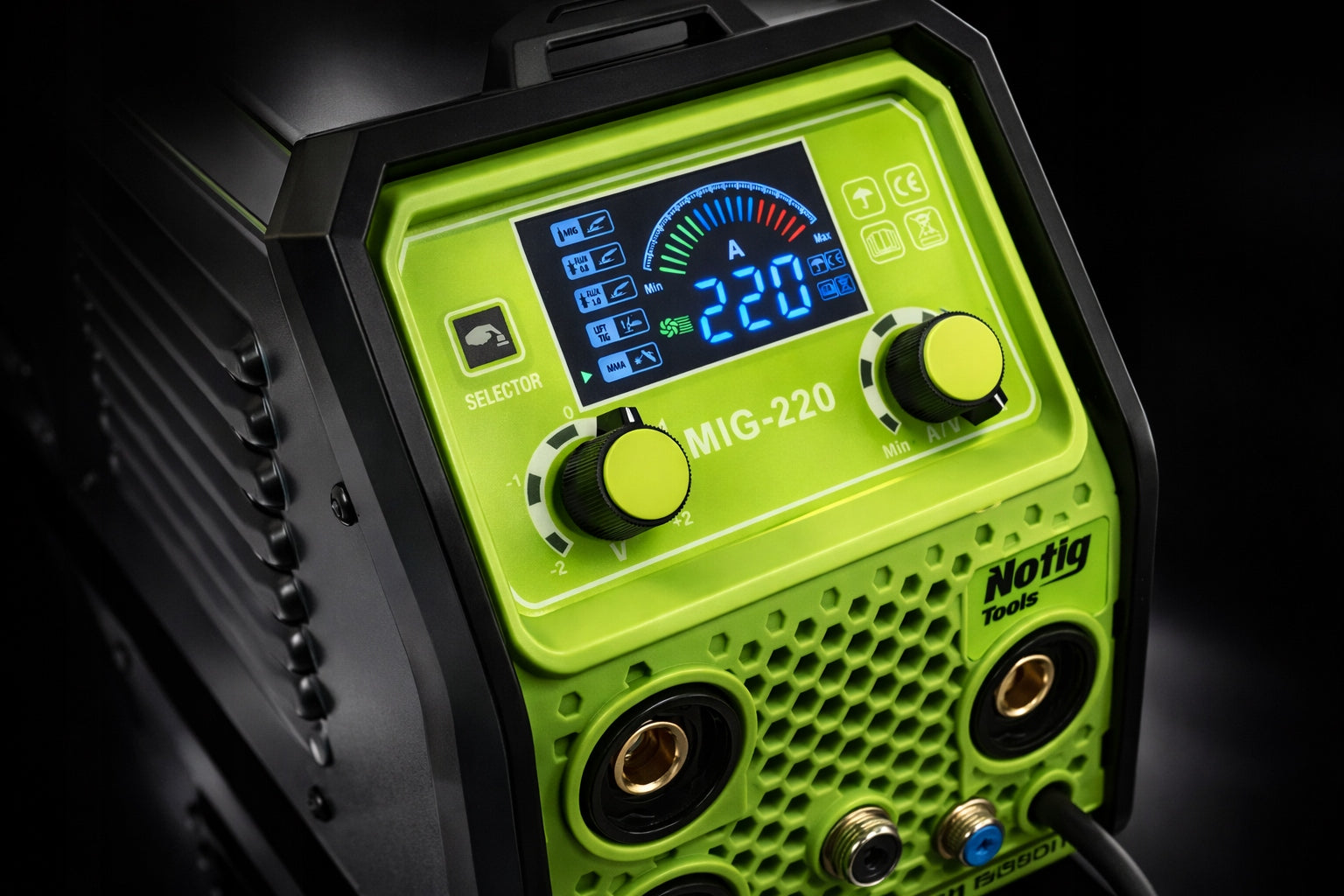

⚡ Clear LCD Display

All set values and active mode/type of welding are readably highlighted on the panel, so that you always have full control over the current (A) and mode of operation of the device

⭐ Quick start of the arc – Hot Start

The Hot Start automatically raises the welding current at the beginning of operation, which facilitates fast and reliable arc ignition, especially when welding more demanding materials

⭐ Dynamic stabilization – Arc Force

Arc Force is responsible for the stability of the welding arc, dynamically correcting the current when the arc becomes too short, making the welding process smooth and more stable

⭐ Protection against sticking – Anti-Stick

The Anti-Stick function eliminates the problem of sticking the electrode to the material, automatically lowering the current when the electrode is too close to the welded element, which minimizes the risk of its adhesion

⚡ Great quality at a reasonable price = perfect weld

You do not have to be a welding specialist to get a deep and solid melt with the help of this welding machine.

✔ Technological solutions, which are usually found only in the most expensive IGBT devices, are also available in NOTIG TOOLS welding machines.

Making a aesthetic surface weld is not a problem, but the real challenge is to obtain a deep melt, which guarantees a clean, full and extremely durable weld

✔ The parameters of our welding machine have been selected so that achieving such results is possible even for novice users!

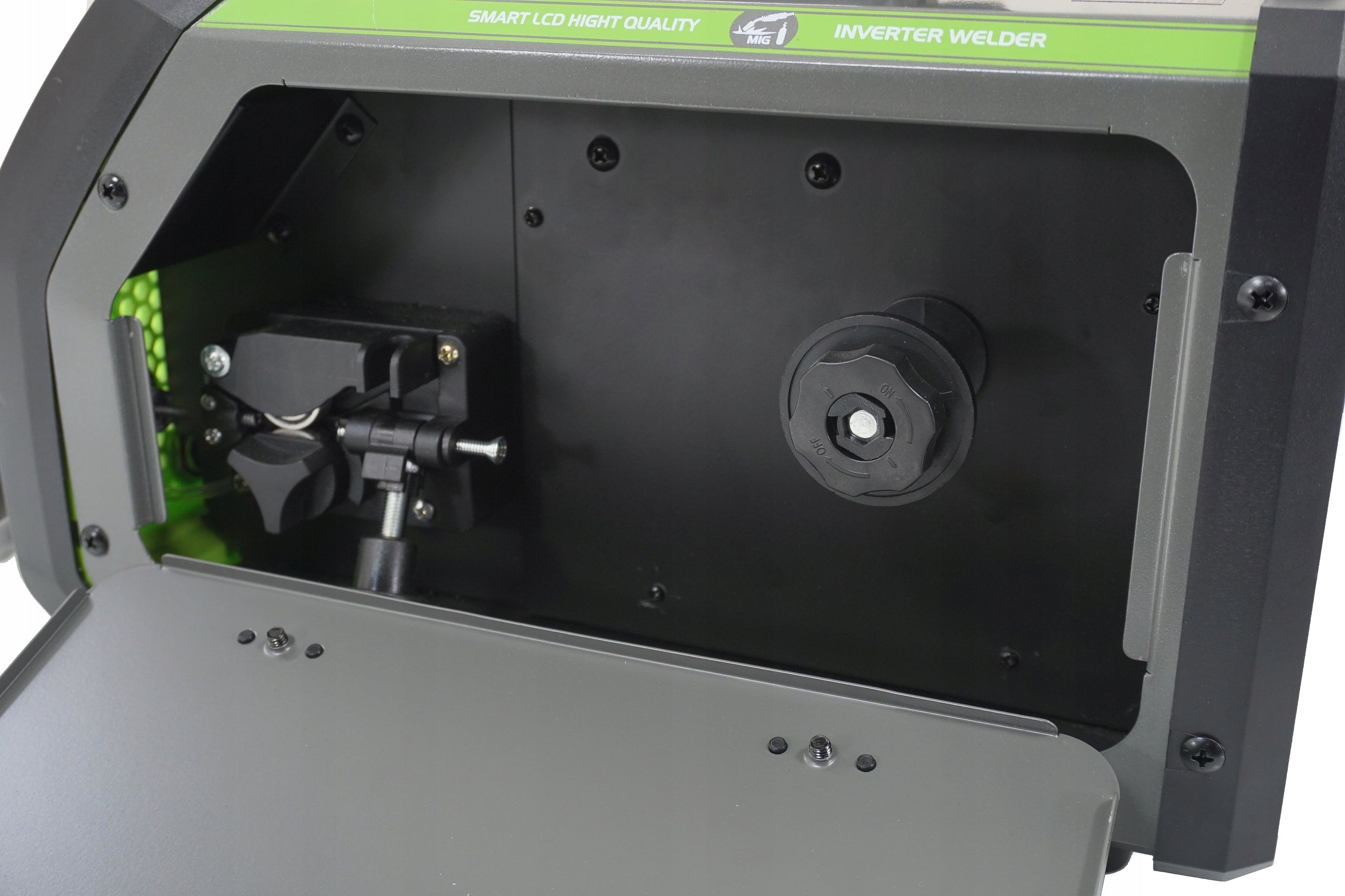

⚙ Wire feeding mechanism

► Integrated and reliable wire feeding system works with rolls with diameters of 0,6 / 0,8 mm and weight up to 1 kg, and its thought-out design eliminates the risk of slipping

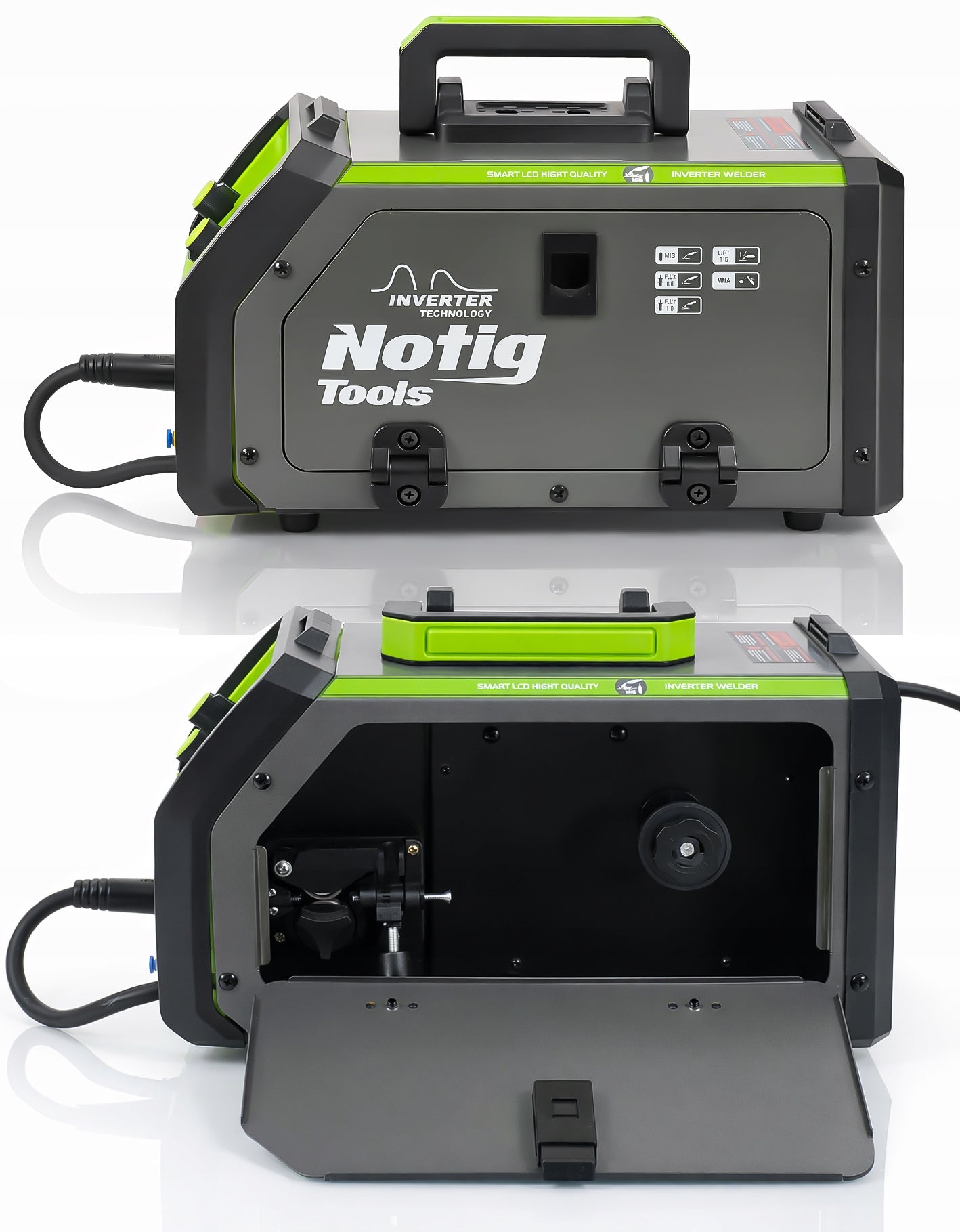

► Access to the feeder is quick and simple – just open the side cover to install the wire spool without any problems

­

⭐ Electrode support

► In addition, the welding machine allows you to work with electrodes with a diameter of 2,0 to 4,0 mm, which increases the range of applications of the device

MIG welding torch

✔ Welding using the MIG FLUX method becomes extremely comfortable thanks to this handle, which automatically feeds the welding wire – just press the trigger

✔ Connecting the handle and assembly of the wire roller are intuitive and fast, so you can easily handle the installation and you can start working right away

­

✔ Long handle wires significantly facilitate welding and increase freedom of movement

Mass holder – 2,0 m

MMA DIN holder – 2,0 m

MIG holder – 2,0 m

The wires are made of thick copper winding, which translates into greater durability, better conductivity and resistance to intensive use

⭐ Efficient operating mode of the device

✔ The welder is characterized by a work cycle of 60%, which means the possibility of continuous operation for 5 minutes at full power, after which a break of similar length is needed.

✔ Such a work cycle means that during welding you do not have to stop working often. Weld long items without worrying about overheating the device!

­

⭐ VRD security system

This system is responsible for lowering the voltage on the wrapped electrode, as well as for automatic power cut-off within a few milliseconds after welding

Thanks to this, working with our welding machine is safe, effective and comfortable, even for people starting their adventure with welding

✅ Modern IGBT technology – a great choice to start

The welder is designed based on IGBT (Insulated Gate Bipolar Transistor) technology, making it an ideal solution for people starting to learn welding

► IGBT is distinguished by high energy efficiency and stable welding current, which is critical for obtaining durable and aesthetic welds

► Welders based on IGBT technology are more tolerant of user error, such as uneven handling of the handle or not entirely optimal parameter settings, which significantly facilitates the work of beginners

⭐ Simplified User Guide

The control panel of the welding machine has been developed with an emphasis on maximum intuitiveness and comfort of use

At the beginning of select the correct mode of operation using the "Selector" button. By pressing it, you switch between welding methods: MMA (welding with wrapped electrode), MIG FLUX and TIG (welding with non-melting electrode)

MMA method:

After activating the MMA mode, set the welding current in the range of 20A – 220A, adjusting them to the thickness of the material and the diameter of the electrode (possibility of using electrodes with a diameter of from 2,0 mm to 4,0 mm)

MIG FLUX method:

In MIG FLUX mode, select the wire diameter (0,6 mm or 0,8 mm) on the panel.

TIG method:

Set the welding current from 40A to 220A, depending on the precision required and the type of material, such as stainless steel or aluminium

⚡ Mobile design and handy size

The device is distinguished by its compact construction and low weight, making it an excellent solution for users looking for mobile equipment

Thanks to the appropriate cable length (2,0 m for the mass cable, electrode and MIG handle), the welding machine provides convenience of working in various conditions, allowing free access to the welded element

✅ Advanced control board with SWS

The motherboard equipped with the SWS (SmartWeld System) is a modern electronic module that integrates all key functions, such as current regulation, voltage and other welding parameters

► High-performance capacitors

Provide continuous and stable power for electronic components

Their high efficiency has a direct impact on the resistance of the welding machine to voltage fluctuations

► Effective cooling radiators

They are responsible for proper cooling and protection against overheating of key electronics

Their task is effective heat dissipation from components generating the largest amounts of thermal energy, such as processor and IGBT transistors

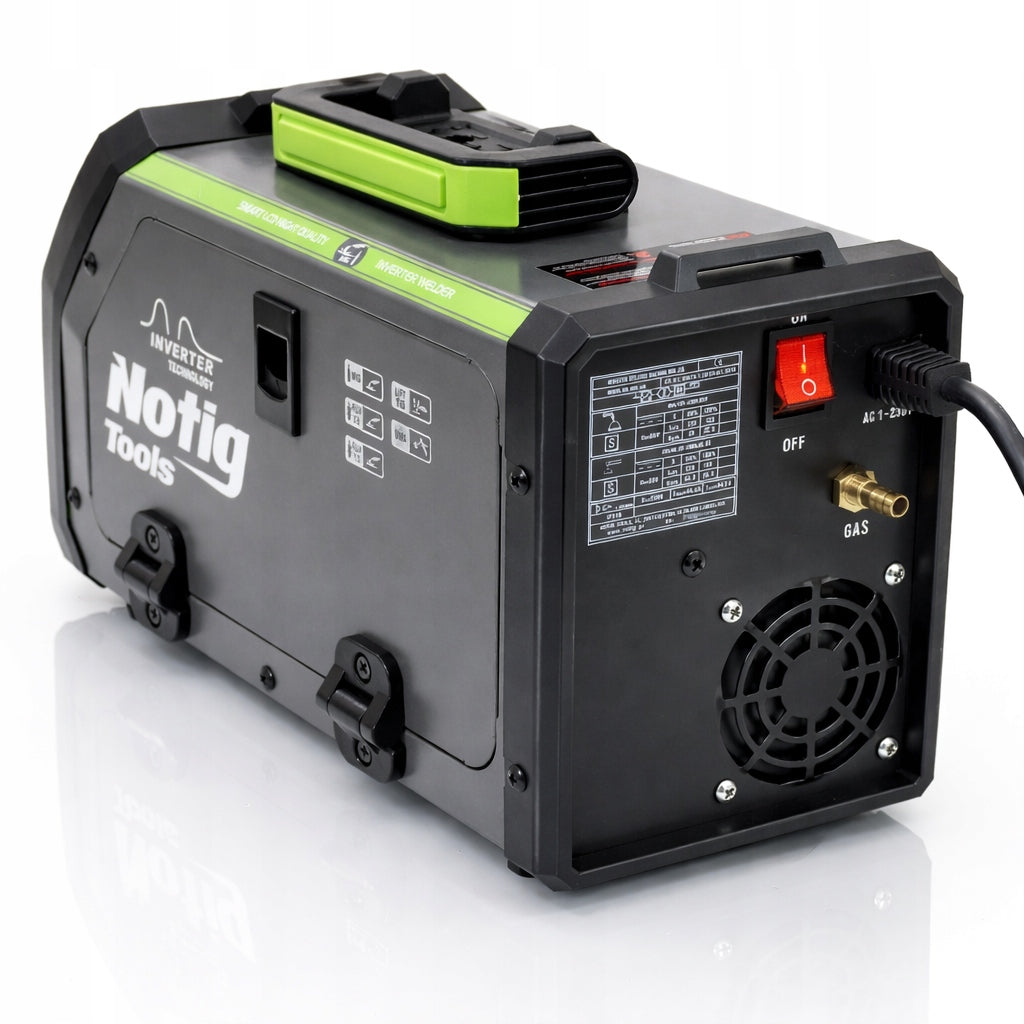

❄ Thermo Guard cooling system with high efficiency

Thanks to the advanced Thermo Guard cooling system, the Notig Tools welding machine maintains stable operating parameters even in demanding conditions, effectively limiting the risk of overheating.

This solution is particularly efficient during intensive operation, which directly translates into longer life of the device .

► Efficient fan and three solid heat sinks effectively dissipate excess heat, ensuring that the optimal temperature of the welding machine is maintained.

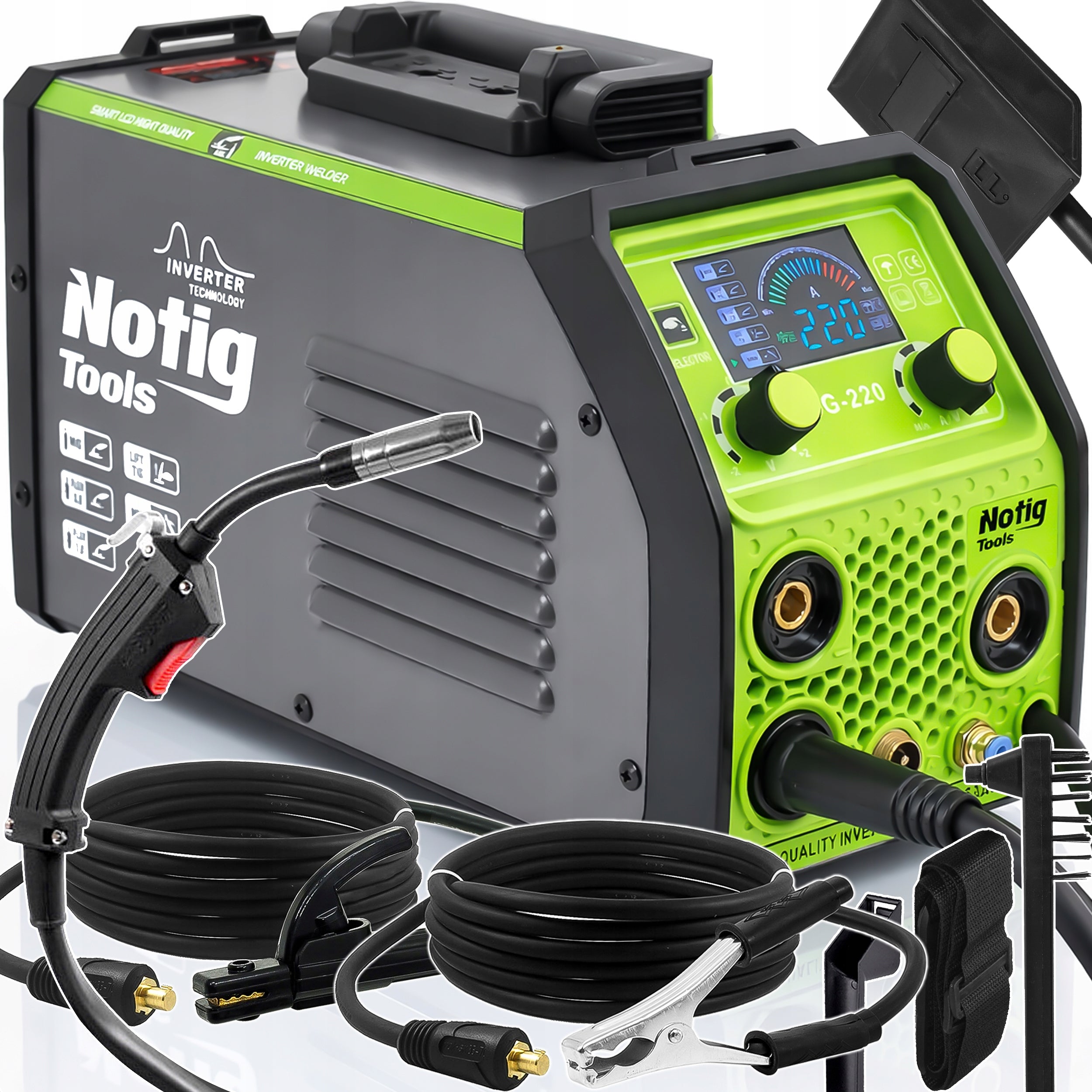

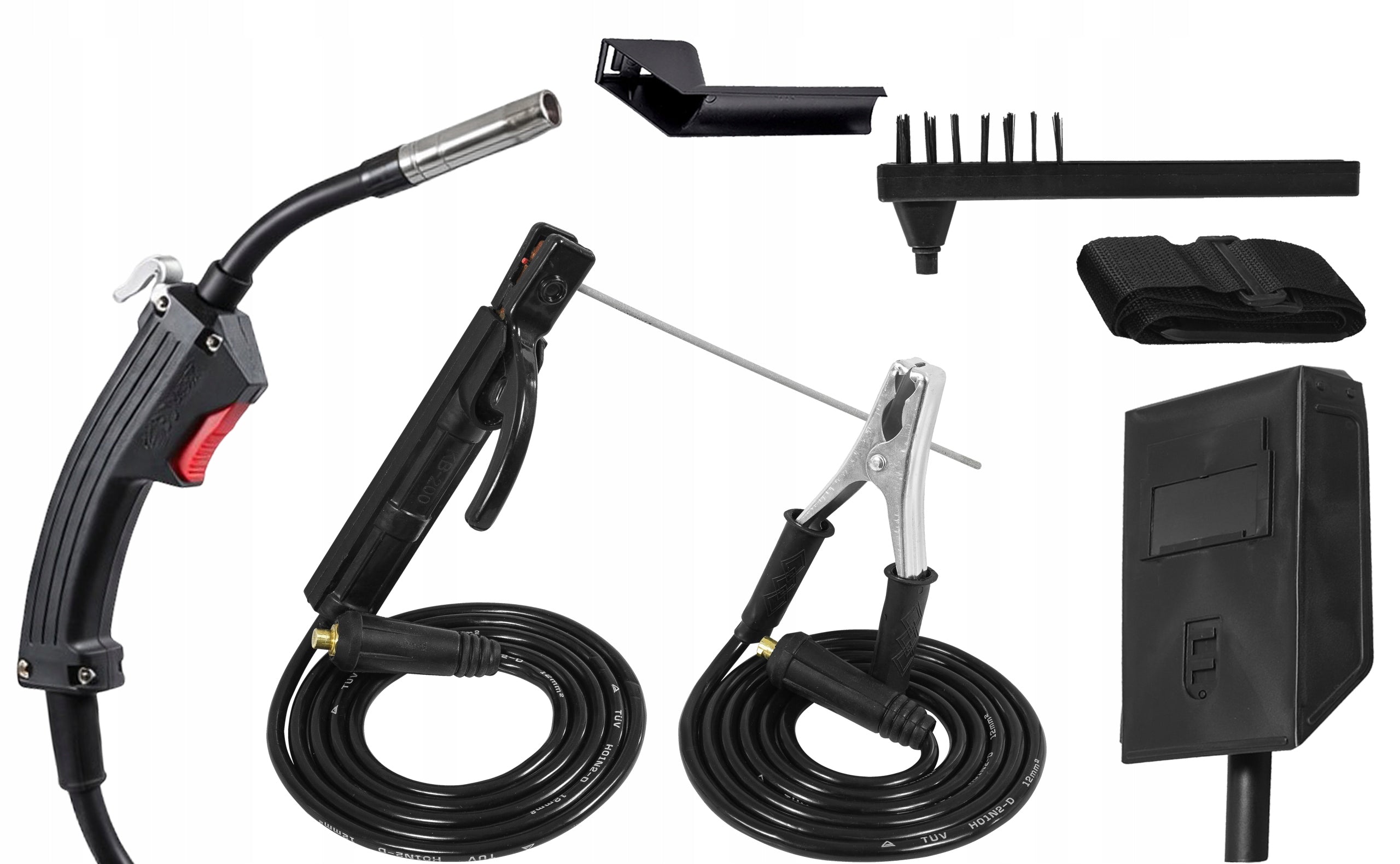

THE SET INCLUDES:

• ► Welding machine NOTIG TOOLS

• ► MIG handle

• ► Bulk cable

• ► Electrode cable

• ► Protective shield with fast

• ► Wire brush

• ► Clear User Manual

Specifications
