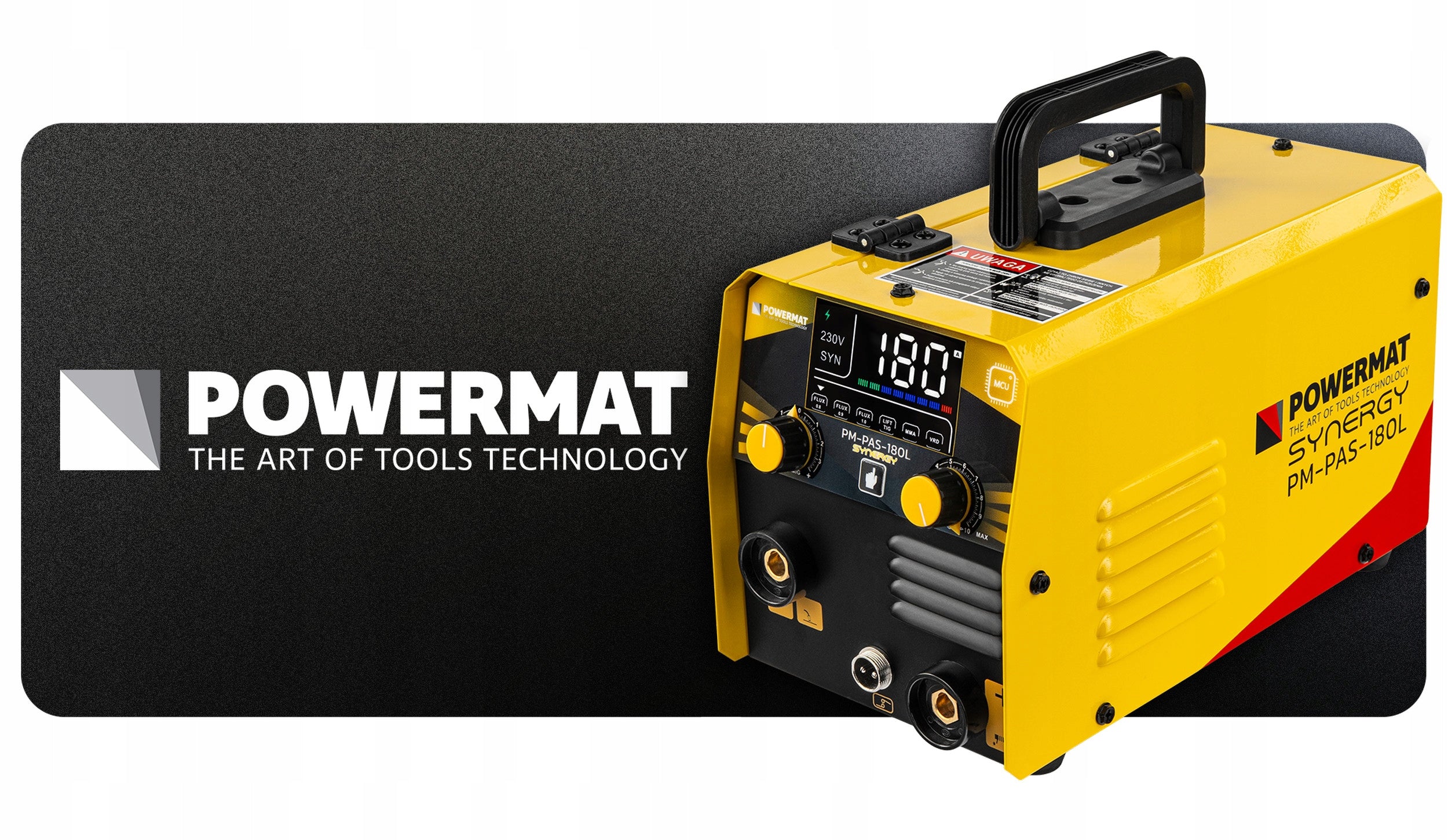

Suvirinimo inverteris MIG/MAG/TIG-LIFT/MMA, 180A, 2 vielos ritės, SYNERGY

Trumpai apie prekę

Prekė: Suvirinimo inverteris MIG/MAG/TIG-LIFT/MMA, 180A, 2 vielos ritės, SYNERGY. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Powermat
• Modelis: PM-PAS-180L
• Ilgis: 310 mm
• Plotis: 160 mm
• Aukštis: 200 mm

FCAW FLUX / MMA / TIG-LIFT | WELDING CURRENT 180A | SYNERGY | POWER SUPPLY 230V | IGBT TECHNOLOGY | FLUX WIRE 0,8 – 1,0 MM | ELECTRODES 1,6 – 4,0 MM | VRD | LCD PANEL

Model: PM-PAS-180L

The inverter welder is a universal device for welding with FLUX wire, MMA electrode and TIG LIFT method. IGBT technology and synergy mode help you quickly select parameters, so you get a stable arc and even weld. LCD display, cooling system and thermal sensor support work control and safe use.

⚫ SIMPLE SETTING AND CONSTANT CONTROL

▪ Thanks to the synergy mode, you can select welding parameters faster and go straight to work.

▪ LCD display shows current settings, and IGBT technology supports arc stability.

▪ You can weld with one device using FCAW FLUX, MMA and TIG LIFT methods with 230 V power supply.

🟠 WHY CHOOSE THIS PRODUCT?

🔸 ONE DEVICE, THREE WELDING METHODS

One welding machine allows you to work with FLUX, MMA and TIG LIFT methods. Thanks to this, you can adjust the welding method to the material and type of work, without the need for several devices. It is a convenient solution for workshop and assembly work.

🔸 EASY PARAMETER SETTING

Synergy mode facilitates the selection of welding settings, reducing the time of preparation of the device for work. The easy-to-read LCD display shows the current parameters, so you have a quick view of the settings and more control over the welding process.

🔸 STABLE OPERATION AND ARC CONTROL

Electronics based on IGBT technology is responsible for stable welding current and smooth operation of the device. Thanks to this, the arc is more predictable, and welding is equally and with less chipping.

🟠 WHAT SETS OUR WELDING MACHINE APART?

🔸 SYNERGY FACILITATES THE SELECTION OF PARAMETERS

Synergy mode helps you quickly adjust welding settings to the selected operating mode. Thanks to this, you shorten the preparation time of the device and get more stable parameters during welding.

🔸 EASY TO READ LCD DISPLAY AND SIMPLE PANEL

The LCD display shows the current operating values, allowing you to easily control the settings. The intuitive control panel makes it easy to adjust parameters and quickly switch welding modes.

🔸 COMPACT DESIGN AND 230V POWER SUPPLY

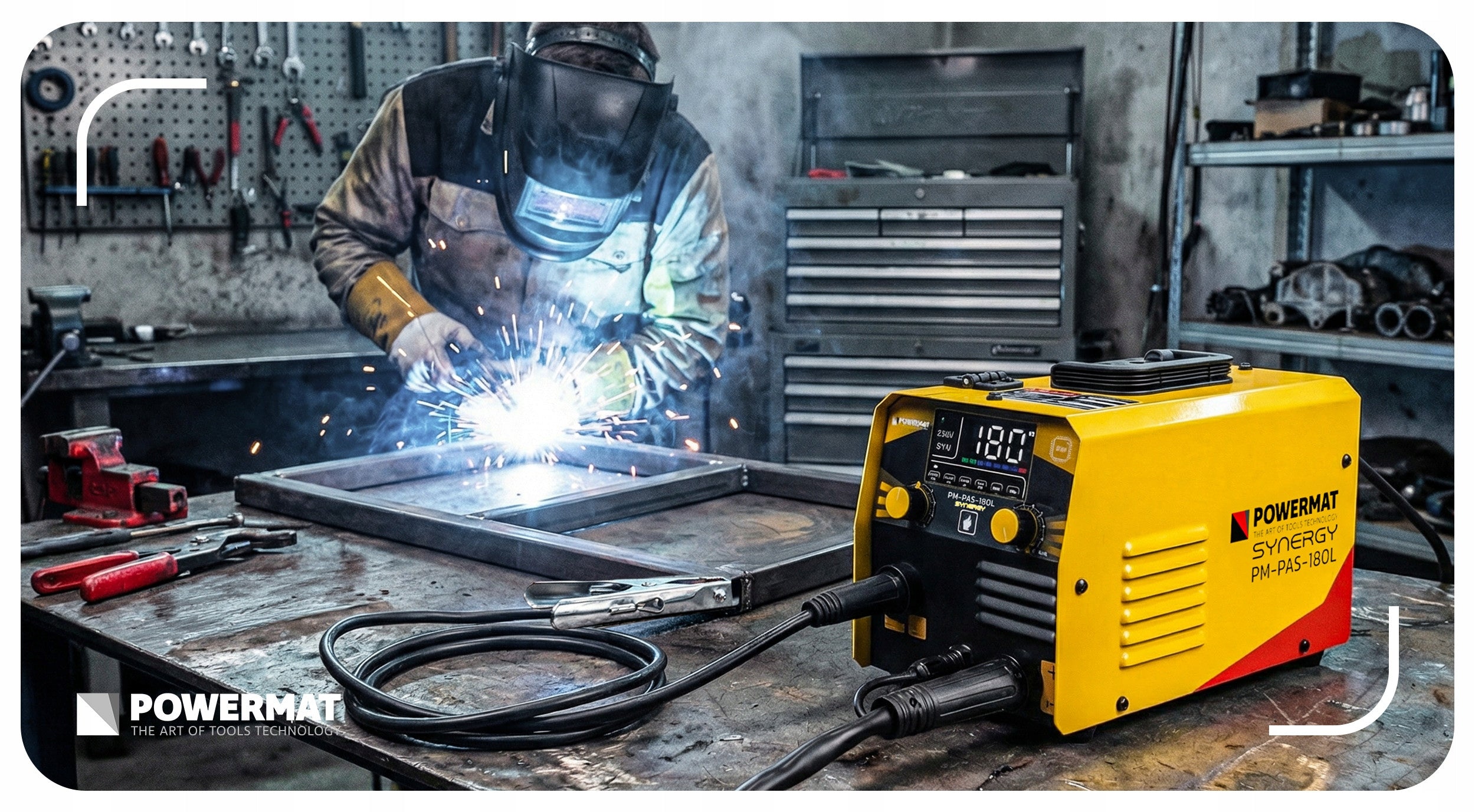

The lightweight and compact design makes it easy to carry your device around. You connect the welder to a standard 230 V outlet, so you can work in the workshop, garage or in the field.

🟠 EASY TO READ CONTROL PANEL WITH LCD DISPLAY

On the control panel there is a button for selecting FLUX, MMA and TIG LIFT methods, so you can quickly switch between operating modes.

You set the parameters using two knobs responsible for voltage or current and wire feed, which makes it easier to adjust the settings to the work performed.

LCD display shows the current values, so you have ongoing control over the parameters during welding.

🟠 WELDING POWER UP TO 180A

The welding machine offers a maximum welding current of 180 A, which allows you to adjust the power for various workshop work and material type.

The current range is: FCAW 30 – 180 A, MMA 20 – 180 A and TIG LIFT 15 – 180 A, so you can easily set the parameters for the welding method you choose.

A wide range of adjustments makes it easy to adjust the settings to the thickness of the elements and the type of work.

With a duty cycle of 180 A – 60%, the device maintains high efficiency, and with 138,6 A – 100% allows continuous operation without frequent cooling breaks.

⚫ 3 WELDING METHODS IN ONE DEVICE

You have FCAW FLUX, MMA and TIG LIFT at your disposal, so you can adjust the method to the material and work. One device gives you more flexibility and reduces the need to buy several welding machines.

🟠 TECHNICAL DATA

• Welding method: FCAW (FLUX), MMA, TIG LIFT
• Power supply: 230V / 50Hz
• Recommended protection (FCAW/FLUX): 29 A
• Recommended Protection (MMA): 34,3 A
• Recommended protection (TIG LIFT): 21,7 A
• Power consumption (FCAW/FLUX): 6,7 kVA
• Power Consumption (MMA): 7,9 kVA
• Power consumption (TIG LIFT): 5 kVA
• Welding current range (FCAW/FLUX): 30 – 180 [A]
• Welding Current Range (MMA): 20 – 180 [A]
• Welding current range (TIG LIFT): 15 – 180 [A]
• Welding voltage (FCAW/FLUX): 15,5 – 23 [V]
• Welding voltage (MMA): 20,8 – 27,2 [V]
• Welding voltage (TIG LIFT): 10,6 – 17,2 [V]
• Operating cycle welding current 60% (FCAW/FLUX): 180 A
• Working cycle welding current 60% (MMA): 180 A
• Working cycle welding current 60% (TIG LIFT): 180 A
• Working cycle welding current 100% (FCAW/FLUX): 138,6 A
• Working cycle welding current 100% (MMA): 138,6 A
• Working cycle welding current 100% (TIG LIFT): 138,6 A
• Idle voltage: 62 V
• Wire diameter: 0,8/0,9/1,0 [mm]
• Electrode diameter: 1,6 – 4 [mm]
• Housing protection class: IP21S
• Power cord length: 210 cm
• Product weight: 3,6 kg
• Product weight with packaging: 6,9 kg
• Product Dimensions (L. / W. / h. ): 31 cm x 16 cm x 20 cm

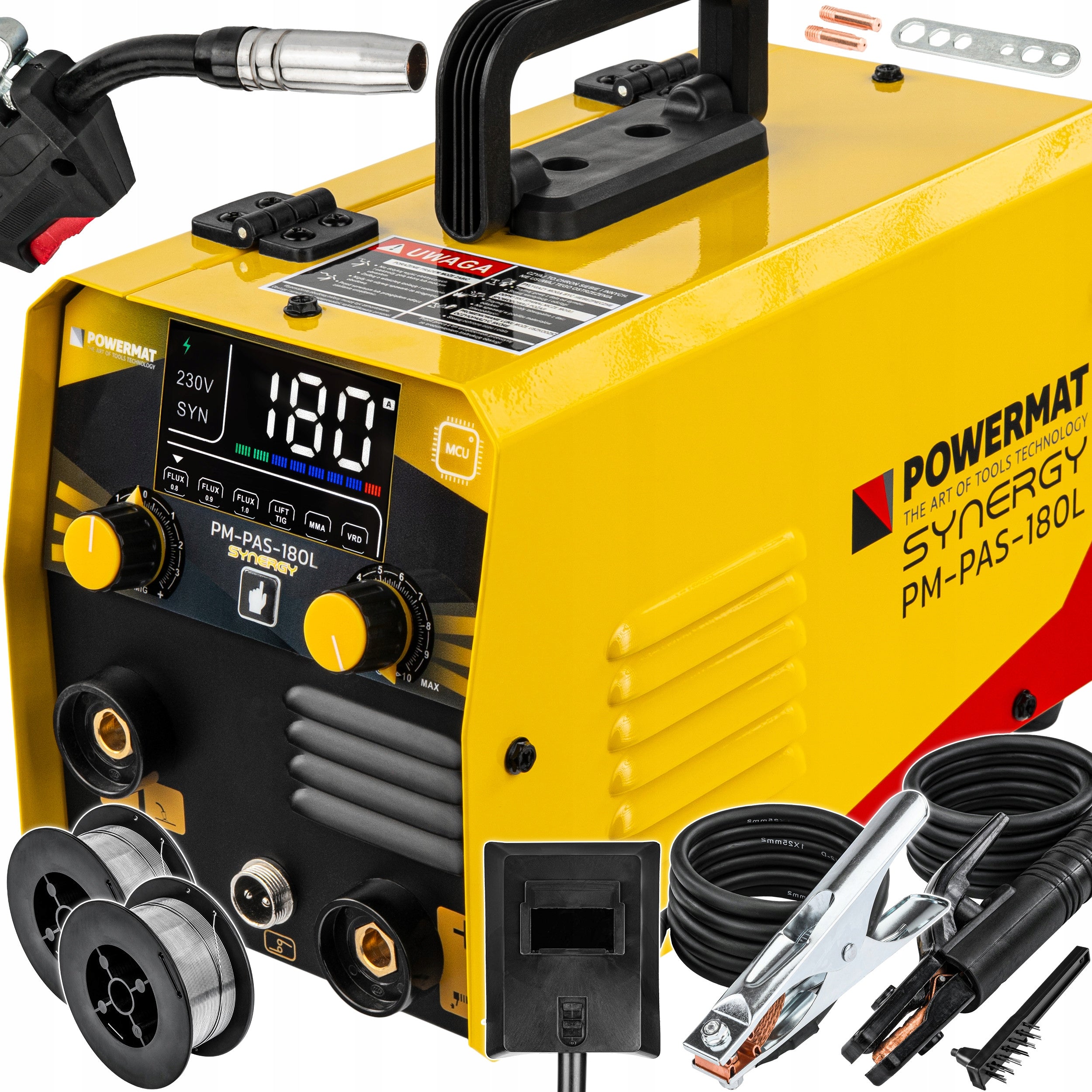

🟠 CONTENTS OF THE SET

• Bulk holder (-) 205 cm
• MMA electrode holder (+) 210 cm / plug diameter 9 mm
• Welding wire holder 250 cm
• Current terminal 0,9 mm
• Current terminal 0,8 mm
• Double-sided roller: 0,8 /0,9
• Welding mask
• Brush with hammer
• Self-shielding wire FLUX E71T-GS 0,8 mm 0,45 kg – 2 pcs.
• Universal key
• User manual

⚫ EQUIPMENT THAT WILL FIT INTO YOUR WORK

You enable synergic mode, set parameters, and start welding without guessing. With its compact design, you can take your device where you really need it.

🟠 FCAW FLUX WELDING

The device supports the FCAW (FLUX) method, i.e. welding with self-shielded wire, which allows you to work without the use of a gas cylinder and prepare the station faster.

The synergy mode makes it easy to adjust the parameters for the 0,8 / 0,9 / 1,0 mm wire, making setting up the device simpler.

You adjust the parameters with two knobs responsible for voltage and wire feed, which gives you transparent control over the welding process.

The current range 30 – 180 A allows you to choose the power for different material thicknesses, which works well when working with constructive steel, workshop elements and during assembly works.

🟠 MMA WELDING

The MMA mode allows welding with wrapped electrode, which works well for many workshop and construction works.

The HOT START function temporarily increases the current when the arc is lit, making it easier to start welding.

The ARC FORCE system supports arc stability and improves metal droplet transfer during operation.

The ANTI STICK function reduces sticking of the electrode to the material and facilitates further work.

The device supports electrodes with a diameter of 1,6 – 4,0 mm and welding current up to 180 A.

🟠 TIG LIFT MODE

The welder supports the TIG LIFT method, which allows you to make clean and even welds.

The arc is ignited by touching the electrode to the material, which simplifies the start of welding.

To work in this method, you need a TIG handle with a gas valve and a shield gas connection.

The current range of 15 – 180 A allows you to adjust the settings to different materials and works well when welding stainless steel and elements requiring precise weld.

🟠 IGBT TECHNOLOGY AND PULSE FUNCTION

The heart of the device is electronics based on IGBT transistors, which are responsible for stable operation of the power source.

This results in a more even welding arc and more predictable welding operation.

The single pulse and double pulse functions help to better control the welding process.

The solution supports the quality of welds, especially with materials such as stainless steel or aluminium, and stable electronics help maintain consistent parameters during longer operation.

🟠 WIRE FEEDING SYSTEM

The welder uses a 2-roll wire feeder, which ensures a stable and even feed of the welding material.

The mechanism guides the wire in a controlled manner, which helps to reduce the slip of the wire during operation.

This makes the welding process more fluid and the arc maintains stable parameters. The system supports wires with a diameter of 0,8 mm, 0,9 mm and 1,0 mm, which allows you to adjust the settings for various welding jobs.

🟠 EURO CONNECTORS

The device is equipped with EURO connectors, which allow quick connection and disconnection of the welding torch.

Thanks to this, replacement of the cable is simpler and does not require stripping the device housing.

The EURO standard is widely used in welding machines, which facilitates the selection of compatible handles and accessories. The solution increases the convenience of use and allows you to prepare equipment for work faster.

⚫ YOU CLOSE THE TOPIC WITH ONE DEVICE

▪ You have FLUX mode at hand for gas-free operation, MMA mode for electrodes and TIG LIFT mode when weld accuracy counts.

▪ You set parameters faster with synergy, and on LCD you can immediately see what you are working on.

▪ For more demanding welds you have single/double pulse mode and stable IGBT electronics.

⚫ FAQ

▪ WHAT WELDING METHODS DOES THE DEVICE SUPPORT?

The device supports three welding methods: FCAW (FLUX self-shielding wire), MMA (wrapped electrode) and TIG LIFT. This allows you to adjust the method to the material and type of work.

▪ DOES THE WELDING MACHINE REQUIRE SHIELDING GAS?

Not in FCAW FLUX mode. Self-shielding wire creates its own shield during welding, so you do not need to use a gas cylinder. With the TIG LIFT method, shielding gas and TIG handle with gas valve are required.

▪ WHAT WIRE AND ELECTRODE DIAMETERS DOES IT SUPPORT?

The welding machine supports FLUX wire with diameters of 0,8 mm, 0,9 mm and 1,0 mm. In MMA mode, electrodes can be used in the range from 1,6 mm to 4,0 mm.

▪ WHAT IS THE MAXIMUM WELDING CURRENT?

The maximum welding current is 180 A. Depending on the method, the range is: FCAW 30 – 180 A, MMA 20 – 180 A and TIG LIFT 15 – 180 A.

▪ WHAT POWER SUPPLY IS REQUIRED FOR OPERATION?

The device operates on a standard 230 V / 50 Hz power supply. This means that you can connect to a typical power outlet.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Powermat
Parametry	Power consumption	7.9 kVA
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Wire diameter (mm)	0,8-1,0
Parametry	Device weight	3.6 kg
Parametry	Welding range	15–180 A
Parametry	Height	200 mm
Parametry	Length	310 mm
Parametry	Width	160 mm
Parametry	Length of ground cable	205 cm
Parametry	Welding cable length	250 cm
Parametry	Product weight with unit packaging	6.9 kg
Parametry	Manufacturer code	PM1545
Parametry	EAN (GTIN)	5900748403970
Parametry	Model	PM-PAS-180L
Parametry	Welding methods	MMA,TIG
Parametry	Additional features	welding mask included,infinitely adjustable welding current,EURO holders,LCD display
