Suvirinimo inverteris PATON ECO 200A MMA/TIG LIFT

Trumpai apie prekę

Prekė: Suvirinimo inverteris PATON ECO 200A MMA/TIG LIFT. Kategorija: Invertoriniai suvirinimo aparatai.

• Gamintojas: Paton
• Modelis: MMA PATON 200 ECO 230V

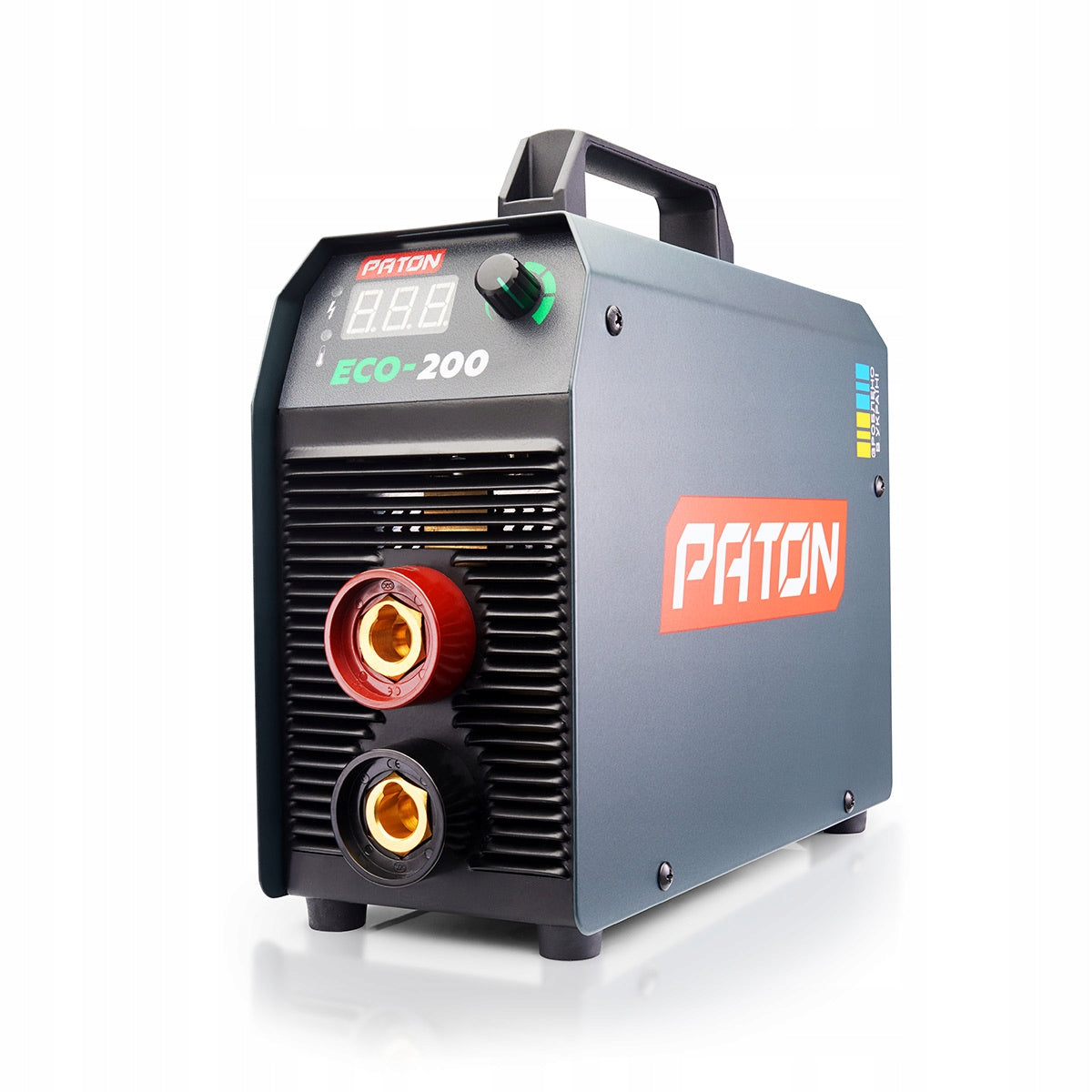

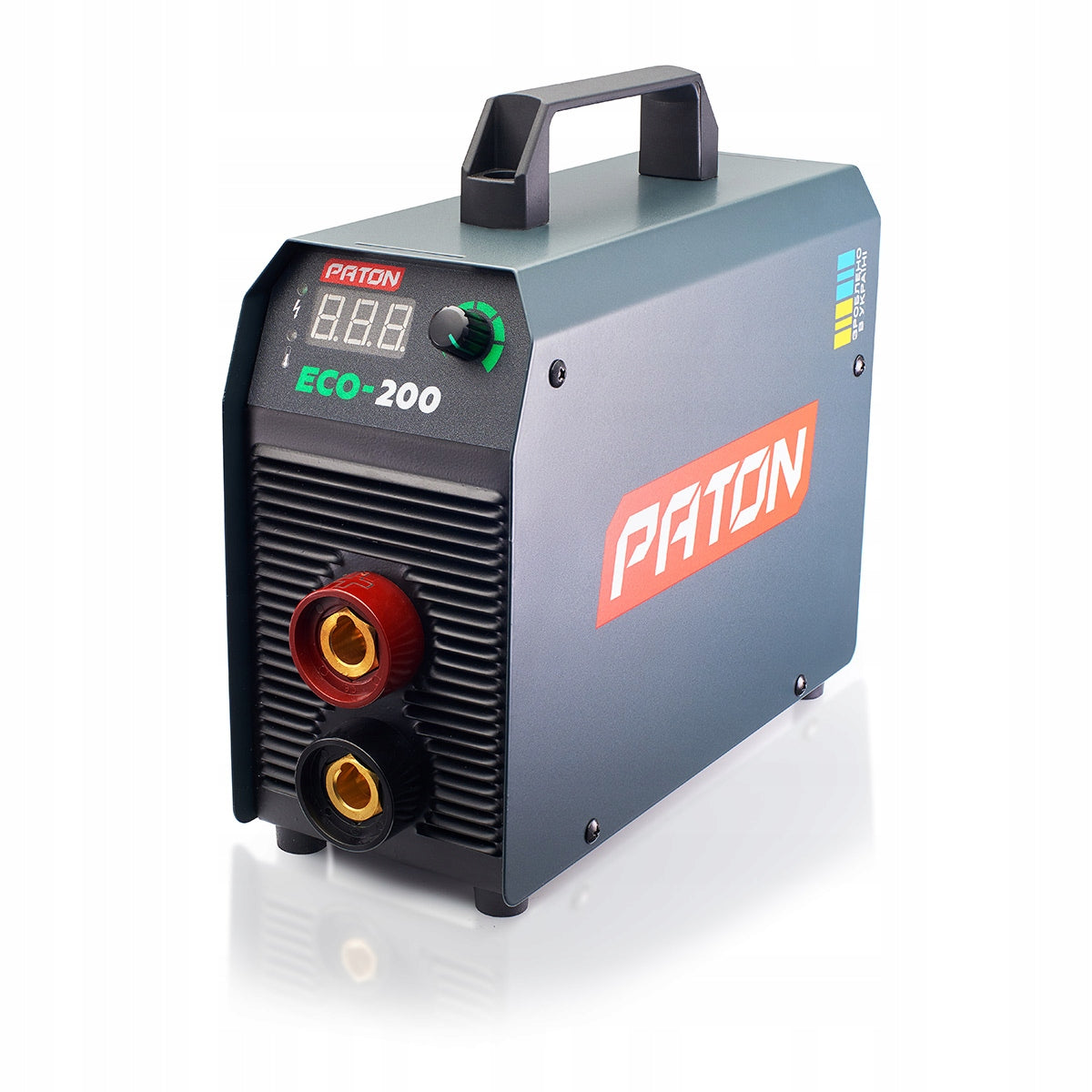

The PATON™ VDI 200 ECO DC welding machine is an advanced device designed for manual arc welding using the MMA method using direct current. This model has been designed for users looking for efficiency and full nominal power of 200A.

Thanks to this, the device perfectly copes with electrodes with a diameter from Ф1,6 mm to Ф5 mm, and the 40% duty cycle allows the implementation of various tasks, both in the household, as well as in small workshops or car service stations.

The VDI 200 ECO combines robustness and compact size, making it an ideal tool for field work and in a variety of conditions. Equipped with a stabilization system, it allows power supply from the unit, which increases its mobility and versatility of applications.

• European production: High quality and precision.
• Smooth current adjustment: Easy to adapt to different materials.
• Working with long extension cords: Possibility of power supply from generators.
• Electronics Impregnation: Increased reliability and durability.
• Electric arc stability: Better welding quality.
• Modern features: Hot-Start, Arc-Force, Anti-Stick make your work easier.
• Protection against voltage spikes: Safe operation in the range of 170V-260V.
• Energy saving: Twice the energy requirement.

HOT START AND OTHER FUNCTIONS

HOT START – “hot start” – consists in temporarily increasing the welding current above the set value at the moment of arcing. This prevents the phenomenon of “sticking the electrode” in the initial phase of welding, making it easier to start the whole process.

Arc-Force function – it is used to improve the stability of combustion in the short arc and prevent the electrode from “sticking”. When a drop of metal separates from the electrode, the current is automatically raised to a given level - if there is a suitable switch (as in the "Professional" series). By lowering the “Electric arc force” to reduce power consumption from a weak grid or increasing it in a strong grid, the stability of arc combustion is even much better improved.

Anti-Stick function – allows the welder to easily subtract the electrode from the product, without the risk of visual paralysis. During a short circuit after a short break, the welding current is automatically reduced. After separating the electrode from the element, the source automatically restores its operation.

The PATON™ VDI 200 ECO DC welder is ideal for:

• Household work (repairs, modifications).
• Small workshops and car service stations.
• DIY and hobby projects where mobility and flexibility are key.

• Power supply voltage: 230 V (50/60 Hz)
• Fuse required: 16 C
• Nominal welding current: 200 A
• Maximum welding current: 240 A
• Working cycle: 40% at 200 А 100% at 126 A
• Power supply voltage range: 170 – 260 V
• Welding current adjustment range: 25 – 200 A
• Automatic functions: Hot-Start, Arc-Force, Anti-Stick
• Idle current voltage: 80 V
• Maximum power consumption: 6,9 kVA
• Dimensions (L. x width x H ): 270 x 110 x 200
• Weight: 3,95 kg
• Degree of protection: IP 21

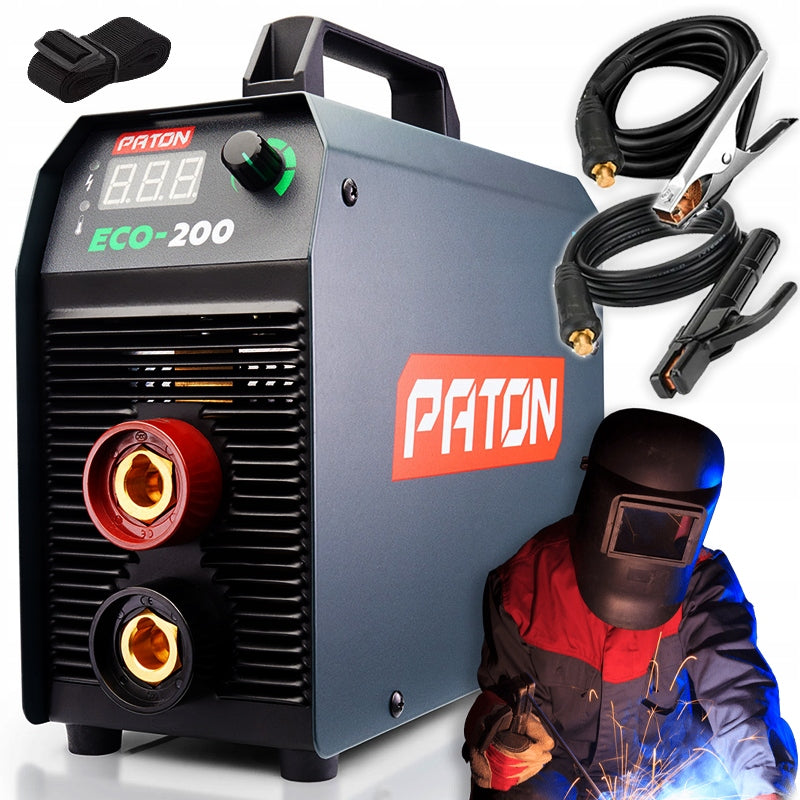

THE SET INCLUDES:

• Welding machine PATON™ VDI 200 ECO DC
• Bulk holder - 3m
• Electrode holder - 3m
• Carrying strap - 1pcs
• Operating manual and warranty card

PATON™ VDI 200 ECO DC is a welding machine that combines functionality with reliability, ideally suited for a variety of applications. Thanks to modern technologies and solid construction, it will certainly meet the expectations of even the most demanding users!
