Suvirinimo inverteris PATON PRO-250A, 230V, MMA/TIG, su dėklu

Trumpai apie prekę

Prekė: Suvirinimo inverteris PATON PRO-250A, 230V, MMA/TIG, su dėklu. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: Paton
• Modelis: PRO-250

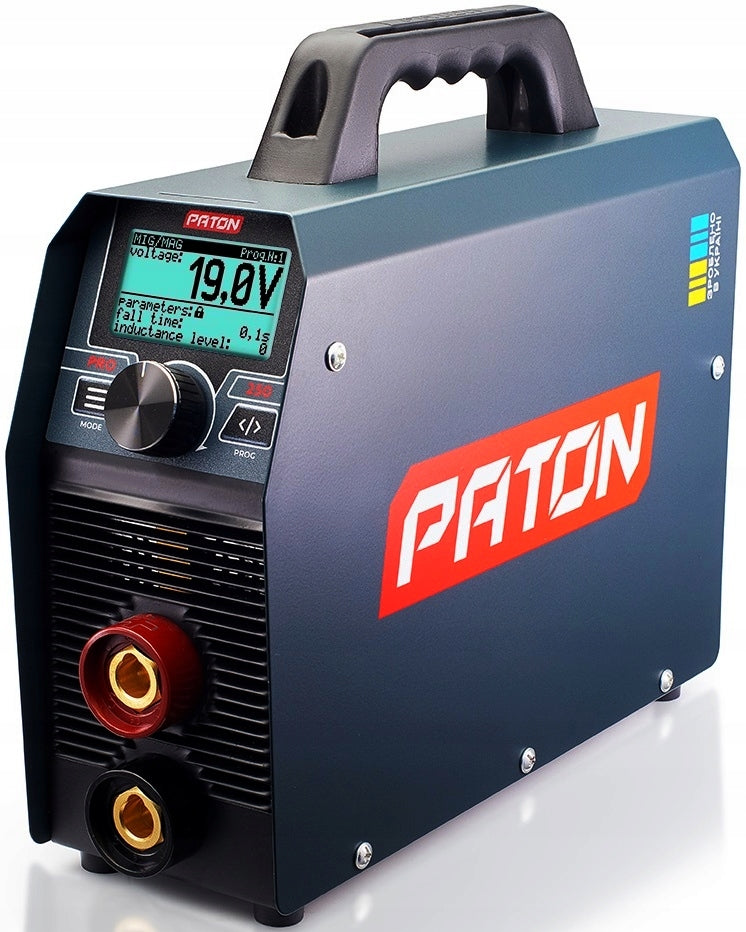

PATON PRO-250A WELDING MACHINE

PATON PRO-250A - This welding machine uses the most advanced inverter technology. The welding machine has a power supply on 230V, which allows welding by:

➡ MMA - classic welding with wrapped electrodes (rutile, alkaline, acidic).

➡ TIG LIFT DC - welding with a non-melting electrode in an inert gas shield.

After purchasing the wire feeder, the welding machine can also have MIG/MAG function.

The device has a high maximum welding current 250A, with a duty cycle of 70%.

PATON PRO-250A is used for welding:

✔ stainless steel

✔ low alloy steel

✔ low carbon steel

✔ cast iron steel

The small size and weight make the device perfect for both hobby workshop work and field work.

✔ REPAIR WORKSHOPS,

✔ ASSEMBLY SERVICES,

✔ FARMS,

✔ HOMEWORK.

AND WHEREVER RELIABILITY MATTERS!

✔ PULS - pulsed current welding, in which high and low current are alternately used. This reduces overall heat supply and splatter while providing greater resistance to non-melting. This method can be used to weld both metals with high thermal conductivity and thinner metals without burning them. Additionally, you can get narrower and more penetrating welds on thicker metals.

✔ ARC FORCE - facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from extinguishing when the drop of electrode contacts the welding lake.

✔ HOT START - facilitates the ignition of the electrode by providing more welding current with each arc.

✔ ANTI STICK - short-circuit function - reduces the welding current to a minimum value when the welder makes a mistake and the electrode is glued to the welded material. This makes it easier to detach the electrode from the welded material and protects the electrode holder from damage.

✔ INVERTER TECHNOLOGY IGBT - is a modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has the effect of significantly extending the reliable operation of welding equipment.

✔ EASE OF USE - The welding machine is equipped with an easy-to-use control panel so that it can be used even by amateurs.

✔ MOBILITY OF THE DEVICE - thanks to the light weight of the device and the handle and a solid shoulder strap allows welding in hard-to-reach places.

✔ VERSATILITY - thanks to its high quality and multifunctionality, the device can be used in professional and hobby work as well as for light, casual workshop work.

⭐ The PRO series offers full electronic control, which allows for greater control of the welding process for each of the selected methods, as well as allows maximum use of the potential of the devices. Welding inverters from the PRO series are dedicated for industrial use as well as for the most demanding home users. ⭐

⏩ TECHNICAL DATA:

• Power supply: 50/60 Hz, 230 V
• Network fuse required: 20 A
• Idle current voltage: 12 / 75 V
• Arc current voltage: 110 V
• Nominal mains current required: 29,5 – 35 A

⏩ MMA PARAMETERS:

• Nominal welding current: 250 A
• Work Cycle, %: 70% – 250 А / 100% – 208 А
• Welding current adjustment intervals: 12 – 250 A
• Welding voltage adjustment intervals: 12 – 28 V
• Hot-Start function: Adjustable
• Arc-Force function: Adjustable
• Anti-Stick function: Automatic
• Nominal power consumption: 6,5 – 7,5 kVA
• Maximum power consumption: 9,4 kVA
• Energy efficiencý: 92%
• Diameter of wrapped electrode: 1,6 – 6,0 mm

⏩ OTHER:

• Mass (without accessories): 5,9 kg
• Dimensions: 345 x 115 x 290 mm
• Cooling: Forced
• Degree of protection: IP 33

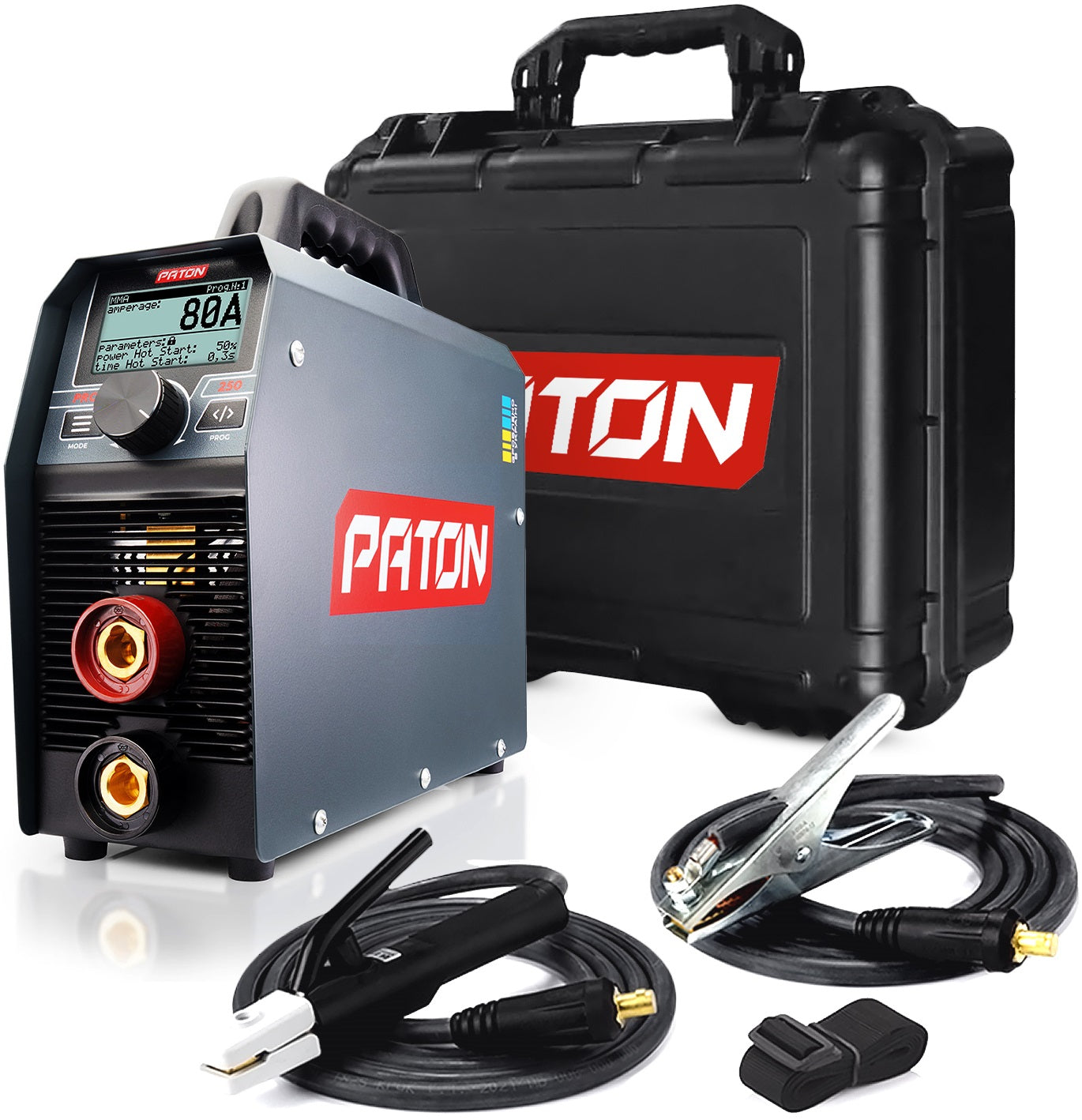

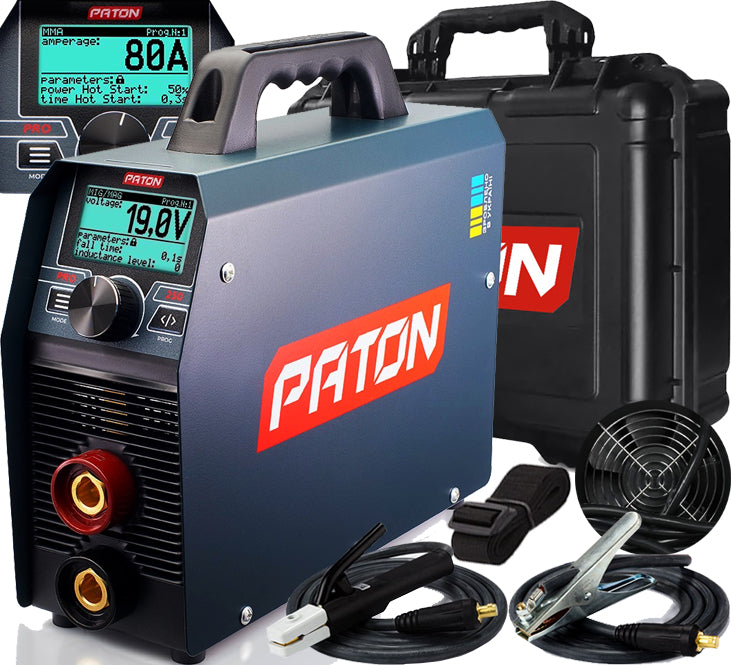

WHEN YOU BUY FROM US, YOU WILL RECEIVE:

• Inverter welder PATON PRO-250A - 1 pc.
• Electrode holder - 1 pc.
• Bulk cable - 1 pc.
• Strap - 1 pc.
• Suitcase - 1 pc.
• User manual in Polish

SET OF 1 MMA.

M.
