Aprašymas
Trumpai apie prekę
Prekė: Suvirinimo inverteris Sherman MIG 200HD, 30–200 A, 230 V, 6,6 kVA. Kategorija: Invertoriniai suvirinimo aparatai.
- Gamintojas: Sherman
- Modelis: 200HD

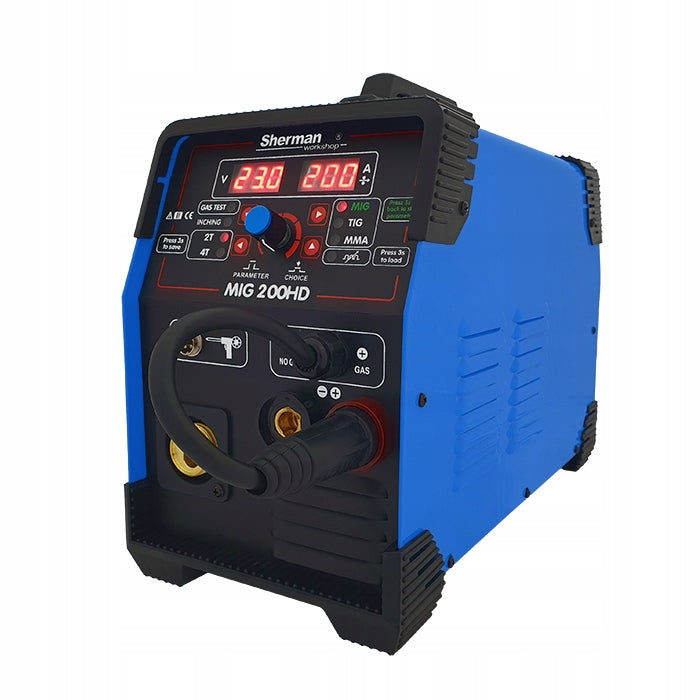

SHERMAN WORKSHOP® MIG 200HD - SYNERGISTIC WELDING MACHINE
Brand: SHERMAN | Welding methods: MIG/MAG, MMA, TIG LIFT, FLUX | Power supply: 230V | Welding current: 200A | Efficiency: 45%
STANDARD EQUIPMENT
- Sherman workshop® MIG 200HD
- Welding torch TW-15/3m
- Electrode cable
- Bulk cable
- User manual
- Warranty card
Synergistic welding machine MIG 200HD is used for manual welding of steel and non-ferrous metals.
Allows welding by the following methods:
- MMA (wrapped electrode),
- TIG Lift,
- MIG/MAG in synergistic and manual mode.
Thanks to the change of polarity, the device allows MIG/MAG welding using both standard wires in protective gas shielding and self-shielded powder wires.
The device allows you to connect a Spool Gun (SG) handle with a mini wire feeder mounted in it and a D100 spool of steel or colored wire.
Inductance adjustment allows for soldering of thin galvanized elements.
Built-in synergistic system allows you to choose welding parameters for less experienced users
The welder has built-in automatic functions HOT START and ANTI STICK, it also allows to remember 20 sets of settings for the MIG method.
The device is made in IGBT technology allowing for a significant reduction in the weight and dimensions of the welding machine and an increase in efficiency while reducing energy consumption.
The welding machine is used in closed or covered rooms, not exposed to direct atmospheric influences.
TECHNICAL PARAMETERS
- Power supply voltage: AC 230V 50Hz
- Maximum power consumption: 6,6 kVA
- Rated welding current:/ MIG duty cycle: 200A / 45%; MMA: 180A / 60%; TIG: 180A / 60%
- Nominal voltage without load 65 V

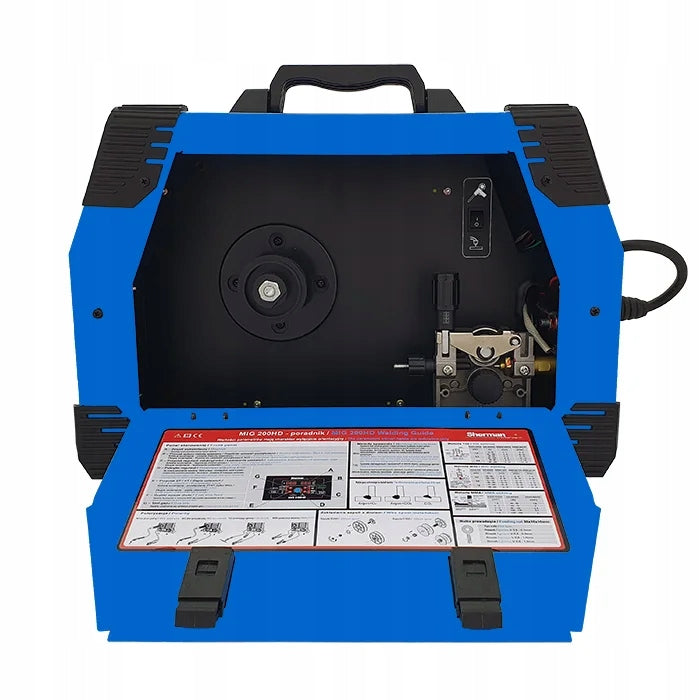

- Spool diameters with wire: 100mm, 200mm
- Maximum current consumption: MIG: 33 A; MMA: 33 A; TIG: 24 A
- Mass: 10,5 kg
- Dimensions [mm]: 450 x 210 x 330
- Degree of protection: IP21
PARAMETER ADJUSTMENT RANGES
- Welding current: MIG: 30 – 200 A; MMA: 20 – 180 A; TIG:20 – 200 A
- Welding voltage: MIG: 15,5 – 24 V
- Wire feed speed: 2 – 15 m/min
- Inductance: 1 – 10
HANDLE MIG
- Handle type: TW-15
- Maximum current capacity: 200 A (CO2)
- Type of cooling: gas
- Cooling gas flow: 10-18 l/min
- Length: 3 m
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Sherman |
| Parametry | Power consumption | 6.6 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Device weight | 10.5 kg |
| Parametry | Welding range | 30–200 A |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Product weight with unit packaging | 16 kg |
| Parametry | Manufacturer code | SHERMAN MIG 200 HD DC LIFT ZESTAW UCHWYT |
| Parametry | EAN (GTIN) | 5903686617515 |
| Parametry | Packaging status | original |
| Parametry | Model | 200HD |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | welding mask included,infinitely adjustable welding current,EURO handle |
