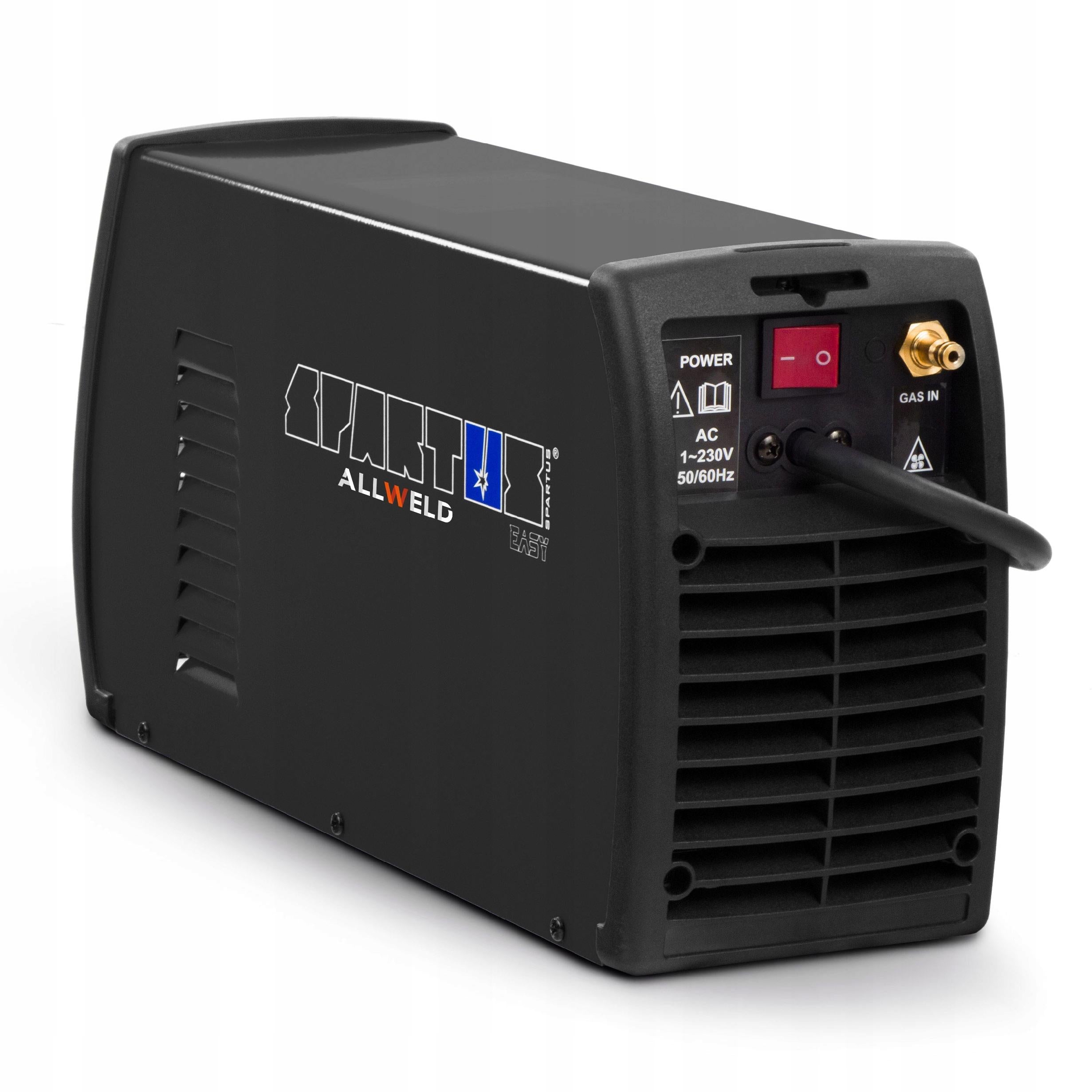

Suvirinimo inverteris SPARTUS EASY TIG 208P AC/DC, 200A, MMA, PULSE, aliuminiui

Trumpai apie prekę

Prekė: Suvirinimo inverteris SPARTUS EASY TIG 208P AC/DC, 200A, MMA, PULSE, aliuminiui. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Spartus
• Modelis: EASYTIG208PACDC-PAK-17-4
• Ilgis: 450 mm
• Plotis: 135 mm
• Aukštis: 230 mm

Manufacturer: SPARTUS ║ Welding methods: TIG AC/DC, PULS, MMA ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 40%(at 40°C)

TIG FOR ALUMINUM, BLACK STEEL, ACID-RESISTANT AND STAINLESS STEEL WITH HF AND LIFT OPTION INCLUDED WITH HANDLE !

BET ON THE TIG SPARTUS WELDING MACHINE - CHECK ITS ADVANTAGES

• Welding TIG AC / DC and MMA
• Smooth welding current regulation
• Perfect for aluminium - smooth balance adjustment 10-99%
• Weldable withPULSEM
• Non-contact HF
• Touch ignition LIFT
• 2T/4T mode
• Option to connect the remote control pedal !

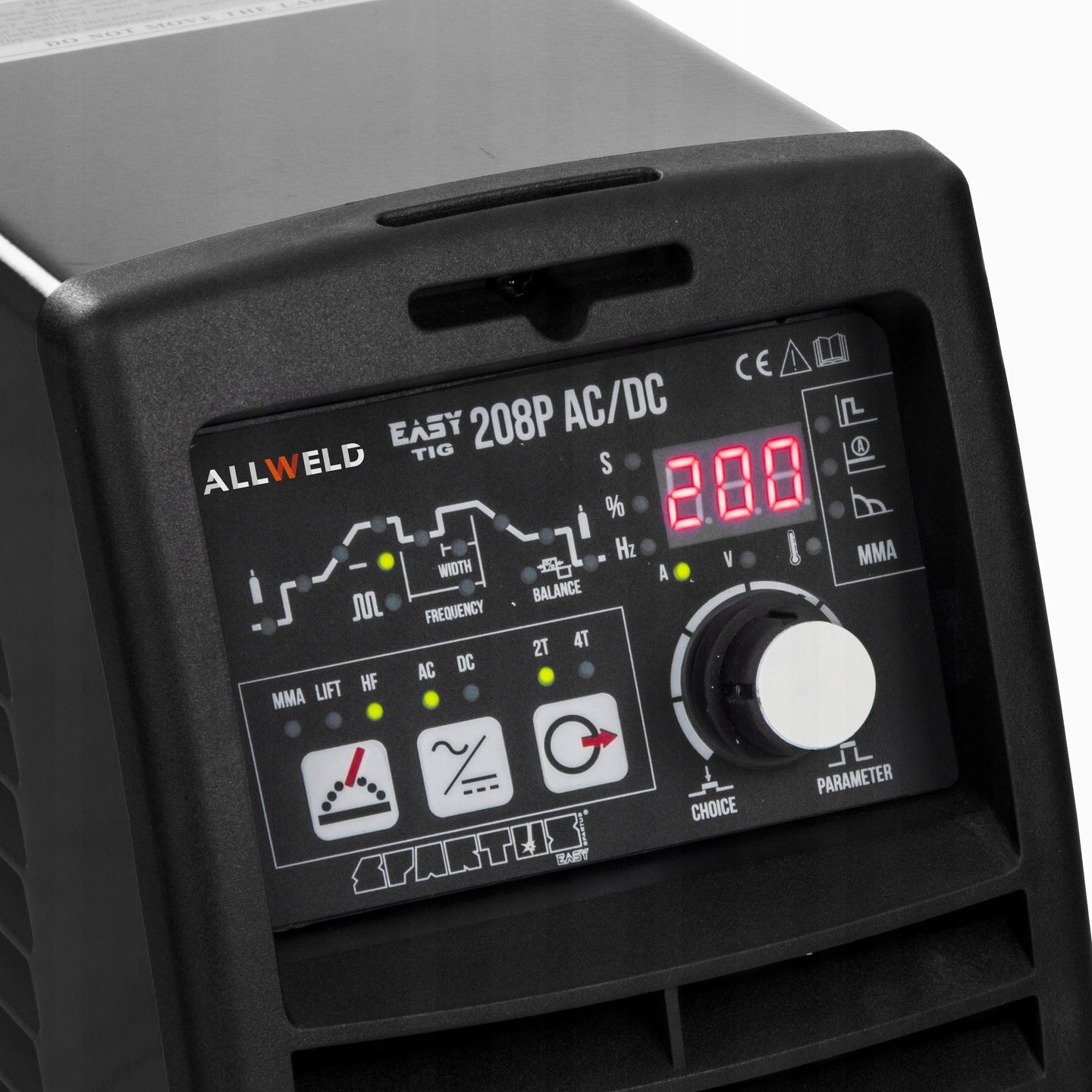

• Simple in operation control panel
• Adjusting the gas flow before and after welding
• Protection against overvoltage and overheating
• Regulation increase and outage
• Ideal for black steel, stainless steel, acid-resistant steel, aluminum and others
• ARC FORCE function
• HOT START function
• Optimal size and weight
• Made in IGBT technology
• Budget TIG with PULSE - excellent value for money and quality!

The device is used for welding using the TIG method of steel and non-ferrous metals (also aluminum and its alloys), but also allows welding using the MMA method. Welding current gives the possibility of obtaining 5mm melting at 40% efficiency. A great advantage of the device is the TIG welding options with PULSEM. Welding with pulse significantly reduces overheating of the material, reduces chipping giving very precise melting. Thanks to this function, the welder has higher control over the welding process, and the weld itself is narrower and prettier. Spartus from the EASYTIG series is a device that stands out on the market for its great price combined with excellent production quality. The welding machine gives us the possibility of welding with a maximum current of 200A with the option of PULS, in addition, the welding machine has functions supporting the welding process (base current regulation, pulse and pulse frequency), which in this class of devices is an undoubted advantage of this equipment. Easy to use and intuitive function panel allows for precise control of all the most important welding parameters for TIG and MMA methods. Welding machines are equipped with a number of modern technologies that support the work of the operator, stabilize the output parameters and protect the welding machine from damage.

CHECK OUT THE BENEFITS AND ADDITIONAL FEATURES

TIG PULS - limited heat transfer of the welded material thanks to the puls function (pulsing current) - both for DC and AC current welding - better weld quality

2T/4T - at two bars after pressing the start button, the welding process takes place after releasing the button, the welding process is stopped - at four bars after the first press and release of the button, the welding process stops at the second press.

IGBT - the welding machine uses modern transistors, a solution that provides a minimum of electromagnetic interference small power losses in basic systems, enabling increased efficiency and reliability of the power source.

HF IONIZER - contactless arch glow using high frequencies. Thanks to this technological solution, it is possible to eliminate weld contamination with tungsten.

ARC FORCE - a function that regulates the dynamics of the welding arc, stabilizes it regardless of its length, which affects the quality of welding.

HOT START - "hot start" - a function that makes it easier to start welding. At the moment of arcing, the welding current is temporarily increased in order to warm up the material and electrode at the point of contact and to properly shape the melt and weld face in the initial phase of welding.

PULS - a function that improves the quality of the weld regardless of the position, during welding two types of basic and pulsed welding current are produced.

OVERLOAD SWITCH -built-in protection against overheating of the device, prolonging its service life.

POWER SUPPLY PARAMETERS:

• Power supply voltage: 230V
• Number of phases: 1ph
• Power Current Frequency: 50Hz

TECHNICAL PARAMETERS:

• Welding current adjustment range: 10 - 200 A
• Pre-gas: 0 – 2s
• Power build-up time: 0 – 10s
• Power drop time: 0 – 10s
• Post-gas: 0 – 10s
• Pulse current: AC 5 – 200 DC 10 – 170A
• Base current: AC 5 – 200 DC 10 – 170A
• Pulse width: 5 – 95%
• Pulse frequency AC: 0,5 – 200Hz
• AC current frequency: 60Hz
• AC waveform: rectangular
• AC Balance: 10 – 99%
• Hot Start adjustment range: 0 – 10%
• Arc Force regulation range: 0 – 10%
• Idle voltage: 79V
• Efficiency η: 85%
• Power factor: 0,60cosφ

ADDITIONAL FUNCTIONS

• PULSE function: YES
• HF function: YES
• HOT START function: YES
• ARC FORCE function: YES
• ANTI STICK function: YES
• 2T/4T function: YES
• Remote control: YES
• Arc glow: YES

PHYSICAL PARAMETERS:

• Isolation class: H
• Degree of protection: IP21S
• Weight: 8,7kg
• Dimensions: 450x135x230mm

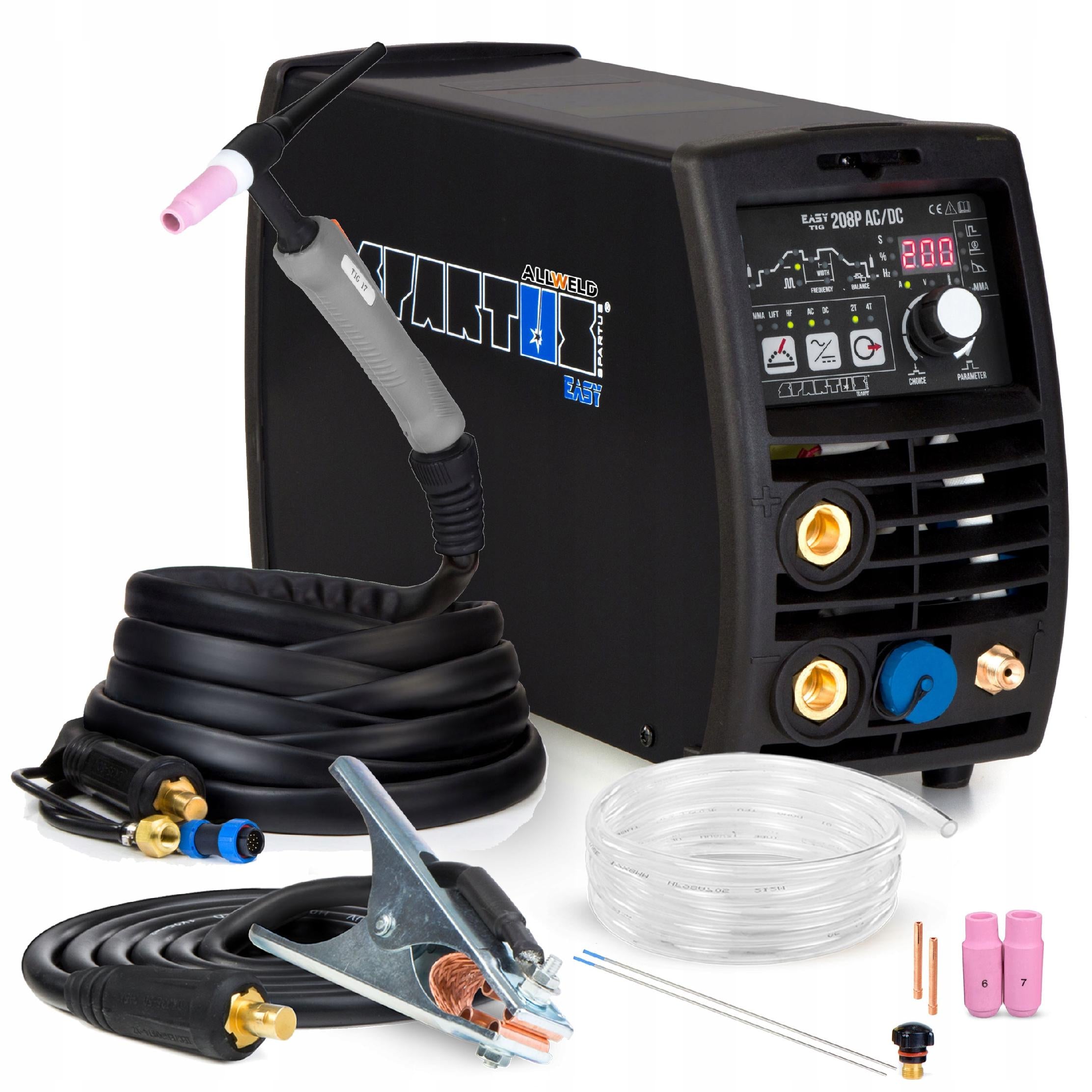

BY BUYING FROM US YOU GET

• Welding machine SPARTUS EASYTIG 208P AC DC
• TIG SPE 17 1B - 4m
• Bulk holder - 3m
• User manual in Polish

WELDING ACCESSORIES:

• Gas hose - 1pcs
• Operating elements of the handle

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Spartus
Parametry	Power consumption	3 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	35%
Parametry	Maximum electrode diameter	4 mm
Parametry	Device weight	8.7 kg
Parametry	Welding range	10–200 A
Parametry	Height	230 mm
Parametry	Length	450 mm
Parametry	Width	135 mm
Parametry	Length of ground cable	300 cm
Parametry	Welding cable length	400 cm
Parametry	Product weight with unit packaging	10 kg
Parametry	Manufacturer code	EASYTIG208PACDC-PAK-17-4
Parametry	EAN (GTIN)	5900391242308
Parametry	Packaging status	original
Parametry	Welding methods	MMA,TIG
Parametry	Additional features	infinitely adjustable welding current,LCD display
