Suvirinimo inverteris SPARTUS EASYTIG 200XP AC/DC TIG HF, aliuminiui, 8 m rankena

Trumpai apie prekę

Prekė: Suvirinimo inverteris SPARTUS EASYTIG 200XP AC/DC TIG HF, aliuminiui, 8 m rankena. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: Spartus
• Modelis: EasyTIG 200XP AC/DC

➡ COMPACT AND VERSATILE TIG AC/DC WELDING MACHINE WITH PULSE ⬅

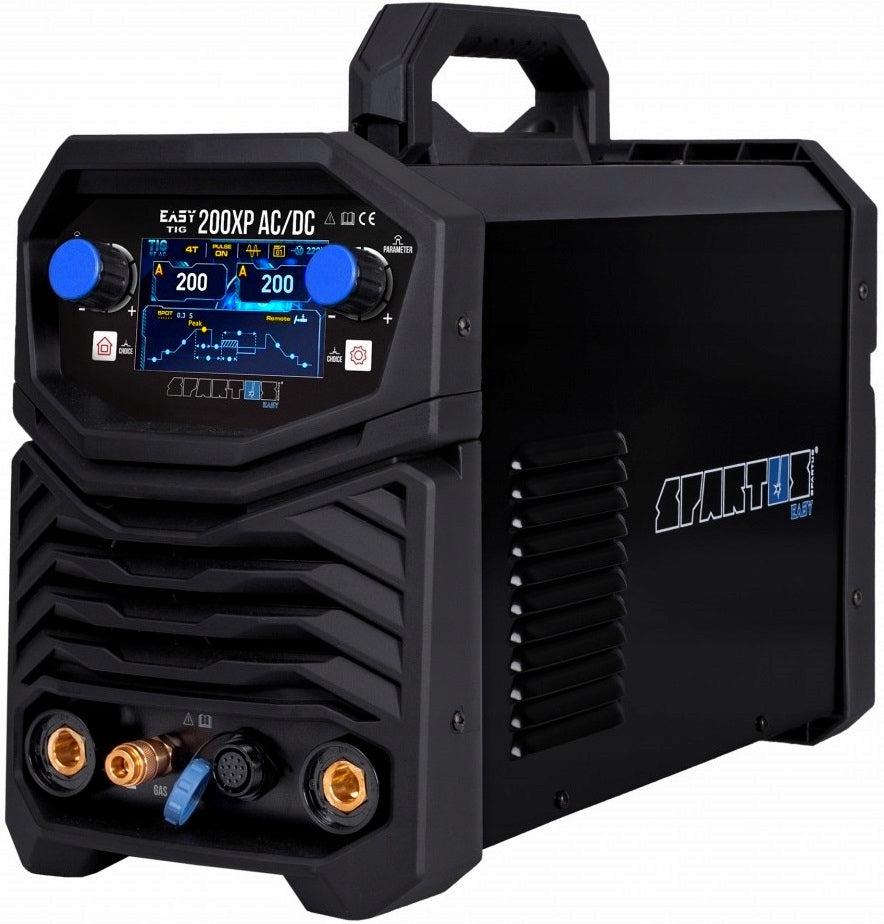

SPARTUS EASYTIG 200XP AC/DC

It is a professional inverter welding machine with a modern design. It enables welding with current up to 200A. It is powered from a single-phase 230V network. The welder has:

➡ TIG AC/DC - Welding with a non-melting electrode in an inert gas shield with the possibility of determining the arc TIG HF and TIG LIFT with direct current (DC) and variable (AC) a also in the following modes:

• TIG PULS - pulse welding.

➡ MMA - Direct current wrapped electrode (DC) and variable (AC).

THE WELDING MACHINE IS EQUIPPED WITH A PROFESSIONAL TIG SPE 17 HANDLE WITH A LENGTH OF 4 M, AS WELL AS A MASS HANDLE!

SPARTUS EASYTIG 200XP AC/DC provides excellent welding performance:

✔ aluminium and its alloys,

✔ non-alloy steel,

✔ low alloy steel,

✔ high-alloy steel,

✔ titanium,

✔ other weldable metals and alloys.

The welding machine is characterized by a wide range of applications, it is dedicated to all kinds of welding work in factories, industrial plants, locksmith workshops, repair workshops, etc.

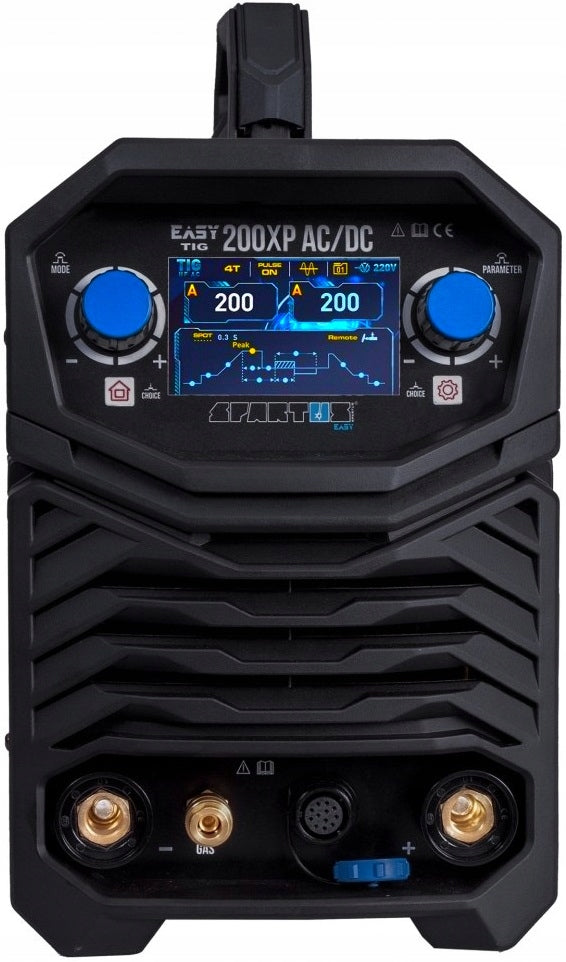

The SPARTUS EASYTIG 200XP AC/DC welder has a clear and easy-to-use function panel, which has m.in.:

1. Left knob: selection and adjustment of welding parameters.
2. Display of welding parameters.
3. Right knob: selection and adjustment of welding parameters.
4. Selection button for welding method, memory channel, brightness and reset.
5. Welding parameter adjustment button.

The device has 10 channels on which you can set and save your own welding parameters in the device memory.

✔ CHOICE OF AC WAVEFORM SHAPE: waveform adjustment allows for more precise impact on the weld (width, height, depth of melting)

• SQUARE - rectangular waveform of alternating current allows welding aluminum with the addition of magnesium,
• SINUS - sinusoidal waveform is recommended for welding pure aluminum 99,999%,
• TRIANGULAR - setting the triangular shape of the current wave is optimal for welding thin elements, including anodized aluminum.

✔ REGULATION balance, current frequency, pulse frequency,

✔ REGULATION time of descent and increase of current.

The TIG DC and TIG DC PULS functions are used for welding stainless steel, carbon and low alloy steels, copper and titanium. Welding is carried out in an inert gas shield. .

The TIG AC and TIG AC PULS functions allow welding of aluminium and its alloys and brass.

By adjusting the parameters of pulse welding TIG PULS we have an impact on the shape of the weld and the focus of the arc. Pulse welding also reduces the amount of heat supplied to the material and is applicable when welding thin materials.

The SPARTUS EASYTIG 200XP AC/DC also stands out thanks to its flexible control options, which provide convenience and adaptability in a variety of work environments. The device offers:

✔ Control in the handle using potentiometer - enable precise adjustment of welding parameters directly from the handle.

✔ Wired foot control - ideal for those seeking maximum comfort.

These advanced control options provide welders with not only the convenience but also the precision and efficiency they need to achieve the best results.

✔ REPAIR WORKSHOP

✔ LOCKSMITH WORKSHOP

✔ FACTORIES

✔ FARMS

✔ HOMEWORK

AND WHEREVER RELIABILITY MATTERS!

✔ TIG WELDING WITH PULSE - thanks to the regulation of pulsed welding parameters, we have an impact on the shape of the weld and the focus of the arc. Pulse welding also reduces the amount of heat supplied to the material and is applicable when welding very thin materials.

✔ SPOT WELDING - consists in making a small area of joining materials of small thickness. Most often, spot welding of sheet metal is carried out. This procedure is also referred to as one-sided welding.

✔ MEMORY CHANNELS - The welding machine is equipped with an advanced memory system that allows you to save up to 10 various welding configurations. This feature allows welders to quickly and easily switch between different settings, ideally suited to the specifics of working on a variety of materials and in different environments.

✔ POST GAS - regulation of gas outflow time after welding arc extinction. This is a helpful feature to cover the welding lake. The lack of additional gas shielding may result in oxidation of the weld.

✔ PRE GAS - gas outflow before arcing. Protects the lake from the harmful effects of atmospheric air. Regulation expressed in seconds.

✔ TWO-BAR 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow.

✔ FOUR-BAR 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow.

✔ HOT START - regulation of hot start - facilitates the ignition of the electrode by providing more welding current with each arc.

✔ ARC FORCE - is a function that facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from extinguishing when the drop of electrode contacts the welding lake.

✔ INVERTER TECHNOLOGY IGBT - is a modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has the effect of significantly extending the reliable operation of welding equipment.

✔ EASE OF USE - the welding machine is equipped with an easy-to-use control panel, so it can be used even by amateurs.

✔ WORK IN INDUSTRY - thanks to its high quality and multifunctionality, the device can be used in professional and industrial work.

➡ The device is equipped with overload protection, which increases its reliability.

❄ The device has a cooling system, which significantly increases its efficiency.

⏩ GENERAL PARAMETERS:

• Power supply: ~1× 230V ± 10% 50 / 60 Hz
• Working cycle: 35%

⏩ PARAMERTY TIG:

• Pre-gas: 0 – 10 s
• Power rise/fall time: 0 – 5 s
• Post-gas: 0.1 – 10 s
• Pulse current / base: 10 – 200 A
• Pulse width: 5 – 100 %
• Pulse frequency: 0.5 – 200 Hz
• AC current frequency: 20 – 250 Hz
• AC balance: 20 – 80 %
• AC/DC welding current: 10 – 200 / 10 – 200 A
• AC/DC current consumption: 36 A
• Idle voltage: 68 V

⏩ PARAMERTY MMA:

• Welding current: 10 - 200 A
• Idle voltage: 68 V
• AC/DC MMA power consumption: 43 A
• Arc Force regulation range: 0 – 10
• Hot Start adjustment range: 0 – 10

⏩ OTHER:

• Weight: 11 kg
• Degree of protection: IP21S
• Dimensions: 490 × 225 × 340 mm
• Power factor (cosφ): 0.73
• Efficiency η: 85%
• Isolation class: H

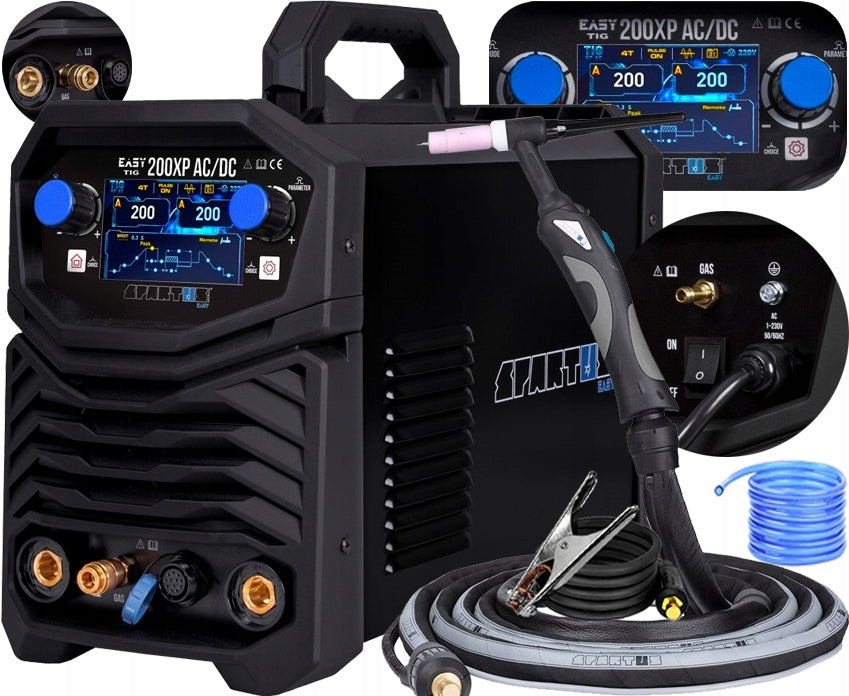

• INVERTER WELDER SPARTUS EASYTIG 200XP AC/DC - 1 pc.
• WELDING HANDLE TIG SPE 17 1B - 8m - 1 pc.
• MASS HANDLE - 1pcs.
• SET OF CONSUMABLE PARTS
• INSTRUCTION FOR in Polish
• GAS HOSE

SET OF 15 TIG AC/DC

M.
