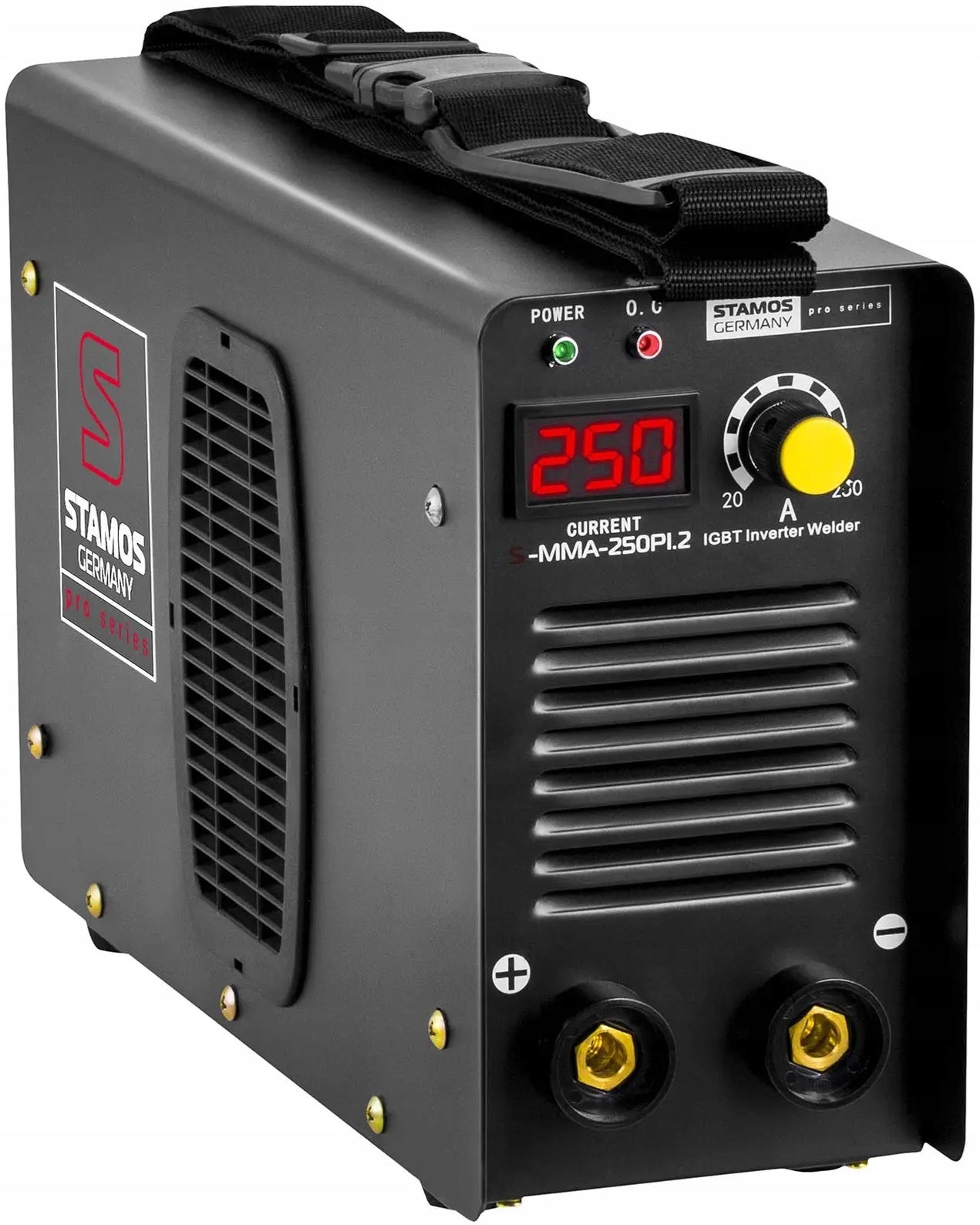

Suvirinimo inverteris STAMOS S-MMA-250PI.2, 250 A, 230 V, IGBT

Trumpai apie prekę

Prekė: Suvirinimo inverteris STAMOS S-MMA-250PI.2, 250 A, 230 V, IGBT. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: Stamos
• Modelis: S-MMA-250PI.2

✅ Brand Model: ROYAL catering - S-MMA-250PI.2

✅ Catalog No.: 10020228

✅ CE Certificate / Certificate: Yes

➡ Technical data:

⭐ Voltage [V]: 230

⭐ Degree of protection IP: IP21

⭐ Fuse: C32A

⭐ Efficiency [%]: 80

⭐ Working cycle [%]: 60

⭐ Input power [kVA]: 7,8

⭐ Power factor: 0,93

⭐ Maximum input current [A]: 9,9

⭐ Insulation class: F

⭐ Maximum input current [A]: 43

⭐ Maximum welding current [A]: 250

⭐ Minimum welding current [A]: 20

⭐ Rated input current [A]: 34

⭐ ARC Force: No

⭐ Anti-Stick: No

⭐ Hot Start: Yes

⭐ MMA cable: 8 m

➡ Technical data:

⭐ Grounding cable: 8 m

⭐ Dimensions (LxWxH): 35 x 12.5 x 22.5 cm

⭐ Weight: 7.94 kg

⭐ Shipping dimensions (LxWxH): 44 x 26 x 30 cm

⭐ Shipping weight: 9.6 kg

⭐ High efficiency: welding current up to 250 A is also suitable for thick electrodes up to Ø5 mm

⭐ Maximum freedom of movement: 8-meter wires with MMA handle and grounding will facilitate welding of large and distant objects

⭐ Optimal control: large LED display and precise knob ensure accurate settings

⭐ Modern technology: IGBT inverter ensures high welding quality and compact design

⭐ Exceptional mobility: small weight of only 4,8 kg and carrying strap for easy transport

Looking for an efficient, safe and mobile welding machine?

Then rely on the MMA welding machine S-MMA-250PI.2 by Stamos Germany. With a welding current of 250 A, you can also easily use electrodes up to 5 mm in diameter. Air cooling and overheating protection will ensure the reliability of the device. And thanks to the extra-long 8-meter wire, you will be comfortable and safe to weld on a ladder or large objects. Carrying strap and light weight of 4,8 kg will allow you to move the machine comfortably.

With the MMA handle, you can weld electrodes up to 5 mm in diameter.

The MMA welding machine can easily handle steel, iron, cast iron, nickel or copper with a thickness of 1,5 - 10 mm. Thanks to the Hot Start function, the electrodes will not stick during arcing. As a result, you will get clean welds from the very beginning. Do you want to weld constantly? Then reduce the welding current to still an impressive level of 194 A. With a maximum power of 250 A, you will achieve a duty cycle of 60%. You can check the parameters using a practical control panel with LED display. You can use the handy knob even with welding gloves.

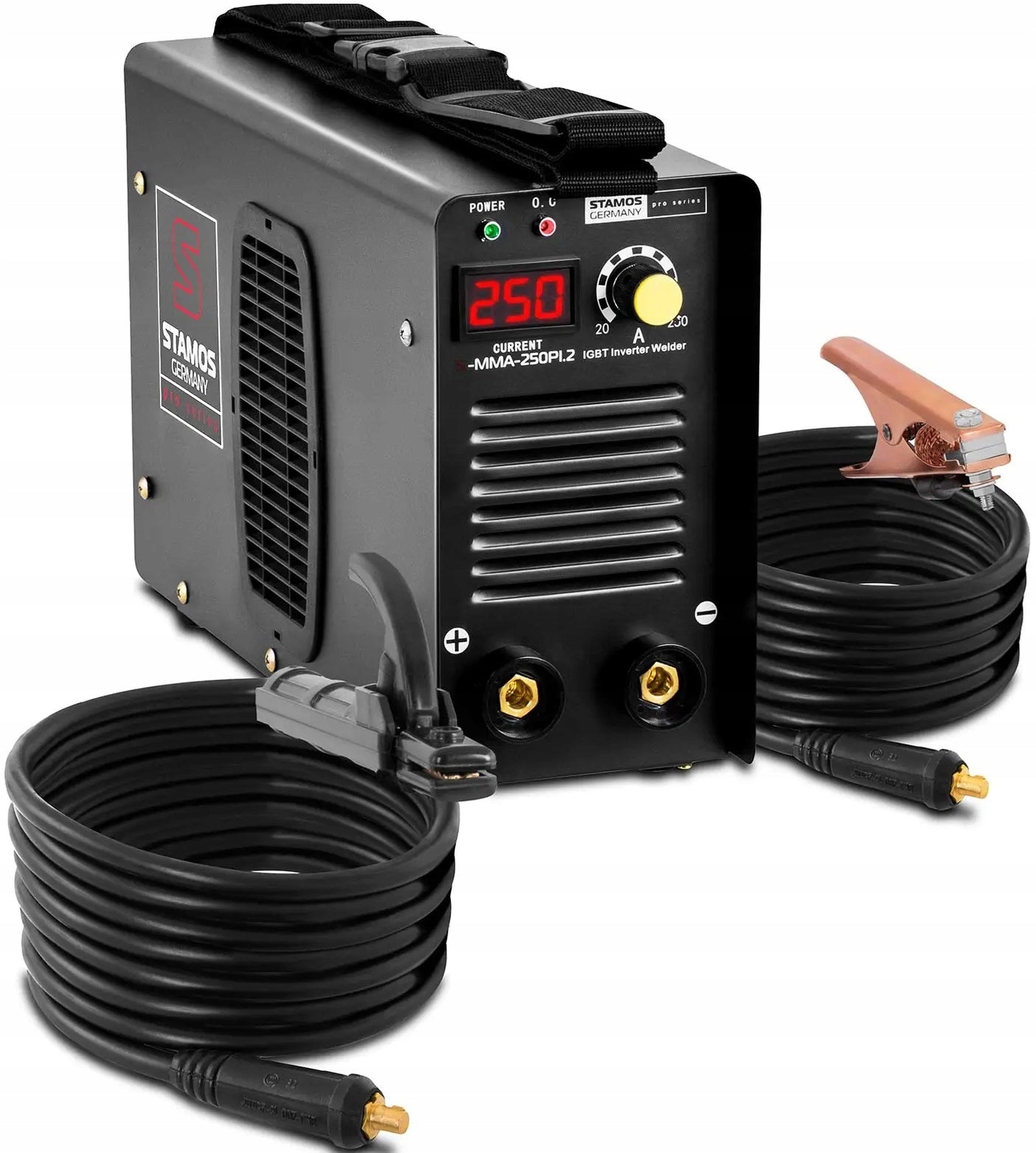

Scope of delivery:

⭐ S-MMA-250PI.2 MMA welding machine

⭐ cable with MMA handle (8 m)

⭐ ground wire (8 m)

⭐ power cord (2 m)

⭐ instruction manual

⭐ packaging

This product is also ideal for a gift.
