Suvirinimo inverteris su LCD ekranu, MMA, IGBT, Hot Start funkcija ir kauke

Trumpai apie prekę

Prekė: Suvirinimo inverteris su LCD ekranu, MMA, IGBT, Hot Start funkcija ir kauke. Kategorija: Invertoriniai suvirinimo aparatai.

• Gamintojas: RED TECHNIC
• Modelis: RTSIT0153

140A | MMA | MASK AND HAMMER WITH BRUSH

Model: RTSIT0153

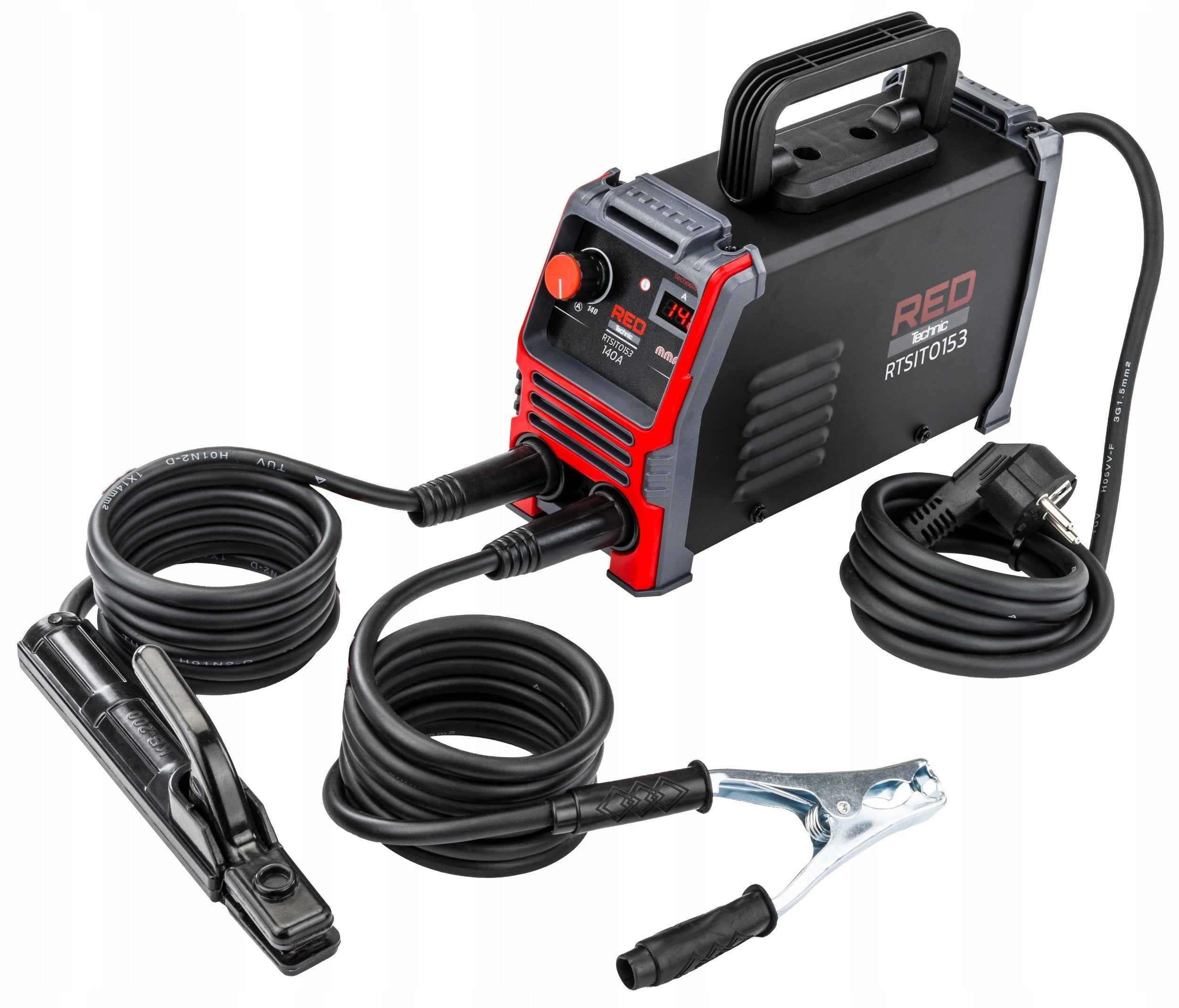

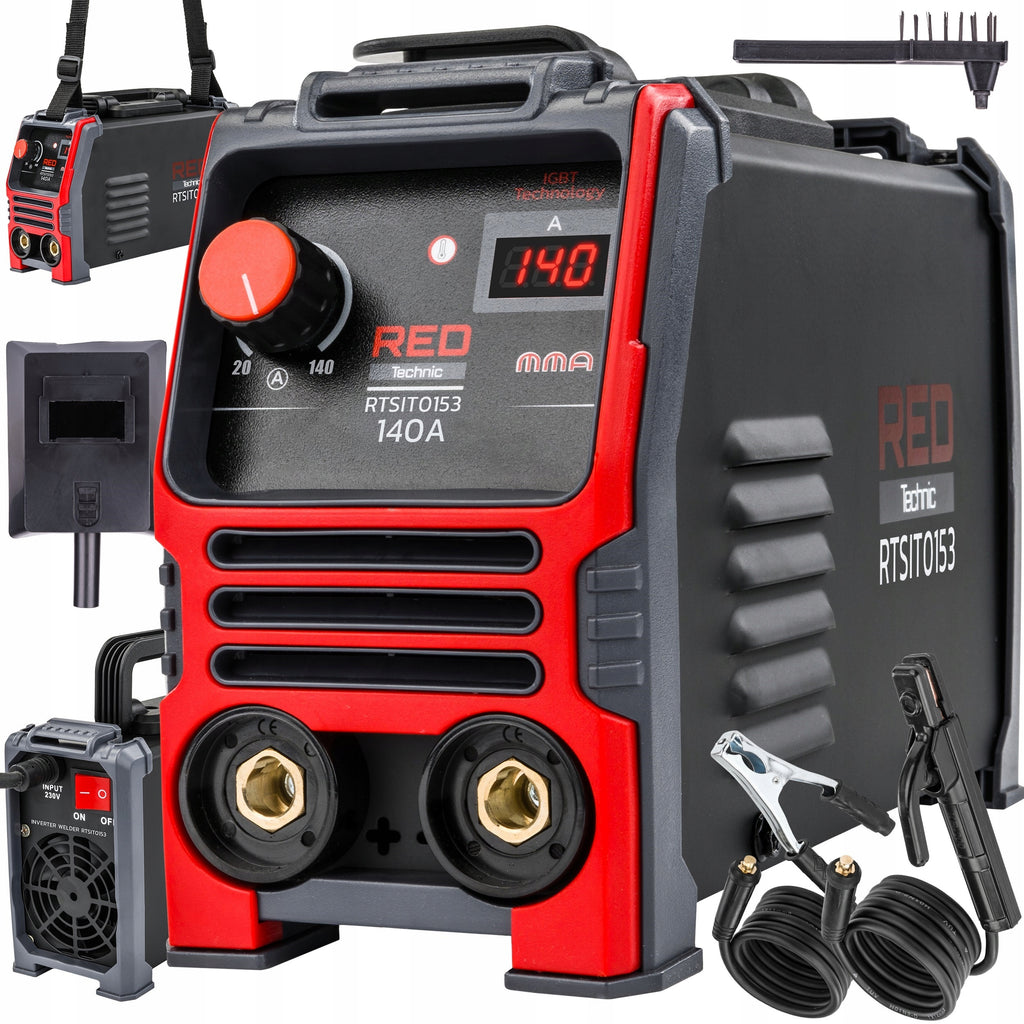

The compact and lightweight RTSIT0153 inverter welding machine is the perfect combination of mobility, safety and advanced technology. Thanks to modern IGBT transistors, the device offers a wide range of welding current (20 – 140A), supporting electrodes from 1,6 mm to 4 mm, and HOT START, ANTI STICK and ARC FORCE functions facilitate work and increase precision. Featuring a clear LCD display, thermal sensor, and VRD system, it provides complete safety and control. High efficiency (60%), low weight (2,1 kg) and comfortable strap make it an excellent choice for both professionals and DIYers.

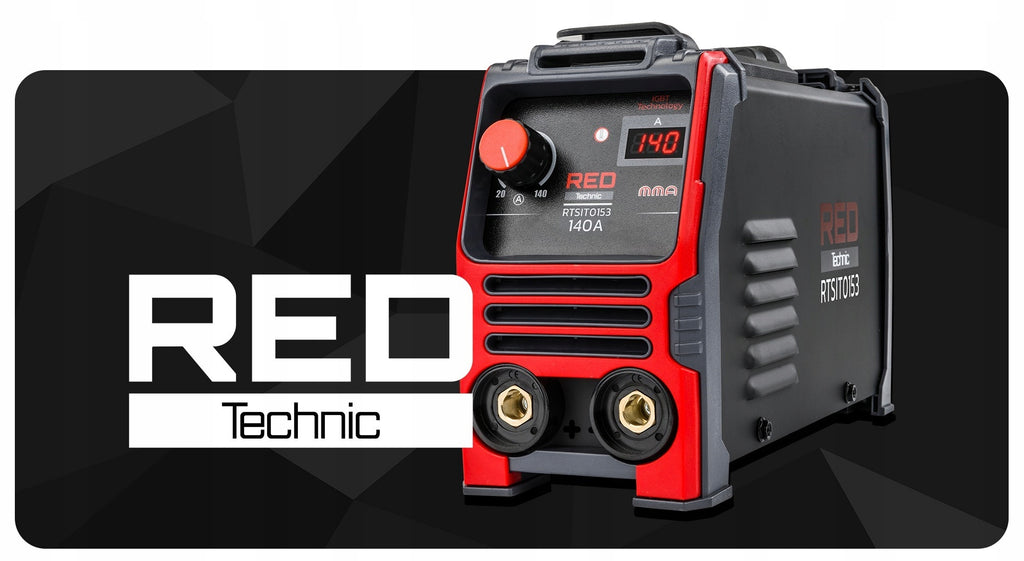

⚫ RED TECHNIC - INNOVATION AND RELIABILITY IN ONE

🔴 TECHNICAL DATA

• Welding method: MMA
• Power supply: 230 V / 50 Hz
• Power consumption: 5,8 kVA
• Welding current range: 20 - 140 [A]
• Welding current, 100% duty cycle: 108 A
• Rated duty cycle: 60 %
• Electrode wire diameter: 1,6 - 4 mm
• Insulation class: F
• Degree of protection: IP21S
• Weight of the device: 2.1 kg

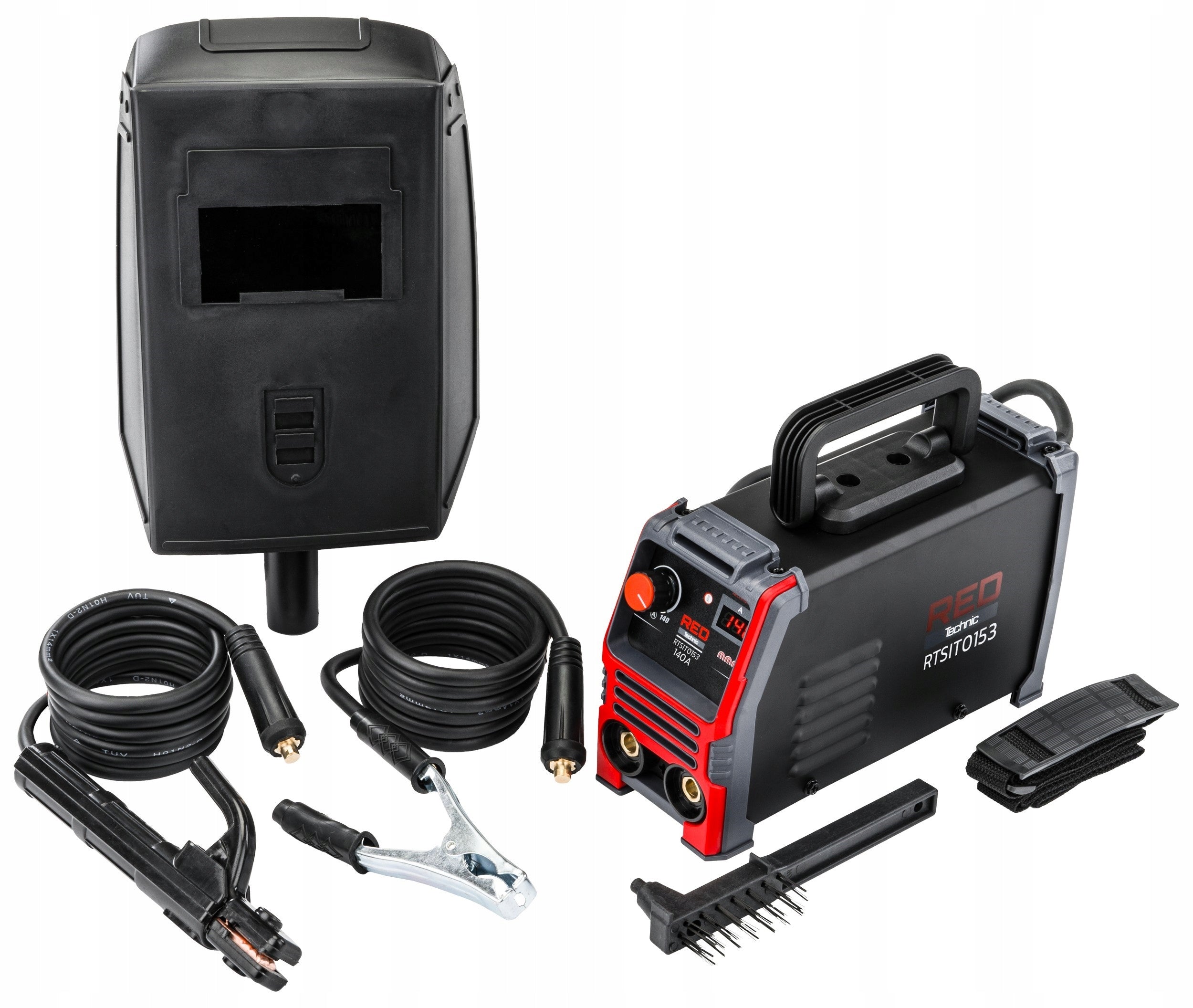

🔴 CONTENTS OF THE SET

• Welding machine RED TECHNIC
• Strap

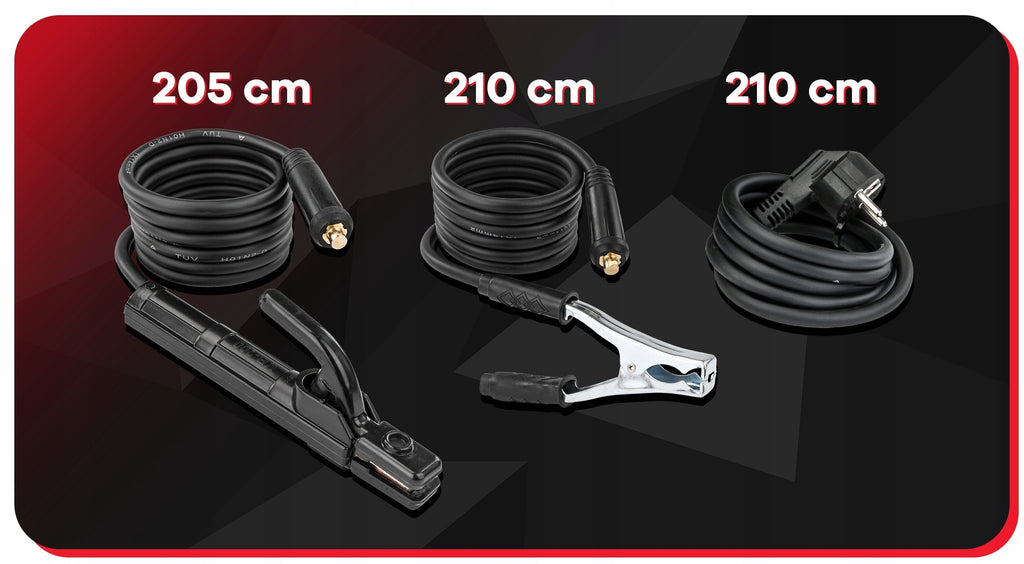

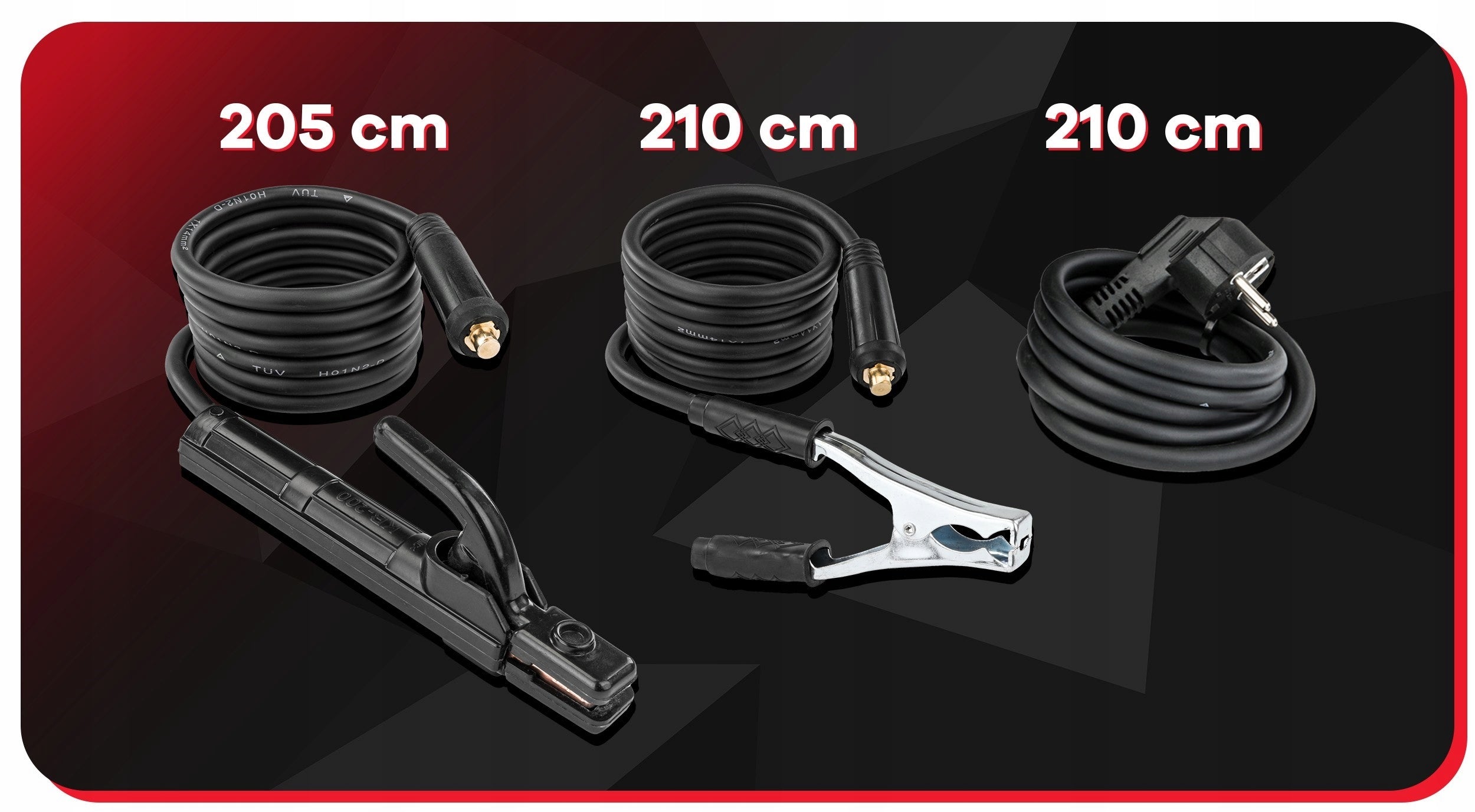

• Bulk cable
• Welding cable
• MMA electrode holder (+): plug diameter 9 mm 16-25
• Welding mask
• Hammer with brush
• Original packaging
• User manual in Polish

🚩 HOT START

Temporary increase of the welding current facilitates arcing and prevents the electrode from sticking to the material.

🚩 ANTI STICK

A function that minimizes voltage and current in the event of a short circuit, allowing the electrode to be easily detached.

🚩 ARC FORCE

Automatic arc stabilizing adjustment, allows welding with different depth of melt, depending on your needs.

🚩 VRD (Voltage Reduction Device)

Safety first! The voltage reduction system turns off the power supply after welding, ensuring a safe voltage level on the electrode.Welding current 20-140A: A wide current range allows welding with an electrode with a diameter of 1,6 mm to 4 mm.

🚩 Advanced IGBT transistor

It combines the advantages of ease of control and high voltage of puncture and switching speed.

🚩 Compact and lightweight

The weight of only 2,1 kg makes the welding machine extremely handy.

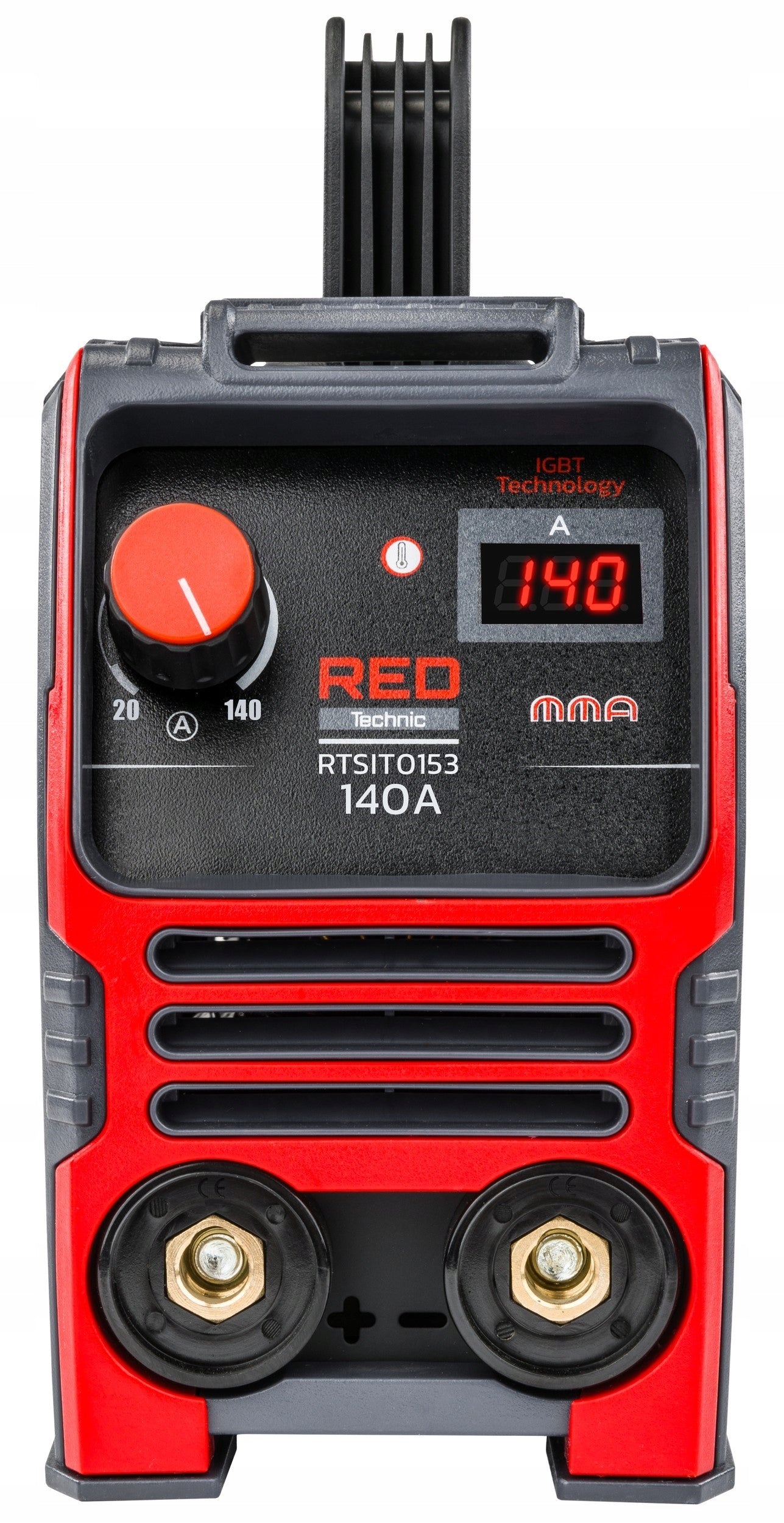

🚩 Easy to read LCD display

Current welding current visible on a clear display - easy to set parameters.

🔴 VERSATILITY AND QUALITY

The RTSIT0153 is an inverter welding machine based on efficient IGBT transistors. It is equipped with a readable LCD display indicating the current welding current set by buttons. The welder is equipped with wcooling fan electronic systems and other components, as well as a thermal sensor to protect the device from overheating.

🚩 MODERN FUNCTIONS SUPPORTING WELDING

HOT START: Temporary current raising for easy arcing.

ANTI STICK: Prevents the electrode from sticking to the material.

ARC FORCE: Stabilizes the arc and allows welding with different depths of melt.

VRD is a voltage reduction system whose task is to turn off the power supply within a few milliseconds after welding. This function is also responsible for reducing the voltage on the wrapped electrode to a safe level. The VRD function turns the welding power on and off when the electrical resistance between the electrode and the welded element measured during operation is the appropriate level. When the device is not working, VRD automatically reduces the secondary circuit voltage between the welding tips from 105 V to 14-24 V (this takes several milliseconds).

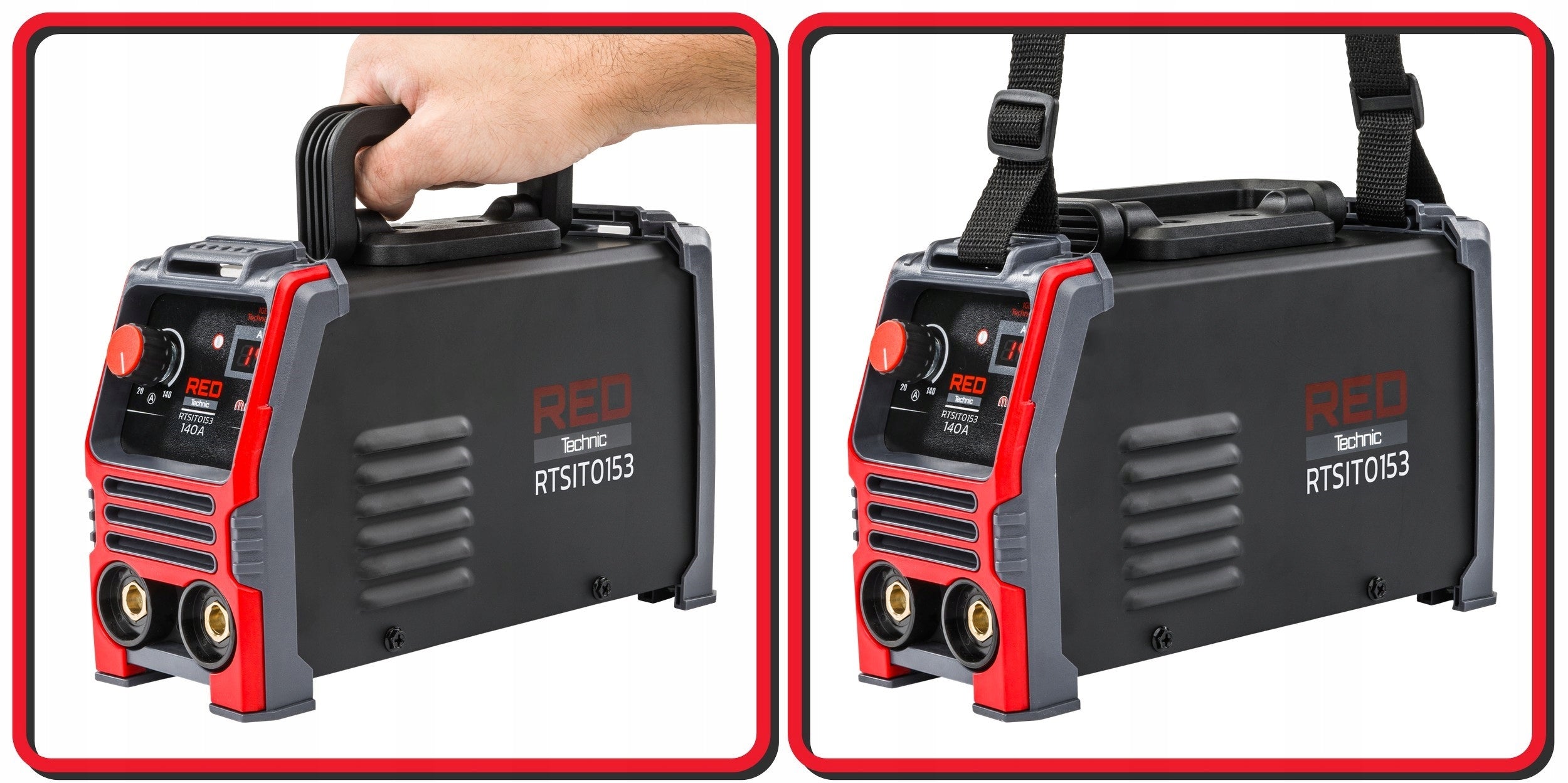

🔴 MOBILITY OF THE DEVICE

The weight of the welding machine is only 2,1kg making it very handy.

Thanks to the use of a large fan in a small welding machine housing, increased air flow, which reduced the temperature of the transistors.

The efficiency of the device is as much as 60%.

The strap definitely makes it easier to work with the welding machine making it more handy.

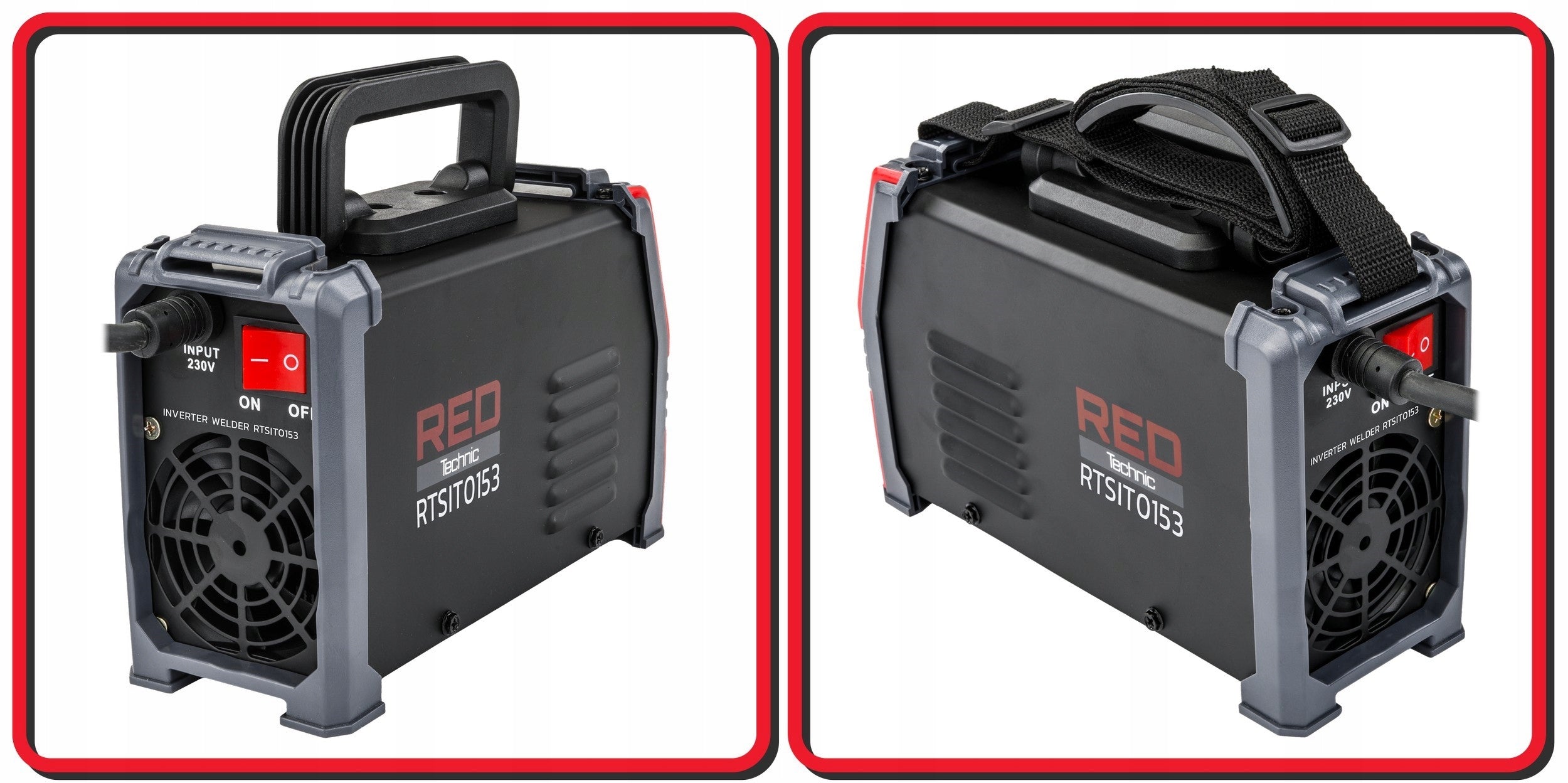

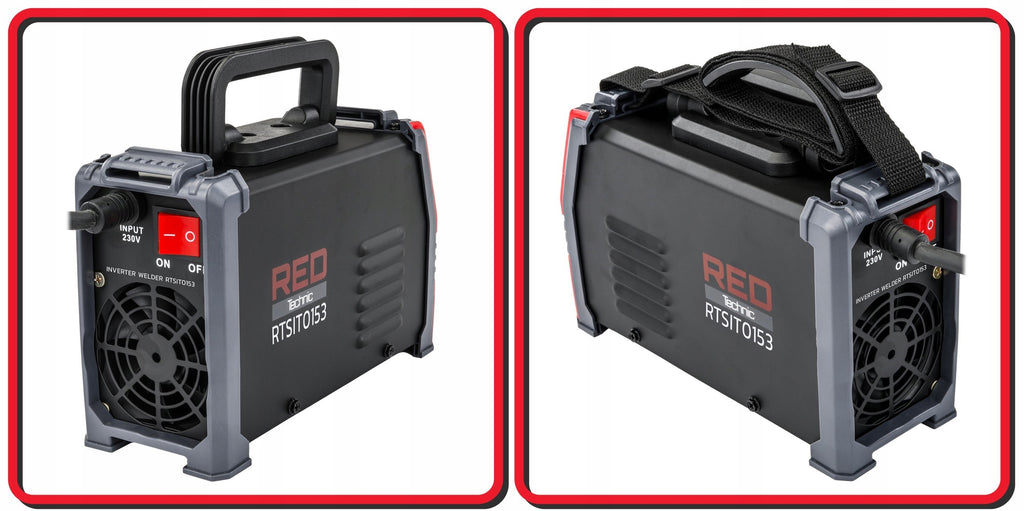

🔴 BUILT-IN 2,9'' FAN

Thanks to the massive bearing fan the machine will be cooled very quickly in case of thermal overload.

🔴 COMPACT DESIGN

The device welds current from 20 to 140A, allows welding with an electrode with a diameter of 1,6 mm to 4 mm.

The IGBT transistor combines the advantages of two types of transistors the ease of control of field transistors and the high breakdown voltage and switching speed of bipolar transistors. Welding with a 1,6 mm electrode is already possible using a Class C 16A instantaneous fuse. Operation at a maximum current of 140A requires protection of at least 20A.

🔴 LATEST GENERATION IGBT PICKUPS

⚫ The distinguishing feature of this welding machine from competing machines are the latest generation of IGBT transducers, which ensure low weight of the device and high reliability.

⚫ High-end IGBT transistors used in the converter allow for

🔴 MMA welding

Arc welding with a wrapped electrode is also called the MMA (Manual Arc Welding) method and it is the oldest and most versatile method of arc welding.

In the MMA method, a wrapped electrode is used, which consists of a metal core covered with a compressed sheath. An electric arc is produced between the end of the electrode and the welded material. The arc glow is contact by touching the end of the electrode to the welded material. The electrode melts and drops of molten metal electrodes are transferred through the arc to a liquid lake of welded metal forming a weld after cooling. The welder pushes the electrode as it melts into the welded object to maintain a constant-length arc and at the same time moves its melting end along the welding line. The melting sheath of the electrode emits gases that protect the liquid metal from the influence of the atmosphere and then solidifies and forms a slag on the surface of the lake, which protects the solidifying metal of the weld from the influence of the environment. After moving the electrode away from the welded object, the electric arc stops and the welding process is interrupted. After laying one stitch, the slag should be mechanically removed.

The main difference from other welding methods is that in the MMA method the electrode is shortened. In the TIG and MIG/MAG method, the length of the electrode remains unchanged at all times and the distance between the handle and the welded element is constant at all times. In the MMA method, in order to maintain a constant distance between the electrode and the welding lake, the electrode holder must be moved towards the welded element at all times, which means that the welder's skills play a special role.

Following technological progress and cooperation with innovative factories invested in modern solutions for the future needs of the 21st century, we present the RED TECHNIC brand. Our products are not only distinguished by modern designm, but also combine minimalism with solid quality, offering attractive quality-price ratio. To meet practical needs with ease of use, we encourage you to take a closer look at the RED TECHNIC brand and make an informed choice. Discover innovation, design and reliability in one – choose RED TECHNIC as your partner in technological exploration for the future!

⚙ RELIABILITY OF POLISH QUALITY: The RED TECHNIC welding machine is not only a tool, it is a guarantee of reliability, precision and attention to detail – features that distinguish our welding machine on the market. Invest in confidence by choosing a product from a Polish manufacturer!

💰 BEST VALUE FOR MONEY: By choosing RED TECHNIC, you invest wisely! Our tool offers the highest quality without overpaying. It is an ideal choice for any customer who values high quality but also wants to save.

👷 ♂ PERFECT DESIGN FOR PROFESSIONALS AND HOBBYISTS: Advanced design for Professionals and Hobbyists: Whether you are a professional with high demands or a hobbyist who values reliability – our welding machine will certainly meet your expectations. It is precisely designed to meet a variety of needs.

🔧 FULL WARRANTY AND POST-WARRANTY SERVICE: By choosing RED TECHNIC, you will gain access to a comprehensive service that will take care of your needs at every stage. We guarantee support when needed, providing you with peace of mind and confidence.

🛠 EASY ACCESS TO PARTS AND COMPONENTS: With RED TECHNIC, maintenance and repairs become easy and convenient. We guarantee instant access to all parts and components, eliminating unnecessary delays. With us your tool will always be ready for action.

💪 SATISFACTION GUARANTEE: We are confident that our welding machine will meet your expectations.
