Suvirinimo inverteris TIG MAGNUM THF 220S ACDC PULS

Trumpai apie prekę

Prekė: Suvirinimo inverteris TIG MAGNUM THF 220S ACDC PULS. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: THF220 ACDCPULS - HRSX1

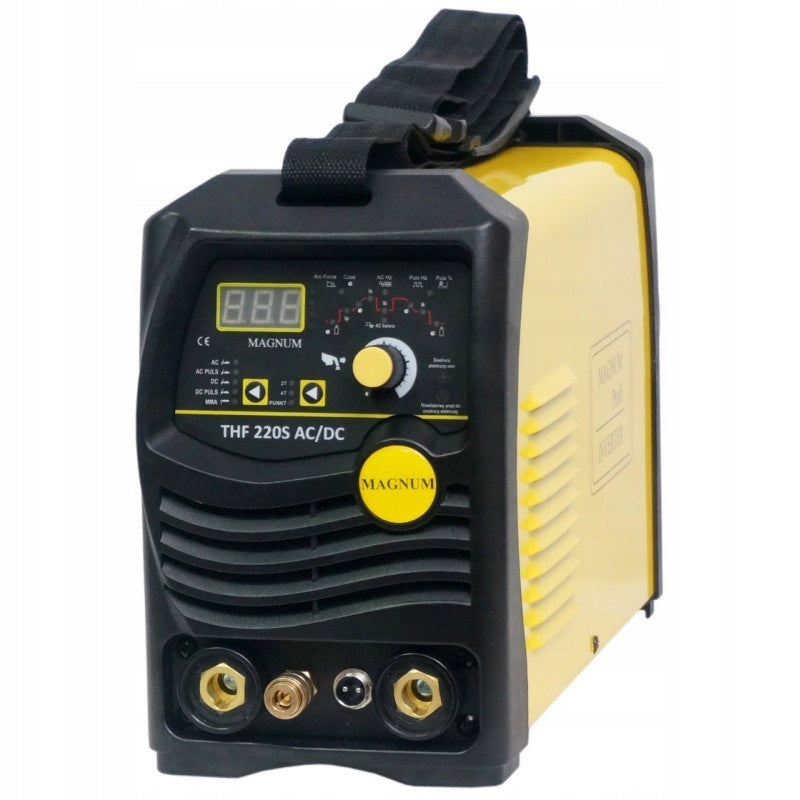

MAGNUM TIG THF 220S AC/DC is an inverter lightweight welding machine designed for TIG HF welding with DC and AC alternating current. The device is powered from a single-phase network of 230V 50Hz, has a maximum welding current of 200A.

The device also allows welding with wrapped electrodes (MMA) of various materials made of carbon and alloy steels, brass, copper and cast iron.

The welding machine is designed for all kinds of welding work in locksmith workshops, repair workshops, etc.

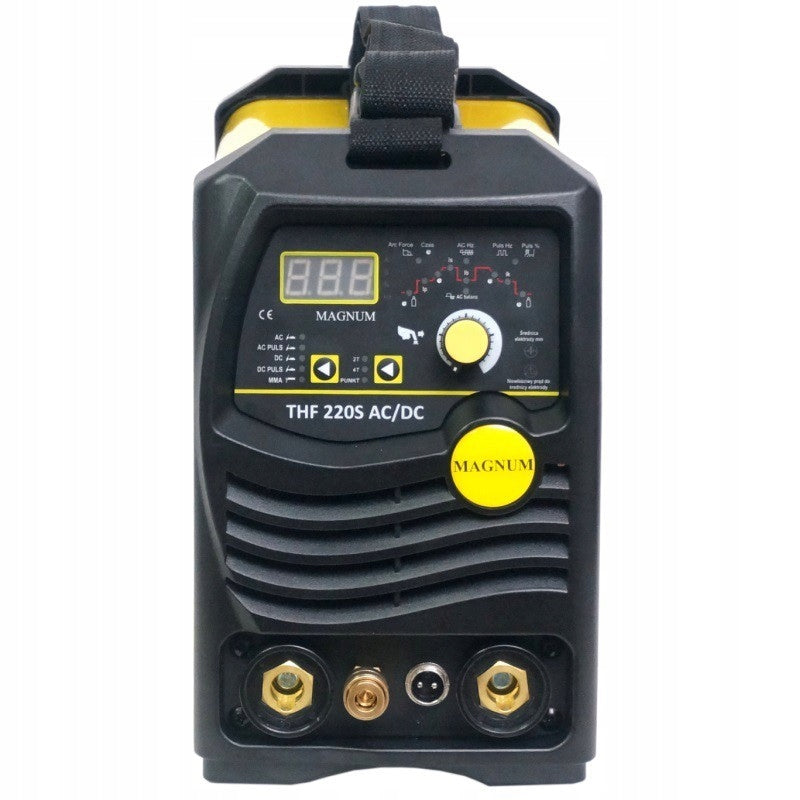

The devices are equipped with a "soft" transparent panel that allows you to set all the necessary welding functions (start/fill current of the crater/welding/base, current rise and fall times, gas outflow before and after welding, pulse frequency, balance, etc. ).

The power source was built on the basis of the latest technology using IGBT transistors, which translates into reduced electromagnetic interference, low power losses, increased efficiency and reliability of the power source and lower energy consumption.

The device has a function - illumination of the electrode diameter

- for TIG method: 1,0 - 3,2 mm

- for MMA method: 1,6 - 4,0 mm

The choice of diameter does not force any parameters, only suggests by illuminating the indicator light - the wrong current to the diameter of the electrode, informs us that the value of the welding current is too low or too high for a given diameter of the electrode.

FUNCTIONS OF THE DEVICE:

✅ MMA welding, TIG AC/DC

✅ AC wave digital processing

✅ PULSE frequency AC 20 - 250 Hz (increased arc focus)

✅ PULSE frequency DC 0,2 - 200 Hz

✅ 2T/4T function

✅ pulse function

✅ arc force function

✅ spot welding

TECHNICAL DATA:

• Power supply: 230 V / 50 [Hz]
• TIG welding current: 5 - 200 [A]
• MMA welding current: 20 - 160 [A]
• Efficiency: 60 [%]
• TIG arc glow: contactless
• Electrode diameter range: 1,6 - 3,25
• Protection: 25 [A] (type C)
• Idle voltage: 67 [V]
• Protection class IP21
• Weight: 9 [kg]

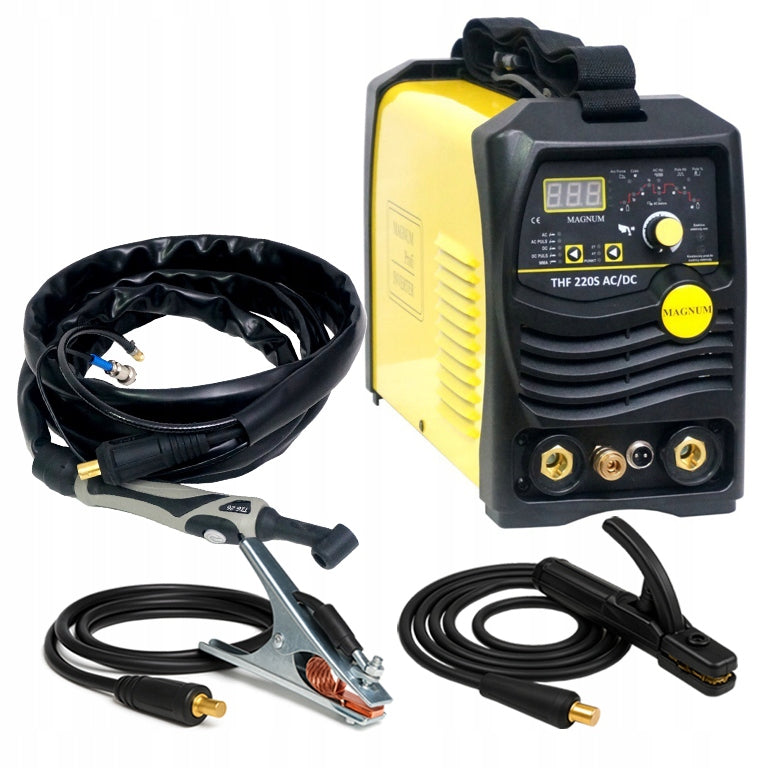

SET INCLUDES:

➡ Welding device,

➡ TIG working cable,

➡ MMA working cable,

➡ Mass cable with clamp

➡ User manual.
